PR6423/010-000 CON021

/ 4.9
1001 reviews | Need a Specific Revision?

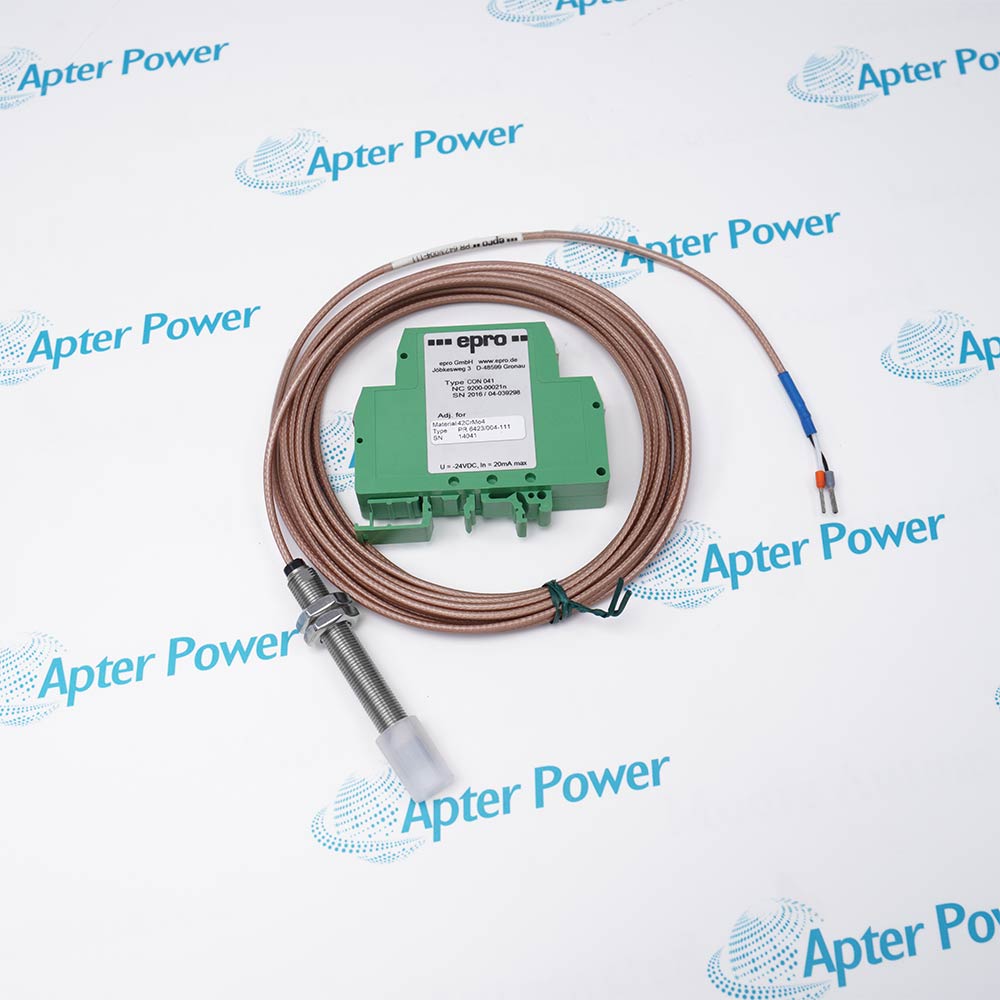

Emerson PR6423/010-000 CON021 uses a 25 mm M10×1 probe, armored 4 m LEMO lead, adapter plug and CON021 converter.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for PR6423/010-000 CON021
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PR6423/010-000 CON021

  • Manufacturer:
    Emerson
  • Part Number:
    PR6423/010-000 CON021
  • Product Family:
    Epro
  • Product Type:
    Armored 8 mm Eddy Current Sensor with Panel Converter
  • Stock:
    1
  • Probe thread and body:
    M10×1; 25 mm
  • Cable construction:
    Armored
  • Adapter plug:
    With
  • Probe lead:
    4 m; LEMO
  • Converter:
    CON021
  • Linear range:
    2 mm
  • Protection class:
    IP66
  • Weight:
    0.36 kg
  • Estimated shipping dimensions:
    20x20x4cm
  • Tariff Code:
    9031809090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Shallow Mount Armored Junction Nearby Probes Product Applications

Features:

  • Compact body: 25 mm M10×1 case fits shallow mounting positions.
  • Armored lead: provides added mechanical protection over the 4 m route.
  • LEMO conversion: connects the protected lead to CON021.
The 010 configuration combines the short 25 mm probe body with an armored lead.

The 000 suffix identifies adapter plug, 4 m length and LEMO connector.

Cable support and probe rigidity are evaluated together because the armor must not transfer movement into the measurement point.

Apter Power supports Emerson PR6423/010-000 CON021 Armored 8 mm Eddy Current Sensor with Panel Converter quotations, technical documentation, procurement support and system-matching guidance.
Emerson PR6423/010-000 CON021 Armored 8 mm Eddy Current Sensor with Panel Converter Manuals,Datasheets,Link Important Notice: Apter Power provides these resources for exact-model documentation, quotation and engineering review.
  • Compact insertion: the 25 mm M10×1 body is suited to a short mounting depth, where thread engagement and final gap adjustment must coexist.
  • Tip environment: the 8 mm head still needs Emerson’s 45° clear sector; a compact bracket does not relax the sensing-space requirement.
  • Facing angle: axial tilt below 2° helps separate real shaft movement from mounting geometry.
  • Armor load: the heavier protected lead should be supported independently so it does not shift the short probe body.
  • Protected run: the 010 body code selects cable armor, offering mechanical protection where the 4 m route is exposed.
  • Adapter point: this 000 configuration also includes an adapter plug; Emerson calls for a shrink sleeve over the mated joint.
  • Converter end: a LEMO plug connects the completed lead to the CON021 front socket.
  • Mechanical separation: route support belongs on the armor, not the probe or connector, so cable movement is less likely to disturb the sensing position.
  • Close pairs: Emerson notes that two PR6423 chains mounted near one another can influence each other and distort the reading.
  • Spacing basis: its guide calculates separation from the 8 mm head diameter, with different factors for equal and shifted oscillator frequencies.
  • Apparent noise: unexpected signal behaviour on a paired shaft installation may be mutual influence rather than a defect in this armored cable.
  • Frequency change: an oscillator adjustment changes the calibrated chain and calls for recalibration by the appropriate engineering service.
  • Shallow brackets: uses the compact 25 mm sensor body.
  • Protected routing: adds armor where the cable is exposed to mechanical contact.
  • Rotating machinery: measures shaft vibration or position without contact.
  • Local converters: terminates the 4 m lead at a CON021 panel module.
Description
PR6423/010-000 CON021 is the compact 25 mm M10×1 PR6423 configuration with an armored cable, adapter plug, 4 m total lead and LEMO connector.

The short body supports restricted mounting depth while the armor provides mechanical protection along exposed routing. The matched CON021 converter supplies PR6423/010-000 CON021 and conditions the signal for vibration, position or speed-related monitoring.

During PR6423/010-000 CON021 installation, verify that the armor does not impose bending force on the short probe body and that the 4 m route reaches the converter without extension. Set the operating gap only after the connector and cable are secured.
Alternative Names
PR6423010000CON021 PR6423 010 000 CON021 PR6423-010-000 CON021 PR6423/010-000-CON021 PR6423/010/000 CON021 Emerson PR6423/010-000 CON021 Epro PR6423/010-000 CON021 PR6423/010-000 CON 021
Technical notes
The armored 4 m lead is part of PR6423/010-000 CON021 calibration and mechanical identity. Support the armor so it protects the cable without pulling on the 25 mm probe body or LEMO connector. If vibration noise changes with cable movement, inspect armor termination, bracket rigidity and connector seating before altering channel filtering.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What distinguishes PR6423/010-000 CON021 from an unarmored PR6423 chain?
It combines a compact 25 mm M10×1 body with an armored 4 m LEMO lead and adapter plug.
How should the armor on PR6423/010-000 CON021 be supported?
Secure the route so armor protects the cable without pulling, twisting or vibrating the probe body or connector.
Why can cable movement create signal noise on PR6423/010-000 CON021?
Mechanical force at the armor, connector or bracket can disturb the chain even when the sensing gap has not intentionally changed.
Can PR6423/010-000 CON021 be extended beyond its 4 m cable?
We recommend preserving the documented electrical length; any added extension requires an approved matched-chain review.
What receiving checks are useful for PR6423/010-000 CON021?
Confirm the 25 mm body, armor, adapter, 4 m lead, LEMO end and CON021 identification against the order.
How is PR6423/010-000 CON021 accepted after mounting?
Verify armor support, connector lock, cold-gap output and stable machine signal before restoring protection functions.
