Features:
- Reverse mounting: supports rear retention in the documented bracket arrangement.
- Long armored route: 10 m cable adds reach and mechanical protection.
- LEMO converter interface: connects the reverse-mount probe to CON021.
The 01R construction identifies the armored reverse-mount form rather than a standard front-threaded case length.
The 040 suffix selects an adapter plug, 10 m lead and LEMO termination.
Rear retention, total cable route and shaft clearance are proven together before the monitoring channel is returned to service.

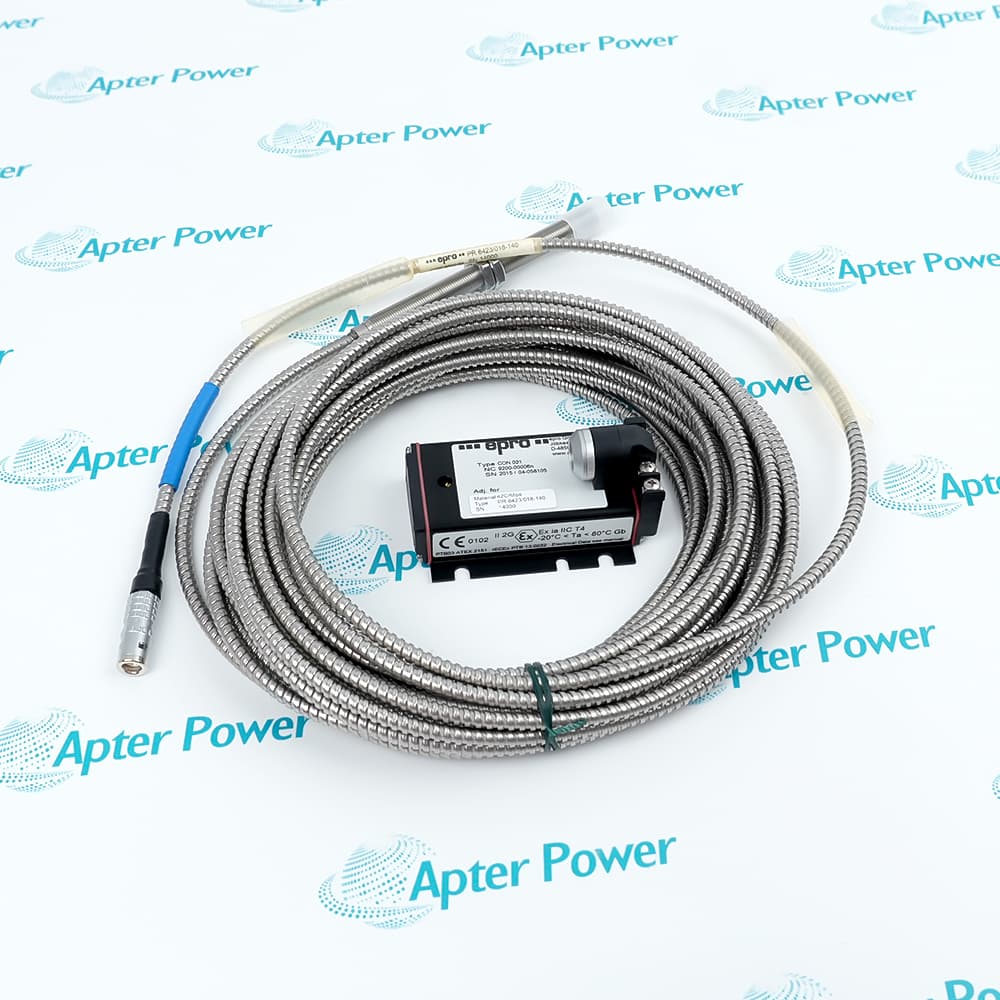

Apter Power supports Emerson PR6423/01R-040 CON021 Reverse-Mount Armored 8 mm Eddy Current Sensor with Panel Converter quotations, technical documentation, procurement support and system-matching guidance.
Emerson PR6423/01R-040 CON021 Reverse-Mount Armored 8 mm Eddy Current Sensor with Panel Converter Manuals,Datasheets,Link
Important Notice: Apter Power provides these resources for exact-model documentation, quotation and engineering review.
- Distinct body form: the R position in Emerson’s PR6423 matrix denotes reverse mounting rather than a numbered straight-body length.
- Rear-side service: the bracket layout must permit the reverse-mounted assembly to be secured and later removed from its intended side.
- Tip position: the reverse arrangement still needs a clear sensing sector and a gap that covers expected shaft travel.
- Replacement boundary: for a reliable replacement, compare rear-side bracket access before considering a front-mount PR6423; the same sensing diameter does not establish mechanical fit.
- Remote panel reach: the 040 code selects 10 m of armored cable, allowing a CON021 location farther from the sensing bracket.
- Intermediate joint: the specified adapter plug remains part of that total route and should retain Emerson’s protective shrink sleeve.
- Panel interface: the lead ends in a LEMO plug for the CON021 front socket, not open CON041 terminals.
- Calibration boundary: shortening, extending or splicing this measured lead changes more than cable routing and calls for a new chain assessment.
- Selected voltage range: a standard CON021 may be configured for -2 to -18 V or -4 to -20 V; interpretation depends on the installed setting.
- Middle of travel: about -10 V or -12 V respectively indicates the centre of the selected measurement window.
- Large-gap symptom: output beyond the negative operating end suggests that the reverse-mounted tip is too far from the target.
- Small-gap ambiguity: output near the shallow end may reflect close approach or an open/damaged probe circuit, so the cable path and actual gap need separate assessment.
- Rear-access brackets: supports installations where the probe is retained from behind.
- Remote monitoring panels: uses a 10 m lead to reach CON021.
- Harsh cable routes: provides armored mechanical protection.
- Turbomachinery channels: measures shaft motion for protection and condition monitoring.
