IC697CPX782

/ 4.9
1001 reviews | Need a Specific Revision?
IC697CPX782 is a GE Fanuc Series 90-70 96 MHz CPU with 1 Mbyte of battery-backed user memory and three serial ports.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC697CPX782
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC697CPX782

  • Manufacturer:
    General Electric
  • Part Number:
    IC697CPX782
  • Product Family:
    GE 90-70 Series PLC
  • Product Type:
    Series 90-70 96 MHz CPU with 1 Mbyte memory
  • Stock:
    1
  • Processor:
    96 MHz 80486DX4
  • Typical Boolean execution:
    0.4 µs per function
  • Battery-backed user memory:
    1 Mbyte
  • User flash:
    256 Kbytes
  • Discrete I/O:
    12K, any mix
  • Analog I/O:
    Up to 8K
  • Serial ports:
    3
  • Port 1:
    RS-232
  • Port 2:
    RS-485, isolated
  • Port 3:
    RS-485, non-isolated
  • Serial protocol:
    SNP slave
  • 5 VDC backplane current:
    3.1 A
  • Operating temperature:
    0 to 60 °C
  • Battery shelf life:
    5 years at 20 °C
  • Memory retention:
    6 months without applied power
  • Rack interface:
    VME C.1, slot 1
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communications Diagnostics Applications

Features:

  • 1 Mbyte battery-backed user memory for larger control projects
  • 12K mixed discrete references and up to 8K analog I/O
  • Three independent serial ports with in-system firmware upgrade capability
IC697CPX782 increases both retained memory and discrete capacity over the CPX772 while keeping the same single-slot CPX format.

The processor manages 12K mixed digital points for applications whose rack and remote I/O exceed the smaller CPU boundary.

Its applicable DD release preserves the behavior of earlier hardware while identifying an internal update.

The General Electric IC697CPX782 Series 90-70 96 MHz CPU with 1 Mbyte memory may remain available for quotation and installed-system support from Apter Power.
General Electric IC697CPX782 Series 90-70 96 MHz CPU with 1 Mbyte memory Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Provides reliable real-time control for automated machinery, production equipment, and manufacturing operations.
  • Supports continuous monitoring, logic execution, and precise control of various industrial processes.
  • Manages the sequencing and coordinated operation of conveyors, transfer equipment, and other material-handling systems.

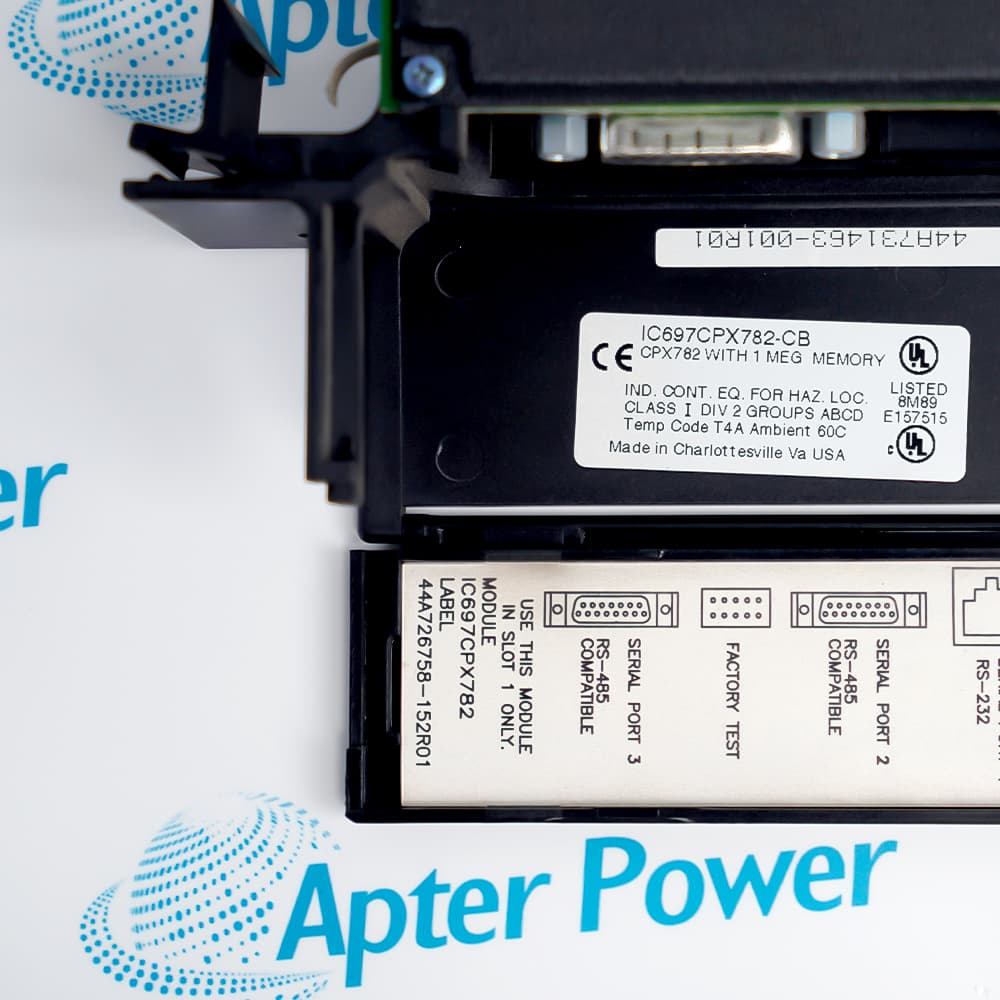

  • The CPU includes one RS-232 and two RS-485-compatible ports.
  • Compatible DOS or Windows engineering software can connect through serial or Ethernet system options.
  • Later firmware enables program load/store and datagram functions on the added serial channels.

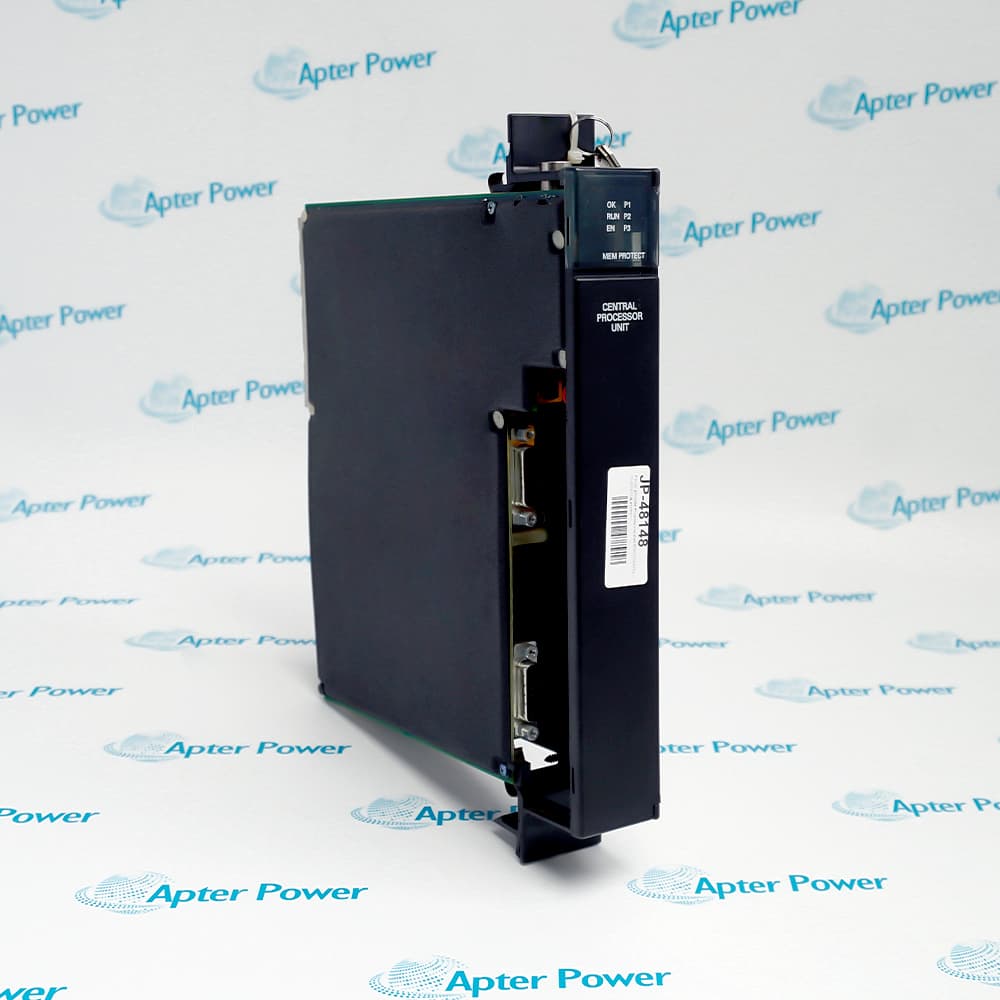

  • Seven front indicators report CPU, run, output-enable, memory, and port activity states.
  • A three-position control selects run with outputs, run without outputs, or stop.
  • The keyswitch provides local protection of stored application memory.
  • One CPU can coordinate broad discrete interlocks and thousands of analog references.
  • Multi-section production equipment can use the 12K mixed-point address space.
  • Automated storage, retrieval, and conveyor zones can be distributed across supported racks and buses.
Description
The IC697CPX782 is a single-slot central processing unit for GE Fanuc Series 90-70 PLC systems. It executes control programs, processes discrete and analog signals, performs floating-point calculations, and coordinates connected I/O and intelligent modules for reliable real-time automation control.

Equipped with a 96 MHz 32-bit processor, 1 MB of battery-backed memory, and 256 KB of non-volatile flash memory, the IC697CPX782 supports large and complex control programs. It can manage up to 12,000 mixed discrete I/O points and 8,000 analog I/O points, making it suitable for systems requiring fast logic execution, extensive signal processing, and centralized equipment coordination.

The IC697CPX782 is used in automated machinery, industrial production lines, process-control installations, and material-handling systems. It supports IC697 and IC66 I/O, various communication and coprocessor modules, three onboard serial ports, and optional Ethernet connectivity, enabling integration with programming devices, distributed I/O networks, and other industrial control equipment.
Revisions

Revision Part #

Also known as

IC697CPX782DD
IC697CPX782-DD, Series DD, Rev DD
IC697CPX782CB
IC697CPX782-B, Series B, Rev B
IC697CPX782CD
IC697CPX782-CD, Series CD, Rev CD
IC697CPX782ED
IC697CPX782-ED, Series ED, Rev ED
IC697CPX782GD
IC697CPX782-GD, Series GD, Rev GD
IC697CPX782HD
IC697CPX782-HD, Series HD, Rev HD
IC697CPX782JD
IC697CPX782-JD, Series JD, Rev JD
Alternative Names
IC 697 CPX782 IC697-CPX782 GE IC697CPX782 GE Fanuc IC697CPX782 Series 90-70 IC697CPX782 CPX782 IC697 CPX782 1C697CPX782
Technical notes
IC697CPX782 revision DD preserves functional compatibility with CD hardware, but the project still needs software support for the installed firmware and CPX feature set.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why select IC697CPX782 instead of IC697CPX772?
The CPX782 CPU provides 1 Mbyte of retained memory and 12K mixed discrete references, both greater than the CPX772 limits.
What did revision DD change on IC697CPX782?
The DD suffix, IC697CPX782-DD, identifies a hardware update and suffix change from CD without altering the established function or compatibility.
How many analog points can IC697CPX782 address?
The installed CPX782 CPU supports as many as 8K analog I/O references in the configured Series 90-70 system.
Can IC697CPX782 store user data in flash?
A configured CPX782 CPU includes 256 Kbytes of nonvolatile user flash in addition to battery-backed memory.
Which front controls are provided on IC697CPX782?
The selected CPX782 CPU has a three-position operating switch, a memory-protection keyswitch, and seven status LEDs.
What should be checked if IC697CPX782 loses an expansion rack?
Its troubleshooting should examine rack power sequence, expansion communication, configured module status, and the required Genius controller firmware level.
