DS3800NPSE1E1G

/ 4.9
1001 reviews | Need a Specific Revision?

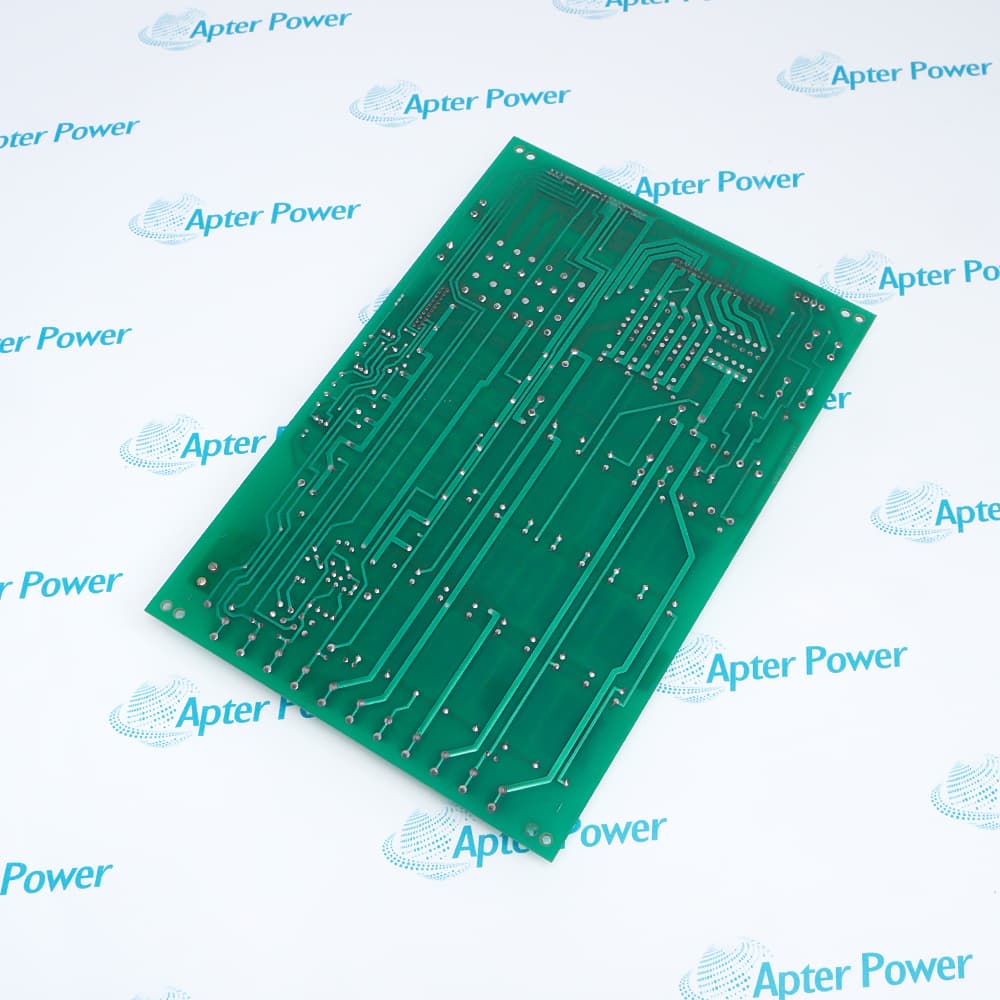

General Electric DS3800NPSE1E1G is a power supply board that serves as the power distribution center of the Mark IV control system. It converts incoming AC or DC power into multiple regulated DC outputs for analog and logic circuits.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for DS3800NPSE1E1G
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DS3800NPSE1E1G

  • Manufacturer:
    General Electric
  • Part Number:
    DS3800NPSE1E1G
  • Product Family:
    GE Mark V/VI Driver Board
  • Product Type:
    Power Supply Board
  • Stock:
    1
  • Input Voltage:
    90–264 VAC / 24–48 VDC
  • Output Voltage:
    +5V, +15V, -15V DC
  • Total Power:
    150 W
  • Current Capacity:
    +5V up to 20A / ±15V up to 2A
  • Voltage Regulation:
    ±1%
  • Operating Temperature:
    0°C to 60°C
  • Operating Humidity:
    5% – 95% RH (Non-condensing)
  • Weight:
    0.34 kg
  • Estimated shipping dimensions:
    23.8x17.7x4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Operation Environment Application Scenarios

Features:

  • Converts wide-range AC or DC input power into multiple regulated DC outputs with ±1% voltage regulation.
  • Uses large heat sinks together with extensive filtering components to enhance thermal performance and reduce electrical noise.
  • Provides up to 150 W of power with high-current output capability and convenient rack installation features.
General Electric DS3800NPSE1E1G serves as the power distribution hub within the Mark IV control system. Stable low-voltage power is essential for analog and digital circuitry, and the board supplies multiple regulated outputs to support those functions. Broad input voltage compatibility allows flexible integration into various industrial installations.

Electrical performance is supported by a 150 W power rating and output capacities reaching 20 A on the +5 V rail and 2 A on the ±15 V rails. Numerous capacitors and filter inductors are arranged across the board to improve waveform quality and suppress unwanted noise. Such characteristics contribute to dependable operation in environments where electrical disturbances are common.

General Electric DS3800NPSE1E1G is also engineered with long-term reliability and serviceability in mind. Heat generated by power semiconductor devices is managed through two large metal heat sinks, helping maintain stable performance during continuous operation. Dedicated connectors and extractor clips allow technicians to install, remove, and service the board efficiently within Mark IV cabinets.

The DS3800NPSE1E1G General Electric Power Supply Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric DS3800NPSE1E1G Power Supply Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric DS3800NPSE1E1G Power Supply Board Specs

General

  • Manufacturer General Electric
  • Model DS3800NPSE1E1G
  • Condition New Original ready stock
  • Product Family DS3800NPSY,DS3800NPSK,DS3800NPSJ
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Voltage Conversion: Converts the 125VDC bus voltage inside the control cabinet to multiple low-voltage DC power supplies.
  • Ripple Suppression: Utilizes a multi-stage inductor and electrolytic capacitor matrix to strictly control output voltage ripple within an extremely low range.
  • Load Distribution: Stably distributes power to adjacent logic control boards via dedicated multi-pin high-current sockets.
  • Power Heat Dissipation: Utilizes two sets of large aluminum heat sinks to provide dynamic heat dissipation for the core power semiconductors.
  • Temperature Range: Maintains stable continuous operation within industrial-grade standard ambient temperatures from 0°C to 60°C.
  • Humidity Tolerance: Ensures electrical insulation performance in environments with relative humidity from 5% to 95% and no condensation.
  • Interference Immunity: Features strong electromagnetic interference protection design to adapt to high-noise physical environments such as power plants.
  • Storage Conditions: Allows for long-term spare parts storage in a dry warehouse environment ranging from -20°C to 85°C.
  • Logic Power Supply: Dedicated to providing basic operating power for microprocessor boards within the Mark IV core control cabinet.
  • Control and Regulation: Acts as a local power supply hub in the digital electro-hydraulic control system of large steam turbine generator sets.
  • Power Plant Maintenance: Serves as a core replacement power source during overhauls of aging Mark IV systems in the petrochemical, metallurgical, and power industries.
  • Redundancy Configuration: Deployed in dual or triple redundant power racks to ensure continuous operation of critical turbine systems.
Description
Within the Mark IV control system, General Electric DS3800NPSE1E1G provides regulated power for various control and monitoring functions. The board accepts a wide input range of 90–264 VAC or 24–48 VDC and generates stable +5 V, +15 V, and -15 V DC outputs. With a total power rating of 150 W, the board supports demanding industrial applications requiring reliable power conversion.

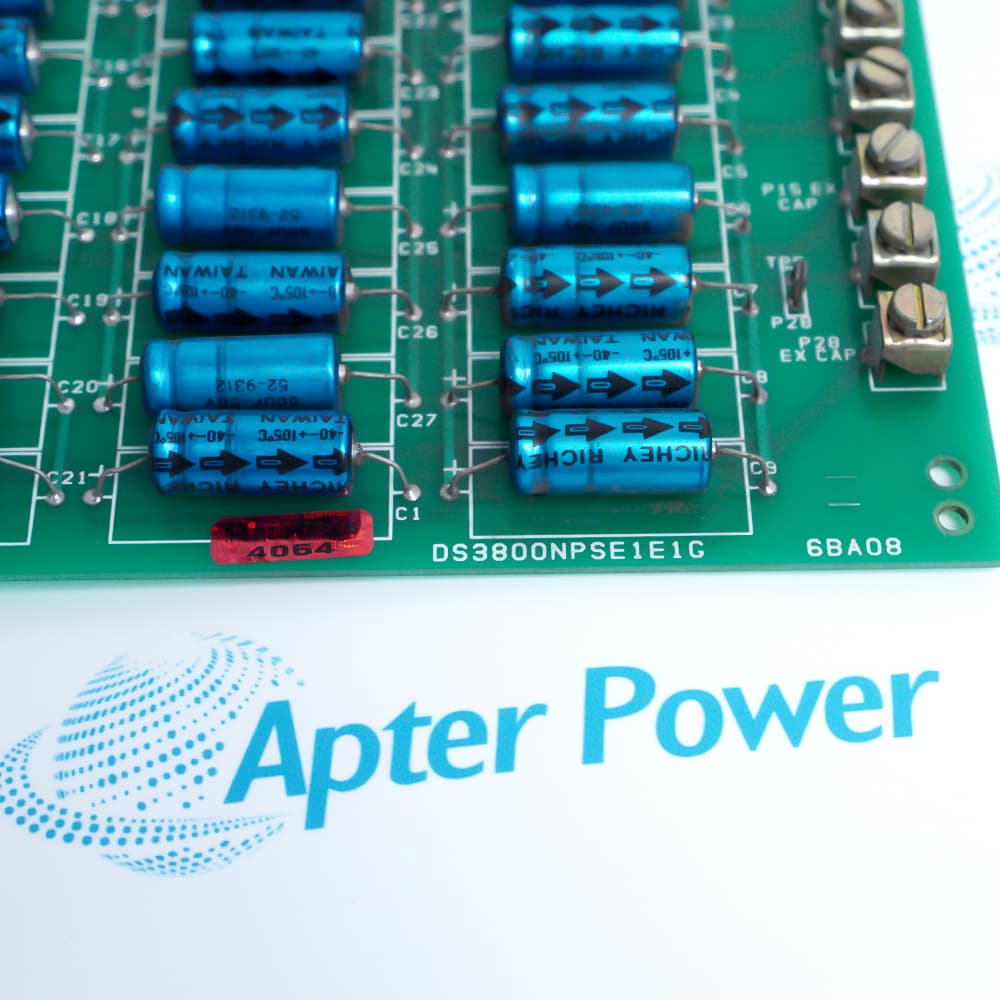

Power distribution is one of the major functions of DS3800NPSE1E1G. The +5 V output can deliver up to 20 A, while the ±15 V outputs provide up to 2 A. Voltage regulation accuracy of ±1% helps maintain stable operating conditions for sensitive analog and logic circuits throughout the control cabinet. Numerous capacitors and filter inductors are incorporated to smooth voltage waveforms and suppress ripple and high-frequency electrical noise commonly found in industrial environments.

General Electric DS3800NPSE1E1G also features a hardware layout intended for continuous operation. Two large metal heat sinks are mounted on key power semiconductor devices to improve heat dissipation under heavy loads and reduce the risk of voltage drift caused by excessive temperature. Dedicated two-pin and multi-pin connectors support high-current input and output connections, while extractor clips simplify installation and removal from the rack. The board operates within temperatures from 0°C to 60°C and humidity levels between 5% and 95% RH without condensation.
Revisions

Revision Part #

Also known as

DS3800NPSE1C1A
DS3800NPSE1-C1A, Series C1A, Rev C1A
DS3800NPSE1C1B
DS3800NPSE1-C1B, Series C1B, Rev C1B
DS3800NPSE1C1C
DS3800NPSE1-C1C, Series C1C, Rev C1C
DS3800NPSE1C1D
DS3800NPSE1-C1D, Series C1D, Rev C1D
DS3800NPSE1C1E
DS3800NPSE1-C1E, Series C1E, Rev C1E
Alternative Names
DS38OONPSE1E1G DS3800NPSEIEIG DS3800NPSE1C1A DS3800NPSE1C1B DS3800NPSE1C1C DS3800NPSE1C1D DS3800NPSK DS3800NPSJ
Technical notes
Engineered for heavy-duty industrial automation, the GE DS3800NPSE1E1G functions as a regulated power supply board that steps down a 125VDC nominal input into multiple isolated low-voltage DC rails to sustain continuous Mark IV turbine control operations.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Where can General Electric DS3800NPSE1E1G be used?
General Electric DS3800NPSE1E1G is intended for applications within the Mark IV control system that require stable multi-output power distribution.
How does General Electric DS3800NPSE1E1G minimize electrical interference?
Numerous capacitors and filtering inductors help smooth voltage waveforms and reduce ripple and high-frequency noise.
Which current capacities are supported by DS3800NPSE1E1G?
The board delivers up to 20 A on the +5 V output and up to 2 A on each ±15 V output.
