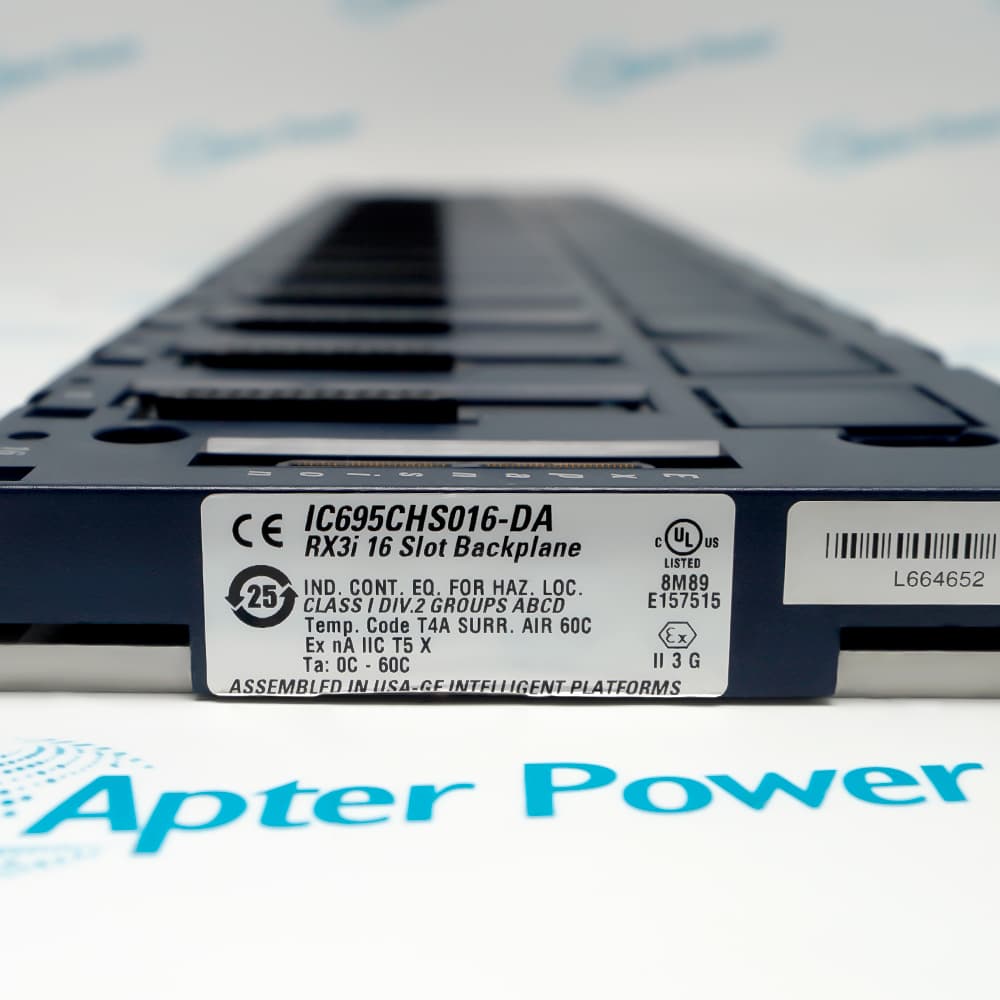

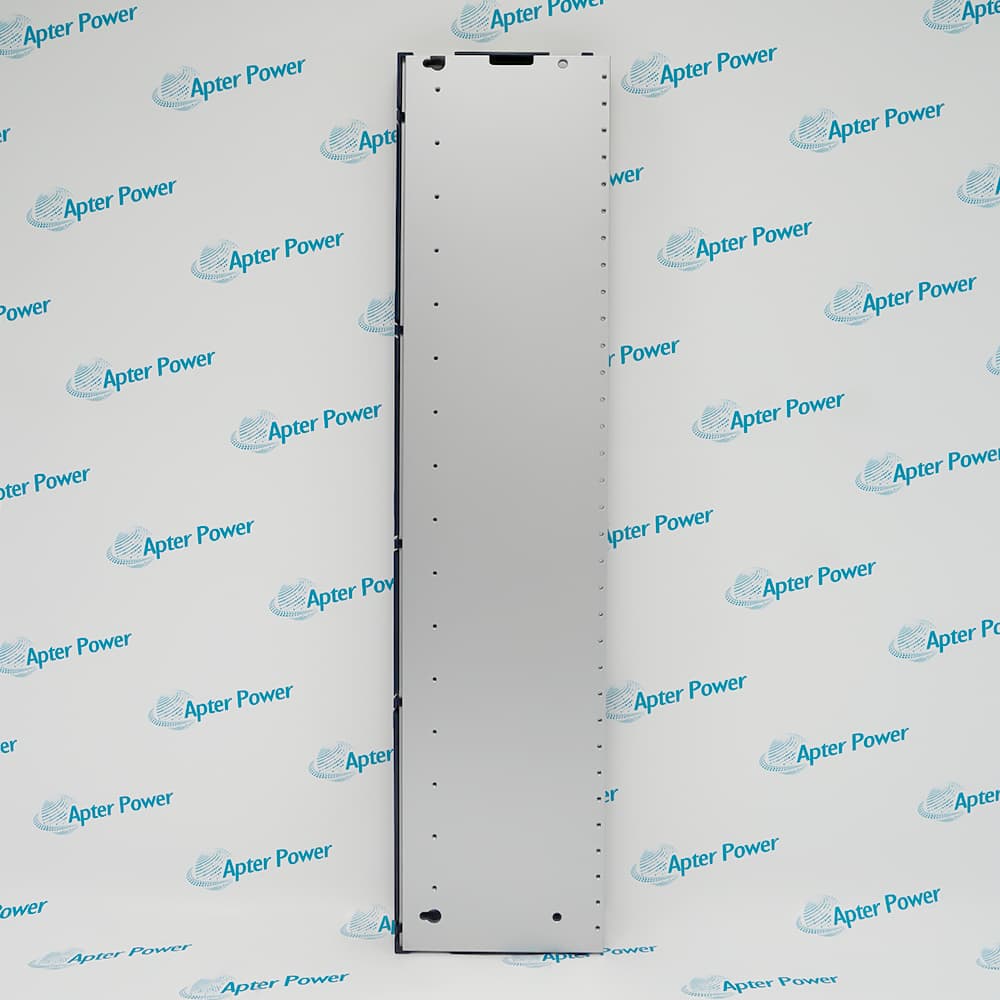

The GE IC695CHS016 is a 16-slot PACSystems RX3i universal backplane that carries both PCI and serial buses for supported RX3i and Series 90-30 modules.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC695CHS016
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC695CHS016

  • Manufacturer:
    General Electric
  • Part Number:
    IC695CHS016
  • Product Family:
    GE PACSystems RX3i
  • Product Type:
    PACSystems RX3i 16-Slot Universal Backplane
  • Stock:
    1
  • Backplane Buses:
    PCI and serial buses
  • Universal Slots:
    16
  • Internal Power at 3.3 VDC:
    600 mA
  • Internal Power at 5 VDC:
    240 mA
  • Cooling Clearance:
    102 mm (4.00 in) around the backplane
  • Required Installation Protection:
    NEMA/UL Type 1 (IP20)
  • Length:
    604.291 +/- 0.356 mm
  • Width:
    140.97 mm minimum to 142.26 mm maximum, as documented
  • Height:
    21.615 +/- 0.254 mm
  • Weight:
    2.06 kg
  • Estimated shipping dimensions:
    604.291 x 142.26 x 21.615 mm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Bus Architecture Slot Planning Installation

Features:

  • Sixteen universal-backplane slots
  • PCI and serial buses on one backplane
  • 604.291 mm documented backplane length
The IC695CHS016 is the long universal-backplane option for RX3i systems that need a high slot count.

Its dual-bus layout lets supported PCI-based RX3i modules and documented serial-bus modules operate within the same planned base.

Confirm module widths, backplane revision, terminal depth, internal-power demand, and the required cooling space before laying out the enclosure.

The GE IC695CHS016 PACSystems RX3i 16-Slot Universal Backplane is listed as Active / Available from OEM. Contact Apter Power for sourcing and slot-planning support.
GE IC695CHS016 PACSystems RX3i 16-Slot Universal Backplane Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
GE IC695CHS016 PACSystems RX3i 16-Slot Universal Backplane Specs

General

  • Manufacturer GE
  • Model IC695CHS016
  • Condition New and Original
  • Product Family PACSystems RX3i

Backplane communication paths

  • PCI bus: The universal backplane distributes the RX3i PCI bus to supported IC695 modules.
  • Serial bus: A serial bus is available for documented IC694 and compatible IC693 modules.
  • Slot references: Printed slot numbers support consistent hardware configuration in the engineering project.
  • Compatibility: Each module must be checked against the current RX3i supported-hardware tables.

Mechanical allocation

  • Slot count: The backplane provides sixteen positions for the planned controller and I/O arrangement.
  • Module width: Two-slot CPUs and power supplies consume adjacent physical positions.
  • Terminal depth: Extended terminal blocks and cable connectors increase the required enclosure depth.
  • Expansion design: Remote or expansion hardware must follow the documented serial-bus architecture.

Cabinet and grounding checks

  • Cooling space: Allow 102 mm of clearance around the backplane for airflow.
  • Shield bonding: Use the integral grounding bar for module shields and cabinet bonding.
  • Power budget: Include 600 mA at 3.3 VDC and 240 mA at 5 VDC in the system calculation.
  • Revision check: Confirm the complete IC695CHS016 hardware revision before commissioning.
Description
The IC695CHS016 is the 16-slot universal backplane for PACSystems RX3i systems. Its backplane architecture carries the RX3i PCI bus and the serial bus, allowing supported IC695 modules and compatible serial-bus I/O to share one controller base.

Mechanical planning for the IC695CHS016 should use the official backplane dimensions of 604.291 mm in length, up to 142.26 mm in width, and 21.615 mm in height. The system manual also calls for 102 mm of cooling clearance around the installed backplane.

The IC695CHS016 uses 600 mA at 3.3 VDC and 240 mA at 5 VDC from the internal supply. Its grounding bar, shield connections, and printed slot references support orderly module installation and cabinet bonding.

When selecting modules for the IC695CHS016, verify the hardware revision, firmware requirements, slot width, terminal-block depth, and serial-bus compatibility against the current RX3i system manual. Cables and connectors may require additional enclosure depth beyond the backplane dimensions.
Revisions

Revision Part #

Also known as

IC695CHS016BA
IC695CHS016-BA, Series BA, Rev BA
IC695CHS016CA
IC695CHS016-CA, Series CA, Rev CA
IC695CHS016DA
IC695CHS016-DA, Series DA, Rev DA
IC695CHS016EA
IC695CHS016-EA, Series EA, Rev EA
IC695CHS016FA
IC695CHS016-FA, Series FA, Rev FA
IC695CHS016GB
IC695CHS016-GB, Series GB, Rev GB
IC695CHS016HB
IC695CHS016-HB, Series HB, Rev HB
IC695CHS016M
IC695CHS016-M, Series M, Rev M
Alternative Names
General Electric IC695CHS016 IC695 CHS016 IC695-CHS016 GE IC695CHS016 GE Fanuc IC695CHS016 Emerson IC695CHS016 PACSystems RX3i IC695CHS016 IC695CHS016 GE
Technical notes
The GE IC695CHS016 is a 16-slot RX3i universal backplane with PCI and serial-bus support for documented module configurations.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many slots does the GE IC695CHS016 provide?
The GE IC695CHS016 provides sixteen universal-backplane slots for supported PACSystems RX3i and serial-bus modules.
Which buses are carried by the GE IC695CHS016?
The GE IC695CHS016 carries the RX3i PCI bus and the serial bus across the universal backplane.
What are the official dimensions of the GE IC695CHS016?
The GE IC695CHS016 measures 604.291 mm long, up to 142.26 mm wide, and 21.615 mm high.
What clearance is required around the GE IC695CHS016?
The GE IC695CHS016 installation guidance specifies 102 mm of cooling clearance around the backplane.
How much internal power does the GE IC695CHS016 use?
The GE IC695CHS016 uses 600 mA at 3.3 VDC and 240 mA at 5 VDC.
What lifecycle status applies to the GE IC695CHS016?
The GE IC695CHS016 is recorded as Active / Available from OEM and remains covered by current Emerson RX3i documentation.
What should be checked before ordering the GE IC695CHS016?
For the GE IC695CHS016, confirm revision, module compatibility, slot planning, cabinet depth, and power requirements with Apter Power.
