    Apter Power provides genuine Honeywell I/O hardware to maintain reliable, continuous plant monitoring infrastructure.

CC-TDI220 51308394-275

/ 4.9
1001 reviews | Need a Specific Revision?

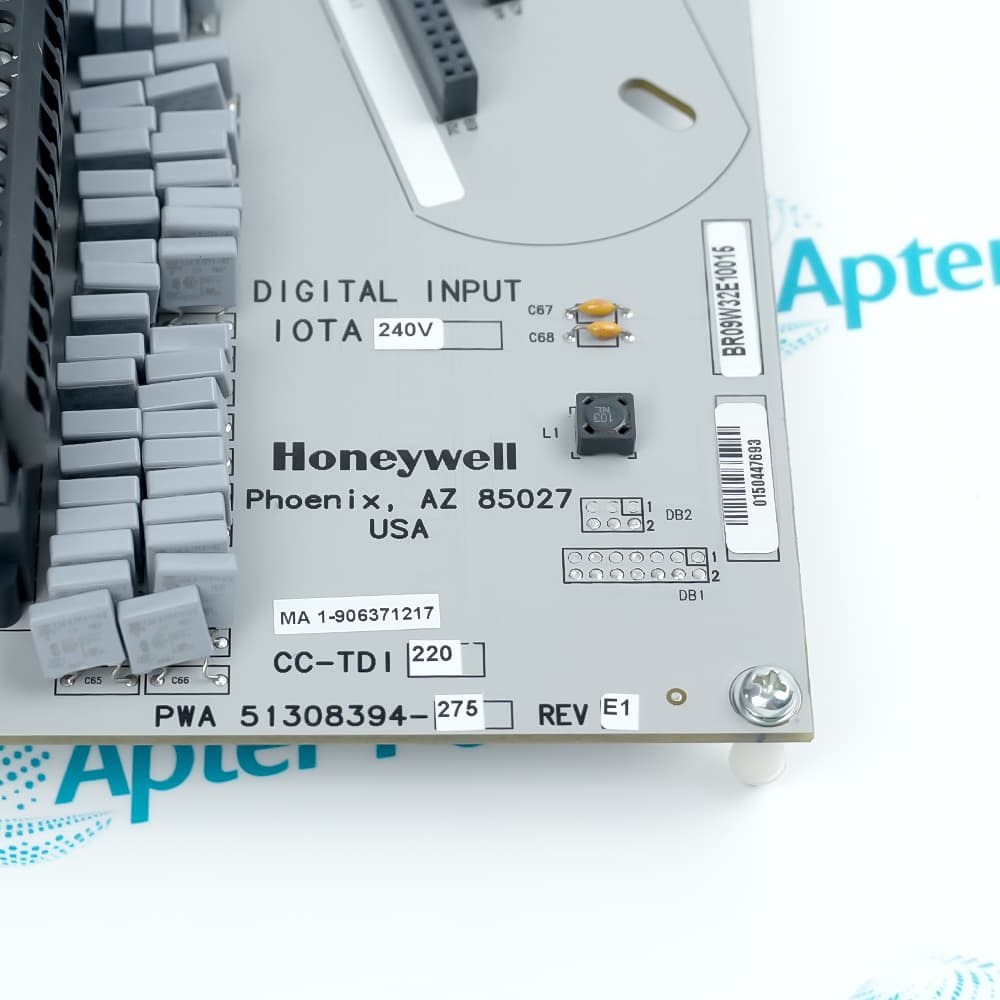

Honeywell CC-TDI220 51308394-275 is a high-voltage digital input IOTA designed for Experion® PKS Series C systems, enabling precise 240VAC signal monitoring with enhanced reliability compared to older CC-TDI210 modules.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for CC-TDI220 51308394-275
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CC-TDI220 51308394-275

  • Manufacturer:
    Honeywell
  • Part Number:
    CC-TDI220 51308394-275
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Digital Input Module
  • Stock:
    2
  • Nominal Voltage:
    240VAC
  • Digital Input Pwr. Range:
    180-264 V AC RMS
  • Sense Current (ON condition) minimum:
    1.11 mA RMS
  • Sense Current (OFF condition) maximum:
    0.32 mA RMS
  • Pick Up Voltage (ON condition) minimum:
    180 VAC RMS
  • Drop Out Voltage (OFF condition) maximum:
    50 VAC RMS
  • Absolute Delay Across Input Filter and Isolation (Bounceless Input to logic level change):
    25 ms maximum
  • Frequency Range:
    47-63 Hz
  • HV:
    220V
  • Isolation:
    1500V
  • Weight:
    0.6 kg
  • Estimated shipping dimensions:
    16.5x16.2x6.8cm
  • Tariff Code:
    9027900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Performance Safety

Features:

  • Provides Reliable High-Voltage Digital Input Monitoring For Series C Systems
  • Ensures Fast Logic-Level Response With Minimal Input Delay
  • Features Enhanced Isolation And Coated Inputs For Safety And Durability
The Honeywell CC-TDI220 (51308394-275) is a high-voltage digital input IOTA designed for Experion® PKS Series C control systems. It acts as the interface between field wiring and control modules, ensuring precise monitoring of 240VAC discrete signals. Compared with older modules, it offers superior isolation and robust protection against environmental factors.

This IOTA module supports external field wiring power, eliminating the need for additional Series C protection. Its design ensures minimal input delays, providing reliable logic-level changes even under fluctuating voltage conditions. The coated high-voltage inputs enhance safety and reduce the risk of signal interference.

Users benefit from comprehensive compatibility with spare parts, including the module, IOTA board, terminal plug-in assemblies, and fuses. The CC-TDI220 (51308394-275) delivers improved voltage tolerance, faster response, and higher isolation compared to earlier models, making it an optimal choice for modern high-voltage input applications.

The CC-TDI220 51308394-275 Honeywell Digital Input High Voltage IOTA Model may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-TDI220 51308394-275 Digital Input High Voltage IOTA Model Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell CC-TDI220 51308394-275 Digital Input High Voltage IOTA Model Specs

General

  • Manufacturer Honeywell
  • Model CC-TDI220 51308394-275
  • Condition New Original ready stock
  • Product Family CC-TDOB11,CC-TDOB01,CC-TDIL61
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power System Monitoring: Directly acquires status signals (110V/220V AC) from circuit breakers, disconnectors, or relays.
  • Motor Control Center (MCC): Monitors remote motor operation/stop status feedback without additional intermediate relay conversion.
  • Heavy Industrial Logic Control: Receives high-voltage discrete signals from pressure switches, level switches, and limit switches in chemical plants, oil refineries, or paper mills.
  • Long-Distance Signal Transmission: In large plant areas, high-voltage signals are more resistant to interference than low-voltage (24V DC) signals, making them suitable for long-distance cabling.
  • High-Density Integration: Supports 32 channels on a single IOTA board, significantly saving installation space within the control cabinet.
  • Real-Time Performance: Seamlessly integrates with the C300 controller, providing microsecond-level signal detection accuracy to ensure rapid response of control logic.
  • Environmental Adaptability: Equipped with a G3 Conformal Coating, it maintains stable electrical performance over the long term, even in harsh environments containing corrosive gases, reducing downtime for maintenance.
  • Plug-and-Play Design: Supports the Series C's unique tilt mounting method, facilitating wiring and module replacement, improving the efficiency of engineering implementation and field maintenance.
  • Electrical Isolation: Provides robust inter-channel isolation and isolation between the field side and the logic side, preventing high-voltage surges from damaging the core control card (IOM).
  • Intrinsically Safe and Explosion-Proof: Complies with Class I, Division 2, and ATEX/IECEx hazardous area certification standards, suitable for flammable and explosive industrial environments.
  • Electromagnetic Compatibility (EMC): Meets CE marking requirements, possessing extremely strong immunity to electromagnetic interference, ensuring signal integrity even under high charge and voltage environments.
  • SIL level support: Although it is a standard I/O, it is often integrated into control loops that meet the Safety Integrity Level (SIL) requirements as a high-reliability input for non-safety-related logic.
Description
The Honeywell CC-TDI220 51308394-275 Digital Input High Voltage IOTA is engineered for Experion® PKS Series C control systems, providing a robust interface between field wiring and control modules. This IOTA board supports nominal voltages of 240VAC with a digital input power range of 180–264 V AC RMS, ensuring stable operation in industrial environments. Unlike its predecessor, the CC-TDI210, the CC-TDI220 offers higher isolation at 1500V, improving safety and reliability for high-voltage discrete inputs.

The CC-TDI220 51308394-275 supports a frequency range of 47–63 Hz and high-voltage operation up to 220V, making it suitable for a wide range of industrial applications. Measuring 9 inches, the compact form factor allows easy integration into standard Series C module racks.

Field wiring and module protection are optimized, as the CC-TDI220 51308394-275 receives power externally, eliminating the need for additional Series C protection. Users benefit from access to comprehensive spare parts including module components, IOTAs, terminal plug-in assemblies, and fuses, all listed under Digital Input - High Voltage in Honeywell’s recommended spare parts guide.
Alternative Names
CC-TDI110 CC-TDI120 CC-TDI230 CC-TDIL01 CC-TDIL11 CC-TDIL51 51307083-175 CC-TDOB11 51308373-175 CC-TDOR01 51308376-175
Technical notes
The Honeywell CC-TDI220 51308394-275 is a high-density digital input module designed for the Honeywell Experion PKS and TDC 3000 distributed control systems. This module provides 32 digital input channels for 24V DC sinking/sourcing field devices, offering reliable signal acquisition for process monitoring and control.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the nominal voltage for the HoneywellCC-TDI220 51308394-275?
The nominal voltage is 240VAC, with a digital input power range of 180–264 V AC RMS for flexible field wiring applications.
How does the CC-TDI220 51308394-275 compare to the CC-TDI210?
The CC-TDI220 offers higher isolation at 1500V, a faster absolute input delay of 25 ms maximum, and enhanced voltage tolerance compared to the CC-TDI210, improving reliability and signal accuracy.
How fast does the CC-TDI220 51308394-275 respond to input changes?
The absolute delay across the input filter and isolation is 25 ms maximum, providing near-instantaneous logic-level changes compared to the older CC-TDI210.
How is field wiring handled for CC-TDI220 51308394-275?
Field wiring power is supplied externally; Series C protection is not required. The CC-TDI220 supports coated 240VAC digital inputs for added environmental protection.
