TK-OAV081

/ 4.9
1001 reviews | Need a Specific Revision?

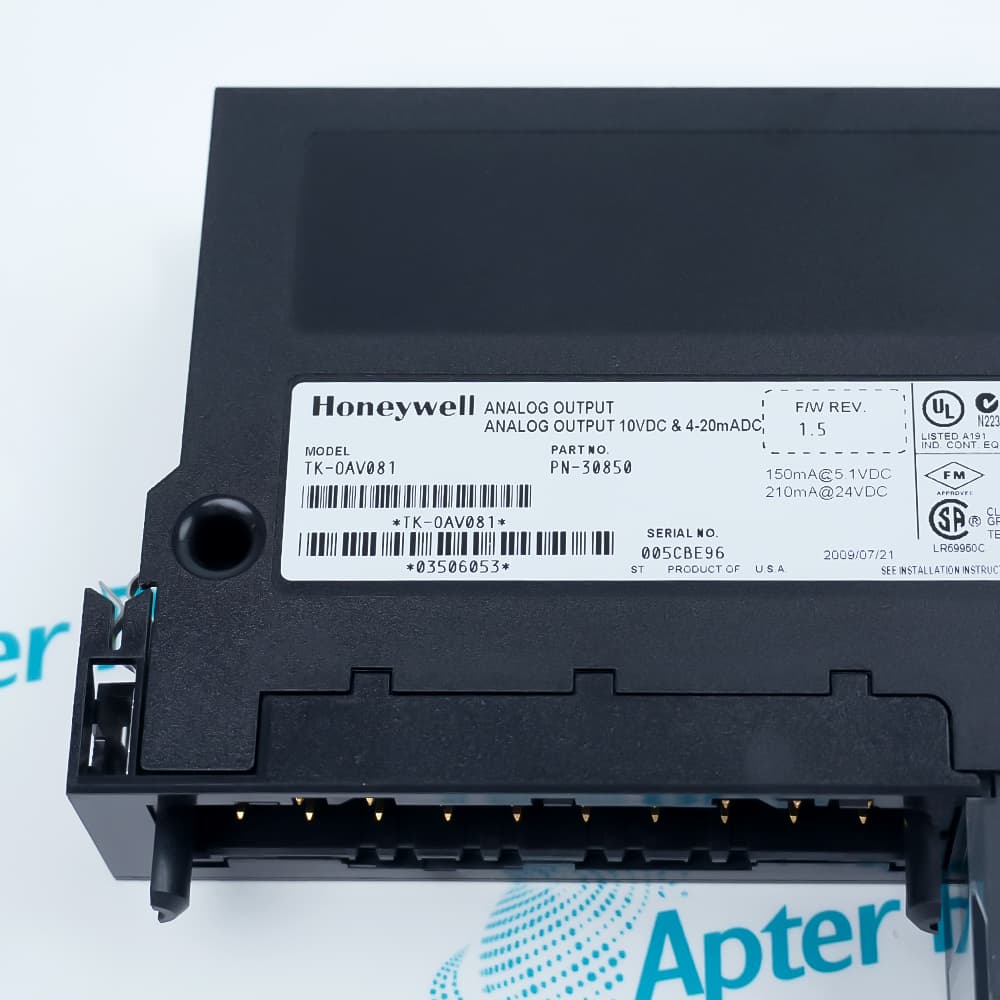

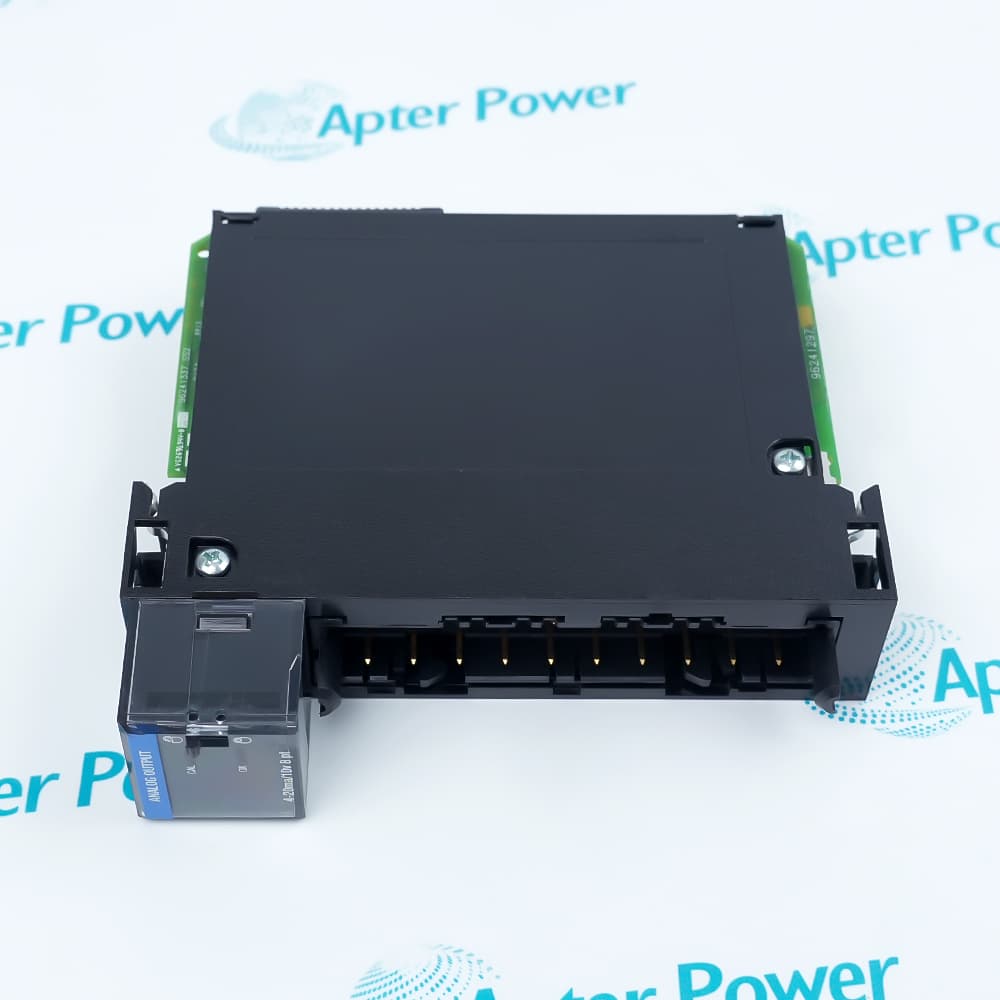

Honeywell TK-OAV081 is a coated eight-point non-isolated analog output module for 4–20 mA and 10 V control signals in Series C systems.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for TK-OAV081
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TK-OAV081

  • Manufacturer:
    Honeywell
  • Part Number:
    TK-OAV081
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Non-Isolated Analog Output Module
  • Stock:
    1
  • Output points:
    8
  • Supported signals:
    4–20 mA / 10 V
  • Channel isolation:
    Non-isolated
  • Coating:
    Coated
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Compatibility & Interoperability Control Configuration & Programming

Features:

  • Delivers eight continuous analog-output points for field control interfaces.
  • Supports the 4–20 mA and 10 V formats identified for the OAV081 design.
  • Uses the coated TK hardware configuration for Series C installations.
This order code identifies the coated, eight-channel OAV081 output module rather than an isolated or HART output variant.

It converts controller commands into current or voltage outputs for modulating devices and analog setpoint interfaces.

Confirm field load characteristics, channel ranges, return wiring and terminal hardware before moving an existing configuration.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Honeywell TK-OAV081:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Sends 4–20 mA demand signals to compatible valve positioners and process actuators.
  • Provides voltage commands for drives or interfaces designed for the documented 10 V range.
  • Serves coated Series C cabinets requiring eight non-isolated analog command channels.
  • The module belongs to Honeywell Series C I/O and requires the corresponding rack and terminal assembly.
  • Its non-isolated return arrangement must agree with the connected loads and cabinet grounding design.
  • The coated TK configuration should be retained when the installed bill of material specifies coated electronics.
  • Eight output points issue continuous commands to separate final-control circuits.
  • Supported 4–20 mA and 10 V formats serve compatible actuators, converters and drive references.
  • Commissioning must prove command direction and the expected response of every connected control element.
  • Each channel range and engineering scale must match the signal expected by its field device.
  • Configured output limits and fail-state behavior should be reviewed before live loads are connected.
  • The controller database must preserve the established channel mapping when the module is replaced.
Description
Honeywell TK-OAV081 is an eight-point Series C analog output module supplied in the coated TK hardware form. It converts controller commands into continuous current or voltage signals for connected final-control equipment. Eight coordinated outputs allow a compact controller footprint while retaining the continuous command paths required by modulating field devices in a Series C installation.

The module can serve valve positioners, drive references and other analog interfaces that operate from the supported output formats. Grouping eight channels in one assembly helps organize modulating-control duties within a process cabinet. It is therefore suited to process loops where the controller must position equipment smoothly instead of switching it only between discrete operating states.

Its non-isolated design makes the return path and load arrangement important parts of the installed configuration. A replacement should preserve the coated construction, termination assembly and engineered output behavior of the existing Series C system. Retaining those characteristics prevents a wiring or behavior mismatch and keeps the replacement consistent with the control strategy already commissioned in the plant.
Alternative Names
TK-OAV081 TKOAV081 TK OAV081 Honeywell TK-OAV081 Honeywell TKOAV081 TK-OAV081 Non-Isolated Analog Output Module Honeywell TK-OAV081 Non-Isolated Analog Output Module
Technical notes
TK-OAV081 uses non-isolated outputs; verify load resistance, loop return paths and the exact Series C termination before energization.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What signal characteristic defines the TK-OAV081 configuration?
OAV081 denotes eight analog outputs, and the TK prefix identifies the coated Honeywell configuration.
How is TK-OAV081 matched to the surrounding chassis hardware?
Match it to the Series C rack, terminal assembly, output range and common-return design already installed.
Which field task is TK-OAV081 intended to perform?
It supplies continuous current or voltage commands to compatible final elements and analog interfaces.
What is the practical way to confirm TK-OAV081 availability?
Submit the exact coated model and project timing so Apter Power can return current sourcing terms.
Why should an existing TK-OAV081 installation be surveyed before exchange?
Review output range, load resistance, loop supply, fail-state settings, connector keying and cabinet coating specification.
Which records should accompany an inquiry for TK-OAV081?
Include the complete part number, terminal hardware, actuator signal type, quantity, delivery location and requested manuals.
