MC-TAMT04 51305890-175

/ 4.9
1001 reviews | Need a Specific Revision?

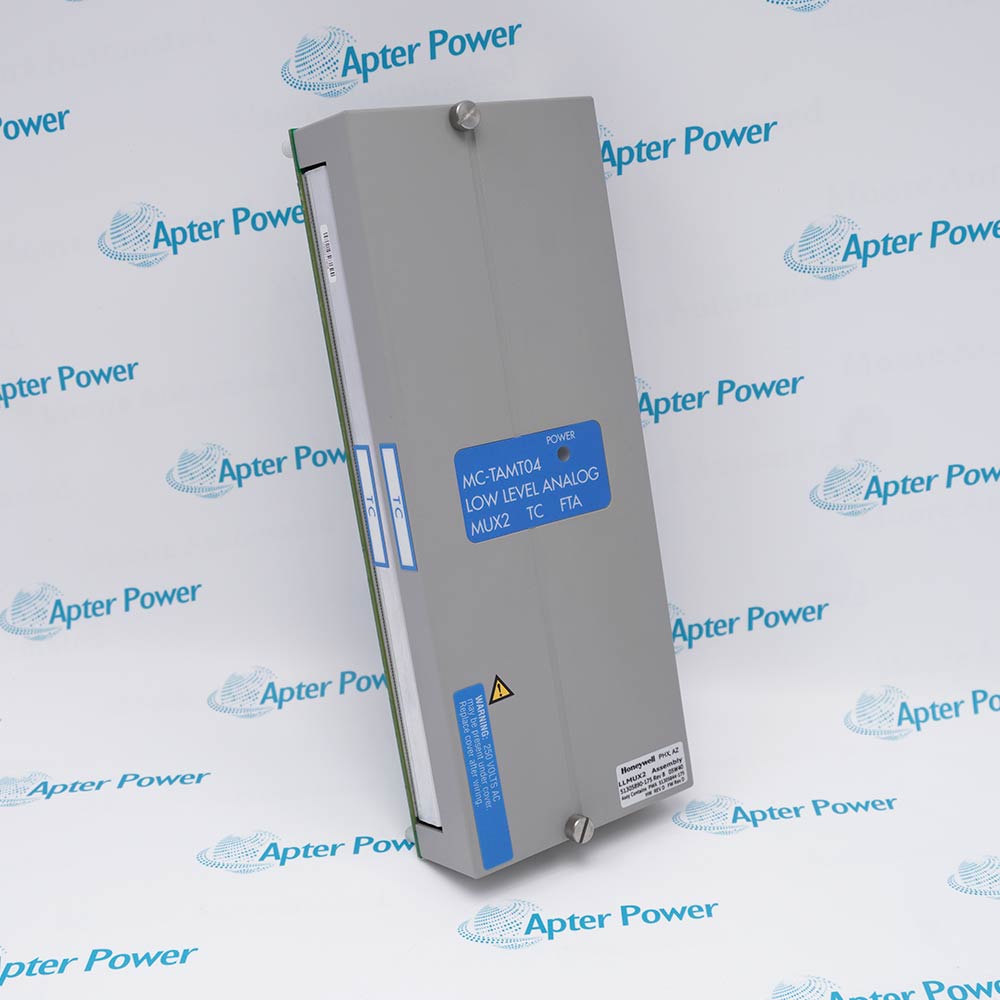

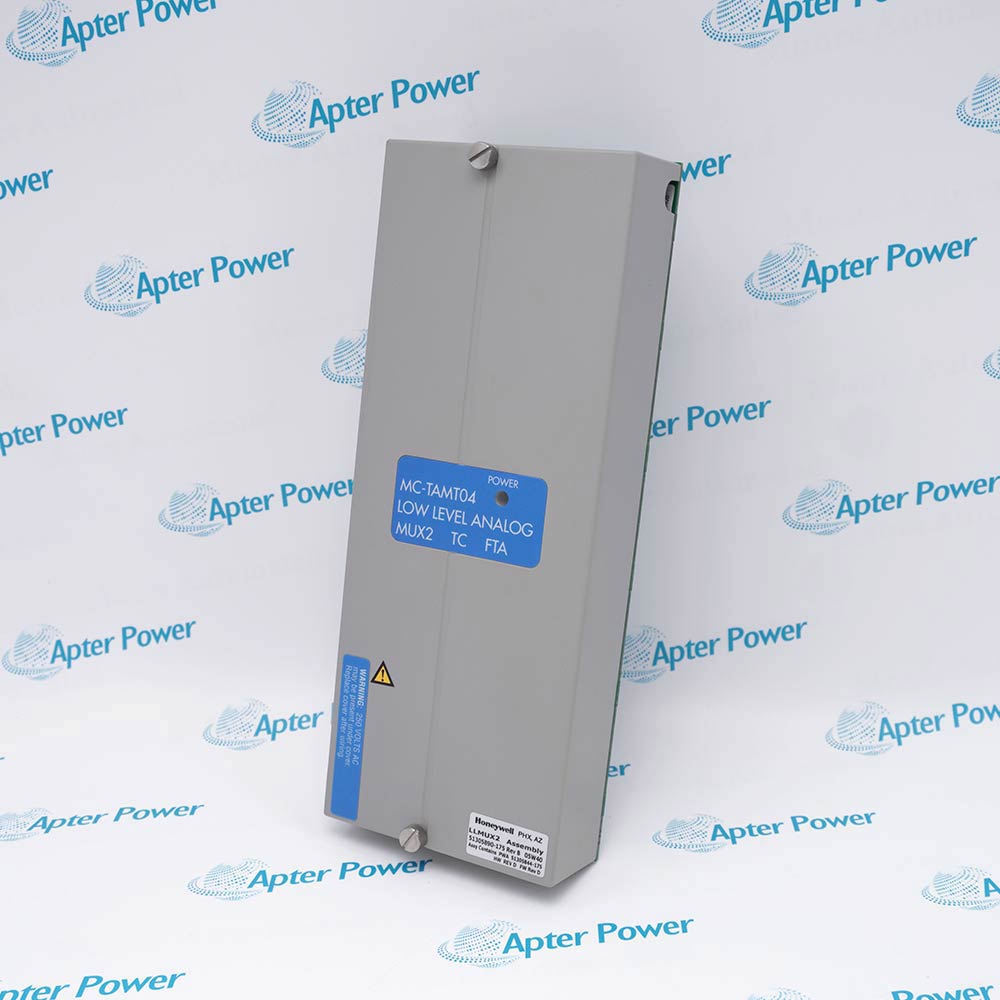

Honeywell MC-TAMT04 51305890-175 is a 16-channel, fully isolated thermocouple field termination assembly for TPS Process Manager low-level analog multiplexing. It supports J, K, E, T, B, S, R and Japan Type R′ inputs across a −20 to +100 mV signal range.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for MC-TAMT04 51305890-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MC-TAMT04 51305890-175

  • Manufacturer:
    Honeywell
  • Part Number:
    MC-TAMT04 51305890-175
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    Low-Level Analog Multiplexer Thermocouple FTA
  • Stock:
    1
  • Millivolt input:
    −20 to +100 mV
  • Power supply:
    24 VDC nominal; 15–30 VDC range
  • Supply current:
    160 mA at 15 VDC
  • Power dissipation:
    2.25 W maximum
  • Operating temperature:
    0 to +50 °C
  • Storage temperature:
    −40 to +80 °C
  • Relative humidity:
    10–90%, non-condensing
  • Maximum operating temperature at stated RH:
    40 °C
  • Input channels:
    16
  • Input isolation:
    Fully isolated channel-to-channel, channel-to-PM, and channel-to-power-supply common
  • Compliance markings:
    UL listed and CE marked, subject to product or packaging markings
  • Input scan rate:
    1 second, fixed by the IOLP
  • Channel bandwidth:
    0 to 4.7 Hz (−3 dB)
  • Supported thermocouple types:
    J, K, E, T, B, S, R, and Japan Type R′
  • Hazardous-area approval:
    CSA Class I, Division 2, Groups A, B, C, D
  • Weight:
    1.808 lbs (0.82 kg)
  • Estimated shipping dimensions:
    30.6 x 12 x 7 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Thailand
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Temperature Installation Diagnostics

Features:

  • Provides sixteen fully isolated low-level thermocouple input channels.
  • Accepts eight documented thermocouple standards through a -20 to +100 mV input path.
  • Operates from a nominal 24 VDC supply with a fixed one-second input update.
The requested ordering identity combines the MC-TAMT04 designation with part number 51305890-175 for the Honeywell TPS low-level analog multiplexer termination assembly.

Its sixteen-channel layout organizes multiple process-temperature inputs while maintaining electrical separation across the measurement paths and Process Manager interface.

Confirm the sensor standard, channel assignment, supply range and cabinet environment before transferring field conductors or installing a replacement assembly.

Availability is confirmed against the complete ordering identity, required condition, quantity and delivery destination at quotation.
Verified resources for Honeywell MC-TAMT04 51305890-175: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Collect multiple thermocouple measurements in Honeywell TPS Process Manager cabinets.
  • Serve furnace, reactor and utility temperature points with slowly changing thermal signals.
  • Maintain isolated channel routing where separation from the Process Manager and supply common is required.
  • The documented operating range is 0 to +50 °C for normal service.
  • Storage conditions may extend from -40 to +80 °C when the assembly is not energized.
  • Relative humidity is limited to 10-90% non-condensing, with 40 °C as the stated maximum temperature at that humidity range.
  • Apply a nominal 24 VDC supply and remain within the documented 15-30 VDC operating range.
  • Allow for 160 mA supply demand at 15 VDC and 2.25 W maximum internal dissipation.
  • Preserve channel numbering and isolation boundaries when reconnecting the sixteen input circuits.
  • A fixed one-second input update sets the expected response timing during channel checks.
  • The 0 to 4.7 Hz bandwidth should be considered when evaluating simulated temperature changes.
  • Separate sensor-type or polarity errors from channel-isolation and Process Manager interface faults.
Description
MC-TAMT04 51305890-175 provides sixteen isolated low-level input channels for Honeywell TPS Process Manager thermocouple measurement. The field termination assembly accepts J, K, E, T, B, S, R and Japan Type R′ sensors while maintaining separation between channels, the Process Manager interface and the power-supply common.

The input path handles −20 to +100 mV signals with a fixed one-second scan interval and a 0 to 4.7 Hz bandwidth. This combination is suited to process-temperature points where stable multiplexed acquisition matters more than high-speed response, including furnaces, reactors, utilities and other slowly changing thermal duties.

A 24 VDC nominal supply powers the assembly across the documented 15–30 VDC range, with 160 mA consumption at 15 VDC and 2.25 W maximum dissipation. Installation planning should preserve channel isolation, confirm the selected thermocouple standard and observe the stated ambient and humidity limits before energizing the replacement.
Alternative Names
MC-TAMT04 51305890-175 MC TAMT04 51305890 175 MCTAMT04 51305890175 Honeywell MC-TAMT04 Honeywell 51305890-175 Honeywell MC-TAMT04 LLMUX2 FTA Honeywell Low-Level Analog Multiplexer TC FTA
Technical notes
MC-TAMT04 51305890-175 requires verified thermocouple type, polarity and channel mapping before reconnection. Do not defeat the documented channel-to-channel, Process Manager or supply-common isolation boundaries during testing.
