T8310C

/ 4.9
1001 reviews | Need a Specific Revision?
T8310C is the conformal-coated Trusted TMR expander processor that links an expander chassis to the active and standby controller paths.
In Stock
Ships by Tuesday, September 29
Fast Shipping Available
Get a quick price for T8310C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for T8310C

  • Manufacturer:
    ICS Triplex
  • Part Number:
    T8310C
  • Product Family:
    Trusted Triple Modular Redundant
  • Product Type:
    Trusted TMR Expander Processor Module
  • Stock:
    1
  • User configuration:
    Not required
  • Module role:
    Expander processor
  • Construction:
    Conformal coated
  • Supply voltage:
    20…32 V DC
  • Power consumption:
    45 W
  • Copper expansion distance:
    30 m maximum
  • Fiber expansion distance:
    10 km maximum
  • Operating temperature:
    -5…60 °C
  • Status access:
    IEC 61131 TOOLSET diagnostics
  • Redundancy role:
    Active and standby module support
  • Weight:
    1.33 kg
  • Estimated shipping dimensions:
    26.6 x 3.1 x 30.3 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Chassis Placement Bus Health Active Standby Product Applications

Features:

  • Coated expander processor: conformal coating distinguishes the exact C-suffix hardware
  • Redundant chassis role: the module participates in active and standby expander processing
  • Expansion-path visibility: system diagnostics expose module and interface-bus status
T8310C links a Trusted expander chassis to the controller-side expansion architecture while preserving the coated hardware requirement.

Its operating context includes module slices, the local expander bus, interface hardware, and the active/standby relationship rather than a standalone control application.

A service record should retain slot identity, module state, interface catalogs, cable medium and length, firmware context, diagnostics, and power measurements.
Apter Power can review T8310C coating, slot, redundancy, expansion link, diagnostics, and condition records before sourcing.
ICS Triplex T8310C Trusted TMR Expander Processor Module Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Dedicated position: install the processor only in the documented expander-chassis slot.
  • Module pairing: identify active and standby hardware before any removal.
  • Power discipline: follow the official isolation and insertion sequence for the installed architecture.
  • Local interface: review expander-bus status and module-slice diagnostics together.
  • Link medium: distinguish copper and fiber interface hardware before tracing a path failure.
  • Distance limit: keep the installed link within the documented range for its selected medium.
  • Role verification: confirm which processor is active before a service action.
  • State transition: monitor the standby path during controlled transfer or replacement.
  • Diagnostic closure: clear no alarm until both module and system-level status agree.
  • Trusted chassis expansion: connect additional TMR I/O chassis to the controller architecture.
  • Redundant expander service: maintain active and standby processing within a documented safety system.
  • Long-distance expansion: use the approved fiber interface where the installation exceeds copper limits.
Description
T8310C is the conformal-coated version of the Trusted TMR expander processor used in a Trusted expander chassis. It links the chassis I/O bus to the controller system and occupies the designated processor position defined by the Trusted hardware architecture.

During operation, T8310C supports the active and standby expander-processor arrangement and reports status and diagnostic information to the IEC 61131 TOOLSET. Copper or fiber expansion paths must remain within their documented distance and hardware conditions.

Before replacing T8310C, confirm chassis slot, active/standby state, interface modules, expansion medium, cable distance, 24 V DC supply, and the saved system configuration. The module is not configured as an independent controller, so faults must be traced across the complete expansion path.
Alternative Names
ICS Triplex T8310C Expander Processor Trusted TMR Coated Expander Processor T8310 C Trusted Module PD-T8310 Expander Processor
Technical notes
T8310C belongs in the documented expander-processor slot and depends on the complete controller-to-expander interface path. Inserting it into an incorrect position can damage hardware; isolate power where required, identify the active and standby modules, then verify all slice diagnostics and expansion-bus status before returning the chassis to service.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can a Trusted chassis remain unavailable after T8310C appears healthy?
Trace the full expansion path: active and standby role, interface modules, copper or fiber link, local bus status, power, and slice diagnostics. A healthy front indication does not prove the remote path is complete.
What must be confirmed before the active T8310C is removed?
Identify the active and standby processors, verify the standby path and system diagnostics, follow the official isolation or hot-replacement procedure, and maintain the approved safety-system work permit.
How should intermittent bus faults around T8310C be separated from module failure?
Correlate slice alarms with interface-module status, cable diagnostics, connector condition, supply voltage, temperature, and fault timing; then test one path at a time before exchanging the processor.
When does the expansion medium matter for T8310C troubleshooting?
Copper and fiber interfaces have different hardware and distance limits. Confirm the installed medium, interface catalogs, route length, optical or electrical link status, and remote chassis identity before comparing diagnostics.
Why is the chassis slot critical when servicing T8310C?
The processor is assigned to a defined position in the Trusted expander architecture. Stop if the slot or adjacent interface arrangement is unclear, because incorrect insertion can damage equipment.
What information should accompany a T8310C outage request?

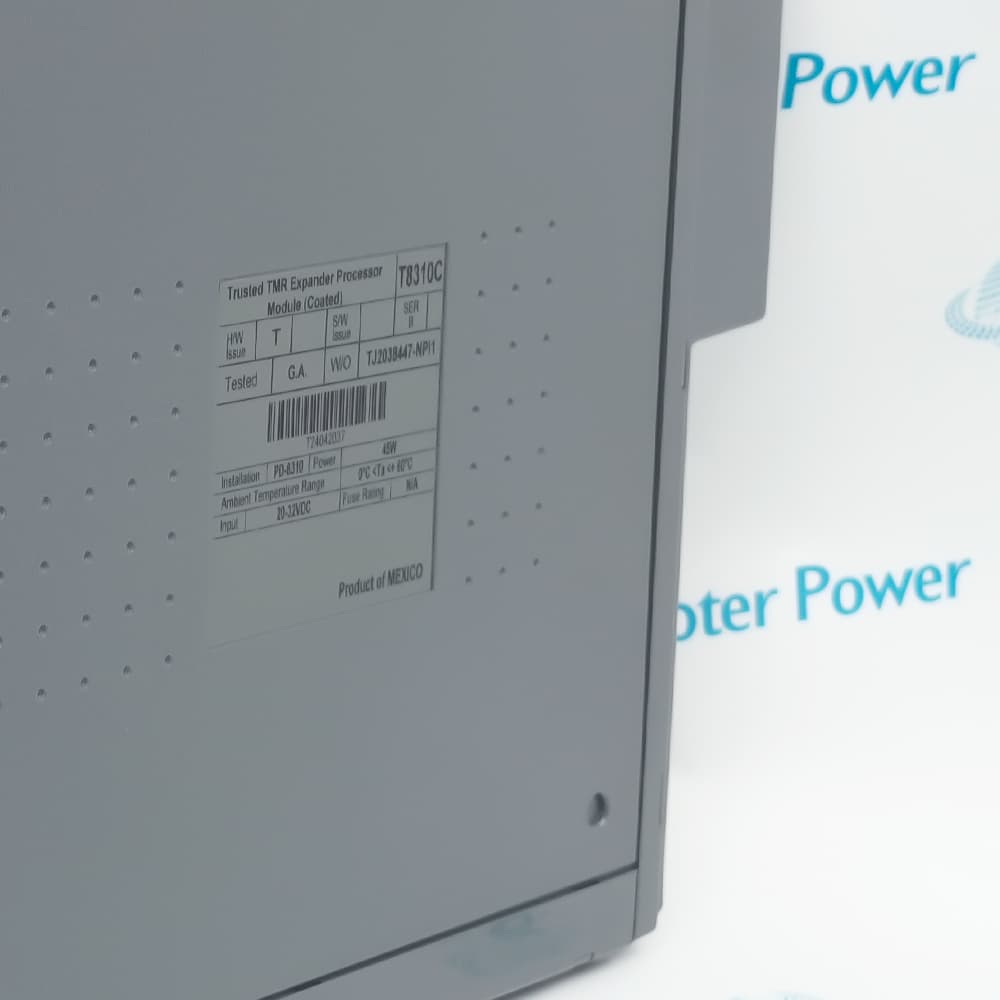

Provide nameplate and coating evidence, active/standby role, chassis and slot, interface catalogs, link medium and distance, diagnostics, quantity, condition, destination, and outage date.
