RSD-GW3-Ex2.DPE

/ 4.9
1001 reviews | Need a Specific Revision?

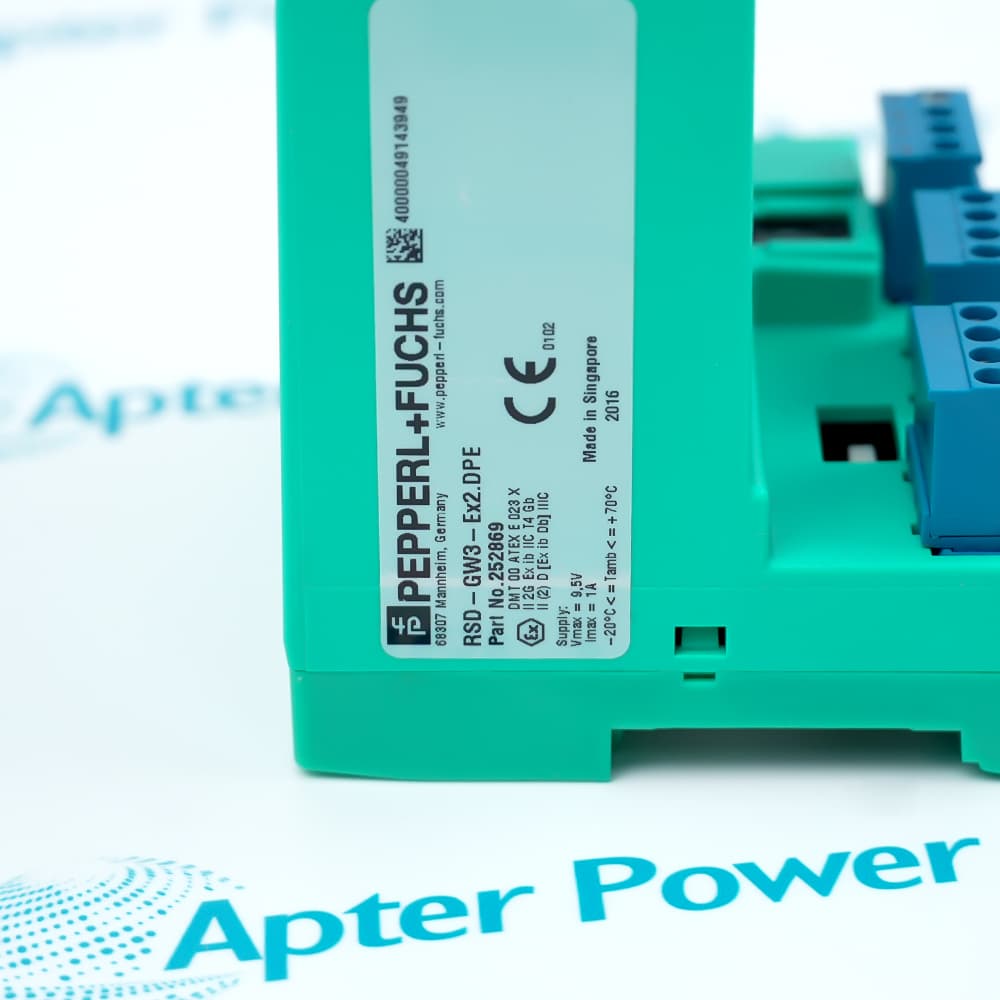

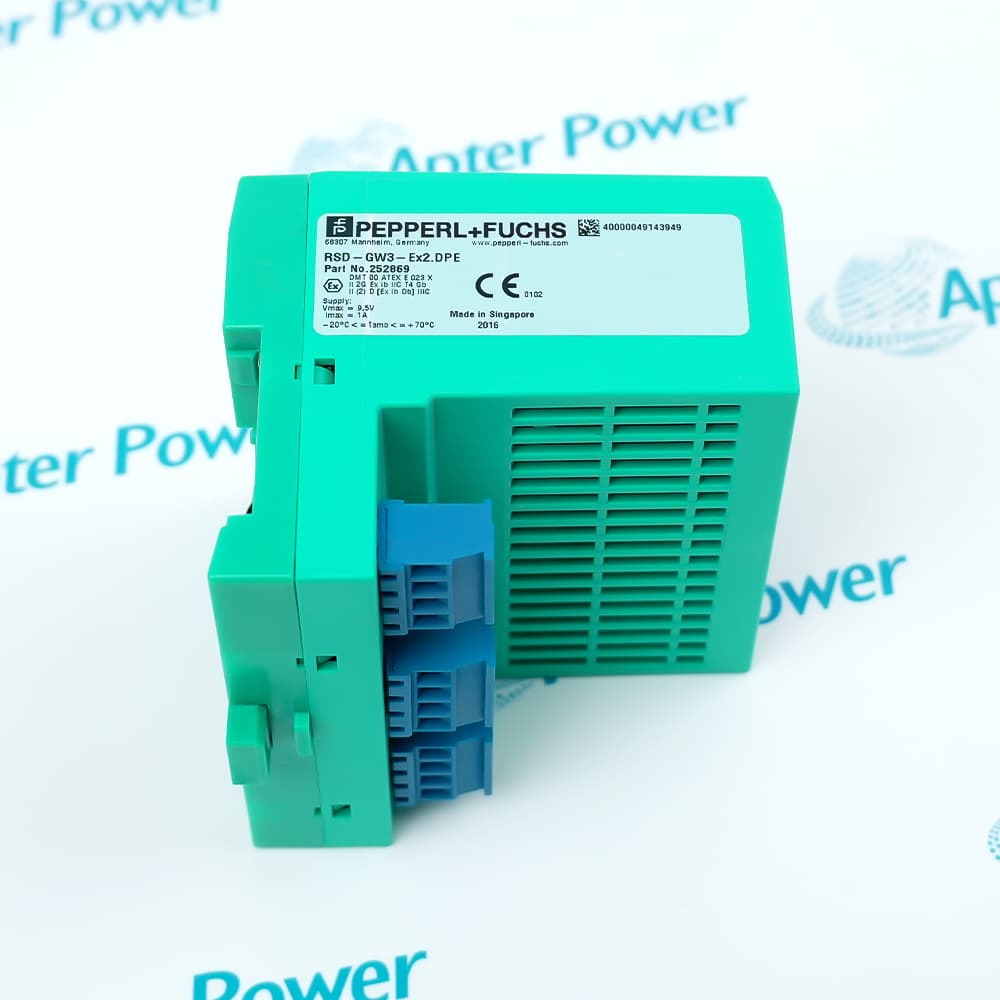

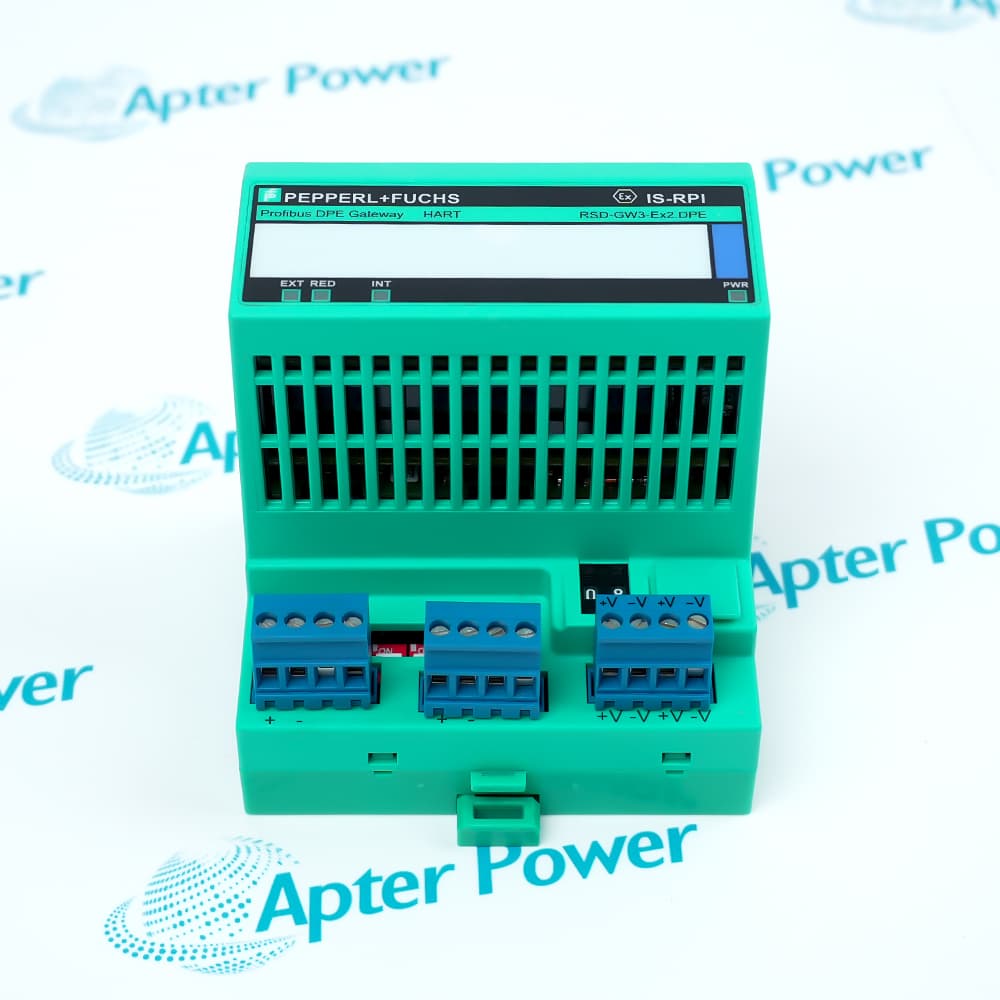

Pepperl+Fuchs RSD-GW3-Ex2.DPE is an IS-RPI PROFIBUS DP V1/HART gateway for up to eight I/O modules with redundant network media in hazardous-area process systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for RSD-GW3-Ex2.DPE
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for RSD-GW3-Ex2.DPE

  • Manufacturer:
    Pepperl + Fuchs
  • Part Number:
    RSD-GW3-Ex2.DPE
  • Product Family:
    IS-RPI/PROFIBUS DP V1 Gateways
  • Product Type:
    PROFIBUS DP V1 / HART Gateway
  • Stock:
    1
  • Gateway function:
    PROFIBUS DP V1 to IS-RPI backplane interface
  • Field-device communication:
    HART via PACTware
  • Maximum connected I/O modules:
    8
  • Maximum gateways per IS segment:
    10
  • PROFIBUS media:
    Redundant PROFIBUS DP
  • PROFIBUS data rate:
    9.6–1500 kbit/s
  • Station address range:
    1–99
  • Internal bus cycle time:
    1.6 ms
  • Supply voltage:
    8.88–9.5 V
  • Maximum power consumption:
    8.5 W
  • Maximum power dissipation:
    8 W
  • Bus isolation:
    Internal and external buses galvanically isolated
  • Operating temperature:
    -20 to +70 °C
  • Storage temperature:
    -20 to +100 °C
  • Relative humidity:
    95%, noncondensing
  • Shock resistance:
    15 g for 11 ms
  • Vibration resistance:
    2 g at 10–500 Hz
  • Corrosive-gas rating:
    G3
  • Module protection:
    IP20
  • Required enclosure protection:
    Minimum IP54
  • Mounting method:
    DIN rail
  • ATEX certificate:
    DMT 00 ATEX 023 X
  • Hazardous-area marking:
    II 2G EEx ib IIC / II(2D), T4
  • Permitted power supplies:
    RSD2-PSD2-Ex4.34 or RSA6-PSD-Ex4.34
  • Product Family:
    IS-RPI/PROFIBUS DP V1 Gateways
  • Weight:
    0.7165 lbs (0.325 kg)
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Temperature Range Safety

Features:

  • Connects an intrinsically safe IS-RPI backplane to a PROFIBUS DP V1 control network.
  • Supports HART device access through PACTware for connected process channels.
  • Dual PROFIBUS interfaces provide the documented media-redundant communication path.
The selected gateway is the Ex2.DPE variant designed for hazardous-area IS-RPI architectures. It accepts as many as eight I/O modules and uses configurable addressing for integration with the host PROFIBUS network.

During operation, the gateway transfers cyclic process data, acyclic DP V1 information and HART communication between the internal backplane and external control system. Galvanic isolation separates the buses from the module power supply.

Installation requires one of the approved power-supply modules and an enclosure rated at least IP54. Bus termination, address switches and redundant-media wiring must be checked before power is applied.

Availability is subject to the exact hazardous-area gateway and approved power-supply configuration.
Verified resources for Pepperl+Fuchs RSD-GW3-Ex2.DPE:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Links intrinsically safe analog and digital I/O points to a plant PROFIBUS DP control system.
  • Transfers HART maintenance data for field instruments connected through compatible IS-RPI modules.
  • Builds redundant fieldbus segments for process units that require continued communication after one media path fails.
  • PROFIBUS DP V1 operates from 9.6 to 1500 kbit/s with a configurable station address from 1 to 99.
  • Up to eight I/O modules share the internal backplane connection of one gateway.
  • PACTware provides access to HART information forwarded from supported field-device channels.
  • The documented operating range is -20 to +70 °C.
  • Storage is permitted from -20 to +100 °C when the module is not energized.
  • Relative humidity may reach 95% provided condensation does not occur.
  • ATEX certificate DMT 00 ATEX 023 X applies with the documented special conditions of use.
  • Zone 1 installation requires an external enclosure providing at least IP54 protection.
  • The gateway must not be replaced under voltage in Zone 1 and may use only approved IS-RPI supplies.
Description
Pepperl+Fuchs RSD-GW3-Ex2.DPE is the gateway between an external PROFIBUS DP V1 control network and the internal intrinsically safe IS-RPI backplane. One gateway can manage up to eight connected I/O modules and transfer their process data to the host while supporting HART communication through PACTware.

Dual PROFIBUS interfaces and media-redundant operation support resilient system architectures, while the internal and external buses remain galvanically isolated from the power supply. Configurable station addressing and standard PROFIBUS data rates allow the gateway to be integrated into industrial control networks within the documented hazardous-area concept.

Installation must use the approved IS-RPI power-supply module and a separate enclosure that provides at least IP54 protection. Power must not be interrupted by hot-swapping the gateway in Zone 1, and the terminal, bus-termination and redundancy settings should be verified before commissioning.
Alternative Names
Pepperl+Fuchs RSD-GW3-Ex2.DPE RSD-GW3-Ex2.DPE PROFIBUS gateway RSDGW3EX2DPE RSD GW3 Ex2 DPE P+F RSD-GW3-Ex2.DPE IS-RPI PROFIBUS DP V1 Gateway Pepperl Fuchs HART Gateway RSD-GW3 RSD-GW3-Ex2.DPE redundant gateway
Technical notes
Pepperl+Fuchs RSD-GW3-Ex2.DPE may be powered only by the documented RSD2-PSD2-Ex4.34 or RSA6-PSD-Ex4.34 supply module. The gateway is not hot-swappable in Zone 1 and requires installation in an enclosure providing at least IP54.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many IS-RPI modules can Pepperl+Fuchs RSD-GW3-Ex2.DPE manage?
One gateway supports up to eight I/O modules on its internal backplane, with module addressing and data transfer handled through the IS-RPI architecture.
What network redundancy is available on Pepperl+Fuchs RSD-GW3-Ex2.DPE?
The gateway is designed for redundant PROFIBUS DP media and includes dual external bus connections for the documented redundant arrangement.
How are HART devices accessed through Pepperl+Fuchs RSD-GW3-Ex2.DPE?
HART data from connected I/O modules is available through PACTware, while PROFIBUS DP V1 carries process communication to the control system.
Which safety limitation controls Pepperl+Fuchs RSD-GW3-Ex2.DPE power and replacement?
Use only the approved IS-RPI power supplies, provide at least IP54 enclosure protection and do not hot-swap the gateway while energized in Zone 1.
Where are the approvals for Pepperl+Fuchs RSD-GW3-Ex2.DPE documented?
The model-specific product data and EC-type-examination information in the Manuals tab show the ATEX certificate, marking and special installation conditions.
What configuration details should accompany a Pepperl+Fuchs RSD-GW3-Ex2.DPE inquiry?
State quantity, destination, PROFIBUS speed and address plan, redundancy requirement, installed power-supply model and hazardous-area classification.
