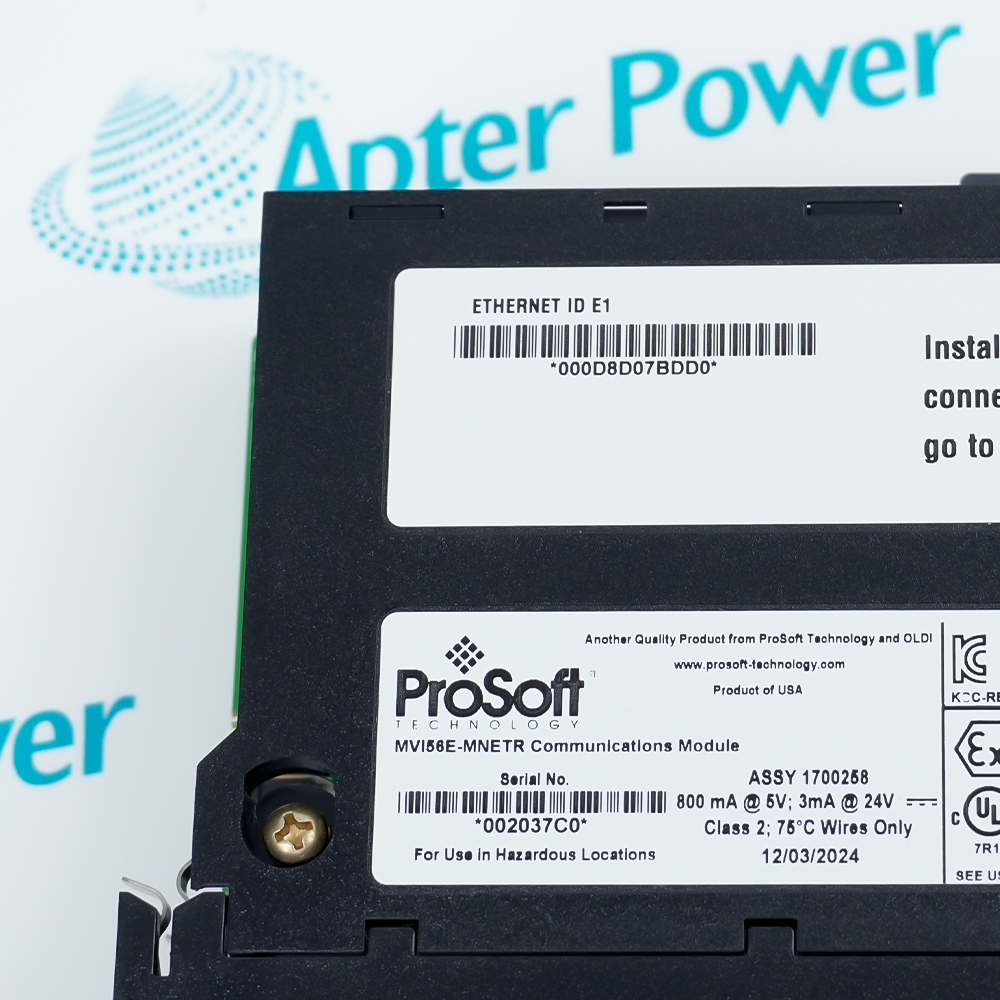

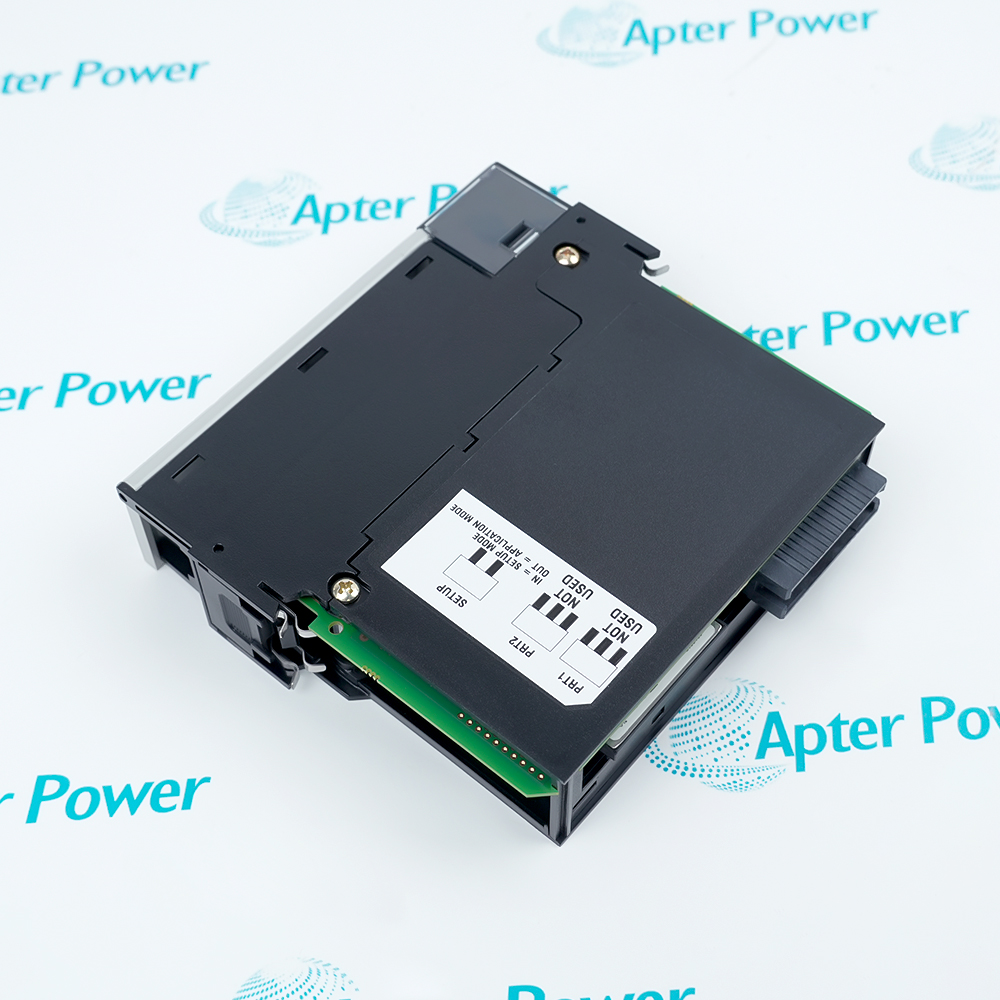

        MVI56E-MNETR
        MVI56E-MNETR
        MVI56E-MNETR
        MVI56E-MNETR
        MVI56E-MNETR
        MVI56E-MNETR
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supports quotations, configuration documents, sourcing, and ControlLogix integration review for this reduced-data module.

        MVI56E-MNETR

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        ProSoft MVI56E-MNETR is a ControlLogix Modbus TCP/IP client/server module that uses a reduced I/O image for bandwidth-limited remote-rack and redundant-controller applications.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for MVI56E-MNETR
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for MVI56E-MNETR

        • Manufacturer:
          ProSoft
        • Part Number:
          MVI56E-MNETR
        • Product Family:
          ProSoft
        • Product Type:
          Modbus TCP/IP Client/Server Enhanced Communication Module
        • Stock:
          1
        • Scheduled I/O Image:
          40 words
        • Modbus Database:
          Up to 5,000 16-bit registers
        • Ethernet Interface:
          10/100 Base-T, RJ45
        • Client Capacity:
          One connection, up to 100 commands
        • Server Connections:
          10 on port 502 and 10 on port 2000
        • Backplane Current:
          800 mA at 5 VDC; 3 mA at 24 VDC
        • Operating Temperature:
          0 to 60 °C
        • Relative Humidity:
          5 to 95%, non-condensing
        • Estimated shipping dimensions:

        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Remote Rack Data Mapping Commissioning

        Features:

        • Reduced 40-word ControlLogix scheduled I/O image
        • Modbus TCP/IP client and server operation through one Ethernet interface
        • Up to 5,000 16-bit registers for controller and field-device data
        ProSoft MVI56E-MNETR is designed for ControlLogix applications where remote-rack bandwidth or controller redundancy favors a smaller backplane transfer.

        The module maintains Modbus data independently from the scheduled controller image, allowing the approved ladder logic or Add-On Instruction to exchange only the required blocks.

        Successful deployment depends on preserving the command list, IP configuration, register map, and controller-side integration used by the validated project.

        Availability of ProSoft MVI56E-MNETR is subject to Apter Power inventory and sourcing confirmation.
        Verified resources for ProSoft MVI56E-MNETR: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ProSoft MVI56E-MNETR Modbus TCP/IP Communication Module Specs

        General

        • ManufacturerProSoft Technology
        • ModelMVI56E-MNETR
        • ConditionNew Original ready stock
        • Product FamilyControlLogix In-Chassis Communication Modules
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Reduced-transfer use cases

        • Bandwidth fit: Use the 40-word image when the approved architecture limits scheduled ControlLogix data transfer.
        • Chassis role: Confirm whether the module sits in a local rack, remote rack, or redundant-controller design.
        • Logic dependency: Install the matching ProSoft ladder logic or Add-On Instruction before bringing the connection online.
        • Selection boundary: For ordinary applications that do not need the reduced image, compare the official ProSoft alternatives before ordering.

        Modbus data planning

        • Register ownership: Document which controller tags read from or write to each Modbus database address.
        • Command timing: Balance client polling intervals against device response time and network load.
        • Server access: Control which external clients use port 502 or the configured service connection.
        • Change record: Keep the command list, IP settings, and mapping revision with the ControlLogix project backup.

        Acceptance sequence

        • Controller link: Confirm the scheduled connection and data blocks are healthy before testing field devices.
        • Protocol sessions: Validate required client commands and server requests against known register values.
        • Exception handling: Record timeout, reconnect, and Modbus exception behavior under controlled faults.
        • Recovery test: Verify stable operation after a network interruption and, where used, a redundancy switchover.
        Description
        The MVI56E-MNETR is ProSoft Technology’s enhanced Modbus TCP/IP client/server communication module for the Rockwell Automation ControlLogix platform. Its reduced data-block design is intended for remote racks, limited-bandwidth links, and redundant-controller architectures where a full 200-word transfer is not appropriate.

        Within a ControlLogix chassis, MVI56E-MNETR exchanges scheduled backplane data through a 40-word I/O image while maintaining a Modbus database of up to 5,000 16-bit registers. The Ethernet interface can operate as both a Modbus TCP/IP client and server, allowing controller data to be shared with compatible field devices and supervisory systems.

        For a retrofit or new design, MVI56E-MNETR should be selected only when the reduced transfer size matches the controller architecture. Preserve the approved ladder logic or Add-On Instruction, IP settings, command list, and register map before commissioning a replacement module.
        Alternative Names
        MVI56E MNETR MVI56EMNETR MVI56E-MNET R MVI56E MNET-R ProSoft MVI56E MNETR
        Technical notes
        Before deploying MVI56E-MNETR, confirm that the project uses ProSoft’s reduced 40-word scheduled I/O image and the matching ladder logic or Add-On Instruction. The module supports a 5,000-register Modbus database, but client commands, server connections, IP addressing, and data mapping must remain consistent with the validated ControlLogix application.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        When is MVI56E-MNETR preferable to a standard ControlLogix Modbus TCP/IP module?
        Use it when a remote rack, constrained network, or redundant-controller design requires ProSoft’s reduced 40-word scheduled transfer rather than the larger standard image.
        What project files should be retained before replacing MVI56E-MNETR?
        Archive the ControlLogix program, ProSoft Add-On Instruction or ladder logic, module configuration, IP settings, command list, and Modbus register map.
        Can MVI56E-MNETR be commissioned without rebuilding the Modbus data map?
        A like-for-like swap can reuse the approved map only when the saved configuration and controller logic match the installed architecture; otherwise the mapping must be reviewed.
        How should engineers troubleshoot intermittent communication through MVI56E-MNETR?
        Check the module status display and LEDs, then compare IP addressing, client command timing, server connection use, cabling, and register-map expectations with the saved project.
        What information helps a buyer source the correct MVI56E-MNETR spare?
        Provide the chassis location, controller redundancy arrangement, current firmware information, saved configuration, and confirmation that the application uses the reduced data-block version.
        Which acceptance checks are useful after installing MVI56E-MNETR?
        Verify the controller connection, Modbus client and server sessions, expected register updates, exception handling, and recovery after a controlled communication interruption.
