    Apter Power supports 6DD1670-0AF0 quotations, manuals, and SIMADYN D model matching.

6DD1670-0AF0

/ 4.9
1001 reviews | Need a Specific Revision?
For local viewing and command entry in a SIMADYN D control installation, Siemens 6DD1670-0AF0 is the OP1 operator panel with an integrated display and keypad.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6DD1670-0AF0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6DD1670-0AF0

  • Manufacturer:
    Siemens
  • Part Number:
    6DD1670-0AF0
  • Product Family:
    Siemens Simadyn
  • Product Type:
    Operator panel
  • Stock:
    1
  • Front display:
    Alphanumeric display window
  • Input controls:
    Grouped function keys, command keys and numeric keypad
  • Dedicated command keys:
    INT, EXT, NEW, ACTL, ALL and ACK
  • Status indication:
    FAULT and M indicators
  • Test control:
    TEST RESET button
  • Rear connection layout:
    Two terminal-block groups with a separate connector area
  • Rear enclosure:
    Metal housing with a ventilated electronics section
  • Assembly number:
    465 670.9005.00
  • Export control classification:
    ECCN N / AL N
  • RoHS status:
    Not RoHS-compliant
  • WEEE take-back obligation:
    None
  • Packaging quantity:
    1
  • Weight:
    7.132 lbs (3.235 kg)
  • Estimated shipping dimensions:
    33.5x47.1x13.2cm
  • Tariff Code:
    85389091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Panel Controls Rear Construction Nameplate Matching Compliance Records

 Features:

  • The operator surface combines an alphanumeric display, grouped keys, numeric entry and dedicated status indicators.
  • The rear nameplate identifies SIMADYN D, Operator Panel OP1 and the complete MLFB 6DD1670-0AF0.
  • A metal rear housing keeps terminal blocks, connector access and the ventilated electronics section behind the operator face.
On 6DD1670-0AF0, the display and control keys share one front assembly, allowing the operator to read information and enter commands from the same panel position.

The key groups on 6DD1670-0AF0 separate general function selection from INT, EXT, NEW, ACTL, ALL and ACK commands, while the numeric block provides a distinct entry area.

Identification for 6DD1670-0AF0 is carried on the rear label, where OP1, the full MLFB and the separate AS-NR. can be checked before the panel is matched to an installed unit.

The Siemens 6DD1670-0AF0 SIMADYN D OP1 Operator Panel may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6DD1670-0AF0 SIMADYN D OP1 Operator Panel Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Front-panel control groups

  • Display area: An alphanumeric window occupies the upper part of the Siemens 6DD1670-0AF0 operator surface.
  • Function groups: Multiple key rows divide general selections into clearly separated blocks.
  • Command section: INT, EXT, NEW, ACTL, ALL and ACK have dedicated keys beside the main function area.
  • Numeric entry: A separate number pad with ENTER and clear controls supports direct value entry.

Behind the operator surface

  • Metal housing: The rear electronics of 6DD1670-0AF0 are enclosed behind the front operator panel.
  • Ventilation field: A perforated rear section provides an open-air path across the electronics enclosure.
  • Terminal groups: Two green terminal-block groups are positioned along the lower rear edge.
  • Connector area: Additional connector openings are separated from the terminal blocks on the rear assembly.

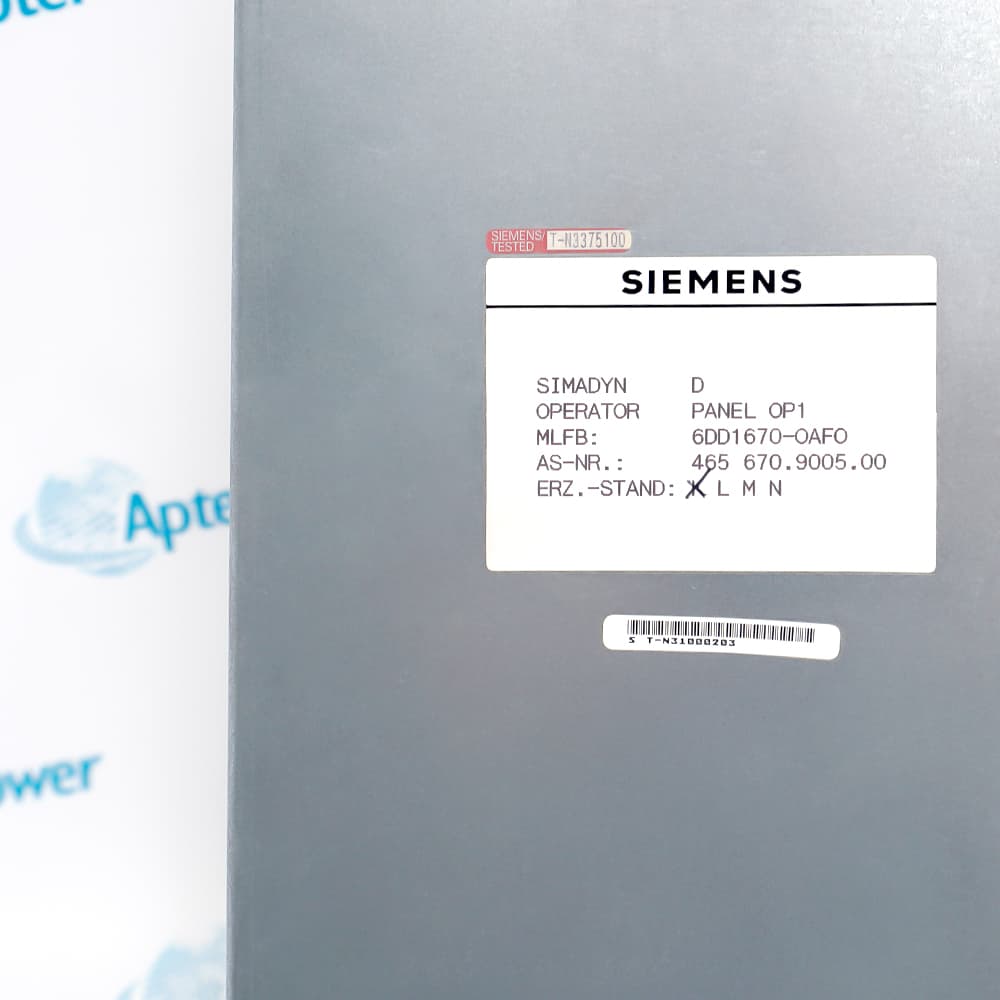

Identifiers to compare

  • Manufacturer: The rear label identifies Siemens as the manufacturer of 6DD1670-0AF0.
  • System name: SIMADYN D appears on both the operator face and the rear identification label.
  • Panel designation: OPERATOR PANEL OP1 distinguishes this panel type from other SIMADYN D assemblies.
  • Order reference: The full MLFB 6DD1670-0AF0 must be checked separately from AS-NR. 465 670.9005.00.

Recorded regulatory status

  • RoHS status: Siemens records 6DD1670-0AF0 as not compliant with the RoHS substance restrictions.
  • WEEE status: The official product record lists no take-back obligation for this article.
  • Export control: The official classification is ECCN N and AL N.
  • Origin record: Germany is the stated country of origin for 6DD1670-0AF0.
Description
Siemens 6DD1670-0AF0 is the SIMADYN D OP1 operator panel that places a display and keypad at the operator side of the control system. Its role is to present operating information and accept local entries without treating the panel as a processor or communications module.

Across the face of 6DD1670-0AF0, the alphanumeric display sits above grouped function keys, command keys, status indicators and a numeric keypad. This layout separates viewing, function selection and number entry so each action has a distinct control area.

Behind the operator surface, 6DD1670-0AF0 places its electronics in a metal rear housing with a broad ventilation field. The terminal groups run along the lower edge while the other connector openings remain in a separate area, keeping the wiring side distinct from the display and keypad side.
Alternative Names
6DD16700AF0 6DD 1670-0AF0 6DD 1670 0AF0 6DD1 670-0AF0 6DD1-670-0AF0 Siemens 6DD1670-0AF0 SIMADYN D OP1 6DD1670-0AF0 6DD1670-0AFO
Technical notes
The 33.5x47.1x13.2cm value for Siemens 6DD1670-0AF0 is the shipping-package size, not the operator-panel body or panel cutout.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can I distinguish 6DD1670-0AF0 from another SIMADYN D operator panel?
Check that the rear nameplate states OPERATOR PANEL OP1 and carries the complete MLFB 6DD1670-0AF0; a similar faceplate or partial 6DD number is not enough.
Is 6DD1670-0AF0 a processor module or an operator interface?
Siemens identifies 6DD1670-0AF0 as the SIMADYN D OP1 operator panel, so processor-module documentation such as a PM16 manual does not describe this product.
Which visible controls should be present on the front of 6DD1670-0AF0?
The front of 6DD1670-0AF0 shows an alphanumeric display, grouped function and command keys, status indicators, and a separate numeric keypad.
When is a manual suitable for checking 6DD1670-0AF0?
Use documentation only when it lists 6DD1670-0AF0 or explicitly maps that order number to OP1; a manual for a different 6DD article is not model-specific evidence.
Can 6DD1670-0AF0 be selected for a RoHS-restricted installation without review?
No. Siemens records 6DD1670-0AF0 as not RoHS-compliant, so the installation's substance-restriction requirements must be checked before selection.
