Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power supports documented 6ES7132-4BD32-0AA0 legacy supply enquiries.

6ES7132-4BD32-0AA0

/ 4.9
1001 reviews | Need a Specific Revision?

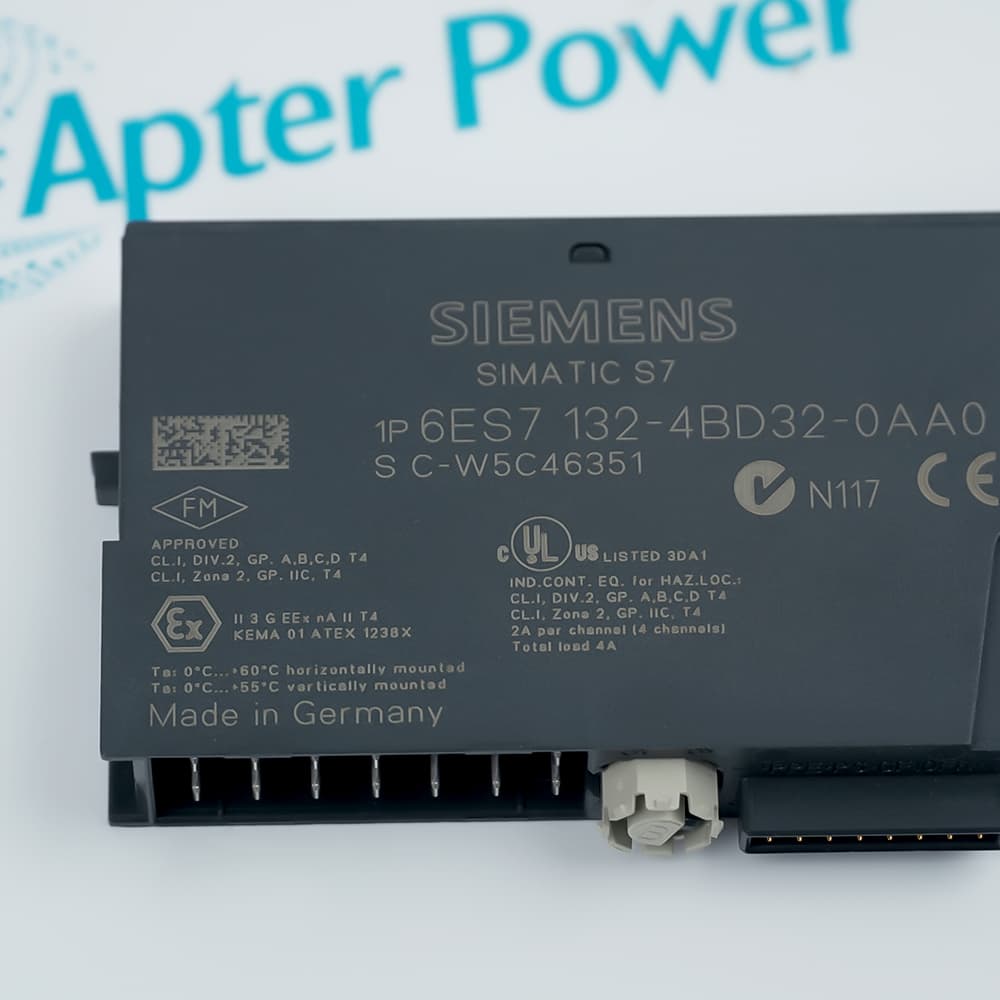

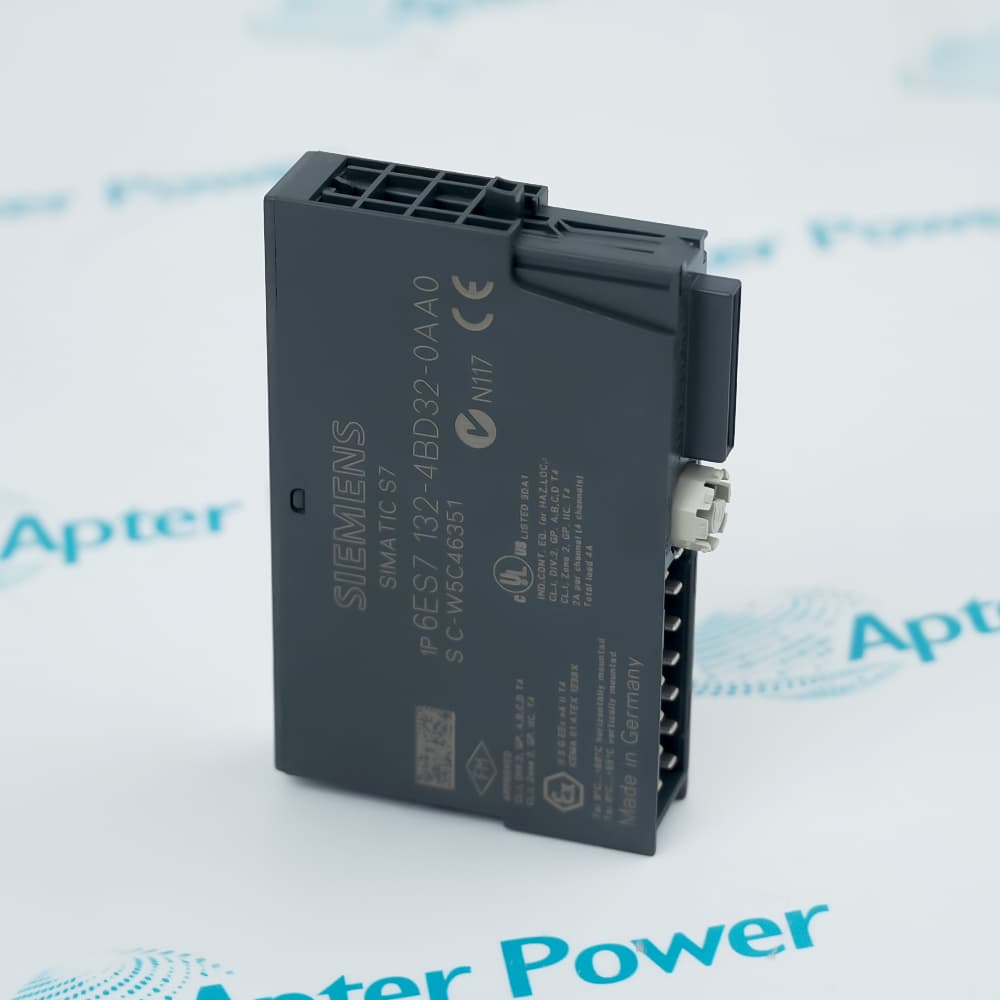

Siemens 6ES7132-4BD32-0AA0 is an ET 200S four-channel 24 VDC digital output module rated 2 A per output and supplied as a pack of five.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7132-4BD32-0AA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7132-4BD32-0AA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7132-4BD32-0AA0
  • Product Family:
    Siemens Simatic DP
  • Product Type:
    SIMATIC ET 200S 4DO Digital Output Module Pack
  • Stock:
    1
  • Distributed I/O Family:
    SIMATIC ET 200S
  • Output Channels:
    4
  • Output Voltage:
    24 VDC
  • Rated Output Current:
    2 A per channel
  • Total Module Current:
    4 A
  • Module Width:
    15 mm
  • Channel Indication:
    Green LED
  • Short-circuit Protection:
    Per channel
  • Package Quantity:
    5 modules
  • Weight:
    0.184 kg
  • Estimated shipping dimensions:
    9.00 x 8.30 x 6.20 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Station Fit Load Planning Commissioning Product Applications

Features:

  • Four protected outputs: Each channel switches 24 VDC loads with individual short-circuit protection.
  • Compact ET 200S format: The 15 mm module fits compatible terminal modules in the distributed I/O station.
  • Pack-based article: The official order number represents five modules and must be quoted with that quantity basis.
The module is used in ET 200S stations where four standard digital loads require 24 VDC switching at up to 2 A per output.

Terminal assignment and usable terminal-module variants are defined by the official module manual and must match the station hardware.

Commissioning proves the load supply, output mapping, LED indication and protective response before connected equipment is released.

Apter Power can help confirm the Siemens 6ES7132-4BD32-0AA0 ET 200S output module pack, terminal-module match and quantity basis before quotation.
Siemens 6ES7132-4BD32-0AA0 SIMATIC ET 200S 4DO Digital Output Module Pack Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Terminal module: Match the installed terminal-module variant to the official compatibility table.
  • Package basis: Confirm that the required quantity aligns with the five-module Siemens sales unit.
  • Address mapping: Preserve channel assignment in the ET 200S station and controller project.
  • Width planning: Allow the defined 15 mm station space and keyed module position.
  • Current budget: Check individual load current and the module total against official ratings.
  • Inductive loads: Apply approved suppression and consider the specified switching frequency.
  • Load supply: Verify 24 VDC polarity, protective devices and common distribution before connection.
  • Parallel use: Do not parallel outputs for increased performance because the module does not support it.
  • Safe state: Isolate hazardous loads while forcing or testing individual output channels.
  • LED comparison: Confirm each green channel indicator agrees with the commanded output state.
  • Short-circuit review: Clear wiring and load faults before resetting protective operation.
  • Transition awareness: Account for the documented brief output pulse when load voltage is mechanically switched.
  • Distributed machine I/O: Switches four 24 VDC loads in an ET 200S station.
  • Valve and relay control: Drives approved inductive or resistive field devices within ratings.
  • Panel retrofit: Restores a documented 15 mm output position in legacy equipment.
  • Spare standardization: Supports multiple identical stations through the official five-module package.
Description
6ES7132-4BD32-0AA0 is a 15 mm SIMATIC ET 200S digital electronic module with four 24 VDC outputs rated up to 2 A each.

6ES7132-4BD32-0AA0 provides green channel-status indication, short-circuit protection and compatibility with defined ET 200S terminal modules.

6ES7132-4BD32-0AA0 is supplied under the official article as a package of five modules, so quantity and terminal-module requirements should be confirmed before ordering.
Alternative Names
6ES7132-4BD32-0AA0 6ES71324BD320AA0 6ES7 132-4BD32-0AA0
Technical notes
6ES7132-4BD32-0AA0 is a discontinued ET 200S output module supplied as a five-unit sales package. Verify the terminal-module type, 24 VDC load supply, channel current and inductive-load suppression before installation. Remove field power during changeout, then test every output and status indication with hazardous loads isolated before returning the station to service.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is 6ES7132-4BD32-0AA0 described as a five-module package rather than one loose module?
The official Siemens article specifies a packing unit of five, so procurement and stock counts should use that sales basis.
Can 6ES7132-4BD32-0AA0 use any ET 200S terminal module?
No. Select only a terminal-module variant listed as compatible in the official manual and matching the station wiring design.
A load on 6ES7132-4BD32-0AA0 will not energize. What should be checked before replacement?
Check channel command, 24 VDC load supply, terminal assignment, output indication, wiring, load current and short-circuit condition.
Can two outputs on 6ES7132-4BD32-0AA0 be paralleled to obtain more current?
The official specification does not permit parallel connection for increased performance, so choose an approved output solution instead.
What precaution applies when testing inductive loads on 6ES7132-4BD32-0AA0?
Use approved suppression, stay within switching limits and isolate hazardous motion while each channel is tested under the real load.
Why should load voltage switching behavior be reviewed for 6ES7132-4BD32-0AA0?
The manual documents a brief output pulse when load voltage is mechanically switched, which can matter for sensitive actuators.
