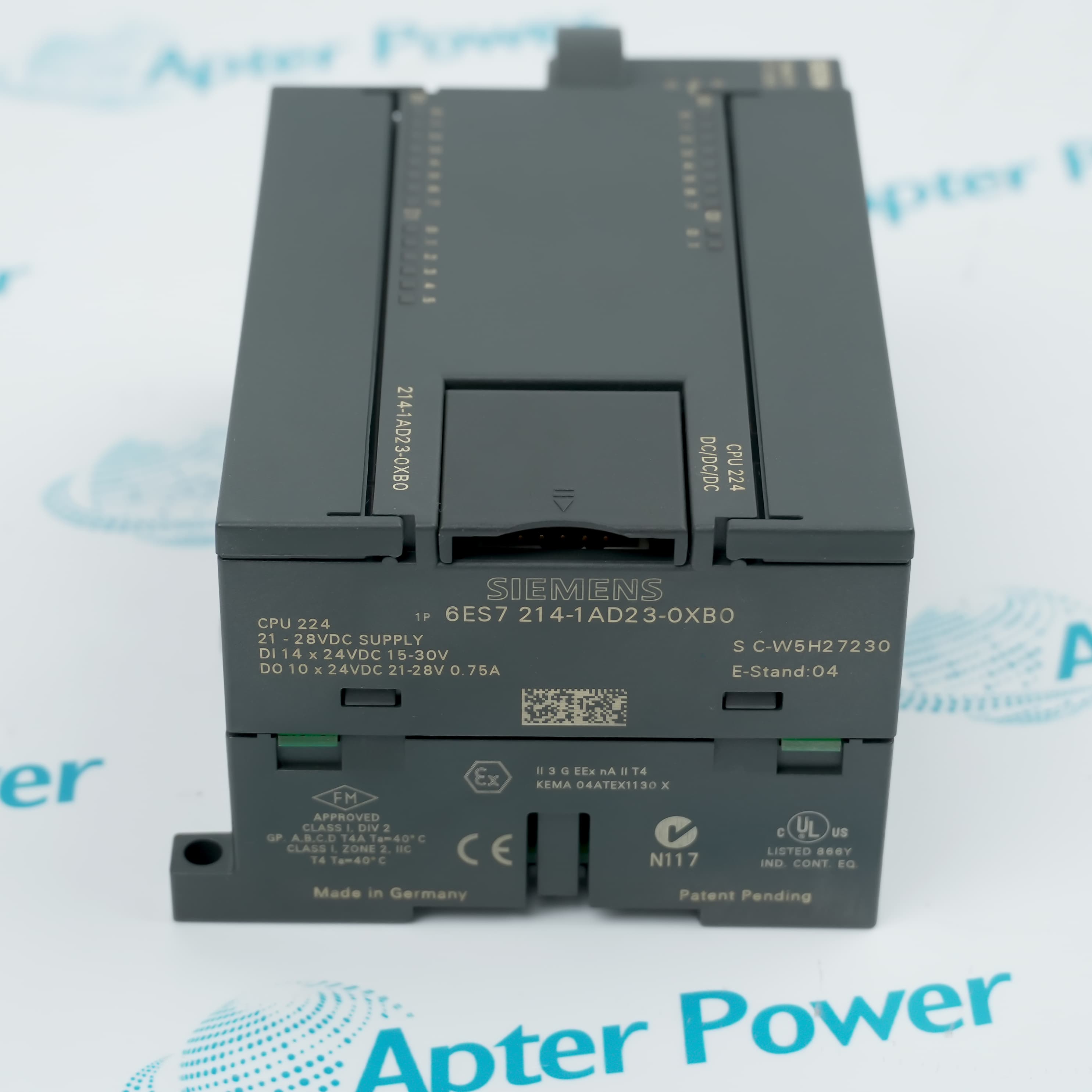

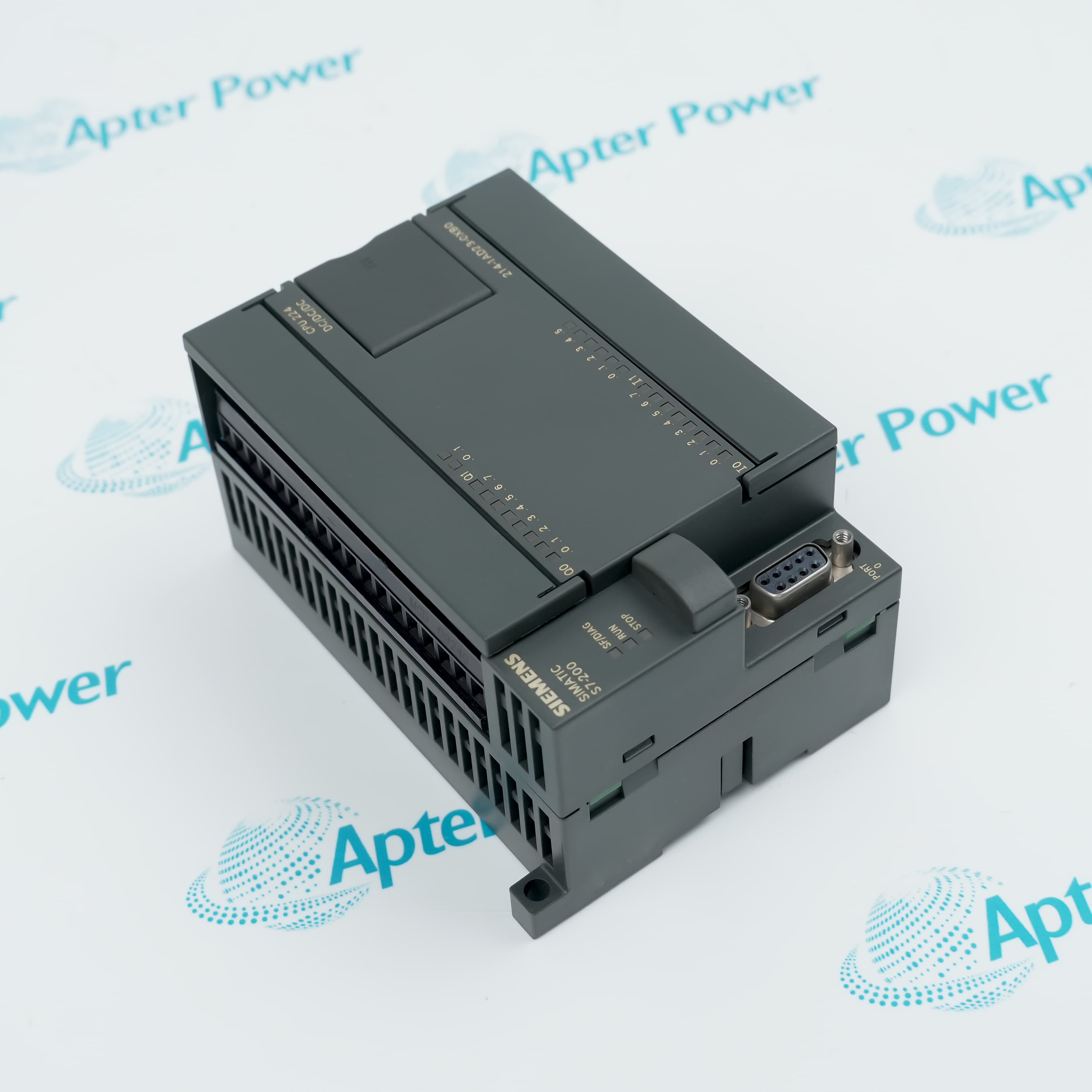

Siemens 6ES7214-1AD23-0XB0
Siemens 6ES7214-1AD23-0XB0
Siemens 6ES7214-1AD23-0XB0
Siemens 6ES7214-1AD23-0XB0
Siemens 6ES7214-1AD23-0XB0
Siemens 6ES7214-1AD23-0XB0
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power provides quotations, technical documents, sourcing support and system-matching guidance.

6ES7214-1AD23-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?
Siemens 6ES7214-1AD23-0XB0 is a SIMATIC S7-200 CPU 224 with fourteen digital inputs, ten transistor outputs and local expansion capability. It performs compact machine logic, counting and pulse-control tasks.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 6ES7214-1AD23-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7214-1AD23-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7214-1AD23-0XB0
  • Product Family:
    Siemens Simatic S7-200
  • Product Type:
    CPU 224 Compact Controller
  • Stock:
    1
  • Controller type:
    SIMATIC S7-200 CPU 224
  • Supply design:
    DC/DC/DC
  • Supply range:
    20.4 to 28.8 VDC
  • Integrated digital inputs:
    14
  • Integrated digital outputs:
    10 transistor outputs
  • Program memory:
    12 KB
  • Program memory with runtime edit:
    8 KB
  • Data memory:
    8 KB
  • Program backup:
    100 h, typical
  • Bit execution time:
    0.22 µs
  • Counters:
    256
  • Timers:
    256
  • Maximum expansion modules:
    7 S7-22x modules
  • Maximum digital I/O:
    168
  • Maximum analog I/O:
    35
  • High-speed counters:
    6, up to 30 kHz
  • Pulse outputs:
    2, up to 20 kHz
  • Communication interface:
    RS-485 PPI/MPI/Freeport
  • Degree of protection:
    IP20
  • Operating temperature:
    0 to 55°C horizontal; 0 to 45°C vertical
  • Weight:
    0.7937 lbs (0.36 kg)
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Programming Connectivity Efficiency

Features:

  • Integrates fourteen digital inputs and ten transistor outputs.
  • Supports up to seven S7-22x expansion modules.
  • Provides high-speed counters and two pulse outputs for compact motion tasks.
6ES7214-1AD23-0XB0 is a SIMATIC S7-200 CPU 224 DC/DC/DC controller with fourteen 24 VDC inputs and ten transistor outputs in a compact housing.

It executes logic, counting, timing and pulse-output functions for small machines while supporting local expansion modules and serial communications.

Check the archived STEP 7-Micro/WIN program, expansion order, PPI network parameters and output loading before replacing an installed CPU.

Availability is subject to Apter Power inventory and sourcing confirmation.

Verified resources for Siemens 6ES7214-1AD23-0XB0:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Siemens 6ES7214-1AD23-0XB0 CPU 224 Compact Controller Specs

General

  • ManufacturerSiemens
  • Model6ES7214-1AD23-0XB0
  • ConditionNew / Surplus / Refurbished
  • Product FamilySIMATIC S7-200
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Programming uses STEP 7-Micro/WIN and supports LAD, FBD or STL for the stored machine-control application.
  • The controller provides 12 KB of program memory and 8 KB of data memory for logic and operating values.
  • Retentive ranges, runtime-edit use and expansion addresses must be restored from the verified project backup.
  • The integrated RS-485 port supports PPI, MPI and freely programmable serial communication for supported devices.
  • The operating network address, baud rate and termination arrangement must be copied before the installed CPU is removed.
  • Serial cabling requires the documented shielding, grounding and connector arrangement for a reliable S7-200 network.
  • Boolean instructions execute in approximately 0.22 microseconds under the operating conditions documented by Siemens.
  • Six high-speed counters accept suitable signals up to 30 kHz for position, speed and event-processing tasks.
  • Two pulse outputs operate up to 20 kHz for compact positioning or frequency-output applications.
Description
6ES7214-1AD23-0XB0 is a SIMATIC S7-200 CPU 224 DC/DC/DC controller with fourteen 24 VDC inputs and ten transistor outputs in a compact housing.

It executes logic, counting, timing and pulse-output functions for small machines while supporting local expansion modules and serial communications.

Check the archived STEP 7-Micro/WIN program, expansion order, PPI network parameters and output loading before replacing an installed CPU.
Alternative Names
6ES7214-1AD23-0XB0 Siemens 6ES7214-1AD23-0XB0 6ES7214 1AD23 0XB0 6ES72141AD230XB0 6ES7214-1AD23-0XB0 CPU 224 Compact Controller Siemens CPU 224 Compact Controller Siemens SIMATIC S7-200 6ES7214-1AD23-0XB0 6ES7214-1AD23-0XB0 spare module
Technical notes
Save the user program and retentive data before exchange; verify DC output grouping and expansion power before reconnecting field wiring.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What embedded I/O configuration distinguishes 6ES7214-1AD23-0XB0?
The CPU 224 DC/DC/DC controller integrates fourteen 24 VDC inputs and ten transistor outputs in one compact unit.
How should S7-22x expansion compatibility be checked for 6ES7214-1AD23-0XB0?
Verify the approved module order, seven-module limit, expansion power budget and the addresses used by the saved program.
Which compact automation duties suit 6ES7214-1AD23-0XB0?
It executes machine sequencing, timing, counting and pulse-output functions for small standalone control systems.
What is reviewed when 6ES7214-1AD23-0XB0 is requested as an active spare?
Apter Power checks the complete order number, hardware condition, available quantity and shipment schedule before quoting.
Why must a 6ES7214-1AD23-0XB0 exchange preserve the Micro/WIN data?
The user program, retentive values, port settings and expansion assignments are needed to restore the machine correctly.
Which records locate the correct 6ES7214-1AD23-0XB0 documentation and price?
Provide the CPU label, STEP 7-Micro/WIN backup, I/O expansion list, quantity, destination and delivery requirement.
