    Apter Power supplies original, factory-direct ABB DC532 modules, offering high-density I/O expansion to maximize the hardware scaling efficiency of your active automation projects.

DC532 1SAP240100R0001

/ 4.9
1001 reviews | Need a Specific Revision?

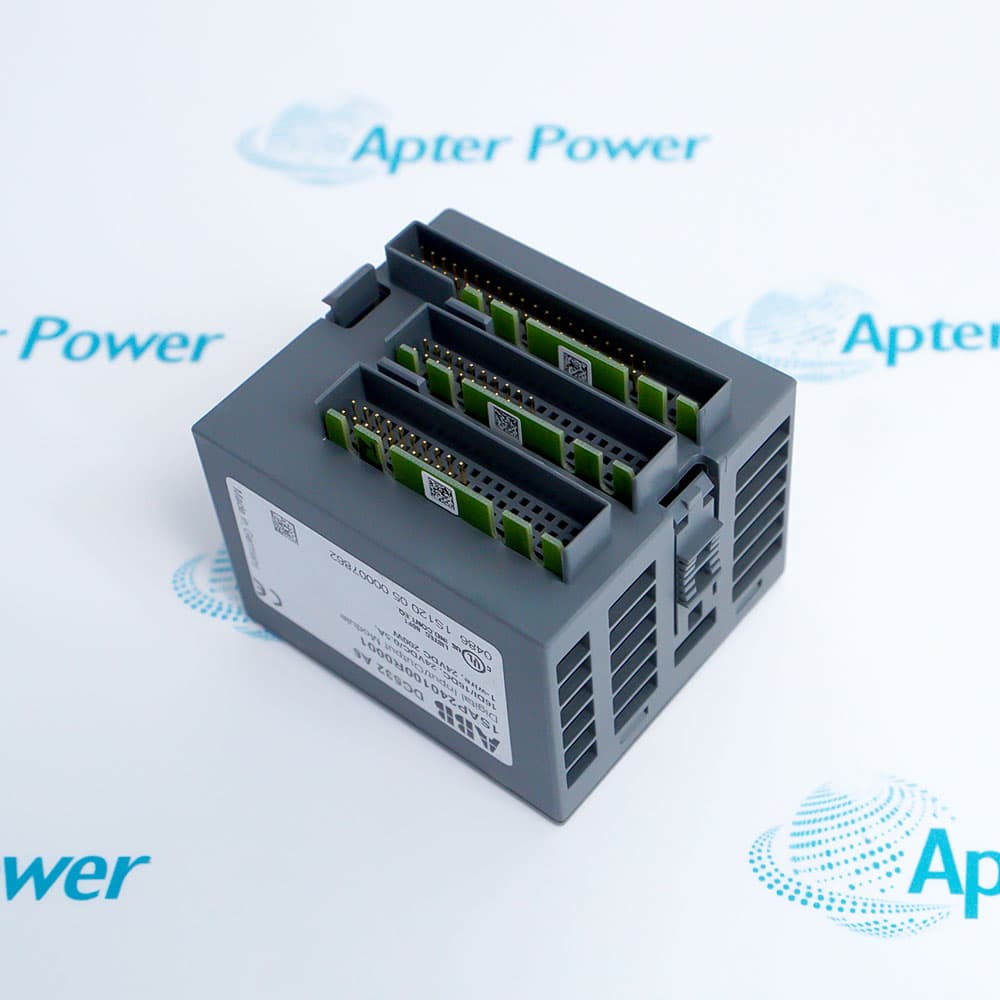

The ABB DC532 1SAP240100R0001 Digital I/O Module is a digital expansion component belonging to ABB's S500 I/O platform, designed to seamlessly expand the automation capabilities of AC500 PLC systems.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DC532 1SAP240100R0001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DC532 1SAP240100R0001

  • Manufacturer:
    ABB
  • Part Number:
    DC532 1SAP240100R0001
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Digital I/O Module
  • Stock:
    1
  • Digital Inputs (DI):
    16 channels
  • Digital Outputs (DC):
    16 channels
  • Input/Output Voltage:
    24 VDC
  • Output Current per Channel:
    0.5 A
  • Input Wiring:
    1-wire / 2-wire compatible
  • Total I/O Points:
    32 (16DI + 16DC)
  • Mounting:
    S500 Rack / DIN Rail
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    6.7x6.2x7.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Operating Environment Installation & Integration

Features:

  • Bridge Between Field Devices and S500 Control System Backplane
  • Integrates 16 Digital Inputs and 16 Digital Outputs in One Compact Module
  • Functions Seamlessly with ABB AC500 PLCs and S500 I/O Racks
The ABB DC532 1SAP240100R0001 serves as the Digital I/O Module in an S500 rack, providing reliable 24VDC signal interfacing for all connected field devices within the system. It continuously receives 24VDC digital signals from sensors and switches (16DI, 1-wire or 2-wire compatible) and outputs regulated 24VDC control signals (16DC, 0.5A per channel) through the rack backplane to support steady state operation of all actuators and indicators. Consistent signal processing is standard with the DC532 1SAP240100R0001, and its mixed I/O architecture allows flexible configuration for applications requiring balanced input and output counts.

The DC532 1SAP240100R0001 provides essential I/O functions common to the entire control loop, and is a critical component of the automation path, directly affecting the proper, normal operation of the overall control system. One or multiple DC532 1SAP240100R0001 modules may be installed per rack depending on the required I/O density. The DC532 1SAP240100R0001 occupies a standard slot in the S500 rack and can be positioned alongside other S500 series modules.

For High-Density I/O applications, the S500 System accommodates additional DC532 1SAP240100R0001 Digital I/O Modules installed in available slots. In addition to standard mixed I/O operation, the modular configuration also performs straightforward expansion. The S500 multi-module configuration executes scaling using the standardized backplane specified in the S500 series options.

The DC532 1SAP240100R0001 ABB Digital I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DC532 1SAP240100R0001 Digital I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB DC532 1SAP240100R0001 Digital I/O Module Specs

General

  • Manufacturer ABB
  • Model DC532 1SAP240100R0001
  • Condition New Original ready stock
  • Product Family TU515 1SAP212200R0001,TU516 1SAP212000R0001
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • High-Density Machine Automation: Ideal for high-speed packaging, labeling, and printing lines requiring concentrated digital signal points.
  • Dynamic I/O Allocation: Suitable for material handling and conveyor networks where sensor/actuator ratios shift dynamically.
  • Process Infrastructure: Deployed in water treatment facilities, building climate automation, and data center electrical monitoring.
  • Basic Positioning Tracking: Utilizes internal hardware counters to read localized encoder pulses or flow meter frequencies.
  • Operational Temperature: 0 °C to +60 °C (horizontal mounting standard).
  • Storage Temperature: -40 °C to +70 °C.
  • Supply Voltage: 24 V DC nominal process supply.
  • Internal Power Consumption: 6 W maximum thermal dissipation.
  • Hardware Safeguards: Built-in protection against reverse polarity and short circuits across output channels.
  • Signal Isolation: Complete galvanic isolation between internal system logic and external process loops.
  • Mounting Method: Snaps directly onto standard DIN rails via an S500 Terminal Unit.
  • Thermal Derating: Vertical rail installations require a 50% output current reduction when operating above +40 °C.
  • Field Wiring Layout: Supports space-saving 1-wire connection schemes depending on the selected terminal base.
  • Software Configuration: Programmed and addressed globally using the ABB Automation Builder environment.

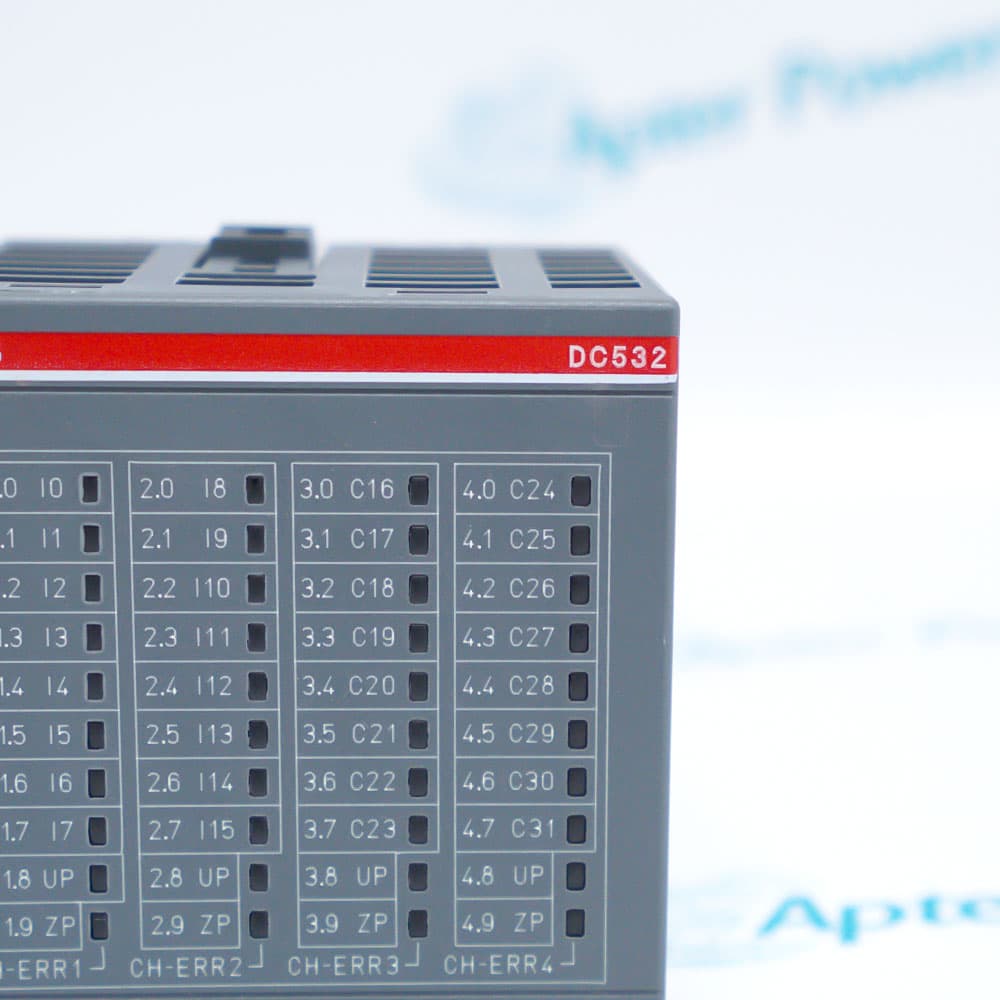

  • Local Diagnostic LEDs: 32 yellow status lamps for channel states, 1 green power lamp, and 4 red fault indicators.
Description
The ABB DC532 1SAP240100R0001 Digital I/O Module is designed for industrial automation systems requiring compact and efficient digital signal management. The DC532 1SAP240100R0001 is specifically engineered to handle mixed digital input and output requirements in space-constrained control panels, solving the challenge of integrating numerous discrete signals without deploying separate input and output modules. By combining 16 digital inputs and 16 digital outputs in a single unit, the DC532 1SAP240100R0001 reduces cabinet space usage and simplifies wiring complexity for machine builders and system integrators.

The DC532 1SAP240100R0001 is widely applied in manufacturing automation, packaging machinery, material handling systems, and assembly line controls where balanced digital I/O counts are required. The DC532 1SAP240100R0001 serves as an essential interface module in process control applications, connecting field devices such as proximity switches, push buttons, and photoelectric sensors on the input side while driving pneumatic valves, motor starters, and relay coils on the output side. Typical deployments of the DC532 1SAP240100R0001 include conveyor systems, robotic work cells, and small to medium-sized PLC architectures demanding cost-effective I/O expansion.

The DC532 1SAP240100R0001 is designed for seamless integration within the ABB S500 I/O system, mounting directly alongside other S500 series modules to form a cohesive control node. When installing the DC532 1SAP240100R0001, engineers should ensure proper 24VDC power distribution to both the input and output sections, taking into account the 0.5A per-channel output limitation and total current budgeting for the 16DC group. The DC532 1SAP240100R0001 supports flexible wiring through its 1-wire and 2-wire input compatibility, allowing straightforward connection of various sensors without additional interface components. Integration of the DC532 1SAP240100R0001 into existing control architectures requires matching the 24VDC signal levels and verifying load compatibility for all 16 output channels.
Alternative Names
DC532 1SAP240100R0001 DC532 ISAP240I00R000I TU515 1SAP212200R0001 TU516 1SAP212000R0001 TU516-XC 1SAP412000R0001 DC522 1SAP240600R0001 DC523 1SAP240500R0001
Technical notes
The ABB DC532 1SAP240100R0001 is engineered to optimize panel space while maintaining a flexible, dual-purpose I/O allocation for modern industrial architecture.
