NIMF02

/ 4.9
1001 reviews | Need a Specific Revision?

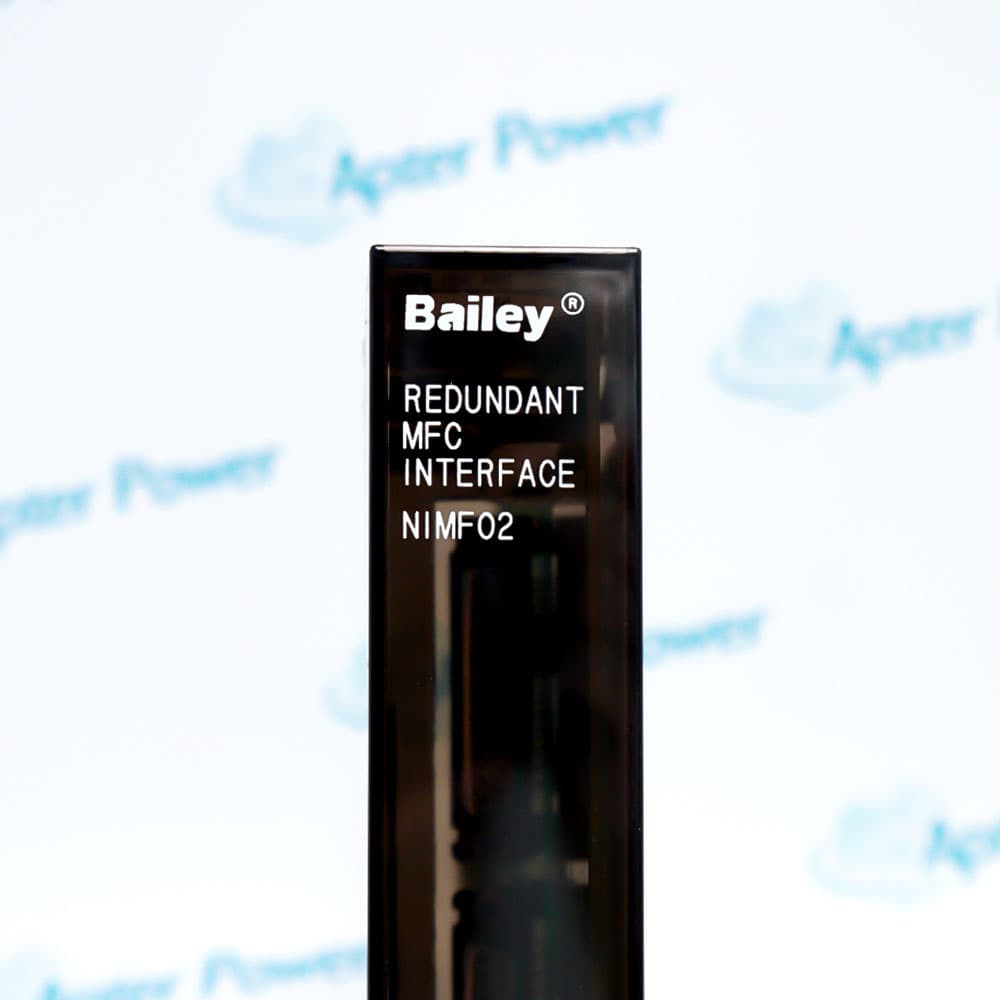

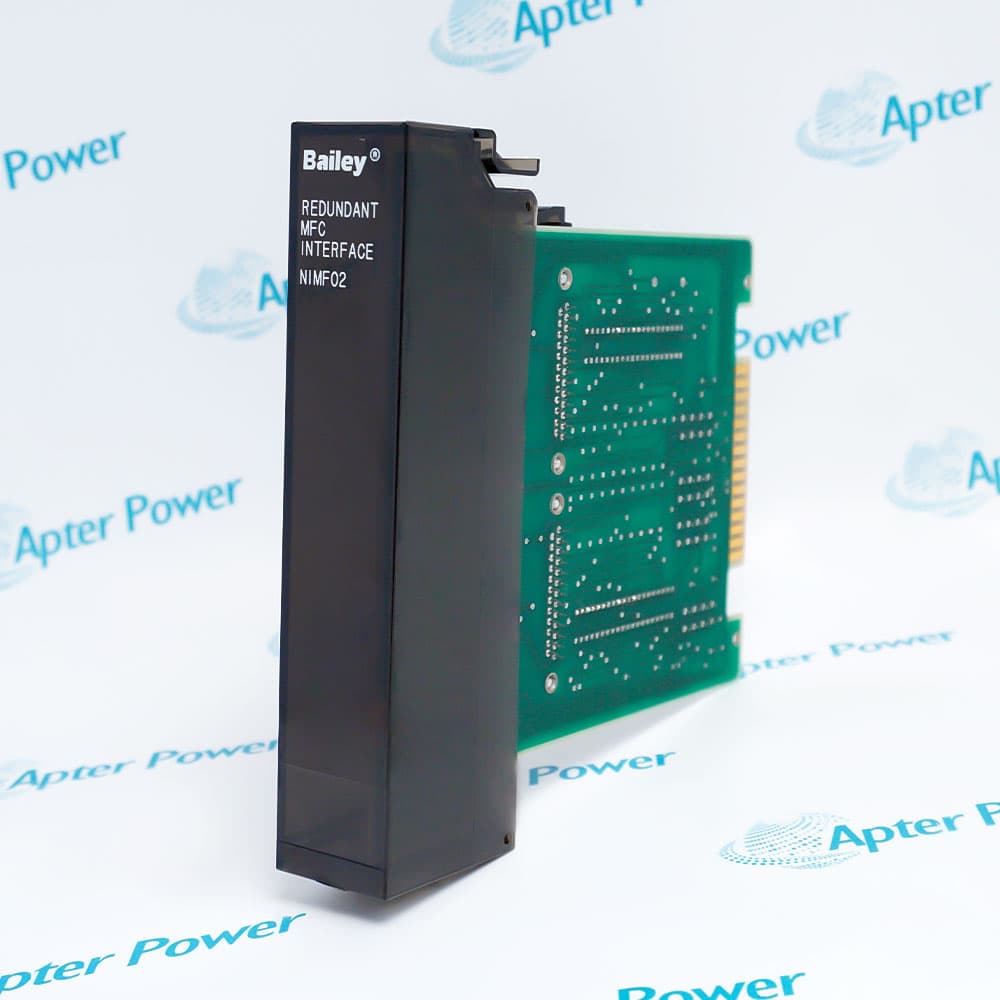

ABB NIMF02 is an INFI 90 termination module used with NIMF01 for redundant multi-function controller installations. It provides two RS-232-C links and one control-station serial connection.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for NIMF02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NIMF02

  • Manufacturer:
    ABB
  • Part Number:
    NIMF02
  • Product Family:
    ABB Bailey
  • Product Type:
    Multi-Function Controller Termination Module
  • Stock:
    1
  • Redundancy role:
    Used with NIMF01 for redundant multi-function controller termination
  • Supply:
    +24 V DC
  • Current consumption:
    160 mA maximum; status LED 10 mA
  • Serial ports:
    Two RS-232-C ports
  • Station link:
    One serial link for control stations
  • Mounting:
    One slot in a standard termination mounting unit
  • Ambient temperature:
    0 to 70 deg C
  • Relative humidity:
    5 to 90%, noncondensing
  • Altitude:
    Up to 3 km
  • Cabinet cooling:
    No additional cooling required in the standard installation
  • Reference instruction:
    ABB Bailey I-E96-413B
  • Weight:
    0.24 kg
  • Estimated shipping dimensions:
    3.4x17.7x17.7cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Interoperability Communication Environmental Ratings

Features:

  • Extends multi-function controller termination for a redundant controller arrangement.
  • Provides two RS-232-C ports and one control-station serial link.
  • Draws a documented maximum of 160 mA from the +24 V DC supply.
The NIMF02 order extends the NIMF01 termination scheme for a second multi-function controller.

It concentrates redundant-controller serial and control-station connections in one standard termination slot.

Validate cable identities, controller positions and the +24 V current budget before adding or replacing the module.

Legacy availability is confirmed together with NIMF01 pairing and cable requirements.
Verified resources for ABB NIMF02:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Terminate serial channels in a redundant multi-function controller cabinet.
  • Connect documented RS-232-C peripherals to the controller pair.
  • Maintain the control-station serial link across the approved redundant arrangement.
  • The module supplements NIMF01 when redundant multi-function controllers are installed.
  • Both controller positions must use the cable arrangement defined by ABB Bailey.
  • Termination hardware preserves physical paths but does not execute switchover logic.
  • Two RS-232-C ports terminate external serial communication channels.
  • A separate serial link serves the associated control stations.
  • Port type and pinout must match each connected device before energization.
  • The module draws a documented maximum of 160 mA from +24 V DC.
  • A status LED adds the specified 10 mA load.
  • The approved service range is 0 to 70 °C and 5 to 90% relative humidity, noncondensing.
Description
NIMF02 is added to the NIMF01 termination arrangement when redundant multi-function controllers are used. Its purpose is to bring the second controller and the shared external communication paths into the documented redundant installation.

The module terminates two RS-232-C channels and the serial link used by control stations. These circuits provide the physical communication path; message handling and controller decisions remain functions of the connected multi-function controller.

In a redundant application, the termination hardware preserves the specified cabling between both controller positions and the external serial devices. Correct cable identity and connector placement are essential because the termination module does not correct a crossed or incompatible serial connection.
Alternative Names
NIMF02 NIMF 02 ABB NIMF02 Bailey NIMF02 INFI 90 NIMF02 ABB Multi-Function Controller Termination Bailey Redundant Controller Termination NIMF02
Technical notes
NIMF02 is for the redundant NIMF01 arrangement; crossed serial cables or an incorrect +24 V supply can interrupt both controller and station communication paths.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is ABB NIMF02 added to an NIMF01 installation?
It provides the extra termination required when the multi-function controller application is configured with redundant controllers.
Which external links terminate on ABB NIMF02?
The module provides two RS-232-C channels and one serial link for control stations.
Does ABB NIMF02 decide which redundant controller is active?
No. It provides the physical termination; redundancy decisions are handled by the connected controller system and application.
What cabinet-power allowance belongs to ABB NIMF02?
The official instruction specifies up to 160 mA from the +24 V supply, with an additional documented load for the status LED.
What prevents substituting another serial termination for ABB NIMF02?
Controller pairing, connector pinout, station link, supply current, mounting slot and cable assignment must all correspond.
Which redundancy records should be included when requesting ABB NIMF02?
Send both controller labels, NIMF01 details, cable numbers, serial-device list, cabinet voltage, quantity and destination.
