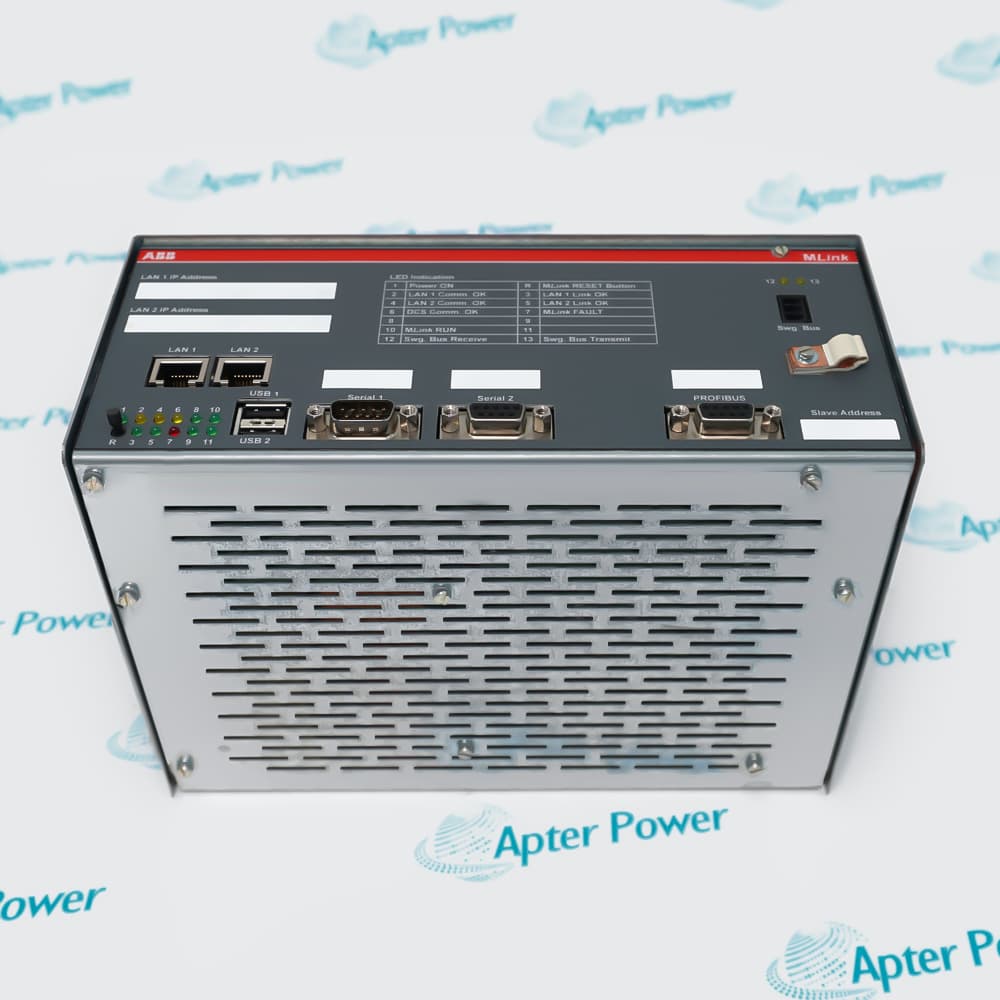

ABB 1TGE102009R2300 is the standard MNS iS MLink Modbus interface with RS232 and TCP hardware interfaces, linking an MNS iS motor control center to supervisory control and monitoring systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1TGE102009R2300
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1TGE102009R2300

  • Manufacturer:
    ABB
  • Part Number:
    1TGE102009R2300
  • Product Family:
    ABB MNS iS Series
  • Product Type:
    MNS iS MLink Standard Modbus Interface, RS232 & TCP
  • Stock:
    1
  • Protocol:
    Modbus RTU / TCP
  • Hardware interface:
    RS232 & TCP
  • Standard identifier:
    1TGE102009R2300
  • Dual-redundant counterpart:
    1TGE102019R2300
  • RS422 & TCP standard variant:
    1TGE102009R4200
  • RS485 & TCP standard variant:
    1TGE102009R4800
  • System functions:
    MLink web interface (MView), OPC connectivity, time stamp
  • Power supply:
    24 VDC; 19–33 VDC
  • Power consumption:
    1000 mA typical; 1700 mA maximum
  • Degree of protection:
    IP20
  • Operating temperature:
    0 to +55°C
  • Storage temperature:
    −20 to +70°C
  • Dimensions:
    12.0 × 26.5 × 16.5 cm
  • Weight:
    2 kg
  • Tariff Code:
    8517623990
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Interface Selection Modbus Integration MView & Diagnostics Application
  • Use the standard MLink architecture rather than the separate dual-redundant identifier
  • Match the R2300 hardware to RS232 and TCP communication paths
  • Preserve Modbus mapping, MNS iS device assignments and MLink system configuration

1TGE102009R2300 is an ABB MNS iS MLink standard Modbus communication interface with RS232 and TCP hardware.

It links MNS iS motor-management data to DCS and supervisory systems while supporting the MLink web interface, OPC connectivity and time-stamp functions.

Before installation or replacement, verify standard versus dual-redundant architecture, the R2300 electrical interface, Modbus settings, data mapping and installed MNS iS project.

Availability, condition, price, and shipping time for 1TGE102009R2300 are confirmed during quotation.

ABB 1TGE102009R2300 MNS iS MLink Modbus Interface Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use R2300 for RS232 and TCP rather than the R4200 RS422 or R4800 RS485 variants
  • Keep 1TGE102009 as the standard architecture and 1TGE102019 as the dual-redundant architecture
  • Match the serial electrical layer before restoring any Modbus settings
  • Retain RS232 framing and register mapping when the DCS uses Modbus RTU
  • Retain IP addressing and TCP connection settings when the DCS uses Modbus TCP
  • Verify that MNS iS device assignments map to the registers expected by the supervisory system
  • Use MView web access to review MLink status without treating it as proof of DCS data exchange
  • Validate OPC tag mapping and time-stamp handling in the installed software architecture
  • Check the 24 V supply, MNS iS internal path and active diagnostics when downstream devices disappear
  • Connecting an ABB MNS iS motor control center to a Modbus TCP supervisory network
  • Linking MNS iS motor-management data to a legacy RS232 Modbus RTU DCS interface
  • Providing MView, OPC and time-stamped motor data within an MNS iS monitoring architecture
Description

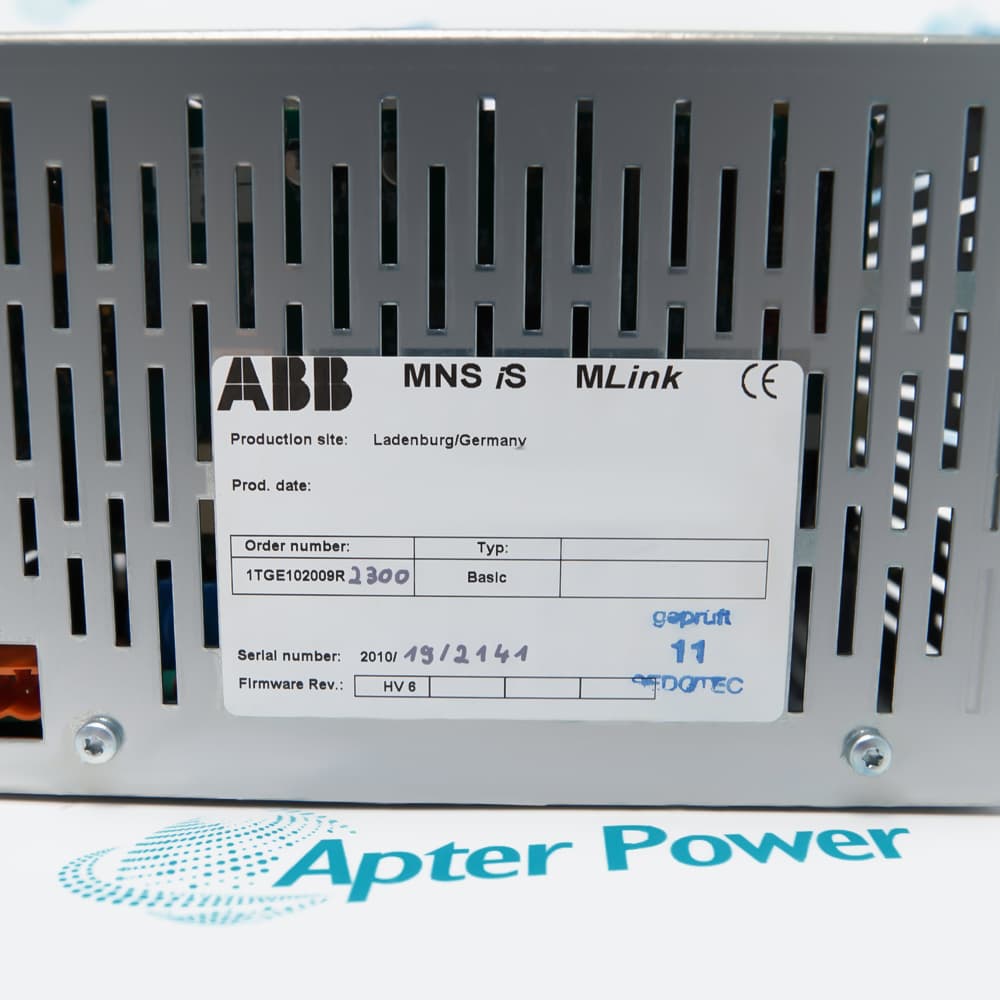

1TGE102009R2300 is an ABB MNS iS MLink standard Modbus communication interface with RS232 and TCP hardware paths.

The interface connects MNS iS motor-management data to a DCS or supervisory system and supports MLink web access, OPC connectivity and time-stamp functions within the configured MNS iS architecture.

Before replacement, distinguish the standard R2300 unit from the dual-redundant 1TGE102019R2300 and from the R4200 or R4800 electrical-interface variants, then preserve the Modbus and MNS iS configuration.
Alternative Names
1TGE102009R2300 1TGE 102 009 R2300 ABB 1TGE102009R2300 ABB MNS iS 1TGE102009R2300 MNS iS MLink 1TGE102009R2300
Technical notes
1TGE102009R2300 is the standard ABB MNS iS MLink Modbus interface with RS232 and TCP hardware. Do not confuse it with dual-redundant 1TGE102019R2300 or the R4200/R4800 electrical-interface variants.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When should 1TGE102009R2300 be selected instead of 1TGE102019R2300?
Select 1TGE102009R2300 for the standard MLink architecture. The 1TGE102019R2300 is the dual-redundant counterpart, so it belongs to a different availability topology and must not be substituted merely because both use RS232 and TCP.
Can 1TGE102009R2300 replace 1TGE102009R4800 without field-wiring changes?
No. R2300 identifies RS232 and TCP hardware, while R4800 identifies RS485 and TCP. The serial electrical layer, connector wiring, topology and DCS interface must be engineered for the selected variant.
Can 1TGE102009R2300 be changed from RS232 Modbus to RS485 by software configuration?
No. The R2300 serial hardware is RS232. Software can configure the supported Modbus behavior, but it cannot turn the physical interface into RS485; use the official R4800 variant when RS485 is required.
Why can the MView web interface of 1TGE102009R2300 be reachable while the DCS receives no Modbus data?
Web access proves the TCP management path is alive, not that Modbus addressing and MNS iS data mapping are correct. Check the selected Modbus transport, IP or serial settings, DCS unit/address expectations, mapped data and active MLink configuration.
What must be retained when 1TGE102009R2300 carries Modbus RTU over RS232?
Retain the point-to-point wiring and signal reference, baud rate, parity, framing, device address, register mapping and DCS polling design. These are different from a Modbus TCP connection even though the same MLink also provides TCP hardware.
Does OPC connectivity on 1TGE102009R2300 eliminate the need for MNS iS project configuration?
No. ABB lists OPC connectivity as an available MLink system function, but the OPC client/server path, tags, MNS iS data model and time-stamp handling still require the correct system configuration and software environment.
Why can 1TGE102009R2300 power normally but show no connected MNS iS devices?
Check the MLink project loaded for the installed switchgear, internal MNS iS communication path, device assignments, Modbus interface selection and active diagnostics. A healthy 24 V supply and web page do not prove that the downstream MNS iS configuration matches the lineup.
