1TGE120021R0810

/ 4.9
1001 reviews | Need a Specific Revision?

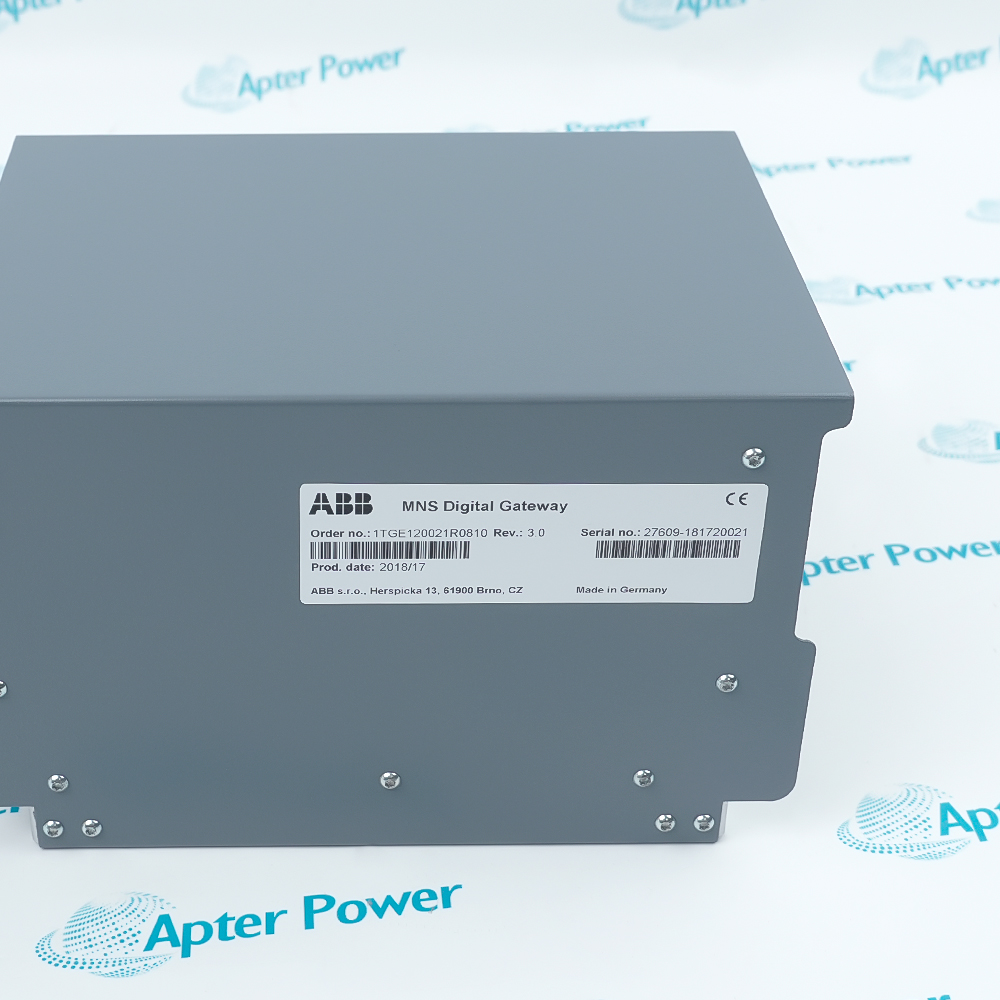

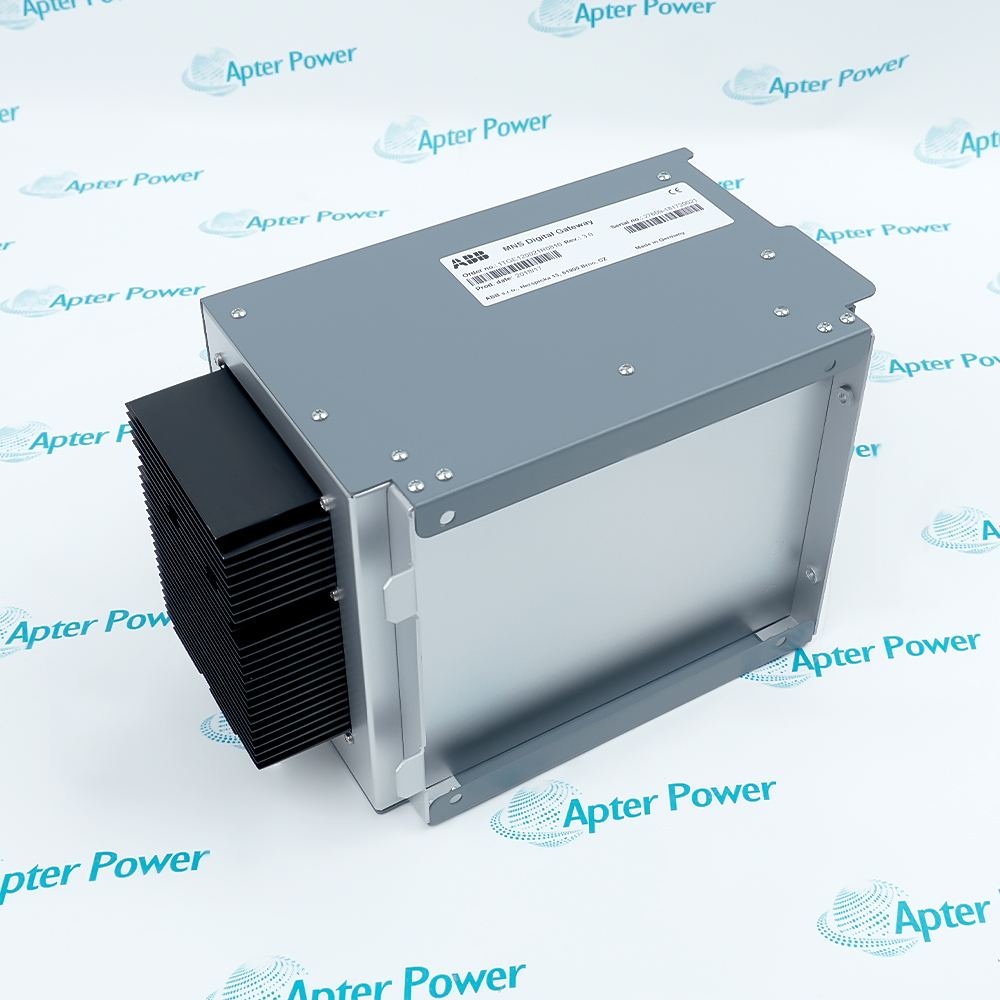

ABB 1TGE120021R0810 is an MNS Digital gateway used to exchange M10x motor-management data with a DCS through documented Modbus communication paths.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1TGE120021R0810
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1TGE120021R0810

  • Manufacturer:
    ABB
  • Part Number:
    1TGE120021R0810
  • Product Family:
    ABB MNS iS Series
  • Product Type:
    MNS Digital Gateway for M10x
  • Stock:
    1
  • DCS Protocol Context:
    Modbus
  • Fieldbus Hardware Interfaces:
    RS-485, RS-422, RS-232, and Ethernet TCP/IP IEEE 802.3 as documented for the gateway hardware
  • M10x Interface:
    RS-485 with Modbus RTU
  • Modbus RTU Ports:
    4
  • Maximum Connected Devices:
    128 total; 32 per segment
  • Power Supply:
    24 V DC (19–31 V DC)
  • Power Consumption:
    800 mA typical; 1000 mA maximum
  • Dimensions:
    16.0 × 14.0 × 16.5 cm
  • Storage Temperature:
    −20 to +70 °C
  • Operating Temperature:
    0 to +55 °C
  • Degree of Protection:
    IP51
  • MTBF:
    46 years at 40 °C
  • Weight:
    2.5 kg
  • Tariff Code:
    8517629900
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Network Layout Power and Cabinet Commissioning Application
  • Four RS-485 Modbus RTU ports support up to 128 M10x devices
  • Documented Modbus gateway hardware includes serial and Ethernet TCP/IP interfaces
  • Operates from 24 VDC in an IP51 industrial enclosure

1TGE120021R0810 is the documented MNS Digital Gateway hardware for M10x motor-management communication.

The gateway divides connected M10x devices across four Modbus RTU segments and passes their data toward the selected DCS communication interface.

Before integration, confirm the complete product ID, DCS protocol, Ethernet addressing, serial segment plan, power source, and the mapped M10x device addresses.

Availability, condition, price, and shipping time for 1TGE120021R0810 are confirmed during quotation.

ABB 1TGE120021R0810 MNS Digital Gateway for M10x Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Connect M10x devices through four independent Modbus RTU ports
  • Limit each RS-485 segment to 32 addressed devices
  • Map the configured devices to the selected DCS communication path
  • Supply 24 V DC within the documented 19–31 V DC range
  • Allow for the documented 1000 mA maximum current demand
  • Maintain IP51 protection and the specified operating-temperature range
  • Assign unique Modbus addresses within every connected segment
  • Confirm Ethernet TCP/IP settings used by the DCS interface
  • Validate mapped M10x data and communication status before control handover
  • MNS Digital motor-control-center communication with M10x devices
  • Modbus RTU aggregation of M10x field devices for a DCS
  • Ethernet TCP/IP data exchange between an MNS Digital gateway and supervisory control systems
Description
1TGE120021R0810 is an ABB MNS Digital Gateway for integrating M10x motor-management devices with a DCS.

The gateway aggregates M10x communication across four RS-485 Modbus RTU segments and presents the collected data through the configured DCS-side serial or Ethernet interface.

Before installation, confirm the complete product ID, selected DCS protocol, 24 VDC supply, segment and device mapping, Ethernet or serial settings, and enclosure conditions.
Alternative Names
1TGE120021R0810 ABB 1TGE120021R0810 ABB MNS Digital 1TGE120021R0810 MNS Digital Gateway 1TGE120021R0810 ABB MNS Digital Gateway 1TGE120021R0810 MNS Digital Gateway for M10x 1TGE120021R0810
Technical notes
1TGE120021R0810 requires a 24 VDC supply, documented M10x RS-485 Modbus RTU segments, and verified DCS fieldbus configuration; protocol or segment-layout mismatch is the primary integration risk.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB 1TGE120021R0810 communicate with the installed DCS without an additional protocol gateway?
ABB 1TGE120021R0810 is itself the documented MNS Digital gateway; direct integration still depends on matching the installed DCS interface, protocol selection, and Ethernet or serial configuration.
What should be checked before replacing ABB 1TGE120021R0810?
Match the complete gateway ID, DCS communication protocol, fieldbus interface, IP settings, four RS-485 segment assignments, 24 VDC supply, and existing M10x device addresses.
How can address conflicts be avoided when existing M10x units are moved to ABB 1TGE120021R0810?
Inventory the existing addresses by segment, retain one unique address per device, preserve the intended segment assignments, update the gateway and DCS mapping, and validate one segment at a time.
Why might ABB 1TGE120021R0810 fail to discover an installed M10x device?
Check that the device is on the intended RS-485 segment, has a unique Modbus address, uses matching serial settings, and is included in the gateway configuration.
What causes intermittent communication after ABB 1TGE120021R0810 replacement?
Check for duplicate M10x addresses, reversed RS-485 polarity, incorrect termination or shielding, loose connections, mismatched serial settings, an overloaded segment, and unstable 24 VDC power.
Why can the DCS show stale values while ABB 1TGE120021R0810 still reports an active M10x segment?
Compare the gateway mapping and poll definitions with the DCS database, then check function codes, the gateway-to-DCS path, interface settings, quality handling, and the restored DCS configuration.
What configuration should be preserved before removing ABB 1TGE120021R0810?
Record the DCS protocol and Ethernet settings, every Modbus segment assignment, device address, serial parameter, and the mapping used by the connected control system.
