ABB DSQC 354
ABB DSQC 354
ABB DSQC 354
ABB DSQC 354
ABB DSQC 354
ABB DSQC 354
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

DSQC 354

/ 4.9
1001 reviews | Need a Specific Revision?

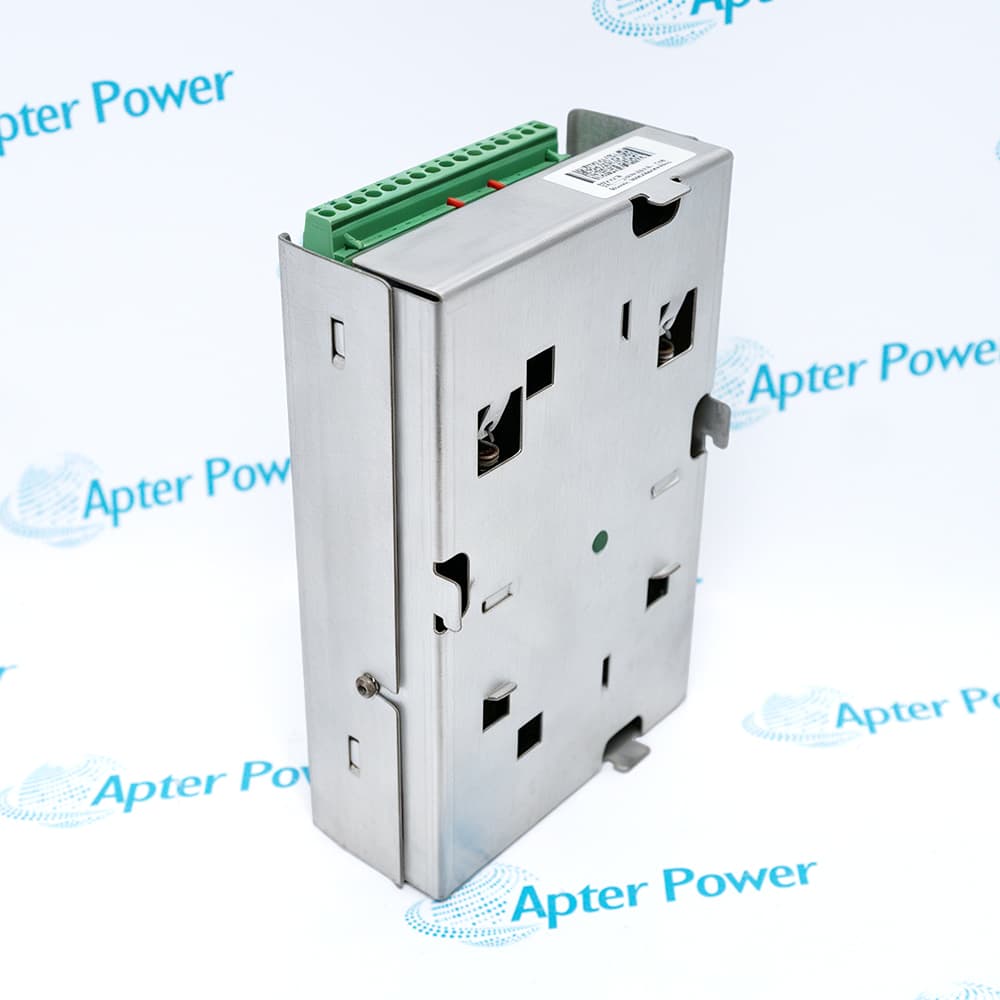

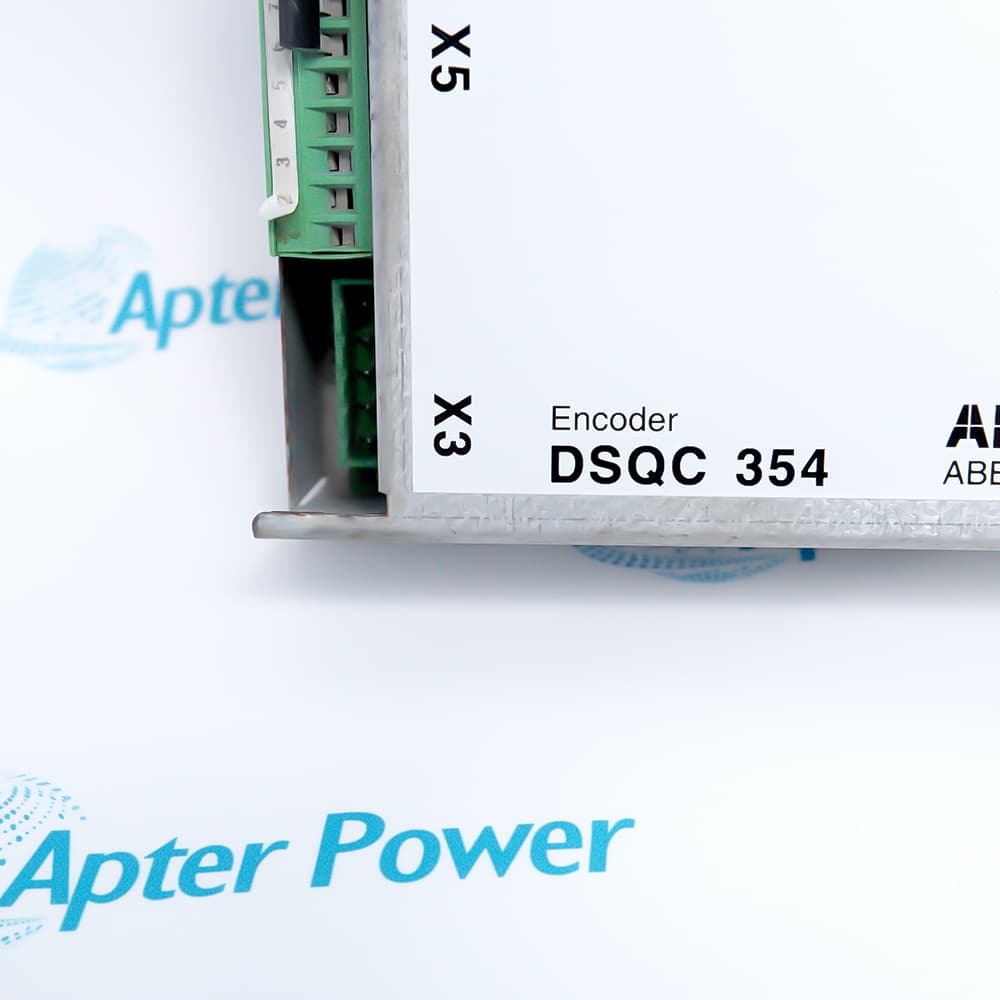

ABB DSQC 354 is a galvanically isolated conveyor-tracking encoder interface that accepts PNP or push-pull E2 encoder signals and synchronization inputs.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DSQC 354
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSQC 354

  • Manufacturer:
    ABB
  • Part Number:
    DSQC 354
  • Product Family:
    ABB Robots
  • Product Type:
    Encoder Interface Unit for Conveyor Tracking
  • Stock:
    1
  • Function:
    Conveyor-tracking encoder interface and queue-tracking unit
  • Isolation:
    Galvanically isolated
  • Supported Encoder Outputs:
    PNP and push-pull E2
  • Primary Encoder Connection:
    Encoder 1
  • Backup Encoder Connection:
    Encoder 2
  • Primary Synchronization Input:
    DI1
  • Backup Synchronization Input:
    DI2
  • Power Connections:
    Opto, Encoder, and External Power
  • RobotWare Context:
    Conveyor Tracking option 540
  • Sensor Synchronization Context:
    Option 547 requires the conveyor-tracking board
  • Dimensions:
    17 × 5.5 × 11.5 cm
  • Weight:
    0.54 kg
  • Tariff Code:
    8479909090
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Encoder Interface Connections Synchronization Application
  • Galvanically isolated conveyor-tracking encoder interface
  • Accepts PNP and push-pull E2 encoder outputs
  • Provides primary and backup encoder and synchronization paths

DSQC 354 is ABB's encoder interface and queue-tracking unit for robot conveyor applications.

The board receives conveyor position pulses and synchronization signals through documented primary and backup connections.

Match the encoder output, pulse scaling, power source, cabinet wiring, and RobotWare conveyor-tracking configuration before service.

Availability, condition, price, and shipping time for DSQC 354 are confirmed during quotation.

ABB DSQC 354 Encoder Interface Manuals, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Supports PNP and push-pull E2 encoder outputs
  • Uses Encoder 1 as the primary conveyor-feedback input
  • Provides Encoder 2 as the documented backup path
  • Opto and Encoder connections distribute interface power
  • External Power must not be paralleled with the internal supply
  • DI1 and DI2 provide primary and backup synchronization inputs
  • Conveyor pulses establish the robot's tracked position reference
  • A synchronization switch associates objects with conveyor position
  • RobotWare scaling and direction must match the physical encoder
  • Moving-conveyor tracking with RobotWare Conveyor Tracking option 540
  • Sensor synchronization applications using RobotWare option 547
  • Queue tracking from encoder pulses and synchronized object detection
Description
DSQC 354 is ABB's encoder interface and queue-tracking unit for conveyor-tracking robot applications.

The galvanically isolated interface accepts PNP or push-pull E2 encoder signals and provides primary and backup encoder and digital-input connections.

Before installation, confirm the encoder output type, synchronization wiring, internal or external power arrangement, cabinet connector positions, and RobotWare conveyor-tracking option.
Alternative Names
DSQC 354 DSQC354 ABB DSQC 354 ABB DSQC354
Technical notes
DSQC 354 requires matched encoder output, synchronization wiring, power-source selection, and RobotWare conveyor-tracking configuration before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What encoder outputs can ABB DSQC 354 accept in a conveyor-tracking installation?
ABB documents PNP and push-pull E2 encoder outputs. Confirm the installed encoder's electrical output and power arrangement before connecting it to DSQC 354.
How should external encoder power be handled with ABB DSQC 354?
When the external-power connection is used, the internal supply must not be connected in parallel. Verify cabinet wiring and the encoder manufacturer's supply requirements before energizing the interface.
Which ABB DSQC 354 connections provide redundancy for conveyor feedback?
ABB identifies Encoder 1 and DI1 as the primary paths and Encoder 2 and DI2 as backup connections. The robot configuration must agree with the actual wiring.
Is ABB DSQC 354 required for RobotWare Sensor Synchronization option 547?
Yes. ABB specifies the conveyor-tracking board as required hardware for Sensor Synchronization, so the controller option and installed board must be checked together.
What should be recorded before replacing ABB DSQC 354?
Record the encoder type, pulse scaling, direction, synchronization input, connector positions, power source, conveyor object configuration, and controller backup before disturbing the wiring.
Can ABB DSQC 354 be selected only by matching the board shape?
No. Verify the complete DSQC 354 identity and its encoder, synchronization, and power connections; visually similar boards do not establish electrical or RobotWare compatibility.
How should ABB DSQC 354 be commissioned after replacement?
Restore the approved controller configuration, verify encoder direction and pulse counting, test the synchronization input, and confirm accurate conveyor-object tracking before production operation.
