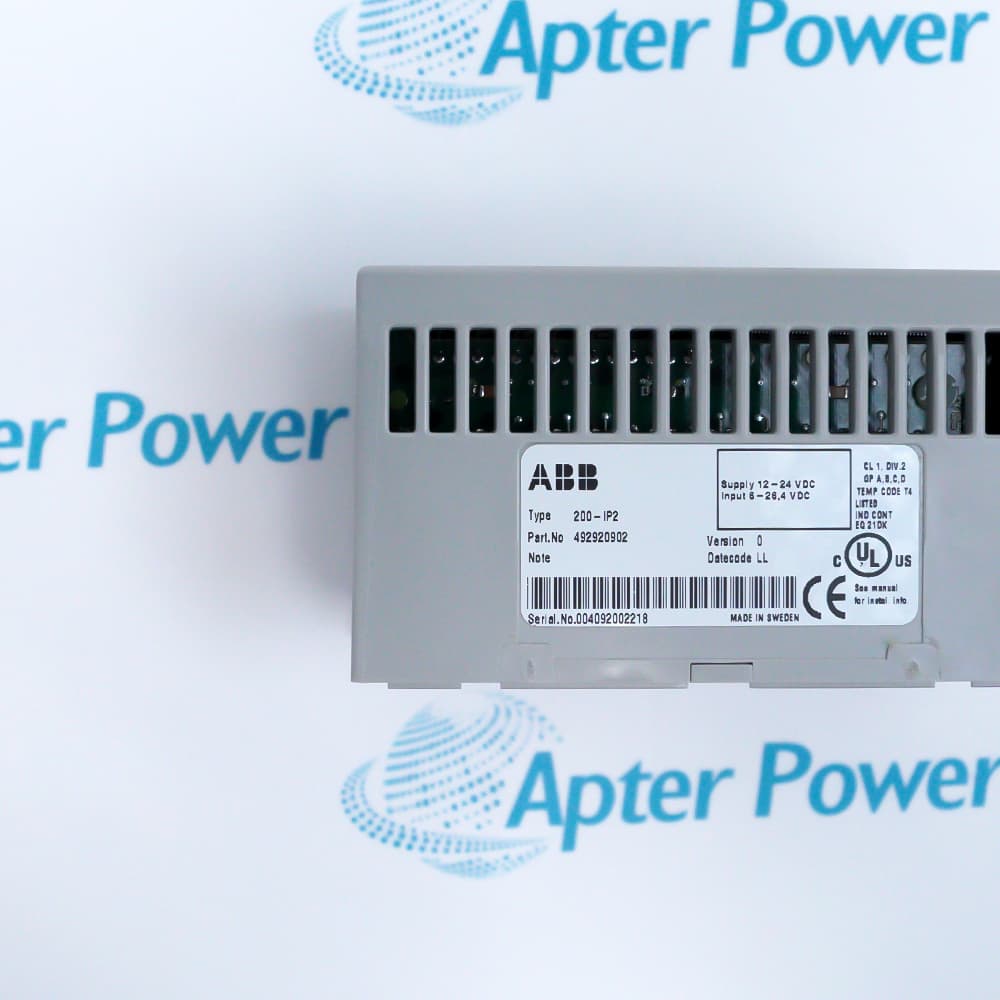

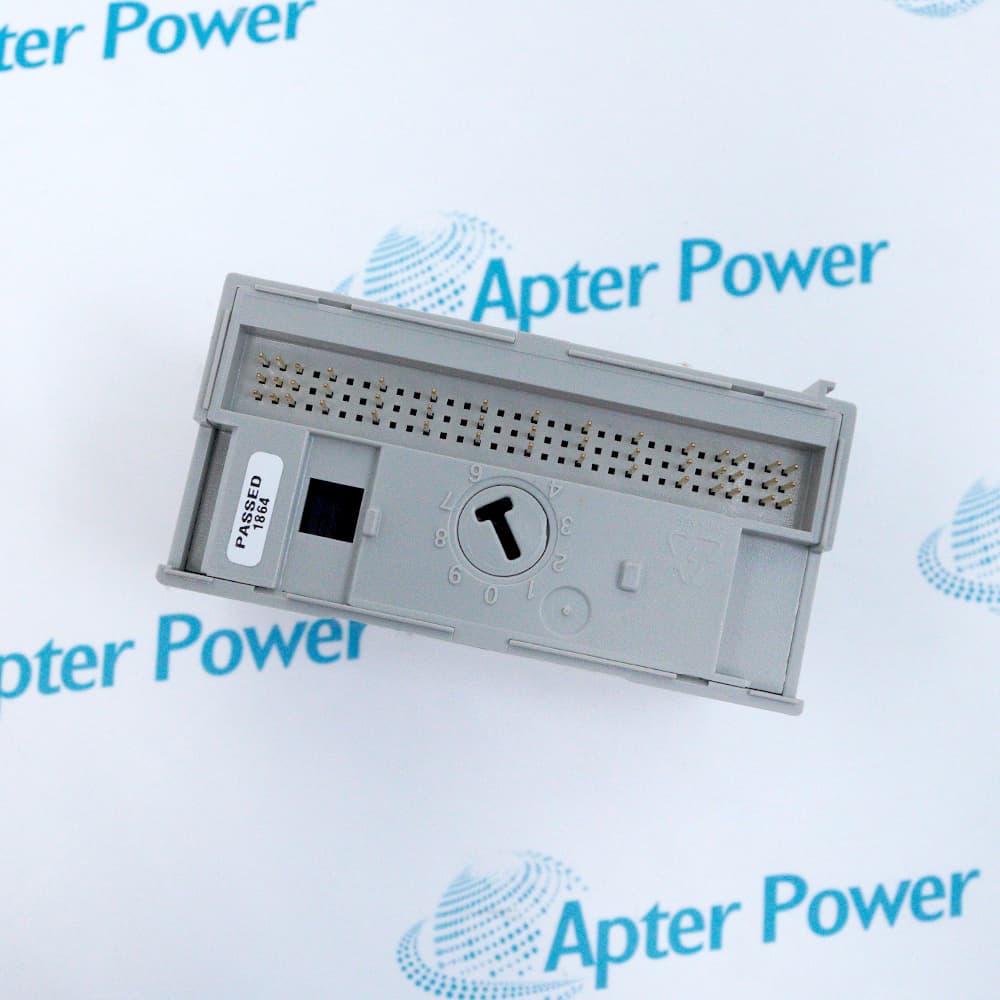

The ABB 200-IP2 200IP2 Pulse Counter Unit is a I/O unit engineered with two pulse transmitter interfaces, each featuring four optocoupled inputs.
Fast Shipping Available
Get a quick price for 200-IP2 200IP2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 200-IP2 200IP2

  • Manufacturer:
    ABB
  • Part Number:
    200-IP2 200IP2
  • Product Family:
    ABB S200 I/O
  • Product Type:
    Pulse Counter Unit
  • Pulse Transmitter Interfaces:
    2
  • Inputs per Interface:
    4 optocoupled inputs
  • Maximum Pulse Frequency:
    100 kHz
  • Counter Type:
    Two 16-bit up/down counters
  • Counter Programmability:
    Individually programmable
  • Edge Counting Modes:
    x1, x2, x4
  • Pulse Transmitter Compatibility:
    Complementary or non-complementary
  • Supported Signal Sources:
    Pulse transmitters, incremental encoders (1 or 2 pulse trains)
  • Weight:
    0.085 kg
  • Estimated shipping dimensions:
    9.4 cm x 4.6 cm x 5.3 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Monitoring & Control

Features:

  • Dual Pulse Transmitter Interfaces with Optocoupled Input Protection
  • Programmable 16-Bit Up/Down Counter Capability with Multiplier Configuration
  • Integration Support for Adapter 200-ANN Version B and Later
The 200-IP2 Pulse Counter Unit, also known as the 200IP2, serves as the dedicated pulse counting I/O module in ABB control systems, providing reliable signal conditioning and frequency measurement for industrial automation processes. It continuously accepts incoming pulse signals through two independent transmitter interfaces, each equipped with four optocoupled inputs capable of handling frequencies up to 100 kHz. The 200-IP2 is configured using the control system program, allowing seamless adaptation for counting pulses from single or dual pulse train devices, including incremental encoders and standard pulse transmitters. The 200IP2 has established capabilities for quantity counting, positioning, and speed calculation, making the 200-IP2 a versatile solution for precise motion control and process monitoring applications.

The 200-IP2 provides essential counting functions critical to the control system measurement path, and is a vital component of the signal acquisition chain, directly affecting the accuracy of overall monitoring and positioning operations. Two 16-bit up/down counters are integrated within the 200IP2, which are individually programmable to support independent counting tasks. The 200-IP2 allows specification of edge counting modes at x1, x2, or x4 per pulse train, and accommodates both complementary and non-complementary pulse transmitter connections. One 200-IP2 module is required per dual-channel counting application, and the unit occupies a standard I/O slot within the control rack configuration.

For dual pulse train applications, the 200-IP2 system utilizes both integrated counters simultaneously through the dual transmitter interfaces. In addition to standard single pulse train operation, the 200IP2 performs concurrent counting on both channels using the internal optocoupling and counter circuitry specified in the module design. Using this architecture, the dual-counter system continually processes incoming pulses from both transmitters independently. If the control system requires adapter-based rack integration, the 200-IP2 must be paired with Adapter 200-ANN version B or later to ensure proper backplane compatibility and stable electrical interface performance.

The 200-IP2 200IP2 ABB Pulse Counter Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 200-IP2 200IP2 Pulse Counter Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB 200-IP2 200IP2 Pulse Counter Unit Specs

General

  • Manufacturer ABB
  • Model 200-IP2 200IP2
  • Condition New Original ready stock
  • Product Family 200-IP4,200-IE8
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Positioning: Tracking linear or rotational movement by counting pulses from incremental encoders with one or two pulse trains.
  • Speed Calculation: Measuring rotational speeds or velocities in conveyor belts, motors, or turbines.
  • Quantity Counting: High-speed batch counting, piece counting, or packaging tracking on assembly lines.
  • Flow Measurement: Summing up volumetric outputs from turbine flowmeters or positive displacement meters emitting rapid pulse signals.
  • Electrical Inputs: Features 2 pulse counter interfaces, each equipped with 4 optocoupled inputs.
  • Voltage & Current Compatibility: Operates within a 6–24 V DC signal range at an input current of 3–24 mA.
  • Isolation: Inputs are filtered and galvanically isolated via optocouplers to block electrical noise from affecting the main CPU bus.
  • Baseplate Mounting: Mounts onto a preferred 200-TB3 Terminal Base Unit, or compatible 200-TB3S and 200-TB2 bases.
  • Compliance: Fulfills the industrial EMC Directive 89/336/EEC (and subsequent updates) for high noise immunity.
  • Counting Frequency: Supports a maximum counting frequency of up to 100 kHz.
  • Programmable Counters: Contains two independent 16-bit up/down counters that can be customized within the control system software.
  • Edge Multiplying: Configurable to count edges at multipliers of x1, x2, or x4 for enhanced signal resolution.
  • Signal Types: Programmed to accept both complementary and non-complementary pulse transmitters.
  • Visual LED Feedback: Front panel indicators feature yellow LEDs showing the real-time status of each input signal, alongside a bi-coloured LED for overall module function/fault status.
  • System Supervision: Diagnostics are monitored directly by the central controller, making status data accessible within your custom control programs.
Description
The ABB 200-IP2 200IP2 Pulse Counter Unit, also referred to as the 200IP2, is an I/O unit specifically designed as a pulse counter module for control system applications. The 200-IP2 features 2 pulse transmitter interfaces, each equipped with 4 optocoupled inputs, and supports a maximum pulse frequency of 100 kHz. This 200IP2 unit is configured using the control system program, making the 200-IP2 an integrated solution for accurately capturing and processing high-frequency pulse signals within industrial control environments.

The 200-IP2 200IP2 can be adapted for a wide range of applications, demonstrating the versatility of the 200IP2 across multiple operational scenarios. The 200-IP2 is designed for counting pulses from pulse transmitters or incremental encoders with 1 pulse train or with 2 pulse trains. The 200IP2 also supports quantity counting, positioning, and speed calculation, making the 200-IP2 suitable for applications where precise pulse measurement and counting are required.

The 200-IP2 200IP2 is equipped with two 16-bit up/down counters, which are individually programmable, providing the 200IP2 with flexible counting capabilities. The number of edges to be counted in a pulse train can be specified to x1, x2, or x4 on the 200-IP2. The 200IP2 also supports both complementary and non-complementary pulse transmitters, ensuring broad compatibility for the 200-IP2 with various sensor configurations.

For installation and integration, the 200-IP2 200IP2 can be used with version B or later of Adapter 200-ANN, ensuring proper connectivity for the 200IP2 within the system architecture. The 200-IP2 is configured through the control system program, which facilitates the integration of the 200IP2 into existing control environments.

For system upgrades, the 200-IP2 200IP2 should be paired with Adapter 200-ANN version B or later to ensure optimal compatibility. The 200IP2 offers proven pulse counting capabilities that make the 200-IP2 a reliable component for enhancing counting and measurement functions in control systems.
Alternative Names
200-IP2 200IP2 200-IP4 200-IE8 200-OE4
Technical notes
The ABB 200-IP2 (200IP2) Pulse Counter Unit is designed specifically to handle the critical challenge of high-speed pulse tracking and signal noise in automated processes. It solves the common problem of missed counts and signal degradation in fast-paced production environments by utilizing optocoupled inputs to isolate and stabilize incoming signals.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is the 200-IP2 200IP2 configured within a control system?
The module can be configured directly through the central automation control system program, allowing streamlined software integration and simplified commissioning within ABB automation environments.
Can the 200-IP2 200IP2 work with different encoder signal types?
Yes, the 200-IP2 200IP2 supports both complementary and non-complementary pulse transmitters, providing flexibility for integration with various encoder and sensor technologies.
What are the common applications of the 200-IP2 200IP2 module?
The 200-IP2 200IP2 is commonly used for pulse counting, incremental encoder monitoring, speed calculation, and position tracking in applications such as high-speed packaging systems, CNC machinery, conveyor systems, and rotating industrial equipment.
