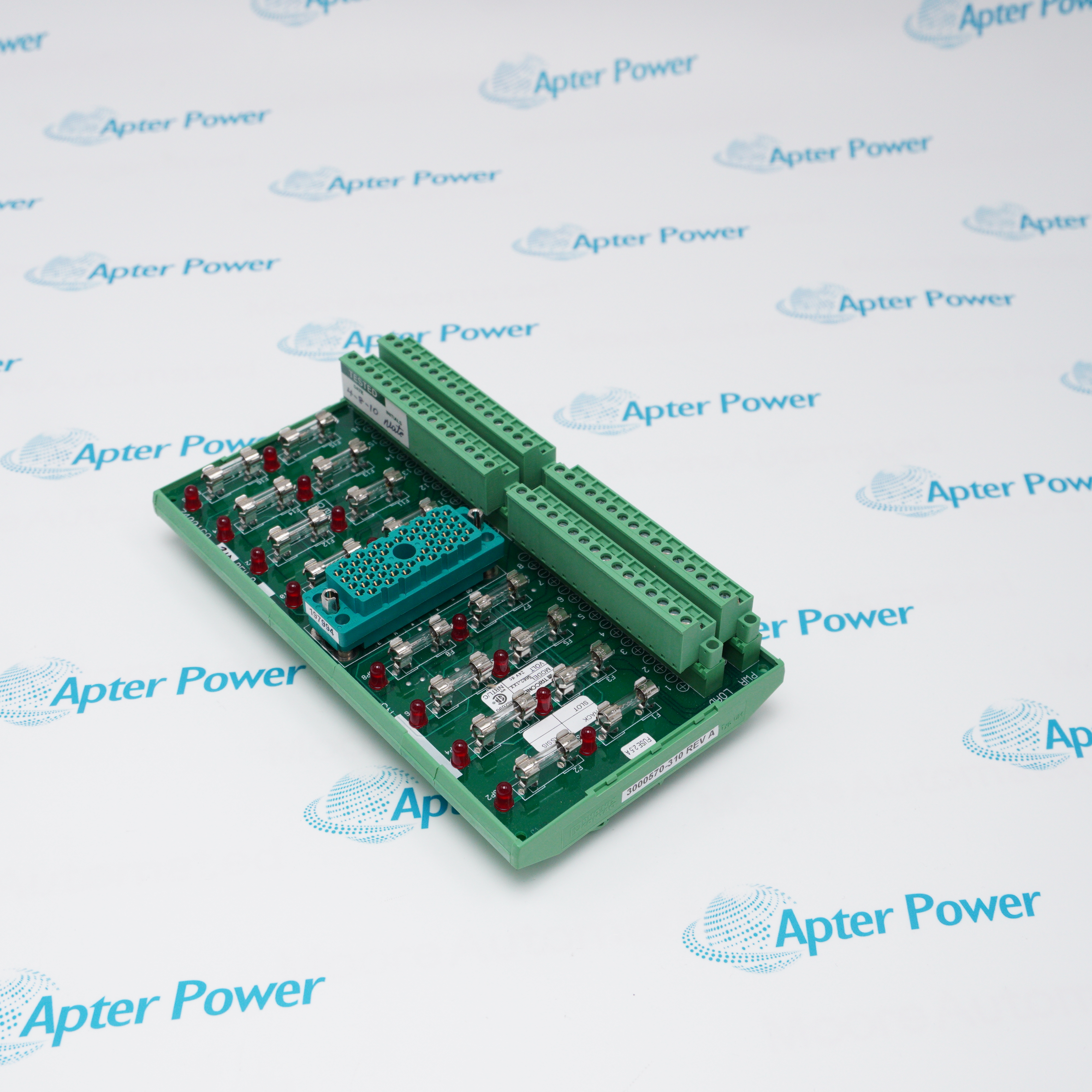

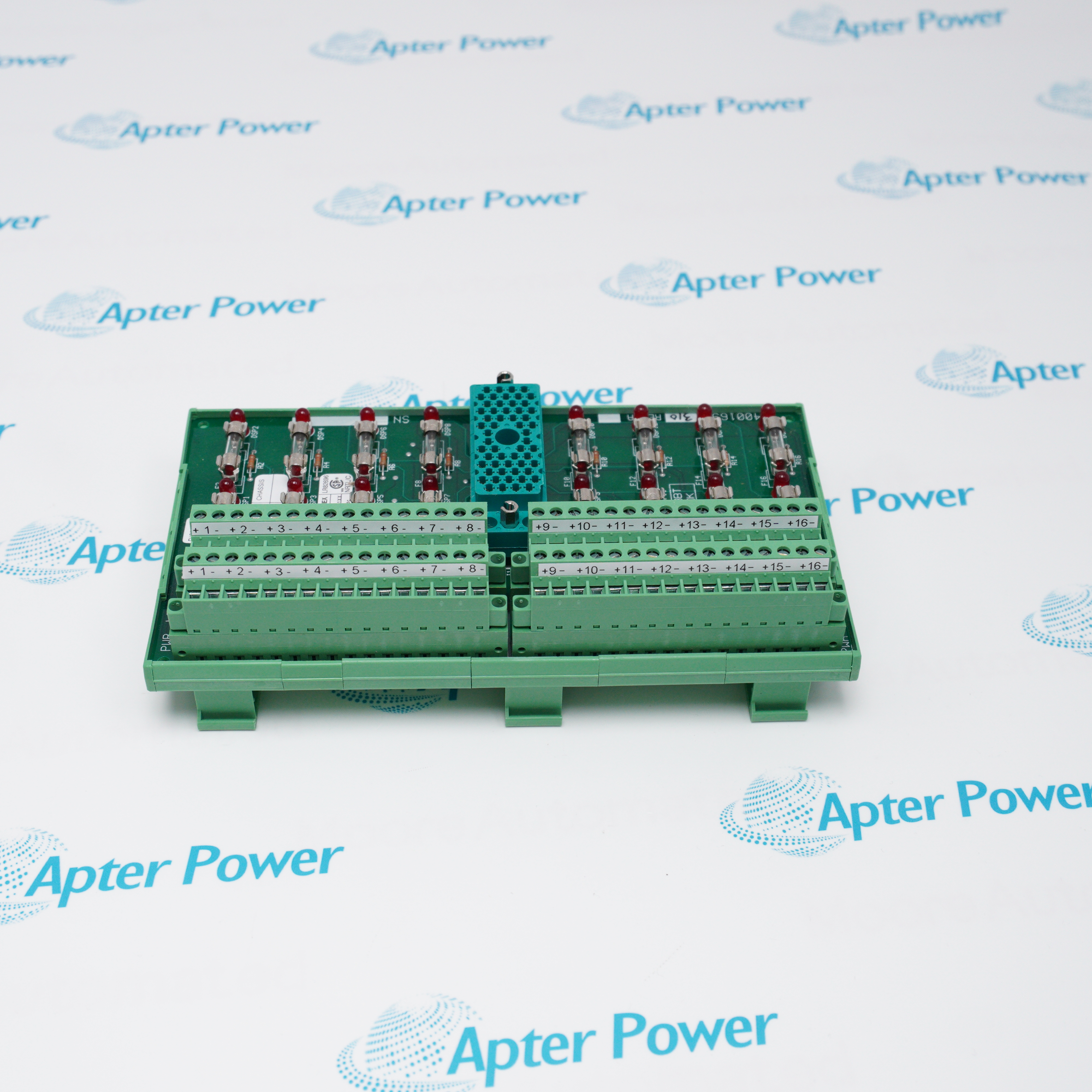

The Triconex 7400169-310 9662-1XX Terminal Panel is designed to interface field wiring with Tricon v9–v10 systems, providing safe, high-density connections for digital output modules. Its plug-in design and fuse protection ensure reliable operation in industrial environments.
Get a quick price for 7400169-310 9662-1XX
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 7400169-310 9662-1XX

  • Manufacturer:
    Invensys
  • Part Number:
    7400169-310 9662-1XX
  • Product Family:
    Triconex
  • Compatible Series:
    Tricon v9 - v10 System
  • Matching Modules:
    Commonly used with digital output modules such as the 3604E
  • Rating:
    24 VDC
  • Panel type:
    Non-commoned
  • Points:
    16
  • Compatibility:
    Compatible with 24 VDC digital output modules
  • Terminal Connections:
    16 LOAD+ terminals/16 LOAD– terminals
  • Power Terminals:
    16 PWR+ terminals/16 PWR– terminals
  • Protection:
    16 fuses with blown‑fuse indicators
  • Weight:
    0.52 kg
  • Estimated shipping dimensions:
    19.7x11x5.5cm
  • Tariff Code:
    8479909090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Operating Environment Certifications Application

Features:

  • High-Density Connection Points With Load And Power Terminals
  • Built-In Fuse Protection With Blown-Fuse Indicators For Safety
  • DIN-Rail Compatible Modular Housing For Flexible Installation
The Triconex 7400169-310 9662-1XX Terminal Panel is essential for industrial automation systems using Tricon v9–v10 controllers. Its plug-in paddle card design allows field wiring to be securely connected to digital output modules such as 3604E, with minimal impact on system uptime during maintenance.

The panel features a non-commoned layout with 16 points and fuse protection, providing clear channel isolation and safeguarding field devices. Compression terminals accommodate 24- to 12-gauge wiring, supporting reliable, high-density connections while maintaining flexibility for plant configurations.

With its compatibility across multiple panel types, including interposing relays and analog conditioning panels, the Triconex 7400169-310 9662-1XX enhances modularity and simplifies expansion. Its DIN-rail housing ensures rapid installation and easy removal, making it a cornerstone component for efficient and safe industrial control system operation.

The 7400169-310 9662-1XX Triconex Terminal Panel may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Triconex 7400169-310 9662-1XX Terminal Panel Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Triconex 7400169-310 9662-1XX Terminal Panel Specs

General

  • Manufacturer Triconex
  • Model 7400169-310 9662-1XX
  • Condition New Original ready stock
  • Product Family 9792-610,9566-810,9764-210
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Temperature Range: Typically operating temperature is 0°C to +60°C; storage temperature is -40°C to +85°C.
  • Humidity Requirements: 5% to 95% relative humidity (non-condensing).
  • Corrosion Resistance: Complies with ISA G3 standards; the panel is coated with a conformal coating to resist corrosive gases in harsh industrial environments.
  • Vibration Resistance: Complies with IEC 60068-2-6 standards, enabling stable operation in control cabinets near large rotating machinery.
  • Safety Certifications: TÜV Rheinland certified for SIL 3 level safety instrumented systems (SIS).
  • Electrical Safety: Complies with UL 508 (Industrial Control Equipment Standard) and CSA certification.
  • Electromagnetic Compatibility: Meets CE marking requirements and meets IEC 61000-4 series immunity test standards.
  • Explosion-proof standard: Generally meets Class 1, Division 2 (hazardous areas) installation requirements.
  • ESD Emergency Shutdown: Used for emergency shut-off valve (MOV) drive signal transfer in oil and gas fields and chemical plants.
  • F&G Fire and Gas Monitoring: Connects digital output commands to audible and visual alarms and fire suppression systems.
  • BMS Burner Management: Performs safety control for ignition and fuel cut-off in boilers or heating furnaces.
  • High-voltage Motor Protection: Serves as the physical output interface for interlocked shutdown in large compressor units or pump stations.
Description
The Triconex 7400169-310 9662-1XX Terminal Panel serves as an electrically passive interface, bridging field wiring to Tricon I/O modules such as 3604E digital output modules. Each panel features 16 LOAD+ and LOAD– terminals, 16 PWR+ and PWR– terminals, and 16 fuses with blown-fuse indicators, ensuring precise signal routing and protection for connected devices.

Its non-commoned panel configuration simplifies remote marshaling, allowing field wiring to be located up to 30 meters from the Tricon chassis. The DIN-rail compatible housing provides easy installation and maintenance, while compression terminals accommodate 24- to 12-gauge wiring. This design reduces downtime by allowing I/O modules to be replaced without disturbing field wiring.

The 9662-1XX Terminal Panel is compatible with Tricon v9-v10 systems, supporting redundant power and return configurations where required. It also allows integration with interposing relays, bypass panels, or analog signal conditioning panels, offering flexibility for complex automation applications. By combining high-density connections, robust protection, and modular design, the Triconex 7400169-310 9662-1XX ensures safe, reliable, and efficient control system operation.
Alternative Names
9662-110 9662-610 9561-810 9563-810 9761-210
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many points are available on the 9662-1XX panel?
The terminal panel supports 16 points, with dedicated LOAD+, LOAD–, PWR+, and PWR– terminals for each channel, ensuring proper connection for digital output modules.
Can the Triconex 7400169-310 9662-1XX be used remotely from the chassis?
Yes, standard termination panels can marshal signals up to 30 meters away from the Tricon chassis, providing flexibility in plant layout and installation.
How does this panel improve system maintenance?
By isolating field wiring from I/O modules and providing clear labeling and plug-in connectors, the Triconex 7400169-310 9662-1XX simplifies troubleshooting, replacement, and expansion in complex control systems.
