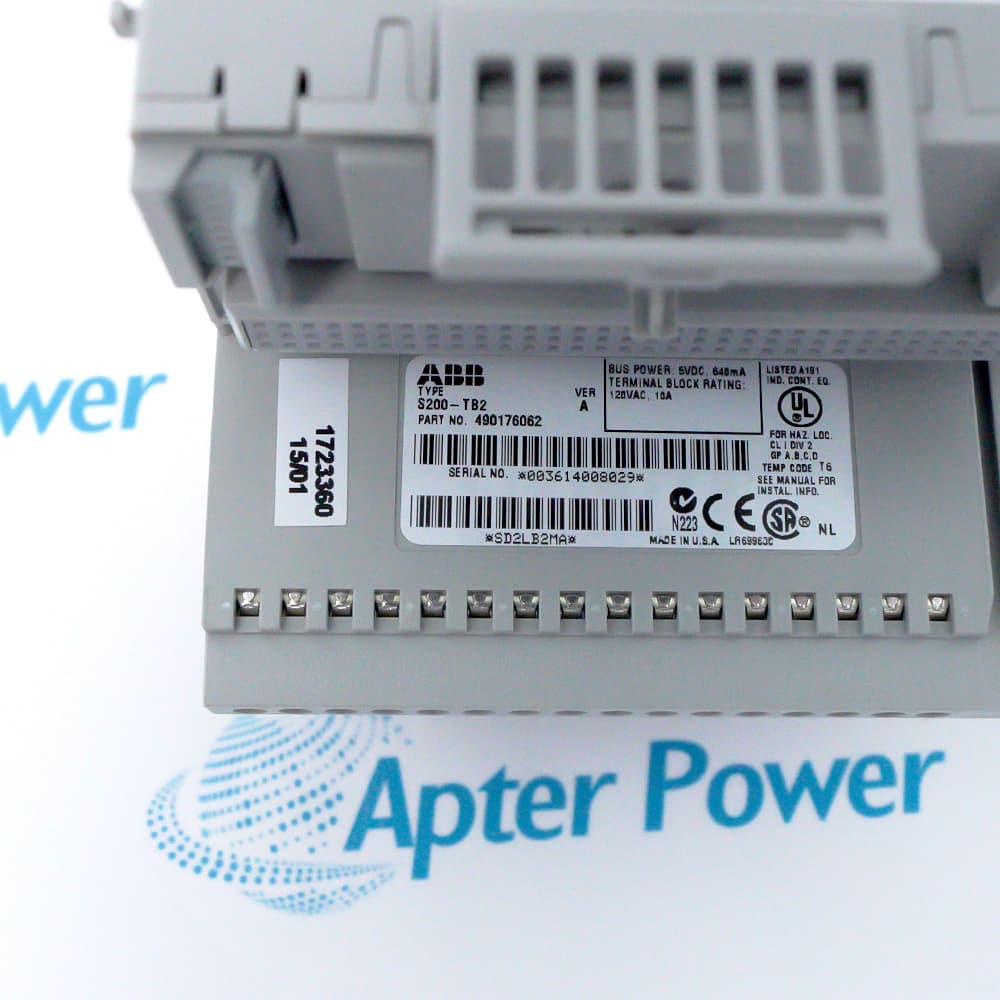

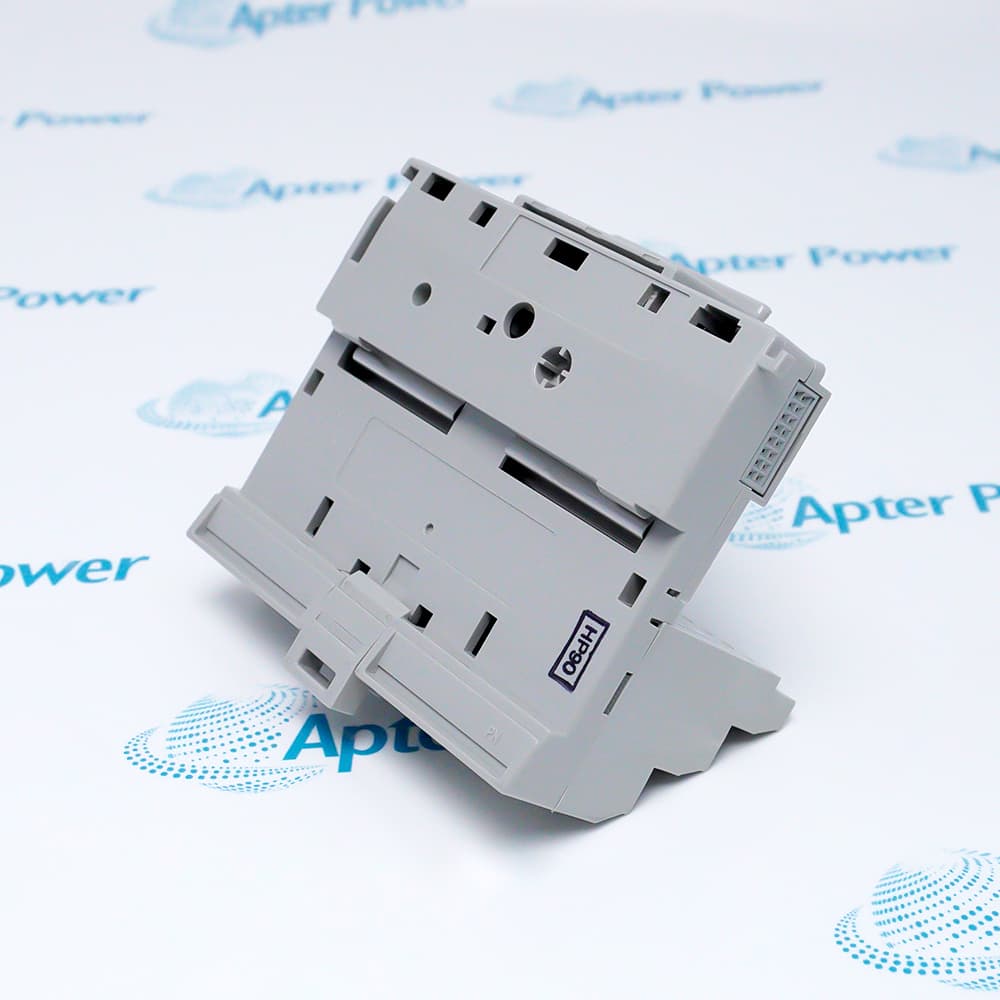

S200-TB2 S200TB2 is a terminal base for ABB S200 I/O units, featuring three screw terminal rows, 10A capacity, and 132V AC rating for 2-wire input/output devices.
Fast Shipping Available
Get a quick price for S200-TB2 S200TB2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for S200-TB2 S200TB2

  • Manufacturer:
    ABB
  • Part Number:
    S200-TB2 S200TB2
  • Product Family:
    ABB S200 I/O
  • Product Type:
    I/O Unit
  • Primary Application:
    2-wire inputs/outputs
  • Terminal Rows:
    3 rows
  • Upper Row Terminals:
    16 (0-15 for signals)
  • Middle Row Terminals:
    18 (0V DC, internally connected)
  • Lower Row Terminals:
    2 (+24V DC, internally connected)
  • Current Capacity:
    10 A max
  • Voltage Rating:
    132 V AC max (rms)
  • Wire Size (Solid/Stranded):
    0.5-2.5 mm² (AWG 20-12)
  • Isolation Voltage:
    Determined by inserted I/O unit
  • Operating Temperature:
    0°C to +55°C
  • Non-operating Temperature:
    -40°C to +85°C
  • Humidity:
    5-95% non-condensing
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    9.7x9.5x5.7cm
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Communication Safety & Compliance

Features:

  • S200-TB2 S200TB2 provides 16 signal terminals plus 18 internally connected 0V and 2 +24V terminals.
  • Rated for 10A continuous current and 132V AC with solid or stranded AWG 20-12 wire.
  • Certified for CSA Class I Div 2 and European Ex Zone 2 hazardous locations with T6 temperature code.
The S200-TB2 S200TB2 organizes field wiring into three clearly separated rows. The upper row offers 16 screw terminals (positions 0-15) dedicated to input or output signals from the attached I/O unit. The middle row provides eighteen 0V DC terminals (16-33) that are internally connected to a common reference rail, simplifying daisy-chaining of return paths. The rightmost and leftmost terminals on the middle row connect to the power supply 0V. The lower row consists of two +24V DC terminals (34 and 51) that are also internally connected, providing convenient distribution of power to field devices.

The S200-TB2 S200TB2 accommodates a wide range of wire gauges, from 0.5 mm² to 2.5 mm² (AWG 20 to AWG 12), supporting both solid and stranded copper conductors. The terminal base handles up to 10A continuous current and 132V AC maximum (rms). When the total load current of all connected I/O units remains below 10A, power supplies can be chained from one S200-TB2 S200TB2 to the next, reducing wiring complexity.

The S200-TB2 S200TB2 carries approvals for installation in potentially explosive atmospheres, including CSA certification for Class I Division 2 Groups A, B, C, D with temperature code T6, and European Ex certification for Zone 2 Group II C. These certifications allow the terminal base to be used in petrochemical facilities, refineries, and other locations where flammable gases may be present. A key switch on the S200-TB2 S200TB2 prevents insertion of incorrect I/O units into preconfigured terminal bases—the backplane code key must match the installed unit's code position.

The S200-TB2 S200TB2 ABB I/O Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

ABB S200-TB2 S200TB2 I/O Unit Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB S200-TB2 S200TB2 I/O Unit Specs

General

  • Manufacturer ABB
  • Model S200-TB2 S200TB2
  • Condition New Original ready stock
  • Product Family S200-PS13 S200PS13,S200-OE4 S200OE4,S200-TB3
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Distributed Control System (DCS) Expansion: Primarily deployed alongside classic ABB host platforms, such as SattLine, SattCon 200, and Advant Controller 250 (AC250).
  • Control Cabinet Optimization: Features a compact, space-saving design suitable for mounting on standard DIN rails inside central control cabinets or localized field junction boxes.
  • Industrial Infrastructure: Widely used across process industries (water treatment, chemical, pharmaceuticals, paper mills) to transition raw field cables into the automation infrastructure.
  • Interlocking Backplane Bus: Multiple S200-TB2 units clip side-by-side onto a DIN rail. They plug directly into each other, automatically forming a continuous serial communication bus across the rack without the need for external backplane ribbon cables.
  • Adapter Bridging: The clustered terminal bases connect to a communication adapter (head module) on the far left, which aggregates I/O data and uploads it via industrial networks like PROFIBUS DP, ControlNet, or DeviceNet.
  • 2-Wire Field Connection: The "TB2" designation means it features a twin-terminal structure per channel (typically signal and common/return), optimized for standard 2-wire field transmitters and sensors.
  • Finger-Safe Protection: Engineered to meet the IP20 protection rating, preventing maintenance personnel from accidentally touching live electrical components with fingers or service tools.
  • Halogen-Free Materials: Built completely with halogen-free, flame-retardant thermoplastics. In the event of an extreme electrical fire, the housing will not release highly toxic halogen gases or dense smoke, meeting modern plant safety regulations.
  • Environmental Directives: Fully compliant with global RoHS and WEEE directives, ensuring lead-free construction and eco-friendly recyclability at the end of its lifecycle.
Description
The S200-TB2 S200TB2 provides the physical mounting and electrical interface for ABB S200 I/O units. This terminal base features three rows of screw terminals: 16 terminals on the upper row for signals, 18 internally connected 0V DC terminals on the middle row, and two +24V DC terminals on the lower row.

Designed primarily for input units using 2-wire inputs or outputs, the S200-TB2 S200TB2 transfers data between I/O units and the controller via the serial bus. A key switch prevents incorrect I/O unit insertion—the backplane code key must match the installed unit. The S200-TB2 S200TB2 includes a snap lock mechanism for secure I/O unit attachment.

The S200-TB2 S200TB2 carries CSA certification for Class I Division 2 hazardous locations with temperature code T6, plus European Ex certification for Zone 2 Group II C.When total load current exceeds 10A, the S200-TB2 S200TB2 requires individual wiring from each unit to the power supply rather than daisy-chaining. The middle row has eighteen 0V DC terminals (16-33) that are internally connected, with the rightmost and leftmost terminals designated for power supply connection.
Alternative Names
S2OO-TB2 S2OOTB2 S200-TB2 S200TB2 S200-IE8 S200-TBNF S200-TB3 S200-OE4 S200OE4 S200-PS13 S200PS13
Technical notes
The S200-TB2 S200TB2 is a 3-row terminal base with 16 signal, 18 0V, and 2 +24V terminals. Rated 10A, 132V AC. Accepts AWG 20-12 wire. Features key switch for I/O unit coding and snap lock. Operating temp 0-55°C. CSA and Ex certified for hazardous locations.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary use of S200-TB2 S200TB2?
S200-TB2 S200TB2 is intended for input units with 2-wire inputs/outputs. It provides 16 signal terminals, 18 common 0V terminals, and 2 +24V terminals with 10A capacity.
How do I wire S200-TB2 S200TB2 for high current loads?
For total load exceeding 10A, S200-TB2 S200TB2 requires individual wiring from each unit to the power supply. Daisy-chaining is not permitted above this limit.
What wire sizes fit S200-TB2 S200TB2 terminals?
S200-TB2 S200TB2 accepts solid or stranded copper wire from 0.5 to 2.5 mm² (AWG 20 to AWG 12). Screw terminals provide secure connections.
Is S200-TB2 S200TB2 approved for hazardous locations?
Yes, S200-TB2 S200TB2 carries CSA Class I Div 2 Groups A,B,C,D T6 and European Ex Zone 2 Group II C certifications.
