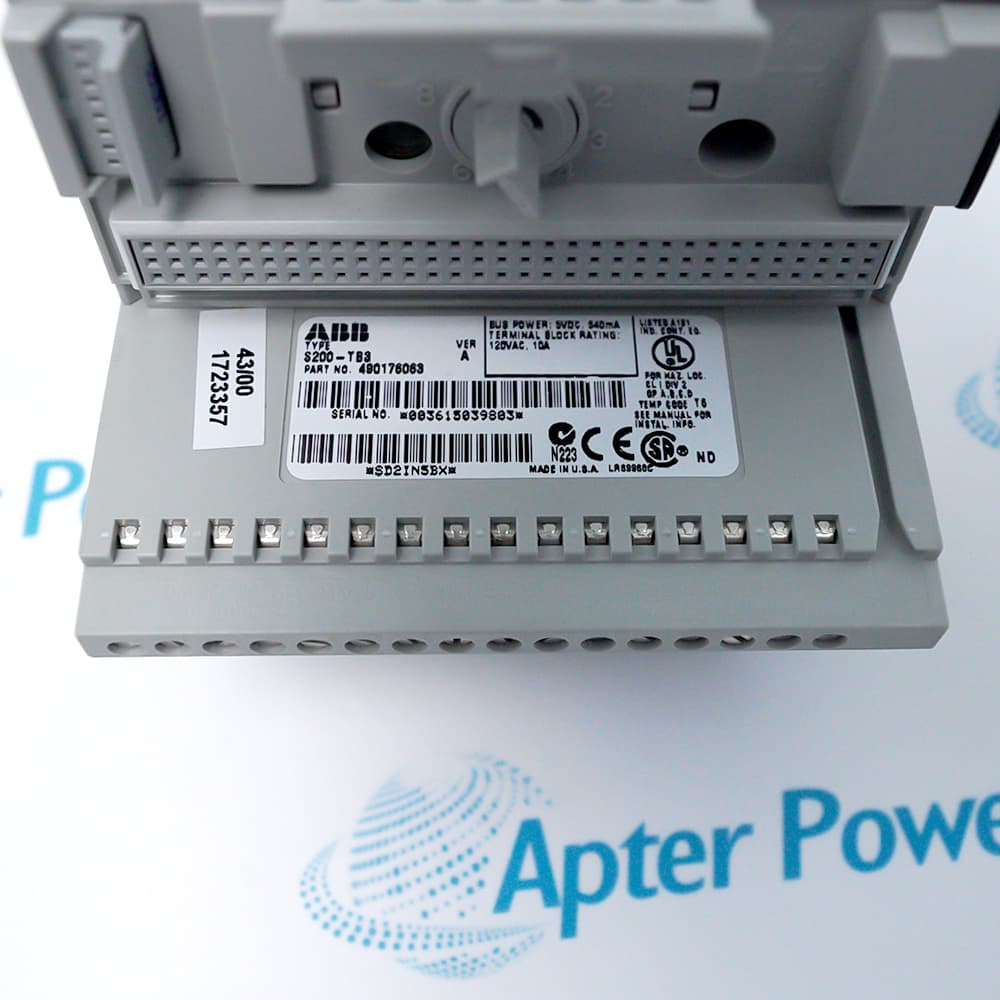

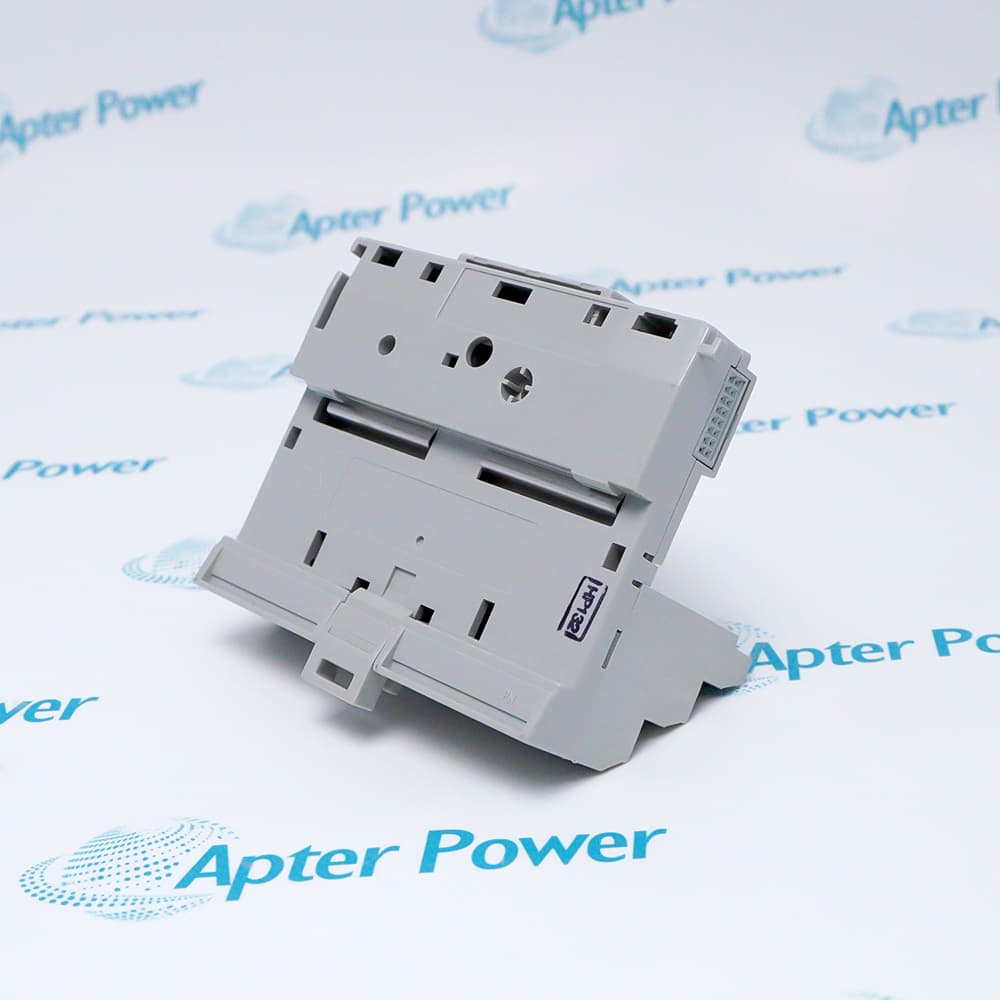

S200-TB3 S200TB3

/ 4.9
1001 reviews | Need a Specific Revision?
The ABB S200-TB3 S200TB3 is a 16-point terminal block interface supporting 2/3-wire connections. It has a rated input of 5 VDC and a maximum current of 640 mA.
Fast Shipping Available
Get a quick price for S200-TB3 S200TB3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for S200-TB3 S200TB3

  • Manufacturer:
    ABB
  • Part Number:
    S200-TB3 S200TB3
  • Product Family:
    ABB S200 I/O
  • Product Type:
    I/O Unit
  • Primary Application:
    2-wire and 3-wire devices
  • Terminal Rows:
    3 rows
  • Upper Row Terminals:
    16 (0-15 for signals)
  • Middle Row Terminals:
    18 (16-33, 0V DC, internally connected)
  • Lower Row Terminals:
    18 (34-51, +24V DC, internally connected)
  • Current Capacity:
    10 A max
  • Operating Temperature:
    0°C to +55°C (typical for S200 system)
  • Storage Temperature:
    -40°C to +85°C (typical for S200 system)
  • Humidity:
    5-95% non-condensing (typical for S200 system)
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    9.7x9.5x5.7cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Performance Application Scenarios

Features:

  • S200-TB3 S200TB3 provides 16 signal terminals plus 18 internally connected 0V and 18 +24V terminals.
  • Internal bussing of middle and lower rows eliminates external jumper wires between multiple field devices.
  • Key switch prevents incorrect I/O unit insertion; supports DIN rail and panel mounting with 10A rating.
The S200-TB3 S200TB3 organizes field wiring into three clearly separated rows with exceptional internal connectivity. The upper row offers 16 screw terminals (positions 0-15) dedicated to input or output signals from the attached I/O unit. The middle row provides eighteen 0V DC terminals (16-33) that are internally connected to a common reference rail, with the rightmost and leftmost terminals designed for power supply connection. The lower row delivers eighteen +24V DC terminals (34-51) that are also internally connected, with the leftmost and rightmost terminals designated for power supply input.

The S200-TB3 S200TB3 offers flexible installation methods to suit different cabinet designs. For standard DIN rail mounting, a locking tab engages the rail securely while a snap lock provides positive retention of the attached I/O unit. For environments where vibration is a concern or where DIN rail is not available, the S200-TB3 S200TB3 includes Ø4.5mm screw holes for direct panel mounting. A key switch mechanism prevents insertion of incorrect I/O units into preconfigured terminal bases—the backplane code key must match the installed unit's code position.

The S200-TB3 S200TB3 provides 36 dedicated power terminals (18 for 0V and 18 for +24V) in addition to its 16 signal terminals, offering exceptional density for power distribution. The internally connected rows mean that connecting power at any single terminal on the middle or lower row energizes all eighteen positions on that row. This allows the S200-TB3 S200TB3 to power up to eighteen three-wire sensors or other devices from a single power supply connection point.

The S200-TB3 S200TB3 ABB I/O Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

ABB S200-TB3 S200TB3 I/O Unit Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB S200-TB3 S200TB3 I/O Unit Specs

General

  • Manufacturer ABB
  • Model S200-TB3 S200TB3
  • Condition New Original ready stock
  • Product Family S200-PS13 S200PS13,S200-OE4 S200OE4,S200-IE8 S200IE8
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Complex Process Industries: Widely deployed in petrochemical, power generation, pharmaceutical, metallurgical, and water treatment plants with extensive networks of active transmitters.
  • Factory & Discrete Automation: Works in tandem with ABB classic control networks (SattLine, SattCon 200, AC250) to control production lines and large-scale automated machinery.
  • High-Density Cabinet Integration: Purpose-built for space-constrained Central Control Cabinets and Remote I/O Boxes where clean wire management is essential.
  • Elimination of External Terminal Strips: Featuring a three-tier terminal layout (Signal, +24V DC Power, and Common/Return), the TB3 reduces cabinet wiring and terminal footprint by up to 50%. Field instruments draw loop power directly from the base.
  • High-Capacity Power Bus: The heavy-duty internal power rail can distribute several amperes across the rack, easily sustaining eight high-power 3-wire instruments simultaneously without voltage drops.
  • Zero-Downtime Hot-Swapping: The base contains no delicate active silicon components. When an attached active I/O module fails, technicians can hot-swap the electronic module live while leaving dozens of field wires completely undisturbed, slashing Mean Time to Repair (MTTR) to seconds.
  • 3-Wire Proximity & Photoelectric Sensors: Standard NPN/PNP industrial sensors (V+, V-, Signal Out) plug directly into the TB3 on a 1-to-1 basis, removing the need to hunt for external 24V distribution blocks.
  • 4-Wire / Externally Powered Flowmeters & Gas Detectors: Precision instruments requiring a dedicated 24V supply loop alongside an isolated 4-20mA signal pair receive an organized, direct termination layout.
  • Solenoids & Actuator Drive Loops: In Digital Output (DO) or Analog Output (AO) loop configurations, the TB3’s multi-common infrastructure ensures clean, single-point grounding to protect the system against ground-loop noise.
Description
The S200-TB3 S200TB3 provides a comprehensive termination solution for ABB S200 I/O units, supporting both two-wire and three-wire field devices. This terminal base features three rows of screw terminals: 16 upper-row terminals (0-15) for input/output signals, 18 middle-row terminals (16-33) for 0V DC, and 18 lower-row terminals (34-51) for +24V DC.

The S200-TB3 S200TB3 includes a key switch mechanism that prevents insertion of incorrect I/O units into preconfigured terminal bases. The middle row consists of eighteen 0V DC screw terminals that are internally connected, with the rightmost and leftmost terminals designated for power supply connection.

When total load current stays below 10A, the S200-TB3 S200TB3 allows chained power wiring between units. For loads exceeding 10A, each unit must receive individual wiring back to the power supply. The S200-TB3 S200TB3 accommodates both DIN rail mounting (using the locking tab) and panel mounting (using Ø4.5mm screw holes).

The S200-TB3 S200TB3 features a male I/O bus connector on the unit and a female connector on the base, plus a slot for connecting adjacent terminal bases. The groove where the I/O unit guide rail fits ensures proper alignment during installation. The S200-TB3 S200TB3 is intended for use with input units requiring three-wire proximity switches but also works with output units.

Alternative Names
S2OO-TB3 S2OOTB3 S200-TB3 S200TB3 S200-TBNF S200TBNF S200-TB2 S200TB2 S200-IE8 S200IE8 S200-OE4 S200OE4 S200-PS13 S200PS13
Technical notes
The S200-TB3 S200TB3 is a 3-row terminal base with 16 signal, 18 0V, and 18 +24V terminals. Rated 10A. Supports DIN rail or panel mounting. Features key switch for I/O unit coding, internal bussing of 0V and +24V rows, and slot for adjacent base connection. Ideal for 3-wire proximity switches and general I/O applications.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does the S200-TB3 come with a warranty?
Yes, the S200-TB3 includes a free 1-year Apter Power warranty.
How many contacts does the S200-TB3 support?
Supports 16 contacts.
What is the S200-TB3 S200TB3's input voltage?
Rated input voltage is 5 VDC.
What is the S200-TB3 S200TB3's maximum allowable current?
Maximum current is 640 mA. Which wiring methods are supported?
