Allen-Bradley 1771-NOC/B is a Series B high-resolution isolated analog output module for PLC-5 systems, with eight field channels labelled 4–20 mA.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1771-NOC/B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1771-NOC/B

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1771-NOC/B
  • Product Family:
    PLC-5
  • Product Type:
    High Resolution Isolated Analog Output Module
  • Stock:
    1
  • Number of Outputs:
    8
  • Output Range:
    0 to 25 mA
  • Digital-to-Analog Resolution:
    14-bit
  • Backplane Current Load at 5 V DC:
    2.9 A at 20 mA per output; 3.3 A at 25 mA per output
  • Chassis Compatibility:
    1771-A1B, 1771-A2B, 1771-A3B, 1771-A3B1, 1771-A4B, later universal chassis, 1771-AM1, and 1771-AM2
  • Remote Termination Panel:
    1771-RTP3 fused or 1771-RTP4 unfused
  • Output Resolution:
    3.20 µA per bit
  • Output Channels:
    8, electrically isolated from each other and from the backplane
  • Chassis Slots:
    1
  • Remote Termination Cable:
    1771-NC6, 1.83 m; or 1771-NC15, 4.57 m
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Output Control Remote Wiring PLC-5 Integration Application

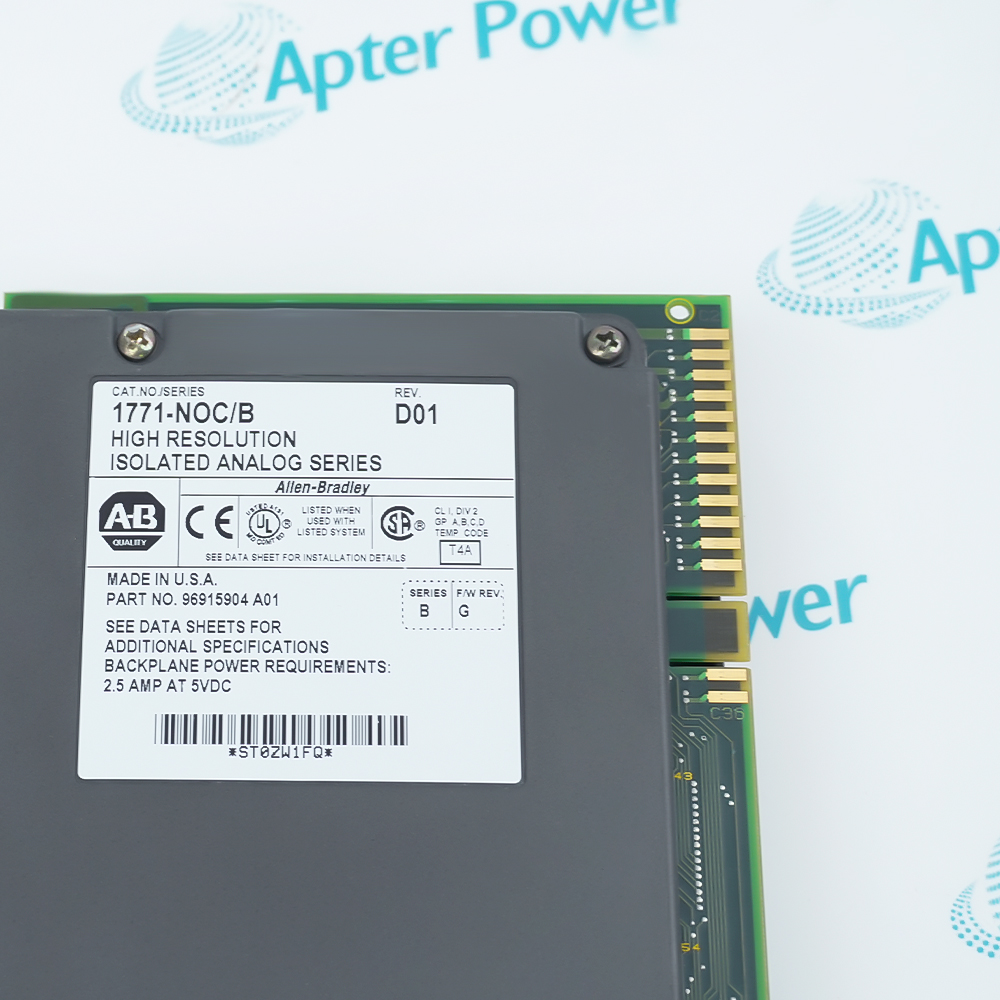

  • Verify the complete 1771-NOC/B nameplate before treating the unit as a Series B replacement
  • Rockwell Automation documents the base 1771-NOC as an eight-output high-resolution isolated analog module
  • Preserve the PLC-5 block-transfer configuration and remote termination arrangement while revision evidence is pending

Allen-Bradley 1771-NOC/B is a Series B-marked 1771-NOC module whose exact revision-specific differences require direct manufacturer evidence.

Rockwell Automation's base 1771-NOC manual documents an eight-output high-resolution isolated analog output module for 1771 I/O and PLC-5 applications using block-transfer programming and remote termination.

The located direct official manual does not state the /B revision differences. Confirm the full installed label or an exact Rockwell revision record before treating 1771-NOC/B as a direct replacement.

Availability, condition, price, and shipping time for 1771-NOC/B are confirmed during quotation.

Allen-Bradley 1771-NOC/B High Resolution Isolated Analog Output Module Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, termination hardware, calibration data, software, and configuration files are not included unless listed in the stock-item description. All prices are shown in USD.

  • The 1771-NOC configuration identifies an eight-output module
  • Output configuration data is written through PLC block-transfer instructions
  • N-series digital-to-analog conversion uses 14-bit resolution
  • N-series modules connect to a remote termination panel
  • 1771-NC6 and 1771-NC15 are documented cable choices for the remote arrangement
  • Cable A and Cable B identify the two field connector groups on the supplied unit
  • The module occupies one compatible 1771 I/O chassis slot
  • 1771-A1B, A2B, A3B, A3B1, A4B, AM1, and AM2 chassis are documented for N-series use
  • No external power supply is required by the documented N-series module arrangement
  • PLC-5 control systems requiring configured analog output commands
  • Field loops using the installed eight-channel 4–20 mA output arrangement
  • Legacy 1771 N-series systems using remote field termination panels
Description
1771-NOC/B is a Series B-marked 1771-NOC module.

Rockwell Automation's base 1771-NOC manual identifies an eight-output high-resolution isolated analog output module for the 1771 I/O and PLC-5 platform using block-transfer programming and remote termination.

The located direct official manual does not define /B revision-specific electrical, firmware, or replacement differences. Confirm the complete installed nameplate or obtain a Rockwell Automation revision record before treating 1771-NOC/B as a direct Series B replacement.
Alternative Names
1771-NOC/B 1771 NOC/B 1771 NOC B 1771NOC/B 1771NOCB Allen-Bradley 1771-NOC/B
Technical notes
Allen-Bradley 1771-NOC/B must be verified from the installed Series B label. Rockwell Automation’s base 1771-NOC manual does not define /B-specific hardware, firmware, or replacement differences; confirm the exact revision record before treating it as a direct replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does Allen-Bradley 1771-NOC/B include the remote termination panel and cables?
No. Confirm the installed termination panel, Cable A and Cable B arrangement, and any required 1771-NC6 or 1771-NC15 cable before ordering.
What evidence is required before treating Allen-Bradley 1771-NOC/B as a Series B replacement?
Confirm the complete Series B nameplate or obtain a Rockwell Automation revision record that explicitly covers 1771-NOC/B. The available 1771-NOC manual does not define /B hardware or firmware differences, so it cannot alone prove direct replacement compatibility.
Why can Allen-Bradley 1771-NOC/B appear healthy while a field device does not follow its command?
The module can communicate while output scaling, block-transfer data, field-loop continuity, reference wiring, or the receiving device configuration remains incorrect.
What should be reviewed if Allen-Bradley 1771-NOC/B output behaviour changes after a PLC fault or restart?
Review the configured reset values, block-transfer logic, controller fault handling, downstream device response, and the machine’s documented safe-state requirements.
Can Allen-Bradley 1771-NOC/B be selected from the PLC-5 chassis model alone?
No. Confirm the 1771 chassis and processor block-transfer support from the base manual, then separately verify the exact /B label, revision, remote termination hardware and saved application before ordering.
Why should Allen-Bradley 1771-NOC/B retain the existing remote termination arrangement?
It preserves the established terminal assignment, cable grouping, shielding method, and field-loop documentation. Changing it can introduce wiring or scaling errors.
What information should be supplied when ordering Allen-Bradley 1771-NOC/B?
Provide clear photographs of the complete nameplate showing 1771-NOC/B and its Series marking, the 1771 chassis and processor catalog numbers, remote termination and cable identities, and the saved block-transfer configuration. Series B-specific compatibility remains pending without an exact Rockwell revision record.
