1746-HSRV

/ 4.9
1001 reviews | Need a Specific Revision?

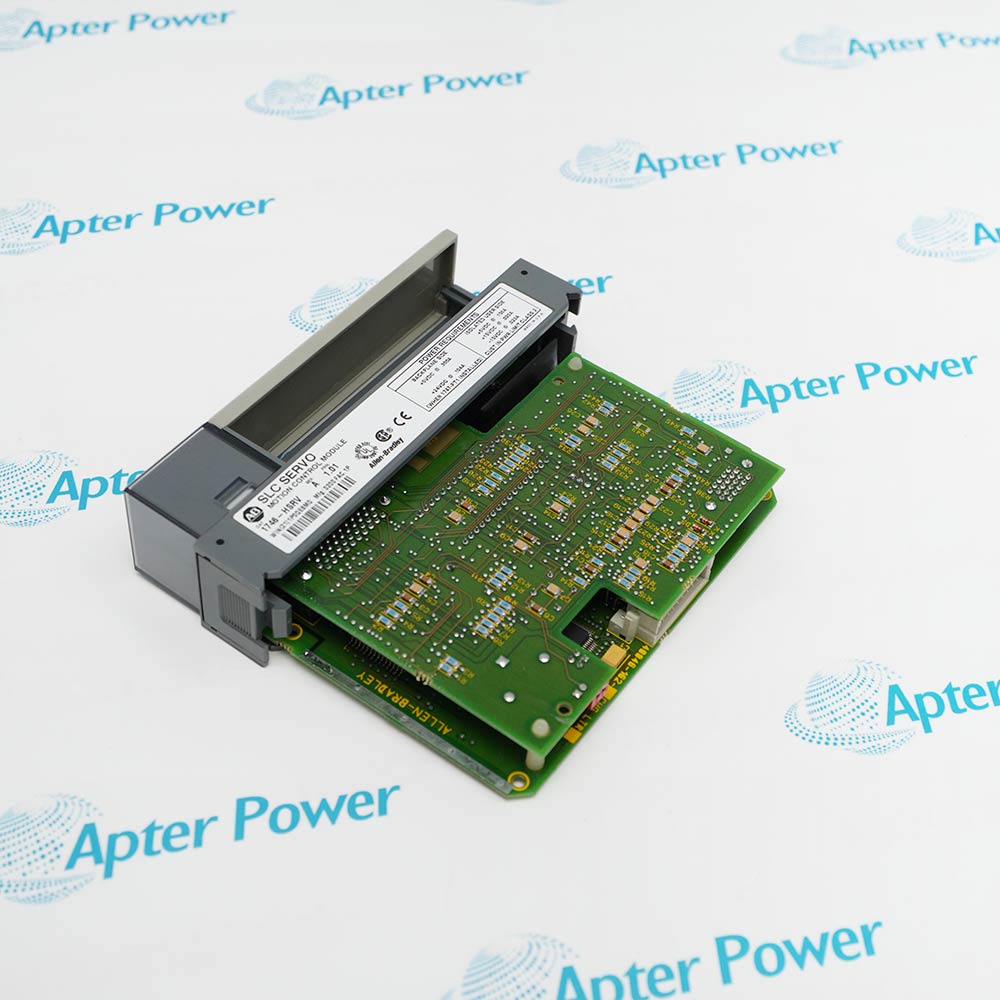

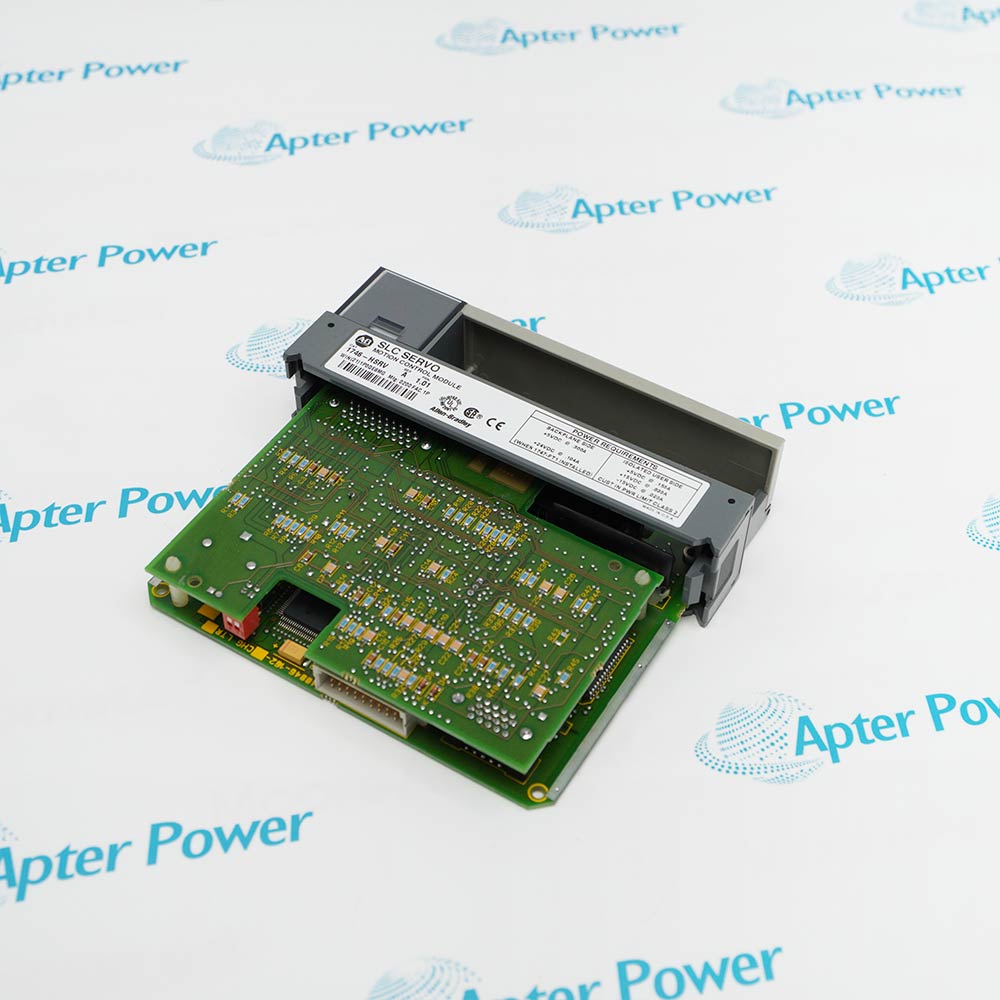

Allen-Bradley 1746-HSRV is a programmable single-axis SLC servo module supporting incremental, absolute, speed, and multi-segment motion profiles.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1746-HSRV
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1746-HSRV

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1746-HSRV
  • Product Family:
    SLC 500
  • Product Type:
    SLC Servo Control Module
  • Stock:
    1
  • Axes:
    1
  • Supported Moves:
    Incremental, absolute and speed
  • Motion Profiles:
    Up to 32 segments
  • Fast Inputs:
    3, 24V DC
  • Fast Output:
    1, 24V DC
  • Required Interface Hardware:
    1746-HT termination panel and 1746-HCA cable
  • Backplane Current at 5 V DC:
    300 mA
  • Backplane Current at 24 V DC:
    0 mA
  • Thermal Dissipation:
    1.50 W
  • Fine Iteration Time:
    1.6 ms
  • Coarse Iteration Time:
    4.8–9.6 ms
  • Default Servo Loop Closure Time:
    4.8 ms
  • SLC Interface:
    12 input words and 12 output words
  • Encoder Input Type:
    5 V differential A/B/Z signals
  • Encoder Decode Mode:
    4X quadrature
  • Encoder Input Sink Current:
    7 mA maximum
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Installation & Interface Programming & Diagnostics Application
  • Programmable closed-loop control for one servo axis
  • Supports incremental, absolute, speed and multi-segment motion
  • Interfaces through the 1746-HT termination panel and 1746-HCA cable

1746-HSRV adds programmable one-axis servo control to a compatible local SLC system.

A complete installation includes the supported processor and chassis, drive and motor, encoder, 1746-HT panel, 1746-HCA cable, field power, motion program, and machine safety circuits.

Replacement commissioning should verify feedback, direction, homing, limits, profiles, tuning, stops, faults, power recovery, and the full guarded machine sequence.

Availability: Current exact-model lifecycle evidence was not sufficient for publication; condition, revision and supply are confirmed during quotation.

Allen-Bradley 1746-HSRV Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • One programmable closed-loop servo axis
  • Three fast inputs and one fast output for 24V DC signals
  • Supports up to thirty-two motion-profile segments
  • Install in a compatible local SLC chassis near the processor
  • Use the 1746-HT termination panel and matching 1746-HCA cable
  • Document encoder, drive, motor, field power, shields and fast-I/O wiring
  • Back up the SLC application and every motion parameter before removal
  • Verify status, command ownership, profile execution and following error
  • Prove stops, limits, faults and recovery before production operation
  • Single-axis programmable positioning with incremental or absolute moves
  • Indexed machine motion using homing, registration and high-speed field inputs
  • Profiled servo axes requiring multi-segment moves, encoder feedback and following-error monitoring
Description
1746-HSRV is an Allen-Bradley SLC Servo Control Module for one axis of closed-loop positioning. It supports incremental, absolute and speed moves, with multi-segment motion profiles managed by a compatible local SLC processor.

The official manual documents three fast 24V DC inputs, one fast 24V DC output, quadrature feedback, a 2ms update, and use of the 1746-HT termination panel with a 1746-HCA cable. It is not intended for a remote SLC chassis.

Before replacement, preserve the SLC and motion programs, axis configuration, tuning, profiles, limits, homing, feedback, fast-I/O assignments, fault actions, firmware, and complete termination-panel and cable identification.
Alternative Names
1746-HSRV 1746 HSRV 1746HSRV AB 1746-HSRV Allen-Bradley 1746-HSRV Rockwell Automation 1746-HSRV
Technical notes
1746-HSRV requires a local compatible SLC processor, 1746-HT panel, 1746-HCA cable, saved motion data, verified feedback, limits, stops, and guarded commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1746-HSRV operate in a remote SLC chassis?
No. The official manual requires a compatible local chassis and processor. Confirm slot position, power budget, processor support, and program ownership.
What additional hardware may be required to install Allen-Bradley 1746-HSRV?
The installation may require a compatible termination panel, interconnect cable, feedback wiring, drive interface, and related connectors. Treat these as separate items unless the quotation explicitly states that they are included.
What should be backed up before replacing Allen-Bradley 1746-HSRV?
Archive the SLC program, motion configuration, profiles, scaling, tuning, homing, limits, fast I/O, fault actions, and module identification.
Why can Allen-Bradley 1746-HSRV appear healthy while the axis will not move?
Check controller mode, axis ownership, drive enable, emergency-stop chain, motion command, profile state, limits, feedback, fast I/O, and active module or drive faults.
What causes repeated following-error faults after replacing Allen-Bradley 1746-HSRV?
Review feedback direction and scaling, motor and drive tuning, mechanical binding, acceleration, velocity, load inertia, command polarity, cable noise, and coupling condition.
Can existing feedback and interconnect cables be reused with Allen-Bradley 1746-HSRV?
Do not assume they can. Verify catalog numbers, connectors, shields, pinout, insulation, routing, flex damage, contamination, grounding, and compatibility with the retained drive and encoder.
What should be proven before returning Allen-Bradley 1746-HSRV to production?
Test direction, homing, all limits, incremental and absolute moves, speed moves, profiles, fast I/O, stop behavior, faults, recovery, and the guarded machine cycle.
