  • Lifecycle status

    Discontinued
    Discontinued date: 2024-09-01
    Replacement category: Engineering Replacement
    Engineering replacement: 1783-CMS20DB

1783-BMS20CL

/ 4.9
1001 reviews | Need a Specific Revision?

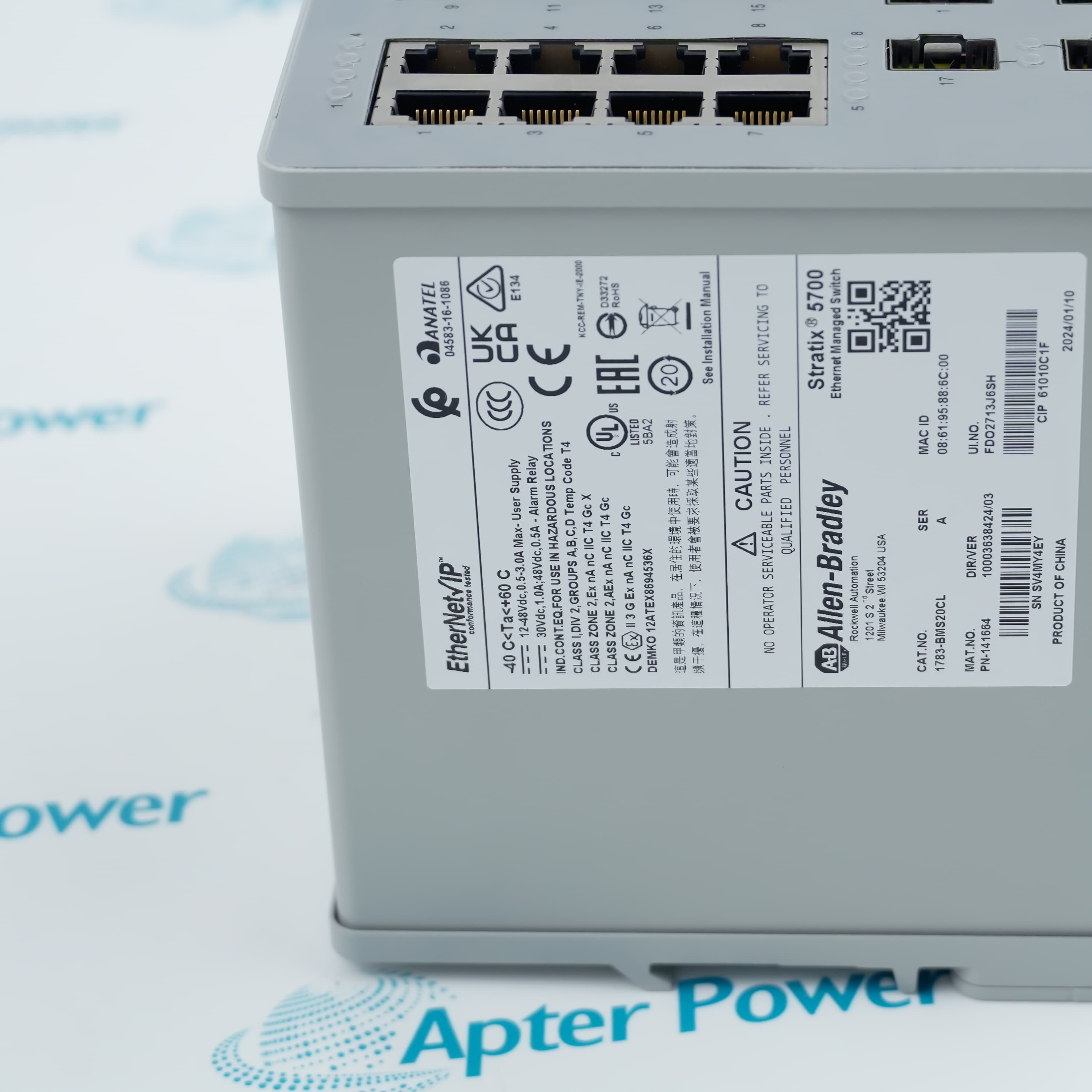

Allen-Bradley 1783-BMS20CL is a 20-port Stratix 5700 Lite managed Fast Ethernet switch with Device Level Ring support.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for 1783-BMS20CL
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1783-BMS20CL

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1783-BMS20CL
  • Product Family:
    Stratix Managed Switches
  • Product Type:
    20-Port Lite Managed Industrial Ethernet Switch
  • Stock:
    1
  • Total ports:
    20
  • Copper ports:
    16 Fast Ethernet RJ45
  • Combination ports:
    2 Fast Ethernet RJ45 / SFP
  • Dedicated SFP slots:
    2 Fast Ethernet
  • Device Level Ring:
    Supported
  • Power input:
    0.5...3.0 A maximum at 12...48 V DC, Class 2/SELV
  • Power consumption:
    21 W at 24 V DC and 40 °C; 30 W maximum
  • Alarm relay:
    1 A at 30 V DC; 0.5 A at 48 V DC
  • Isolation voltage:
    50 V continuous, basic insulation, DC power to ground/Ethernet/alarm

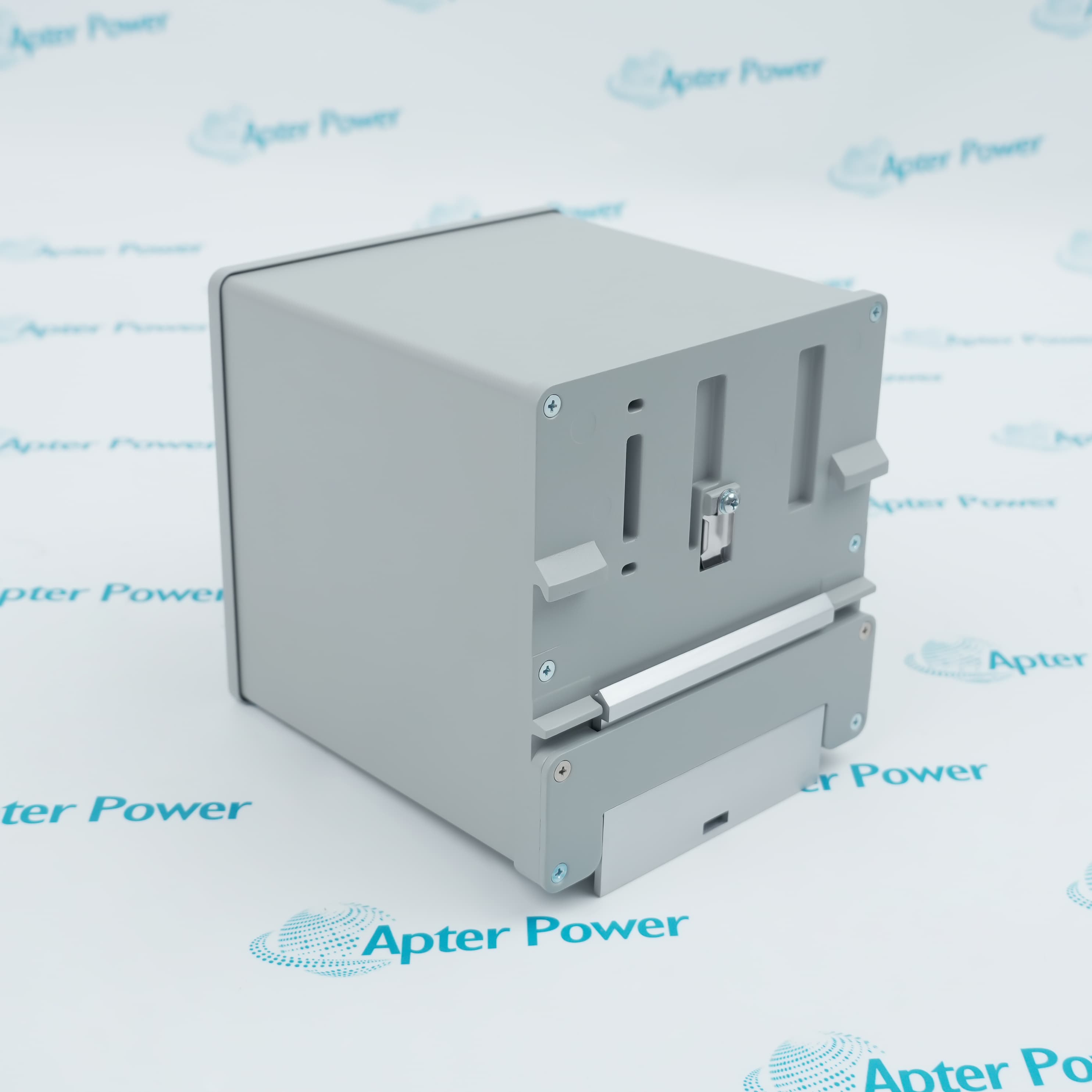

  • Mounting:
    DIN rail
  • Environmental rating:
    IP30; open-style enclosure
  • Dimensions:
    12.7 × 12.95 × 13.58 cm
  • Operating temperature:
    -40...60 °C
  • Weight:
    2.04 kg
  • Tariff Code:
    8517622990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Port Layout Ring and Setup Power and Mounting Application
  • Twenty Fast Ethernet ports combine sixteen RJ45 ports, two combination ports, and two SFP slots
  • Lite firmware and Device Level Ring support are documented for the complete catalog number
  • The switch accepts 12...48 V DC power and mounts on DIN rail in IP30 industrial installations

1783-BMS20CL is an Allen-Bradley Stratix 5700 20-port Lite managed industrial Ethernet switch for EtherNet/IP automation networks.

Its port layout provides sixteen Fast Ethernet copper ports, two Fast Ethernet combination ports, and two Fast Ethernet SFP slots, while Device Level Ring enables one resilient ring using supported port pairs.

Before installation or replacement, verify Series A hardware, firmware, IP and VLAN configuration, DLR role and port pair, copper and SFP media, 12...48 V DC power, alarm wiring, DIN-rail space, and the configuration backup.

Availability, condition, price, and shipping time for 1783-BMS20CL are confirmed during quotation.

Allen-Bradley 1783-BMS20CL 20-Port Lite Managed Industrial Ethernet Switch Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Sixteen Fast Ethernet RJ45 ports provide copper device connections
  • Two Fast Ethernet combination ports accept either RJ45 or supported SFP media
  • Two additional Fast Ethernet SFP slots provide fiber-interface positions
  • Stratix 5700 supports one Device Level Ring with two DLR-enabled ports per switch
  • For 1783-BMS20CL the documented DLR choices include ports Fa 1/15 through Fa 1/20
  • Lite managed firmware supports configuration and diagnostics for industrial Ethernet operation
  • Power input is 12 to 48 volts DC from a Class 2 or SELV source
  • Power consumption is 21 watts at 24 volts DC and 40 °C with a 30-watt maximum
  • The open-style IP30 switch mounts on DIN rail and is rated for -40 to 60 °C operation
  • EtherNet/IP IntelliCENTER lineups with 9 to 16 intelligent motor-control devices
  • Device Level Ring industrial Ethernet segments requiring switch-level path resiliency
  • Managed industrial Ethernet networks ranging from small isolated cells to complex plant networks
Description
1783-BMS20CL is an Allen-Bradley Stratix 5700 20-port Lite managed industrial Ethernet switch for EtherNet/IP networks.

It combines sixteen Fast Ethernet copper ports, two Fast Ethernet combination ports, two Fast Ethernet SFP slots, Device Level Ring support, DIN-rail mounting, and 12...48 V DC input.

Before installation or replacement, confirm the complete catalog number, Series A hardware, firmware, port media, SFP type, IP and VLAN configuration, DLR role, power, grounding, alarm wiring, and configuration backup.
Revisions

Revision Part #

Also known as

1783-BMS20CL Ser A
1783-BMS20CL/A, Series A, Rev A
Alternative Names
1783-BMS20CL 1783BMS20CL 1783 BMS20CL Allen-Bradley 1783-BMS20CL Rockwell Automation 1783-BMS20CL AB 1783-BMS20CL Stratix 5700 1783-BMS20CL
Technical notes
1783-BMS20CL is the Lite-firmware, 20-port Fast Ethernet variant; verify Series A, firmware, DLR port pair, RJ45/SFP media, IP/VLAN settings, 12...48 V DC power, alarm wiring, grounding, and backup before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be backed up before replacing Allen-Bradley 1783-BMS20CL?
Export or record the complete switch configuration, including the management IP address, VLANs, Smartport roles, DLR settings, port security, and alarm configuration before removing the installed switch.
Are SFP transceivers and network cables included with Allen-Bradley 1783-BMS20CL?
No. Select supported SFP transceivers, fiber patch leads, and copper cables separately for the installed port and media requirements.
Can Allen-Bradley 1783-BMS20CL use redundant DC power inputs?
Yes. The switch provides two DC power-input connections that can be wired to separate Class 2 or SELV sources; confirm polarity, source ratings, grounding, and the alarm configuration.
What must be checked when selecting fiber media for Allen-Bradley 1783-BMS20CL?
Match the supported SFP catalog number, fiber type, wavelength, connector type, link distance, and the SFP used at the opposite end of the link.
What should be verified before commissioning a DLR ring on Allen-Bradley 1783-BMS20CL?
Verify the selected ring ports, supervisor or ring-node role, beacon settings, IP configuration, firmware compatibility, and the configuration of every device in the ring.
How can the alarm connection on Allen-Bradley 1783-BMS20CL be used?
The alarm relay can report configured switch conditions to external monitoring equipment. Confirm the selected alarm triggers and wire the relay within the published contact ratings.
Is 1783-CMS20DB a direct drop-in replacement for Allen-Bradley 1783-BMS20CL?
Treat 1783-CMS20DB as an engineering replacement, not an automatic drop-in substitution. Compare port media, mounting, power, firmware, licensed features, DLR behavior, and the saved switch configuration before migration.
