330171-00-33-50-01-05

/ 4.9
1001 reviews | Need a Specific Revision?
Bently Nevada 330171-00-33-50-01-05 is a long-case 3300 5 mm probe for non-contact shaft position and vibration measurement.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 330171-00-33-50-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330171-00-33-50-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330171-00-33-50-01-05
  • Product Family:
    3300 5mm Probe
  • Product Type:
    3300 5 mm Proximity Probe
  • Stock:
    1
  • Probe thread:
    1/4-28 UNF
  • Cable armor:
    Without armor
  • Unthreaded length:
    0.0 in
  • Overall case length:
    3.3 in
  • Probe lead length:
    5.0 m
  • Connector option:
    Miniature coaxial ClickLoc connector with protector
  • Cable construction:
    Standard 75-ohm triaxial cable with FEP insulation
  • Approval option:
    Multiple approvals
  • System linear range:
    2.0 mm (80 mils), from 0.25 to 2.3 mm
  • Recommended gap:
    1.27 mm (50 mils)
  • Incremental scale factor:
    7.87 V/mm (200 mV/mil), typical
  • Frequency response:
    0 to 10 kHz, +0/-3 dB
  • Minimum flat target:
    15.2 mm (0.6 in) diameter
  • Minimum cable bend radius:
    25.4 mm (1.0 in)
  • Probe tip material:
    Polyphenylene sulfide (PPS)
  • Weight:
    0.22 lbs (0.1 kg)
  • Estimated shipping dimensions:
    20x18x1.5cm
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Case Reach Cable Route Target Setup Compliance

Features:

  • 3.3-inch fully threaded case for extended mechanical reach
  • Five-metre non-armored triaxial cable with FEP insulation
  • ClickLoc connector protector and multiple-approval selection
The extended case on 330171-00-33-50-01-05 gives the installer more threaded body between the sensing tip and the cable exit than the shorter 1.2-inch configuration.

A zero-length unthreaded block means the mounting nut or bracket engages the threaded case throughout the available adjustment section.

The long attached lead carries the probe signal toward the monitoring electronics, with the protected detachable joint positioned at the far end of that cable.

The Bently Nevada 330171-00-33-50-01-05 3300 5 mm Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330171-00-33-50-01-05 3300 5 mm Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Extended Threaded Body

  • Overall length: The stainless-steel case extends 3.3 inches from the tip-side reference to the cable exit.
  • Plain section: Order block 00 specifies no unthreaded length ahead of the threaded body.
  • Adjustment: Compatible nuts or brackets can set insertion depth along the 1/4-28 UNF thread.
  • Function: The longer case alters mounting reach without changing the 3300 5 mm sensing principle.

Long-Lead Installation

  • Attached length: A 5.0 m cable carries the probe signal before the detachable connection.
  • Mechanical protection: The lead has no armor, so the machine and enclosure route must shield it from abrasion.
  • Bend control: Turns must maintain the documented 25.4 mm minimum radius.
  • Joint location: The protected ClickLoc connector sits at the remote end of the integral lead.

Shaft-Surface Conditions

  • Face size: Use a flat target at least 15.2 mm in diameter for the probe field.
  • Initial position: Establish a 1.27 mm reference gap with the shaft in the required setup state.
  • Operating travel: Keep target movement inside the 0.25 to 2.3 mm linear interval.
  • Signal scale: The matched system has a typical incremental scale factor of 7.87 V/mm.

Configured Materials and Approval

  • Case material: The threaded probe case uses AISI 303 or 304 stainless steel.
  • Tip material: The sensing tip uses polyphenylene sulfide.
  • Cable insulation: FEP insulation surrounds the standard 75-ohm triaxial lead.
  • Approval block: The final 05 order code selects the documented multiple-approval option.
Description
Bently Nevada 330171-00-33-50-01-05 is a 3300 5 mm proximity probe configured with a 3.3-inch case for mounting positions that require more threaded reach. The probe tip observes shaft movement without contact, while the associated cable and Proximitor Sensor carry that movement into the machine-monitoring signal path.

Along its case, 330171-00-33-50-01-05 has no unthreaded section; the 1/4-28 UNF thread extends through the available mounting length. The longer body therefore changes mechanical reach, not the probe family, linear range or target requirements.

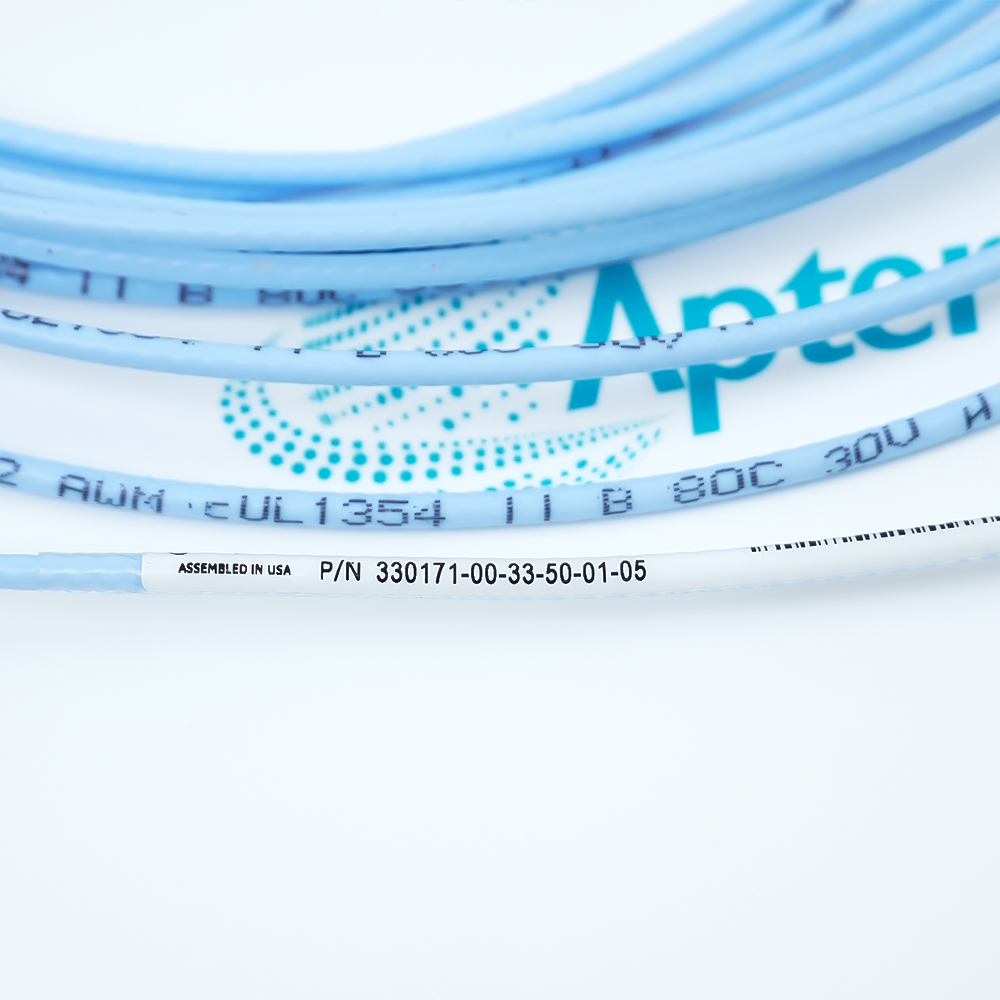

From the rear of 330171-00-33-50-01-05, a 5.0 m non-armored triaxial lead runs to a protected ClickLoc connector. Cable supports must preserve the 25.4 mm minimum bend radius and keep pulling force away from the connector while the remaining loop is matched to the Proximitor Sensor.

At the shaft, 330171-00-33-50-01-05 is positioned around a 1.27 mm nominal gap. The target face must be large enough for the five-millimetre probe field, and operating movement must remain inside the 0.25 to 2.3 mm linear interval for the documented output scale to apply.
Alternative Names
3301710033500105 330171 00 33 50 01 05 330171-0033500105 Bently Nevada 330171-00-33-50-01-05 330171-00-33-50-01-05 3300 5 mm Probe Bently Nevada 330171 00 33 50 01 05 3300 5 mm Probe 330171-00-33-50-01-05 33017I-00-33-50-01-05
Technical notes
Bently Nevada 330171-00-33-50-01-05 has a 3.3-inch fully threaded case and 5.0 m non-armored lead. Keep the cable bend radius at or above 25.4 mm.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is the 3.3-inch case important on 330171-00-33-50-01-05?
The longer threaded body of 330171-00-33-50-01-05 provides more mechanical reach between the probe tip and cable exit. It does not change the 3300 5 mm electrical system requirements.
How should 330171-00-33-50-01-05 be adjusted in its bracket?
Engage the 1/4-28 UNF thread of 330171-00-33-50-01-05 with compatible mounting hardware, set the required gap, and keep engagement within the documented 0.375-inch maximum.
Where should the connector of 330171-00-33-50-01-05 be supported?
The ClickLoc joint on 330171-00-33-50-01-05 is located after the 5.0 m integral lead. Secure the route so cable weight or machine movement does not pull on that joint.
What cable protection is required for 330171-00-33-50-01-05?
Because 330171-00-33-50-01-05 has no cable armor, place its 5.0 m lead in a protected route and observe the 25.4 mm minimum bend radius throughout the installation.
How is the operating gap established for 330171-00-33-50-01-05?
Position 330171-00-33-50-01-05 near the 1.27 mm nominal gap, then confirm that expected shaft travel remains between 0.25 and 2.3 mm relative to the probe tip.
Which target geometry suits 330171-00-33-50-01-05?
A flat conductive shaft surface at least 15.2 mm in diameter is required for 330171-00-33-50-01-05. Keep the probe face square to that surface during mechanical adjustment.
