1305-BA01A-HA2

/ 4.9
1001 reviews | Need a Specific Revision?

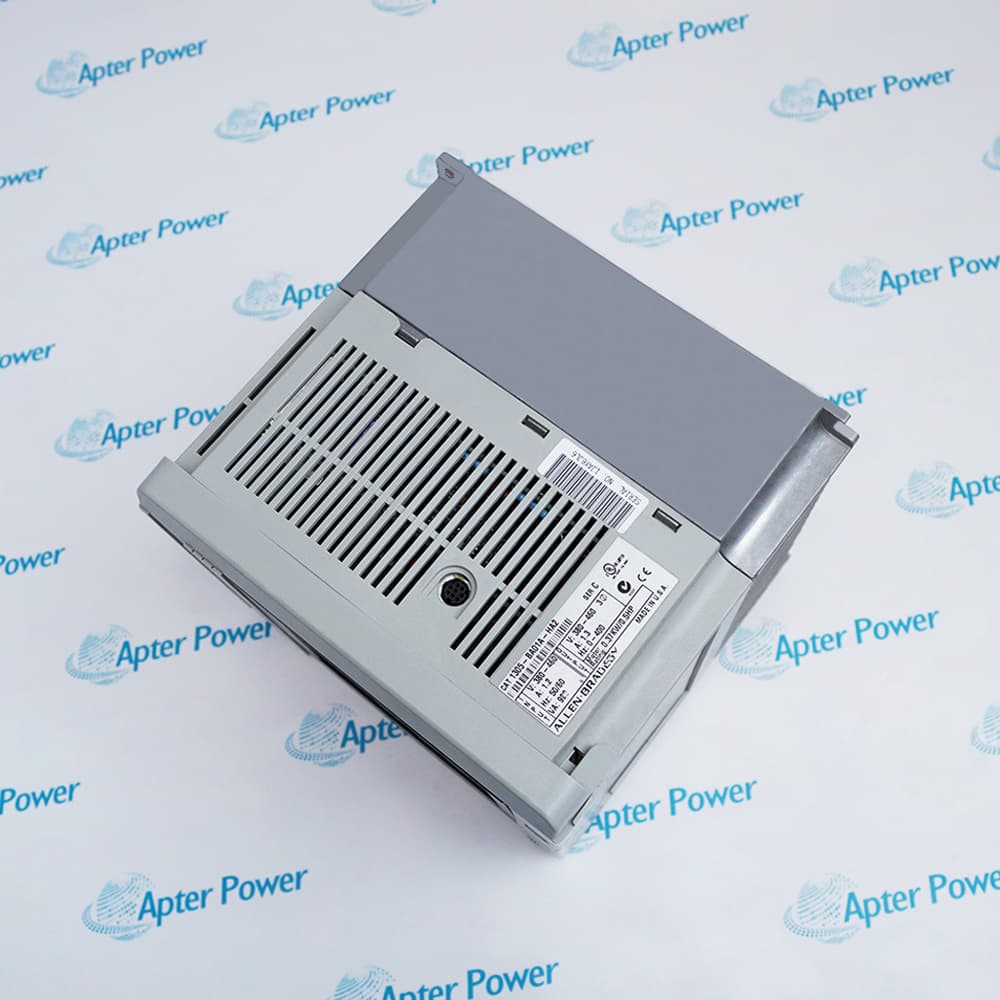

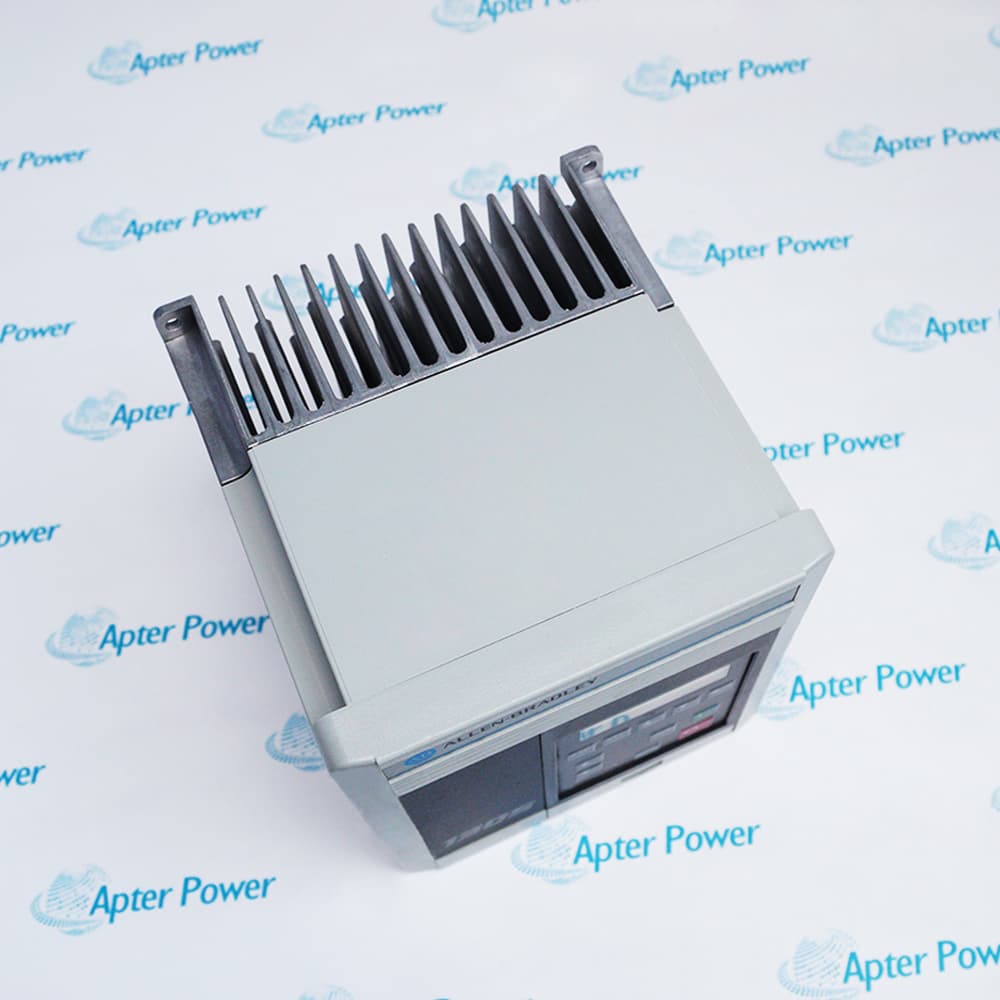

Allen-Bradley 1305-BA01A-HA2 is a 0.37 kW / 0.5 hp, 1.3 A Bulletin 1305 drive with an HA2 digital up/down HIM.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1305-BA01A-HA2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1305-BA01A-HA2

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1305-BA01A-HA2
  • Product Family:
    1305 Drives
  • Product Type:
    Bulletin 1305 Adjustable Frequency AC Drive
  • Stock:
    1
  • Drive Family:
    Bulletin 1305 Adjustable Frequency AC Drive
  • Input:
    380/460V AC, three-phase; 340–500V AC, 47–63 Hz
  • Output Rating:
    0.37 kW / 0.5 hp, 1.3 A
  • Input kVA:
    0.9 kVA
  • Output Frequency:
    0–400 Hz
  • Efficiency:
    97.5% nominal
  • Power Loss:
    21 W
  • Dimensions:
    17 × 19.5 × 17.9 cm without potentiometer; 18.41 cm depth with potentiometer
  • Factory Option:
    HA2 — Human Interface Module with digital up/down keys, installed in the drive
  • Tariff Code:
    8504409999
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals HA2 Local Control Motor & Protection Commissioning Application
  • Match the 0.37 kW / 0.5 hp, 1.3 A BA01A rating to the installed three-phase motor
  • Confirm that the HA2 digital up/down HIM is required and operates from the selected control source
  • Preserve speed limits, acceleration settings and local/remote command assignments before replacement

Allen-Bradley 1305-BA01A-HA2 is a 380/460 V Bulletin 1305 adjustable-frequency drive rated 0.37 kW / 0.5 hp and 1.3 A, supplied with an HA2 digital up/down Human Interface Module.

The BA01A data lists 0.9 kVA input, 21 W power dissipation, 97.5% typical efficiency and programmable output from 0 to 400 Hz. The HA2 interface allows local digital speed adjustment, subject to the configured start and frequency-reference sources.

Record the complete nameplate, Series, firmware, HA2 behavior, motor data and parameter set before removal. After installation, verify keypad control, terminal control, direction and current at low load.

Availability, condition, price, and shipping time for 1305-BA01A-HA2 are confirmed during quotation.

Allen-Bradley 1305-BA01A-HA2 Product Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use the HA2 digital up/down keys only when the configured frequency source permits local adjustment
  • Confirm the selected start source before testing the keypad Start and Stop functions
  • Record the displayed frequency command and active fault before removing the original HIM
  • Use a compatible three-phase motor within the 0.37 kW / 0.5 hp and 1.3 A drive rating
  • Set motor nameplate current and overload protection for the actual connected motor
  • Verify branch protection, grounding and carrier-frequency derating before sustained operation
  • Restore the approved minimum frequency, maximum frequency and acceleration settings
  • Test HA2 speed adjustment and terminal commands separately before connecting the process load
  • Confirm direction, output current and stopping behavior at low speed before production use
  • Variable-speed control of compatible 0.37 kW three-phase conveyor motors
  • Small pump or fan duties using the Bulletin 1305 programmable V/Hz patterns
  • Local machine adjustments that require HA2 digital up/down speed control
Description
Allen-Bradley 1305-BA01A-HA2 combines the 380/460 V Bulletin 1305 BA01A drive rating of 0.37 kW / 0.5 hp and 1.3 A with an HA2 digital up/down Human Interface Module.

The official Bulletin 1305 data lists 0.9 kVA input, 21 W power dissipation, 97.5% typical efficiency and a programmable 0–400 Hz output range for the BA01A rating. The HA2 interface provides local digital speed adjustment, but the selected command and frequency sources still determine whether the keypad or terminal inputs control the drive.

Before replacement, record the drive Series and firmware revision, HA2 operation, start and speed-reference sources, minimum and maximum frequency, acceleration and deceleration settings, motor nameplate data and active fault history. Recommission at low load and verify direction, keypad response, terminal control and motor current.
Alternative Names
1305-BA01A-HA2 1305BA01AHA2 1305 BA01A HA2 Allen-Bradley 1305-BA01A-HA2 Allen Bradley 1305-BA01A-HA2 AB 1305-BA01A-HA2 Rockwell Automation 1305-BA01A-HA2
Technical notes
Allen-Bradley 1305-BA01A-HA2 pairs the 0.37 kW / 0.5 hp, 1.3 A BA01A drive with the HA2 digital up/down HIM. Verify the Series and firmware, local/remote command selection, motor data, saved speed limits and HA2 keypad operation before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does the HA2 suffix mean on 1305-BA01A-HA2?
The official ordering information identifies HA2 as a factory-installed Human Interface Module with digital up/down keys.
Why can 1305-BA01A-HA2 run from terminal commands but not from the HA2 keypad?
Check local/remote selection, command and reference sources, stop input status, active interlocks, keypad connection, and whether another interface owns control.
What must be saved before replacing 1305-BA01A-HA2?
Save the complete parameter set and record motor data, I/O assignments, acceleration and deceleration, frequency limits, fault history, and option hardware.
What should be checked if 1305-BA01A-HA2 trips immediately after the motor is connected?
Isolate the motor and inspect output wiring, phase-to-phase shorts, ground faults, motor insulation, output contactors, and entered motor data before another start.
Why can two 1305 drives with similar power ratings behave differently for 1305-BA01A-HA2?
Series, firmware, factory options, parameter values, braking arrangement, enclosure, and control wiring can differ; compare the complete nameplate and configuration.
Why might 1305-BA01A-HA2 trip only while the motor is accelerating?
The ramp may be too short for the load inertia, or current limit, motor data, supply voltage, mechanical load, or torque-boost settings may be unsuitable.
What should be tested after installing 1305-BA01A-HA2?
With the machine safe, verify direction, minimum and maximum speed, ramps, current, I/O, interlocks, stop modes, fault response, and process operation.
