    Apter Power supplies verified Fanuc servo amplifiers to maintain reliable legacy CNC machine operation.

A06B-6117-H209

/ 4.9
1001 reviews | Need a Specific Revision?

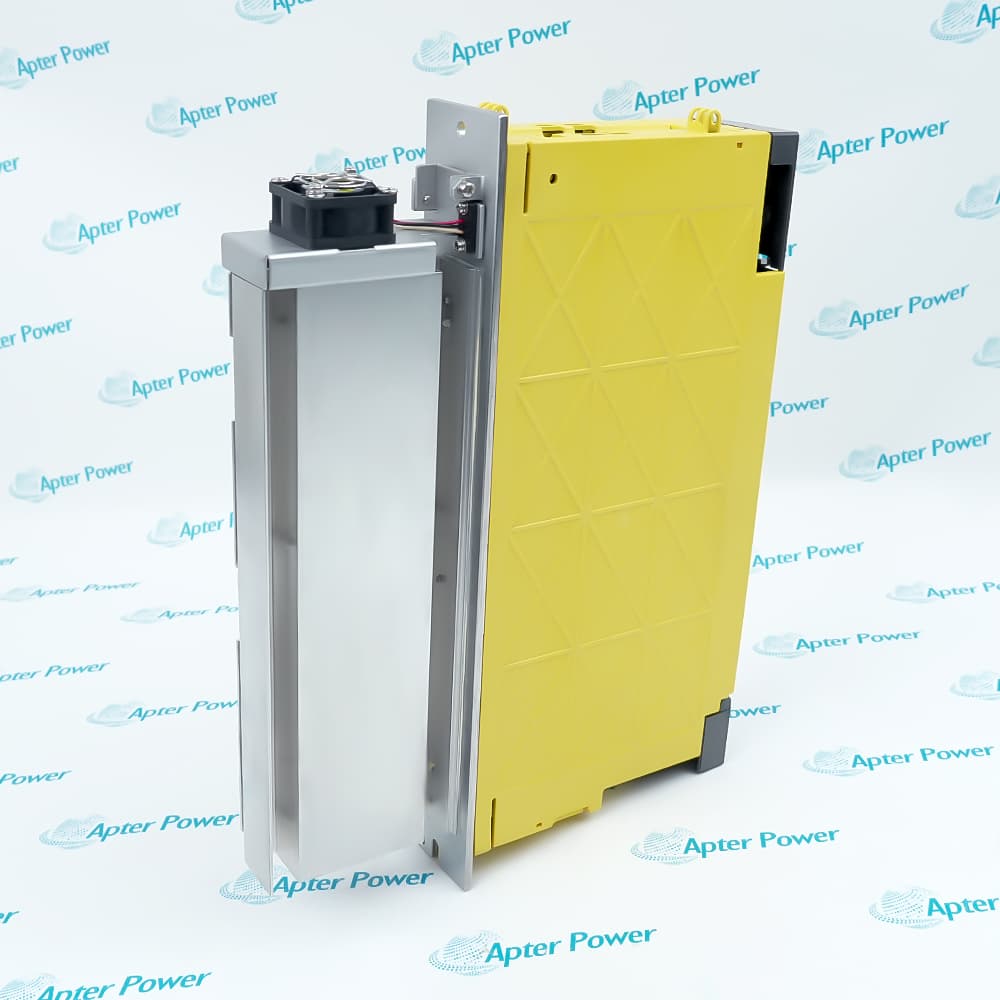

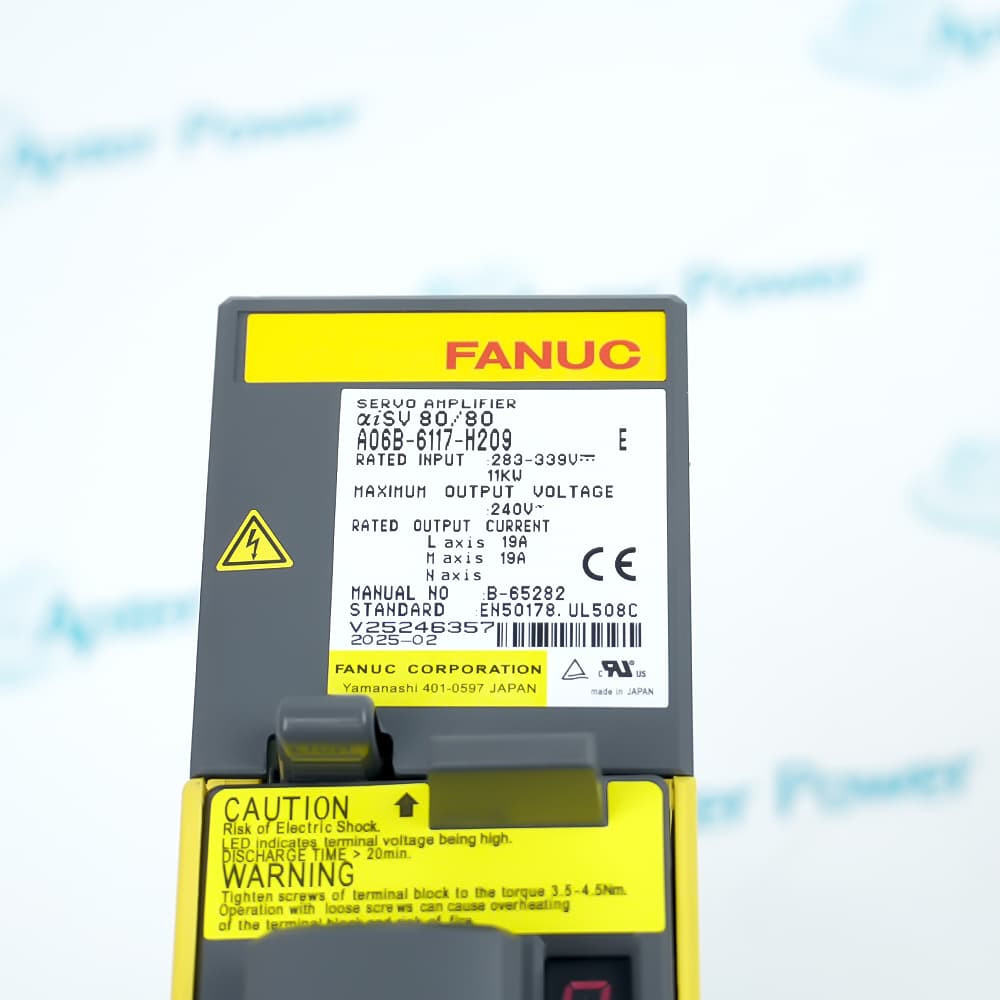

The Fanuc A06B-6117-H209 is a alpha i-series (αi SV 2-80/80) two-axis servo amplifier module engineered for standard 200VAC-input industrial automation and CNC environments.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for A06B-6117-H209
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for A06B-6117-H209

  • Manufacturer:
    Fanuc
  • Part Number:
    A06B-6117-H209
  • Product Family:
    Fanuc
  • Product Type:
    Two-axis Servo Amplifier
  • Stock:
    1
  • Axis Configuration:
    Two-axis (Dual Axis / Twin Axis for L and M axes)
  • Input Voltage:
    200V - 240VAC (3-Phase)
  • Output Rated Current (L-Axis):
    80A (Peak Current)
  • Output Rated Current (M-Axis):
    80A (Peak Current)
  • Control Technology:
    HRV2 / HRV3 (High Response Vector Control)
  • Cooling Method:
    Internal Forced Air Cooling (Quick-replace fan cartridge)
  • Weight:
    5 kg
  • Estimated shipping dimensions:
    38x6x27.2cm
  • Tariff Code:
    8504409999
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Configuration & Programming Certifications & Standards

Features:

  • High-Speed Optical Communication via Fanuc Serial Servo Bus (FSSB)
  • Dual-Axis Motion Drive Supporting 19A Rated Output Per Channel
  • Integrated Intelligence for Real-Time Current Control and Diagnostics
The Fanuc A06B-6117-H209 functions as a dual-axis (alpha iSV 80/80) servo amplifier module within the Fanuc Alpha i drive system, delivering precise dynamic control to two independent servo motors. It operates on a high-voltage DC bus input (283-339 VDC, rectified from a 200 VAC line by an upstream alpha iPS power supply unit) and delivers up to 240 VAC variable output with a rated current capacity of 19A on both the L-axis and M-axis channels. High-speed serial optic communication via FSSB ensures rapid command transmission and minimal signal latency.

The Fanuc A06B-6117-H209 provides vital motion control and power conversion functions for multi-axis machinery, serving as a core component in the drive loop that directly determines axis positioning precision and system stability. Depending on the axis configuration of the machine tool or robotic cell, one or multiple Fanuc A06B-6117-H209 modules are installed alongside the primary power supply module within the modular drive line. The unit features a compact, panel-mounted modular form factor, utilizing standard DC link busbars along the top rail to draw main operating power from the adjacent power module.

For complex multi-axis applications, the Fanuc system connects the A06B-6117-H209 through daisy-chained CXA2A/CXA2B control jumpers and fiber-optic FSSB links. Beyond standard two-axis execution, the amplifier continuously monitors motor feedback, internal IGBT temperatures, and DC bus stability. The Fanuc A06B-6117-H209 executes real-time fault detection; if the internal diagnostic circuits identify an overcurrent, ground fault, or low-voltage condition on either axis, it instantly trips the drive, cuts power output to protect the connected motors, and outputs an alarm code on its front-panel 7-segment LED display.

The A06B-6117-H209 Fanuc Two-axis Servo Amplifier may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Fanuc A06B-6117-H209 Two-axis Servo Amplifier Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Fanuc A06B-6117-H209 Two-axis Servo Amplifier Specs

General

  • Manufacturer Fanuc
  • Model A06B-6117-H209
  • Condition New Original ready stock
  • Product Family A06B-6117-H208,A06B-6117-H207
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Multi-Axis CNC Machining: Provides synchronized control for primary machine tool axes (such as X, Y, Z, or rotary setups) on high-speed CNC milling and turning centers.
  • Precision Manufacturing Lines: Drives linear and rotary actuators in high-volume automated lines requiring exact positioning and rapid acceleration.
  • Robotic Integration: Frequently deployed as an auxiliary 7th and 8th axis amplifier within industrial robot controllers.
  • FSSB Fiber Optic Interface: Communicates with the CNC or robot controller using high-speed optical fiber links. System configuration is managed through the controller’s FSSB setting screen, where each axis is mapped to its physical hardware slot.
  • Control Hardware: Built around the internal A20B-2100-0741 control board and the A16B-2203-0673 power board.
  • Parameter Verification: Operators can utilize an external check board with four physical switches. By setting the parameter numbers via these switches, values transferred from the control system can be monitored on a built-in five-digit indicator.
  • Absolute Position Retention: Includes an integrated backup capacitor within its Absolute Pulsecoder architecture. This design retains position coordinates for approximately 10 minutes during a power loss or component swap, eliminating the need for reference position returns (homing operations).
  • Enclosure Rating: Requires mandatory housing inside an IP54-rated dustproof and waterproof electrical cabinet to protect against industrial contamination.
  • Safety Integration: Built to work in tandem with Fanuc's Dual Check Safety (DCS) system. This configuration relies on continuous software checks and dual safety inputs to safely isolate power if an emergency stop or safety gate breach is detected.
  • Industrial Standard Compliance: Manufactured under rigorous quality standards to ensure high electromagnetic compatibility (EMC) and thermal stability, maintaining peak continuous current output across ambient temperatures ranging from 0°C up to 55°C.
Description
The Fanuc A06B-6117-H209 two-axis servo amplifier is specifically designed to solve complex multi-axis motion synchronization problems, high cabinet footprint demands, and thermal management challenges in high-duty industrial environments. By housing two independent 19A drive channels within a single compact modular frame, the Fanuc A06B-6117-H209 solves panel space constraints and significantly reduces wiring complexity compared to single-axis drive setups. Furthermore, the Fanuc A06B-6117-H209 effectively mitigates tracking errors and vibration issues during high-speed feed operations, ensuring consistent dynamic response, thermal stability, and maximum machine uptime during continuous operations.

The Fanuc A06B-6117-H209 two-axis servo amplifier is widely applied across advanced manufacturing sectors requiring precise automated motion control. Primary application areas include CNC machine tools such as 2-axis turning centers, multi-axis milling machines, and grinding centers, where the Fanuc A06B-6117-H209 controls primary linear or rotary axes (such as X/Z or Y/Z tool movements). Additionally, the Fanuc A06B-6117-H209 is extensively integrated into industrial robotics—such as Fanuc R-30iA and R-J3iC robot controllers—powering articulated robot arm joints, automated gantry transfer systems, and heavy-duty material handling machinery.
Alternative Names
A06B 6117 H209 A06B6117H209 AO6B-6117-H2O9 A06B-6II7-H209 A06B-6117-H208 A06B-6117-H210 A06B-6117-H207 A06B-6117-H206 A06B-6117-H205
Technical notes
The Fanuc A06B-6117-H209 dual-axis unit delivers an 80A peak current rating for both the L-axis and M-axis independently, allowing it to drive two distinct AC servo motors simultaneously from a single, compact footprint.
