Features:
- Single-slot Series 90-30 CPU372 PLUS with embedded Ethernet
- 120 KB configurable user memory with RAM and flash storage
- Two 10/100 Ethernet ports sharing one controller IP address
General Electric

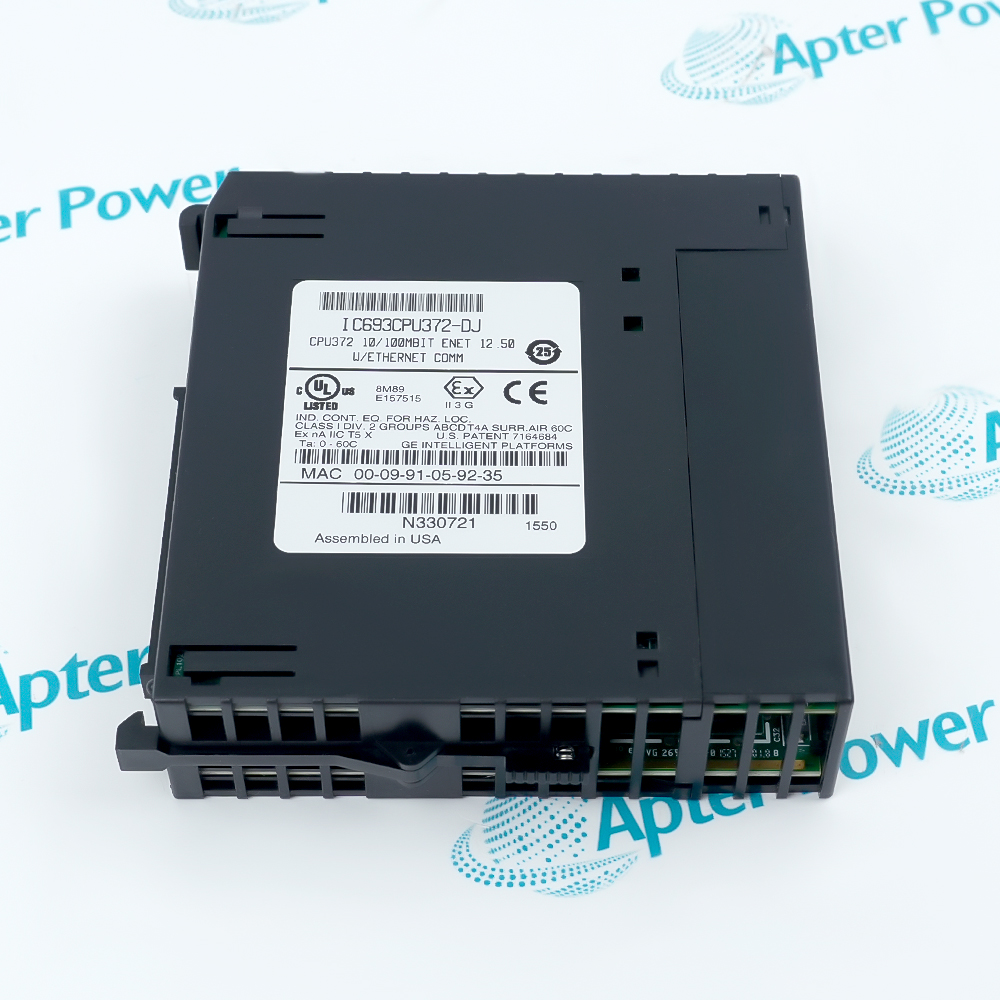

IC693CPU372 executes the Series 90-30 application while coordinating rack I/O across as many as eight baseplates.
Its processor and configurable memory keep control logic, register data, and analog data in the same CPU memory architecture.
The embedded Ethernet interface lets
IC693CPU372 exchange controller data through SRTP, Ethernet Global Data, and Modbus TCP without adding a separate Ethernet module.
The General Electric IC693CPU372 Series 90-30 CPU372 PLUS may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC693CPU372 Series 90-30 CPU372 PLUS Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Allocate the configurable user-memory area
- User area: 120 KB can be allocated among logic and data tables
- Volatile storage: Battery-backed RAM holds the active application
- Nonvolatile storage: Flash memory preserves a program image without battery dependence
- Reference ranges: Discrete, global, internal, temporary, and status references use defined memory areas

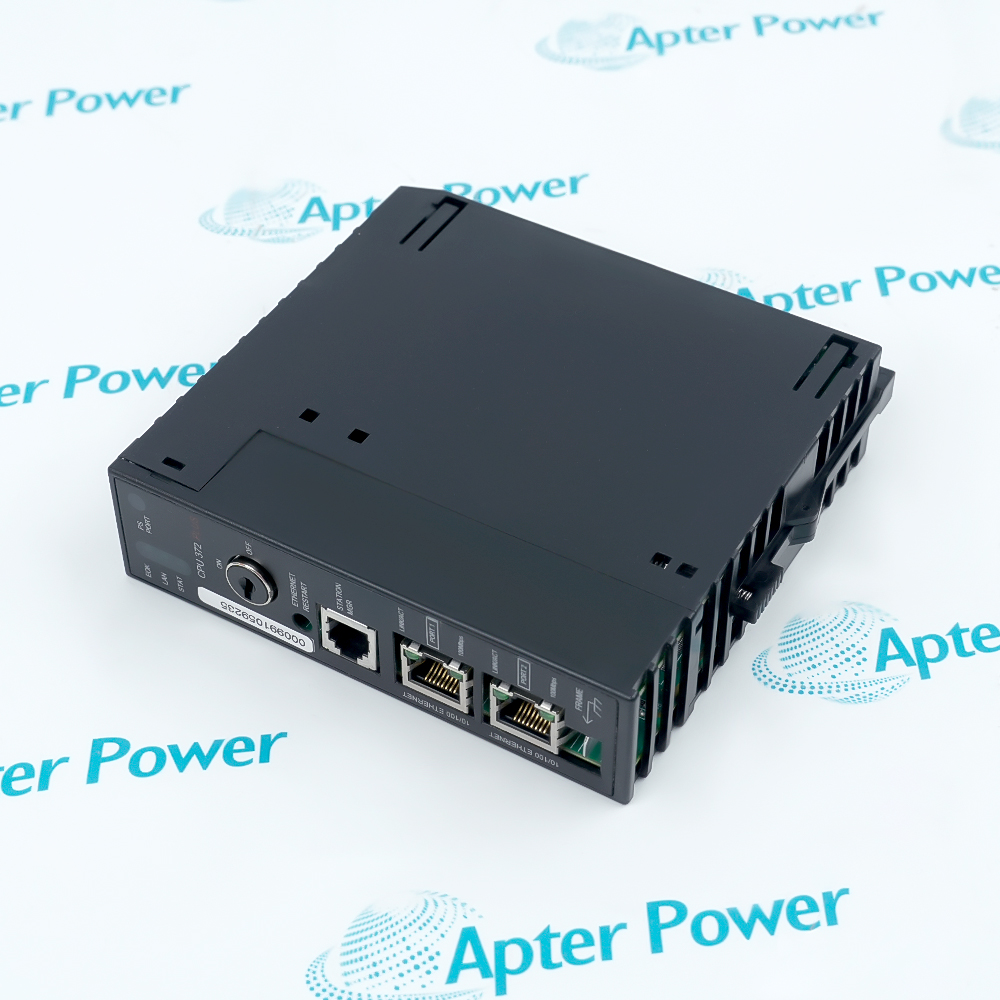

Use two physical ports through one IP interface
- Physical ports: Two auto-sensing 10/100Base-T/TX RJ45 connectors
- Addressing: Both connectors operate through one IP address
- Topology role: The pair provides two physical attachment points for one CPU Ethernet interface
- Channel limit: Up to sixteen SRTP server channels are included within thirty-six total channels
Plan the CPU load across Series 90-30 bases
- Slot use: IC693CPU372 occupies one Series 90-30 slot
- Baseplates: The CPU can control as many as eight baseplates
- Power demand: The module draws 7.4 W from the 5 V DC backplane
- Power supply: A Series 90-30 high-capacity supply is required for the documented load
Assign Ethernet channels to the required services
- SRTP: Provides Series 90 Ethernet server and client data exchange
- EGD: Ethernet Global Data publishes and consumes configured exchanges
- Modbus TCP: Connects compatible Modbus TCP clients and servers
- Web server: Embedded pages provide browser access to controller information
