    Supply Note: GJV3074353R1 is legacy ABB Procontic T200 hardware. Availability and condition must be confirmed during quotation.

07EA63R1 GJV3074353R1

/ 4.9
1001 reviews | Need a Specific Revision?

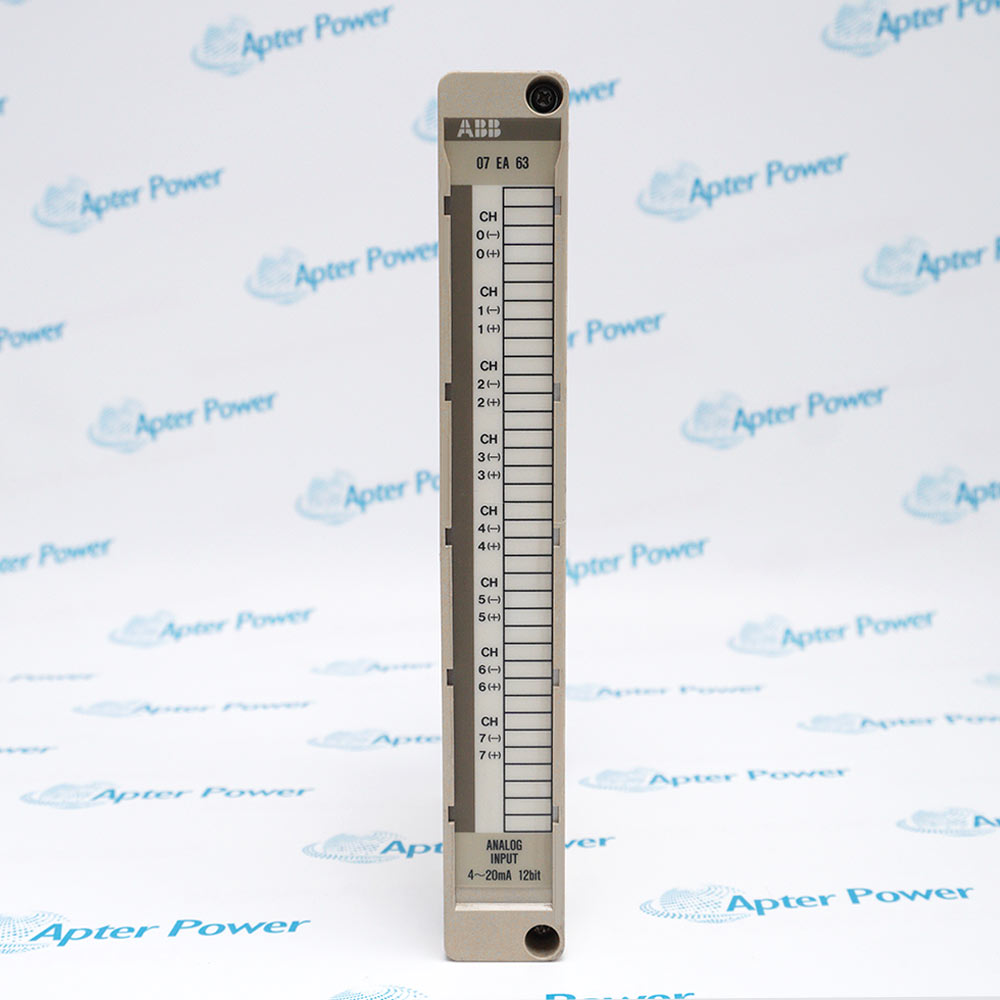

ABB 07EA63R1 GJV3074353R1 is an eight-channel, electrically isolated 4–20 mA analog input module for the Procontic T200 I/O system.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 07EA63R1 GJV3074353R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 07EA63R1 GJV3074353R1

  • Manufacturer:
    ABB
  • Part Number:
    07EA63R1 GJV3074353R1
  • Product Family:
    ABB Procontic
  • Product Type:
    Procontic T200 8-channel isolated analog input module
  • Stock:
    1
  • Signal Type:
    4–20 mA
  • Analog Input Channels:
    8
  • Resolution:
    12-bit
  • Channel Isolation:
    Electrically isolated
  • Rack Platform:
    ABB Procontic T200
  • Slot Requirement:
    1 slot
  • Maximum I/O Address Capacity:
    128 I/O points
  • 5 V Internal Current Draw:
    60 mA
  • 24 V Internal Current Draw:
    170 mA
  • Tariff Code:
    8443999090
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Loop isolation Conversion and scaling Rack integration Application
  • ABB Procontic T200 analog input module for the EW8 configuration
  • Eight electrically isolated input channels for 4 to 20 mA process signals
  • 12-bit analog conversion for transmitter and process-signal acquisition

07EA63R1 GJV3074353R1 is an ABB Procontic T200 analog input module used to acquire isolated current signals from field transmitters and other 4 to 20 mA process devices.

ABB identifies the 07 EA 63 R1 function as eight electrically isolated 4 to 20 mA analog inputs with 12-bit resolution and places the module within the Procontic T200 EW8 configuration.

Before replacement, verify the complete installed nameplate, EW8 rack position, terminal wiring, transmitter loop supply, channel assignment and engineering scaling. Test every connected process loop before returning the controller to service.

Availability, condition, price, and shipping time for 07EA63R1 GJV3074353R1 are confirmed during quotation.

ABB 07EA63R1 GJV3074353R1 Analog Input Module Manuals and Support Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Eight 4–20 mA channels are electrically isolated from controller-side circuitry
  • Loop commons and shields must follow the installed T200 wiring drawings
  • Field transmitters and channel polarity must be checked before energization
  • 12-bit conversion supports the documented analog-input function
  • Controller scaling must reproduce the original engineering-unit range
  • Known-current injection is required to verify every channel after service
  • The module occupies one Procontic T200 I/O slot
  • Internal loading is documented for both the 5 V and 24 V rack supplies
  • Slot address, adjacent modules and controller configuration must remain consistent
  • Acquisition of isolated 4–20 mA process-transmitter signals
  • Procontic T200 monitoring of pressure, flow, level and temperature transmitters
  • Legacy T200 analog-input replacement with channel-by-channel validation
Description
07EA63R1 GJV3074353R1 is an ABB Procontic T200 analog input module for isolated 4 to 20 mA process-signal acquisition.

The documented 07 EA 63 R1 function provides eight electrically isolated analog input channels with 12-bit conversion for integration into the Procontic T200 EW8 configuration.

Replacement requires confirmation of the complete installed label, terminal arrangement, transmitter loop power, channel mapping and controller scaling. The located ABB technical evidence confirms the 07 EA 63 R1 function; the GJV3074353R1 ordering relationship should also be verified against the product nameplate or ABB order record.
Alternative Names
GJV3074353R1 07EA63R1 07 EA 63 R1 ABB GJV3074353R1 ABB 07EA63R1 ABB 07 EA 63 R1
Technical notes
ABB 07EA63R1 GJV3074353R1 requires the original T200 slot, eight isolated 4–20 mA loops, address assignment, internal power budget and controller scaling to be verified before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a buyer confirm that ABB 07EA63R1 GJV3074353R1 matches the installed Procontic T200 module?
Match both identifiers on the label, verify the eight isolated 4–20 mA inputs, and compare the rack slot, wiring schedule and controller database before ordering.
What loop records should be retained before replacing ABB 07EA63R1 GJV3074353R1?
Retain channel assignments, transmitter ranges, loop-power source, polarity, scaling, alarm limits and the original controller configuration so each input can be tested after installation.
Can ABB 07EA63R1 GJV3074353R1 be substituted with another T200 analog input module without engineering review?
No. Channel count, signal range, isolation, resolution, address allocation and internal supply demand must all match the original design.
What should be checked if ABB 07EA63R1 GJV3074353R1 reports an incorrect process value after replacement?
Check loop polarity and continuity, transmitter power, channel scaling, controller address assignment and whether the measured current actually lies within the 4–20 mA range.
Why must isolation be preserved when installing ABB 07EA63R1 GJV3074353R1?
The module’s electrically isolated channels help separate field loops; incorrect commoning or shield termination can introduce ground paths, noise or damaged inputs.
What rack information should accompany a request for ABB 07EA63R1 GJV3074353R1?
Provide the T200 rack identity, occupied slot, adjacent modules, controller type, supply arrangement, label photographs and the current channel schedule.
What acceptance tests are appropriate after fitting ABB 07EA63R1 GJV3074353R1?
Inject known loop currents on every channel, verify engineering-unit scaling and alarms, confirm stable readings, and document the results against the pre-service baseline.
