          Apter Power offers quotation support for IC693MDL740 and access to the corresponding manufacturer technical pages.

        IC693MDL740

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

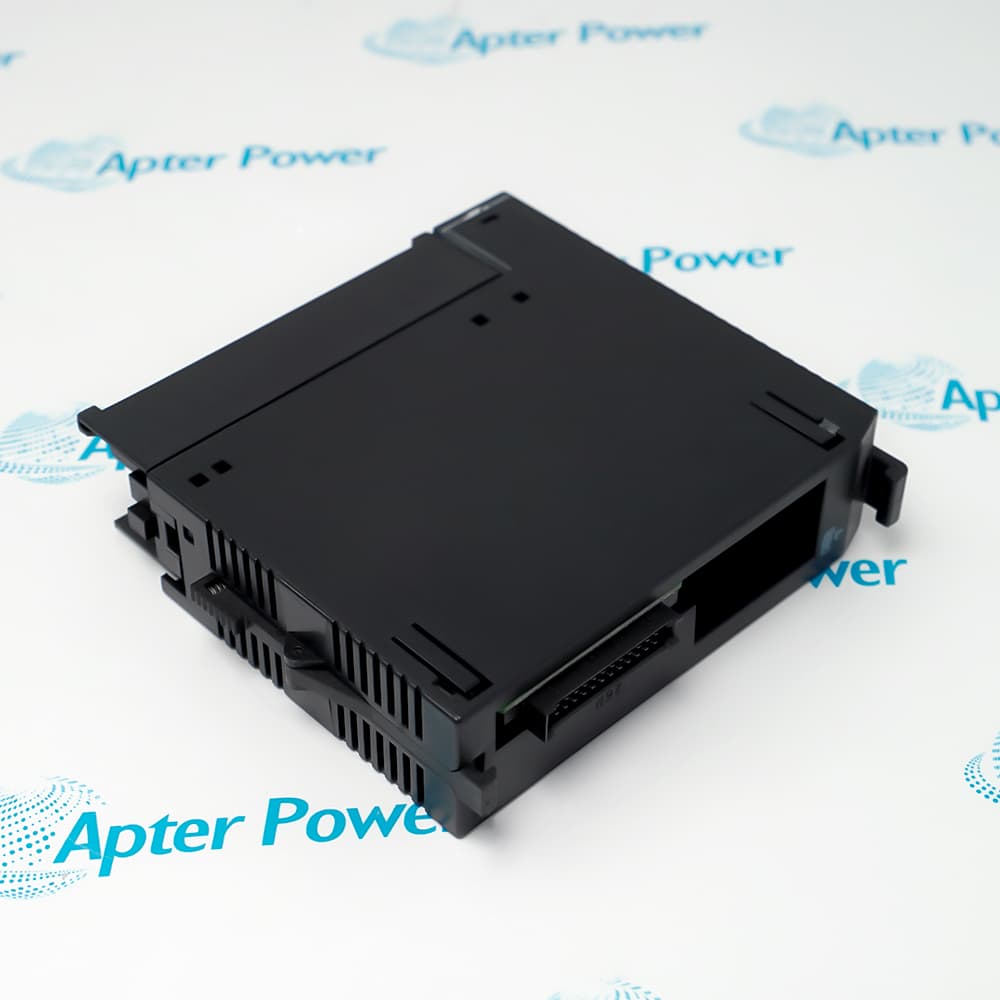

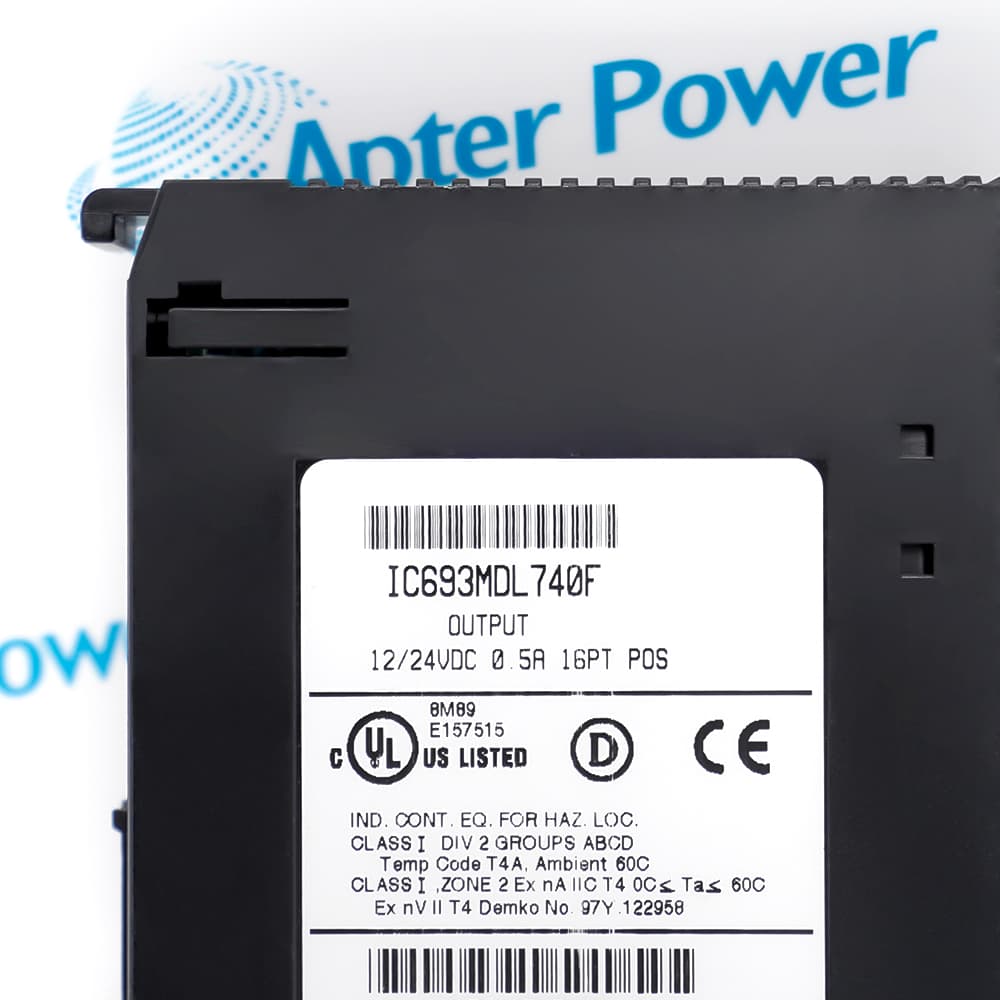

        General Electric IC693MDL740 is a Series 90-30 sixteen-point 12/24 VDC positive-logic sourcing output module.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for IC693MDL740
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IC693MDL740

        • Manufacturer:
          General Electric
        • Part Number:
          IC693MDL740
        • Product Family:
          GE 90-30 Series PLC
        • Product Type:
          Series 90-30 Positive-Logic DC Output Module
        • Stock:
          1
        • Output points:
          16
        • Output grouping:
          Two groups of eight
        • Rated output:
          12/24 VDC
        • Output range:
          12 to 24 VDC, +20% / -15%
        • Logic type:
          Positive logic / sourcing
        • Maximum point current:
          0.5 A
        • Maximum common current:
          2 A
        • Inrush current:
          4.78 A for 10 ms
        • Maximum voltage drop:
          1 V
        • Maximum leakage current:
          1 mA
        • On response:
          2 ms maximum
        • Off response:
          2 ms maximum
        • Isolation:
          1,500 V field-to-logic; 500 V between groups
        • 5 VDC backplane current:
          110 mA with all outputs on
        • Internal fuses:
          None
        • Weight:
          0.28 kg
        • Estimated shipping dimensions:
          3.5 x 13 x 13.5 cm
        • Tariff Code:
          8538900000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Load Design Isolation & Response Installation Applications

        Features:

        • Sixteen positive-logic sourcing outputs arranged as two groups of eight
        • 0.5 A per point and 2 A per common for 12/24 VDC field loads
        • 2 ms maximum switching response with point-status LEDs
        IC693MDL740 supplies positive DC power to connected loads rather than sinking their return current.

        Separate group commons allow two eight-point banks to be wired and protected as independent load circuits.

        No internal fuse is fitted, so external protection and the ambient-current derating curve remain part of the panel design.

        The General Electric IC693MDL740 Series 90-30 positive-logic DC output module may remain available for quotation and installed-system support from Apter Power.
        General Electric IC693MDL740 Series 90-30 positive-logic DC output module Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Positive-logic output circuit

        • Field range: The two output banks operate from a 12 to 24 VDC source with +20% / -15% tolerance.
        • Point current: Each output carries up to 0.5 A steady current.
        • Group current: Current through either eight-point common is limited to 2 A.
        • Inrush: A point tolerates a 4.78 A surge for 10 ms.

        Electrical behavior

        • Group isolation: The two output groups withstand 500 V between their field circuits.
        • Logic isolation: Field wiring is isolated from backplane logic to 1,500 V.
        • Voltage drop: The on-state output drop is 1 V maximum.
        • Switching time: Turn-on and turn-off response are each 2 ms maximum.

        Baseplate and field integration

        • Slot use: The module fits an I/O position in a five- or ten-slot Series 90-30 baseplate.
        • Backplane load: The 5 VDC current is 110 mA when all sixteen outputs are on.
        • External protection: The field circuit requires user-supplied fusing or other suitable protection.
        • Wiring check: Both common terminals, field polarity, and load return paths must be traced before energizing the bank.

        Supported load uses

        • Motor starters: Sourcing outputs can energize compatible DC starter and interposing-relay coils.
        • Solenoids: Valve and actuator solenoids can be switched within the point and inrush ratings.
        • Indicators: Panel lamps and status devices can be grouped across the two field commons.
        • Machine sequencing: The 2 ms response suits discrete output stations in packaging, assembly, and material-handling equipment.
        View as PDF
        Description
        IC693MDL740 is a Series 90-30 discrete output module that switches user-supplied 12/24 VDC power to sixteen positive-logic loads. The points are divided into two isolated groups of eight for separate common and field-power connections.

        Each output of IC693MDL740 carries up to 0.5 A, while either group common is limited to 2 A. A 4.78 A, 10 ms inrush allowance supports loads with short pickup surges, and the output voltage drop remains within 1 V.

        In IC693MDL740, the module installs in any I/O slot of a five- or ten-slot Series 90-30 baseplate. It uses 110 mA from the 5 VDC backplane with every point on and contains no internal fuses, so the field circuit needs external protection sized for the connected loads.
        Revisions

        Revision Part #

        Also known as

        IC693MDL740A
        IC693MDL740-A, Series A, Rev A
        Get Parts Quote
        IC693MDL740E
        IC693MDL740-E, Series E, Rev E
        Get Parts Quote
        Alternative Names
        IC 693 MDL740 IC693-MDL740 GE IC693MDL740 GE Fanuc IC693MDL740 Series 90-30 IC693MDL740 MDL740 IC693 MDL740 1C693MDL740
        Technical notes
        IC693MDL740 sources current from the positive field supply. Preserve both group commons, external fusing, load polarity, and the load-current derating limits when transferring an installed output bank.
