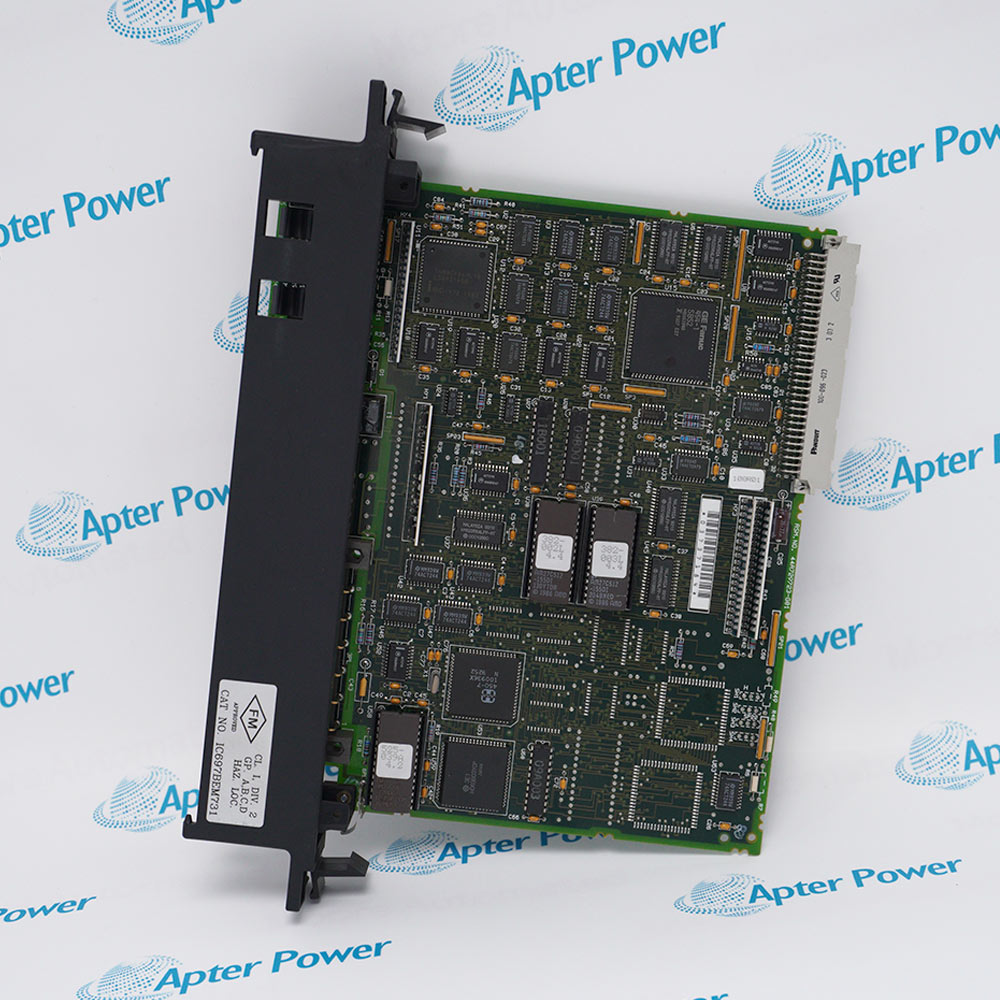

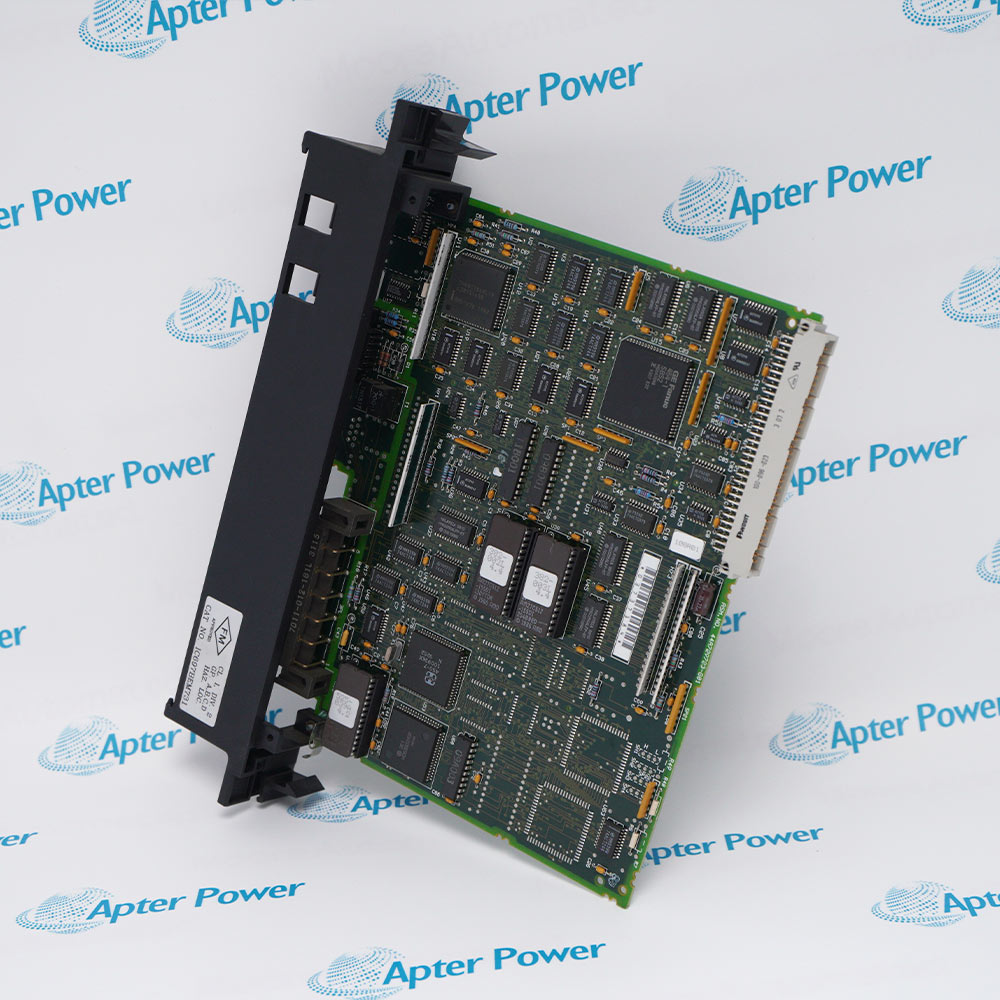

IC697BEM731

/ 4.9
1001 reviews | Need a Specific Revision?
The IC697BEM731 is GE Fanuc Series 90-70 Genius Bus Controller modules designed for IC66 PLC systems. They manage IC66 I/O communication through a Genius Bus network, enabling asynchronous scanning, data exchange with the CPU, and multi-device coordination within industrial control architectures.
Get a quick price for IC697BEM731
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC697BEM731

  • Manufacturer:
    General Electric
  • Part Number:
    IC697BEM731
  • Product Family:
    GE Genius I/O
  • Product Type:
    Bus Expansion Module
  • Operating Voltage:
    5.0 Volt DC
  • Backplane Current:
    1.3 Amps
  • Built-in ports:
    One (1) Bus Controller channel; One (1) Hand-Held Terminal port
  • Data Rates:
    153.5Kbaud standard /extended, 76.8Kbaud, or 38.4Kbaud
  • Bus Cable:
    Belden 9182 type cable
  • Cable Distance:
    2000 - 7500 ft depending on the configured data rate
  • Bus Termination:
    75, 150 Ohm resistor at both ends of electrical bus cable
  • Maximum Number of Devices:
    30 devices / channel
  • Module Width:
    Single Slot
  • Connectors:
    3PL and 1PL Ports
  • LED Indicators:
    3 LED Indicators
  • Weight:
    0.5 kg
  • Estimated shipping dimensions:
    4x21.8x29.2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Monitoring Operation Application

Features:

  • Supports Genius I/O bus architecture with up to 30 devices per channel for distributed control systems.
  • Provides asynchronous I/O scanning with CPU data transfer per scan cycle for real-time system coordination.
  • Enables global communications, datagram messaging, and peer-to-peer network integration across IC66 devices.
The IC697BEM731 series, including IC697BEM731, IC697BEM731F, IC697BEM731U, and IC697BEM731V, is designed for IC66 PLC systems requiring stable and structured fieldbus communication. It serves as a central communication node between I/O blocks and the PLC CPU, ensuring that process data is continuously exchanged through the Genius Bus architecture. The module’s single-slot design allows easy integration into IC697 racks without additional space requirements.

In industrial control systems, IC697BEM731 plays a key role in coordinating distributed I/O devices across long-distance bus networks. With support for up to 30 devices per channel and configurable communication speeds, it provides flexibility for different plant layouts. The ability to handle diagnostic reporting and fault management through the PLC Alarm Processor enhances system visibility during operation.

Different revisions such as IC697BEM731F, IC697BEM731U, and IC697BEM731V reflect progressive improvements in reliability and environmental resistance while maintaining the same functional foundation as IC697BEM731. These versions ensure compatibility with existing IC66 infrastructure while offering improved stability in demanding industrial environments, making the IC697BEM731 family suitable for long-term automation system support.

The IC697BEM731 General Electric Bus Expansion Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC697BEM731 Bus Expansion Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IC697BEM731 Bus Expansion Module Specs

General

  • Manufacturer GE / Bently Nevada
  • Model IC697BEM731
  • Condition New Original ready stock
  • Product Family IC697BEM731W,IC697BEM731V,IC697BEM731C
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Real-time Status Feedback: Operational feedback is provided through an LED indicator system on the module panel. The OK indicator light on the top confirms that the module's hardware self-test has passed and it is in normal working order.
  • Fault Recording: The module reports detected faults to the PLC's alarm processor, records them with timestamps, and queues them in a fault table for easy troubleshooting.
  • Portable Terminal Access: Equipped with a dedicated handheld monitor (HHM) interface, allowing operators to directly connect to a terminal in the field to view bus status, I/O module information, and system errors in real time.
  • Circuit-level Diagnostics: Supports in-depth diagnostics of connected Genius I/O modules, including reading diagnostic information, clearing circuit faults, and performing pulse test outputs to verify loop integrity.
  • Asynchronous Data Scanning: The module scans Genius I/O blocks asynchronously, independently of the CPU cycle, and transmits data to the CPU via the backplane within each PLC scan cycle, ensuring efficient I/O refresh.
  • Multi-node network support: A single channel can support up to 30 network nodes (drops), allowing a large number of I/O terminals or other controllers to be connected on a single Genius LAN.
  • Redundant architecture compatibility: Supports redundant buses, redundant cables, and redundant CPU configurations, providing high availability during mission-critical operation and preventing system downtime due to single points of failure.
  • Data interaction modes: During operation, it not only handles direct communication requests from the CPU but also supports global data sharing and peer-to-peer communication, enabling data synchronization between multiple PLCs.
  • Distributed industrial control: Used in factory environments requiring the deployment of I/O sites over long distances, connecting 30 I/O blocks distributed in the field to a central PLC via shielded twisted-pair cabling.
  • High-reliability redundant system: In production tasks that cannot be interrupted, such as power and water treatment, it serves as the core component of the redundant link, working with redundant CPUs to ensure continuous transmission of control signals.
  • Multi-machine networking and coordination: In large-scale automated production lines, its global communication function enables multiple Series 90-70 PLCs to share system status and achieve collaborative control.
  • On-site maintenance and commissioning: Suitable for equipment requiring frequent on-site inspections. Through a handheld monitor interface, maintenance personnel can perform fault location and status monitoring at the equipment without carrying a laptop.
Description
The IC697BEM731 is a Genius Bus Controller used in the IC66 PLC system, designed to operate within an IC697 rack as a single-slot module. It supports a Genius I/O bus structure that allows up to 30 devices per channel, enabling distributed I/O communication in industrial automation environments.

The module operates with a 5.0 V DC supply and draws 1.3 A backplane current. It features one Bus Controller channel and one Hand-Held Terminal port, supporting configuration, diagnostics, and local maintenance access. The bus communication uses defined baud rates of 153.5 Kbaud, 76.8 Kbaud, or 38.4 Kbaud depending on system configuration.

The IC697BEM731F is an early revision of the IC697BEM731, mainly optimized for improved stability in industrial electromagnetic environments while keeping the same electrical and functional design as IC697BEM731. The IC697BEM731U builds on IC697BEM731 with upgraded internal components that enhance power handling and interference resistance, offering more stable operation in modern control environments. The IC697BEM731V represents a further refined revision of IC697BEM731, featuring additional hardware hardening for improved long-term reliability in harsh industrial applications.

The IC697BEM731 performs asynchronous scanning of IC66 I/O blocks, transferring process data between field devices and the PLC CPU each scan cycle. It also supports CPU-initiated communication requests and global data exchange functions across the Genius bus network.

Fault information detected by IC697BEM731 is processed through the PLC Alarm Processor, which timestamps and queues diagnostic events for system monitoring. This ensures structured fault handling and improves system visibility during operation.

Across IC697BEM731 and its revisions, the module supports peer-to-peer communication between PLCs, PCIMs, and other IC66 devices via the Genius LAN. It enables global data transfer, datagram messaging, and redundant system configurations involving blocks, cables, and CPUs for expanded industrial network functionality.
Revisions

Revision Part #

Also known as

IC697BEM731C
IC697BEM731-C, Series C, Rev C
IC697BEM731E
IC697BEM731-E, Series E, Rev E
IC697BEM731F
IC697BEM731-F, Series F, Rev F
IC697BEM731J
IC697BEM731-J, Series J, Rev J
IC697BEM731L
IC697BEM731-L, Series L, Rev L
IC697BEM731M
IC697BEM731-M, Series M, Rev M
IC697BEM731N
IC697BEM731-N, Series N, Rev N
IC697BEM731R
IC697BEM731-R, Series R, Rev R
IC697BEM731T
IC697BEM731-T, Series T, Rev T
IC697BEM731U
IC697BEM731-U, Series U, Rev U
IC697BEM731V
IC697BEM731-V, Series V, Rev V
IC697BEM731V/W
IC697BEM731-V/W, Series V/W, Rev V/W
IC697BEM731W
IC697BEM731-W, Series W, Rev W
IC697BEM731X
IC697BEM731/X, Series X, Rev X
IC697BEM731Z
IC697BEM731-Z, Series Z, Rev Z
Alternative Names
IC697BEM731F IC697BEM731V IC697BEM731U IC697BEM731C
Technical notes
IC697BEM731 is a Genius Bus I/O controller operating at 5.0 V DC with 1.3 A backplane current, featuring one Bus Controller channel and one Hand-Held Terminal port, supporting 153.5 Kbaud/76.8 Kbaud/38.4 Kbaud data rates, Belden 9182 cable with 2000–7500 ft distance, 75/150 Ohm termination at both ends, up to 30 devices per channel, single-slot module design, IC66 PLC system compatibility, 3PL and 1PL connectors, and 3 LED indicators for status, configuration, and operation monitoring.
