        8103-AI-TX

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

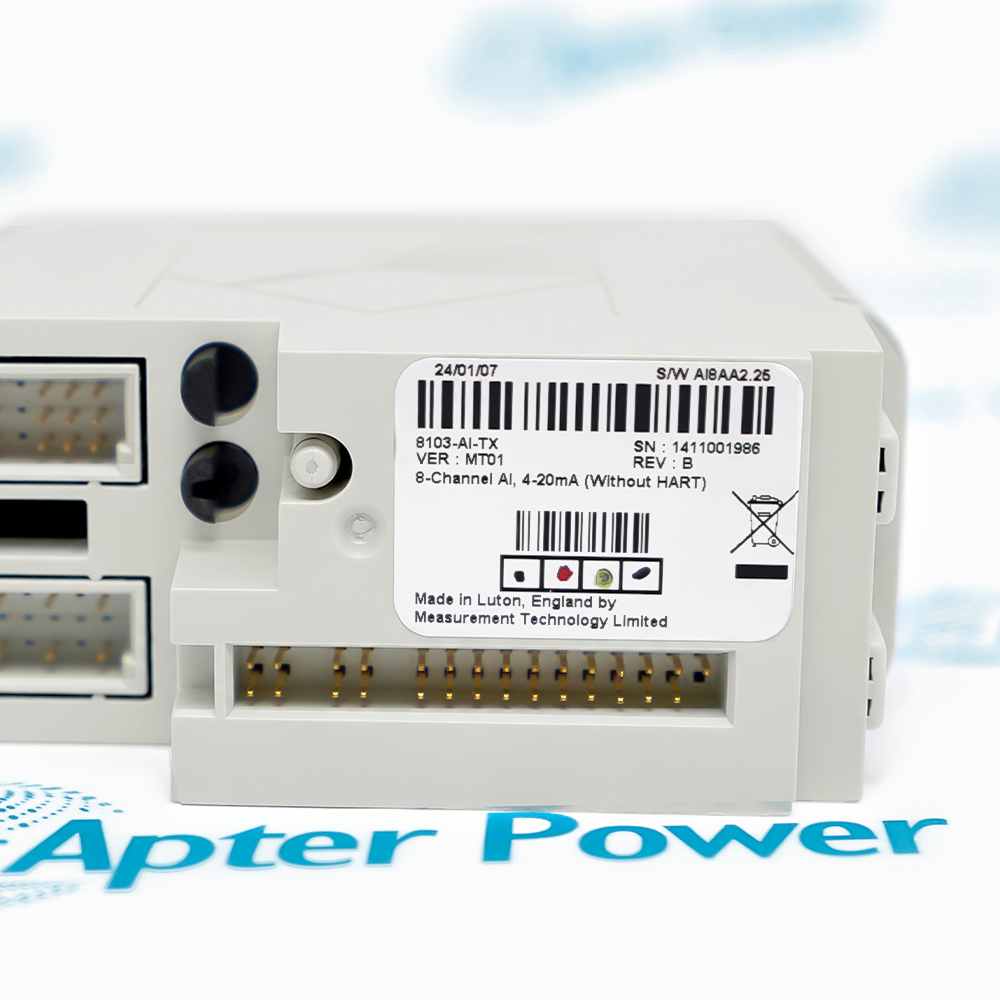

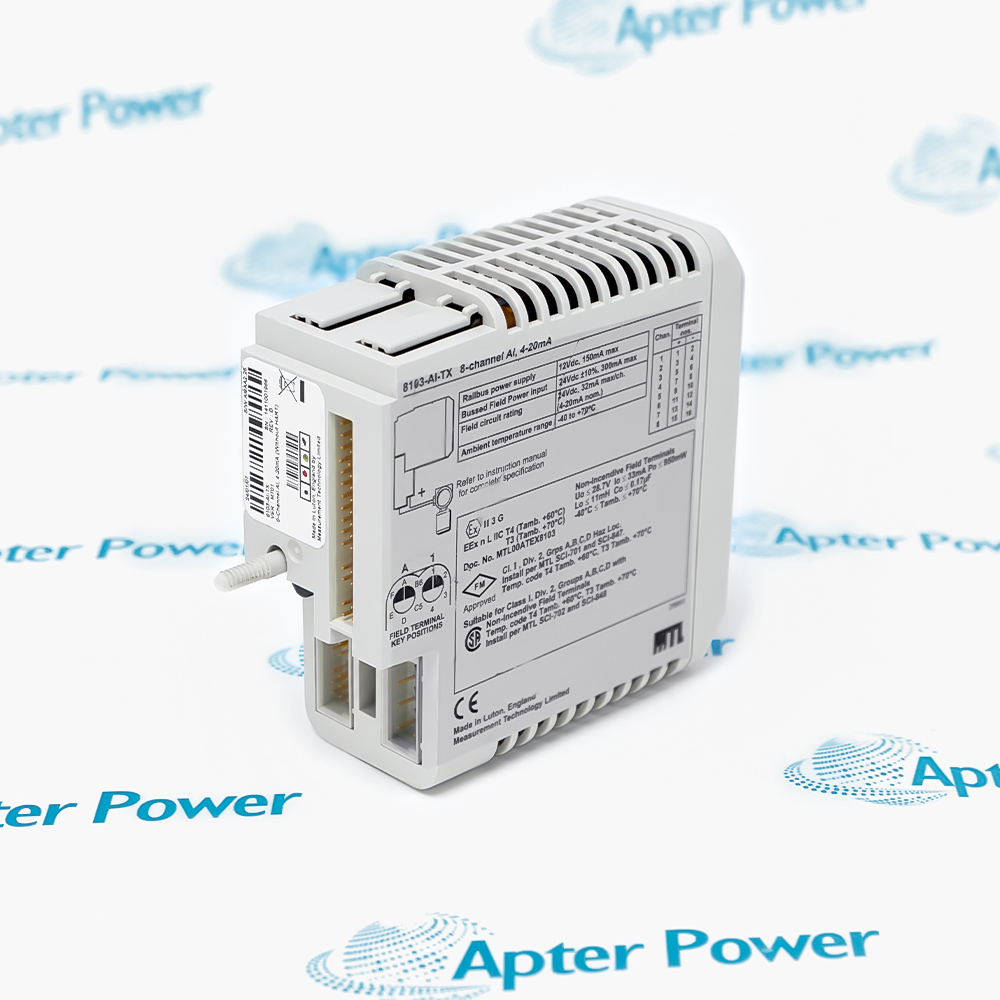

        GE 8103-AI-TX is a PAC8000 eight-channel analog input module for 4–20 mA two-wire or four-wire transmitter signals.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 8103-AI-TX
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 8103-AI-TX

        • Manufacturer:
          General Electric
        • Part Number:
          8103-AI-TX
        • Product Family:
          GE Intelligent Platforms
        • Product Type:
          8-Channel 4–20 mA Analog Input Module
        • Stock:
          1
        • Input Channels:
          8 single-ended analog inputs
        • Nominal Signal Range:
          4–20 mA
        • Full Signal Range:
          1–23 mA
        • Supported Transmitters:
          2-wire and 4-wire
        • Open-Circuit Threshold:
          Below 0.5 mA
        • Short-Circuit Threshold:
          Above 23.5 mA
        • Signal-to-Railbus Response:
          27 ms maximum
        • Resolution:
          16 bits
        • Accuracy:
          ±0.1% of span over the temperature range
        • Repeatability:
          0.05% of span
        • Channel-to-Railbus Isolation:
          100 V AC
        • Railbus Supply Current:
          100 mA typical; 150 mA maximum at 12 V
        • Bussed Field Power:
          24 V DC ±10%
        • Maximum Bussed Field-Power Current:
          300 mA for 2-wire transmitters; 60 mA for 4-wire transmitters
        • FM Non-Incendive Parameters per Channel:
          Voc 28.7 V DC; Isc 33 mA; Ca 0.17 µF; La 11 mH
        • Hazardous-Location Ambient Marking:
          T4 at 60°C; T3 at 70°C
        • Module Key Code:
          A1
        • Dimensions:
          4.2 × 12.5 × 10.5 cm
        • Weight:
          0.22 kg
        • Tariff Code:
          8538900000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Wiring Configuration Diagnostics Application
        • Integrates eight 4–20 mA transmitter signals with the PAC8000 remote I/O platform
        • Supports two-wire and four-wire field arrangements through compatible terminals
        • Provides configurable diagnostics, alarms, filtering, and failsafe behavior

        8103-AI-TX is a GE PAC8000 eight-channel analog input module for industrial 4–20 mA transmitter signals.

        The module converts field current loops to Railbus data and supports channel monitoring, field-circuit fault detection, alarm functions, and configurable response behavior.

        Before replacement, verify the carrier, field terminal, power arrangement, loop wiring, grounding, hazardous-location approval, and retained channel configuration.

        Availability, condition, price, and shipping time for 8103-AI-TX are confirmed during quotation.

        GE 8103-AI-TX 8-Channel Analog Input Module Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Match each channel to the documented two-wire or four-wire transmitter arrangement
        • Verify polarity, loop power, terminal assignment, shielding, and grounding before energizing
        • Use only a compatible PAC8000 carrier and field-terminal combination
        • Restore approved scaling, filtering, alarm thresholds, and failsafe direction
        • Confirm enabled channels and tag mapping against the saved control-system project
        • Commission one loop at a time and compare readings with the field reference
        • Investigate transmitter power and loop continuity when a field-circuit fault is reported
        • Compare the affected channel with a known working loop before replacing electronics
        • Review channel status, alarms, and failsafe behavior after restoring the configuration
        • PAC8000 acquisition of process pressure, level, flow, and temperature transmitter signals
        • Remote I/O collection of loop-powered and externally powered 4–20 mA measurements
        • Approved non-incendive analog-input installations in industrial process systems
        Description
        8103-AI-TX is a GE eight-channel analog input module for the PAC8000 remote I/O platform.

        The module accepts 4–20 mA signals from two-wire or four-wire transmitters and supports configurable filtering, channel status, failsafe behavior, and field-wiring fault detection.

        Before installation or replacement, confirm the compatible carrier, module keying, transmitter wiring method, field-power arrangement, channel configuration, and grounding requirements.
        Alternative Names
        8103-AI-TX 8103 AI TX 8103AITX GE 8103-AI-TX GE Intelligent Platforms 8103-AI-TX MTL 8103-AI-TX PAC8000 8103-AI-TX
        Technical notes
        GE 8103-AI-TX installation requires verification of the compatible PAC8000 carrier, field terminal, 24 V field supply, transmitter wiring, saved channel configuration, grounding, and applicable hazardous-area approval.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What should be checked before replacing an existing analog input module with GE 8103-AI-TX?
        Confirm the compatible PAC8000 carrier, module keying, channel configuration, transmitter wiring method, field-power arrangement, and existing alarm settings before replacement.
        Can GE 8103-AI-TX be used with both loop-powered and externally powered transmitters?
        Yes. GE 8103-AI-TX supports documented two-wire and four-wire transmitter arrangements, but the correct field terminals, power source, polarity, and channel wiring must be confirmed for each installation.
        Can GE 8103-AI-TX directly replace GE 8101-HI-TX or another PAC8000 analog input module?
        Not automatically. Although these modules use the PAC8000 platform, their signal functions and communication capabilities differ. Confirm the exact catalog number, carrier and field-terminal compatibility, channel configuration, field wiring, and control-system requirements before substitution.
        How should open-circuit or short-circuit indications from GE 8103-AI-TX be investigated?
        Check transmitter power, loop polarity, terminal wiring, cable continuity, and channel configuration before replacing the module. Compare the affected channel with a known working loop where permitted.
        Can GE 8103-AI-TX be installed without a compatible PAC8000 field terminal?
        No. Match the selected field terminal to the two-wire or four-wire circuit, fused or non-fused requirement, approval, enclosure, and hazardous-location installation rules.
        What configuration should be saved before replacing GE 8103-AI-TX?
        Save the channel enable states, scaling, filtering, alarm thresholds, failsafe direction, tag mapping, and control-system project so that the replacement can be checked against the approved configuration.
        What information should be provided when requesting a GE 8103-AI-TX replacement or quotation?
        Provide a clear photo of the module label, the complete catalog number, the installed carrier and field-terminal numbers, the transmitter wiring arrangement, relevant configuration or fault details, and the required quantity. This helps confirm the correct model and installation compatibility.
