DS200SBCBG1ADC

/ 4.9
1001 reviews | Need a Specific Revision?

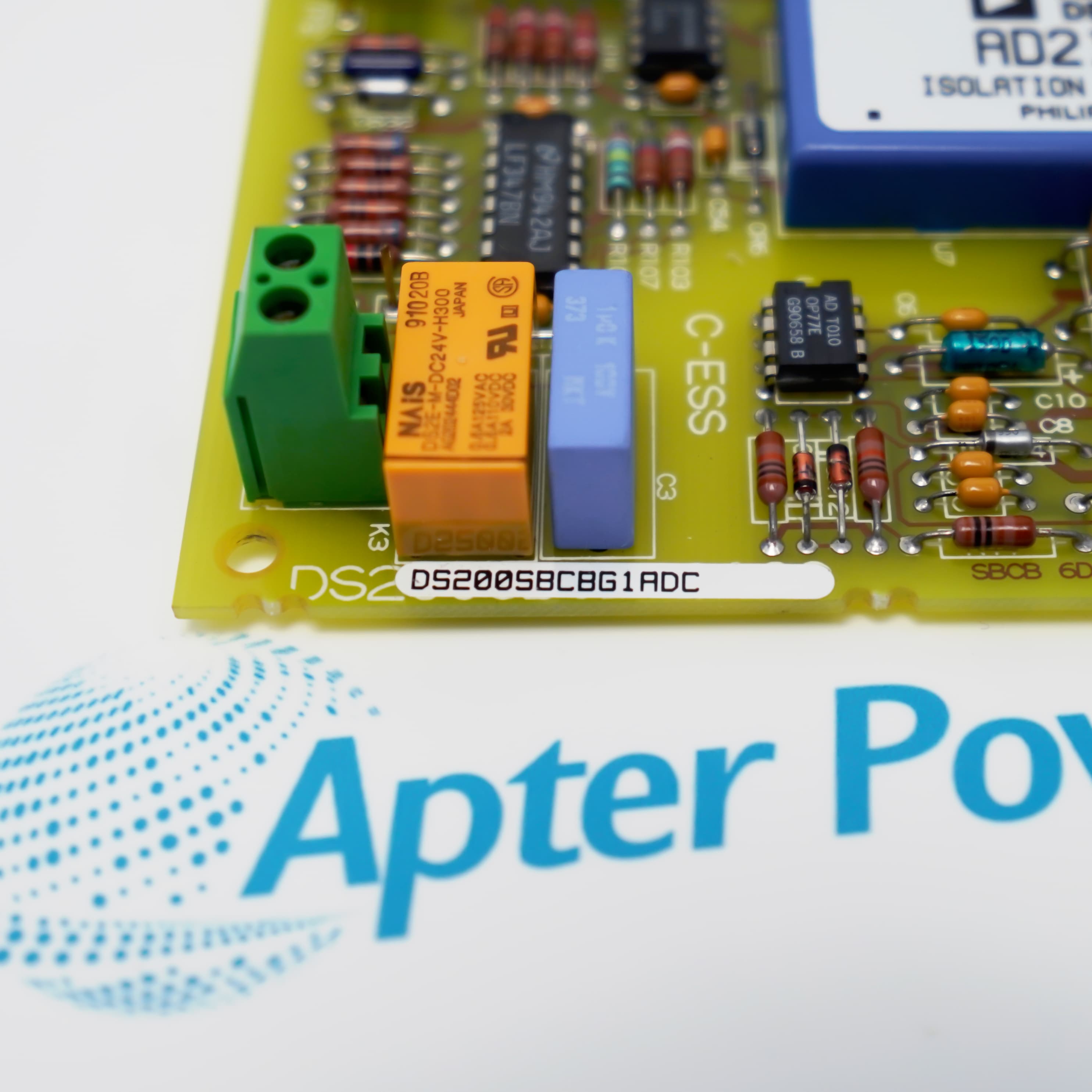

GE DS200SBCBG1ADC is a legacy SPEEDTRONIC Mark V printed-circuit assembly with visible isolation hardware, requiring exact revision and cabinet-interface matching.
In Stock
Ships by Wednesday, September 30
Get a quick price for DS200SBCBG1ADC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DS200SBCBG1ADC

  • Manufacturer:
    General Electric
  • Part Number:
    DS200SBCBG1ADC
  • Product Family:
    SPEEDTRONIC Mark V
  • Product Type:
    Legacy Turbine Control PCB
  • Stock:
    1
  • Platform:
    SPEEDTRONIC Mark V
  • Hardware type:
    Printed circuit board assembly
  • Identification basis:
    Complete board marking and GE logo on supplied hardware
  • System architecture:
    Legacy Mark V Simplex or TMR project, configuration dependent
  • Replacement basis:
    Exact part number, suffix, revision and cabinet position
  • OEM lifecycle:
    Mark V is no longer produced
  • OEM service path:
    Limited refurbished parts, repair or replacement exchange
  • Migration path:
    Full Mark V to Mark VIe control migration is available
  • Technical boundary:
    Board-level electrical data not published in reviewed public GE documents
  • Commissioning boundary:
    Project drawings and controlled functional testing required
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Installation Protection Safety

Features:

  • Uses the full DS200SBCBG1ADC marking and G1ADC suffix for traceable spare identification.
  • Includes populated isolation hardware and multiple connectors that must correspond to the target cabinet assembly.
  • Requires stored energy to be discharged and all plug positions documented before handling.
The current ordering configuration is DS200SBCBG1ADC, and its complete board marking is retained because no public GE source establishes another suffix as an automatic equivalent.

The assembly works within the signal paths and surrounding hardware defined by the individual SPEEDTRONIC Mark V project; cabinet schematics remain the authority for connection use.

Before fitting a replacement, verify component population, connector orientation, isolation devices, jumper settings, revision and cable destinations, then test the affected paths under the site procedure.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for General Electric DS200SBCBG1ADC:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supports the project-specific signal-conditioning position documented for an installed Mark V cabinet.
  • Enables repair work where the isolation assembly must be retained without altering unrelated turbine-control hardware.
  • Provides a traceable spare reference for legacy service while the site evaluates repair, exchange or migration.
  • Install the board only in the cabinet location documented for the exact SBCB suffix and preserve every cable and plug identifier.
  • Inspect connector keying, mounting hardware, jumper positions and component clearances before seating the replacement assembly.
  • Use electrostatic controls and verify stored energy is safely discharged before handling the printed-circuit board.
  • The visible isolation and power-conditioning components do not remove the need to isolate cabinet supplies and connected circuits before service.
  • Fuses, grounding and external protective devices must remain as defined by the complete Mark V panel documentation.
  • A damaged connector, overheated component or incorrect revision must be investigated before the board is energized in the control cabinet.
  • Mark V maintenance should be performed by qualified personnel using the site's lockout and turbine-control change procedures.
  • Do not touch the board until capacitors and connected cabinet circuits have been confirmed at a safe state.
  • Return the turbine function to service only after alarms, permissives and the affected control path pass the approved commissioning test.
Description
GE DS200SBCBG1ADC is a printed-circuit assembly associated with the legacy SPEEDTRONIC Mark V turbine control platform. It is installed as part of the cabinet-level hardware that coordinates control, monitoring, and protection functions for gas or steam turbine applications.

SPEEDTRONIC Mark V uses digital processing and software-based logic to provide accurate regulation, automated operating sequences, and self-diagnostic information. The board functions within this distributed set of processors, interfaces, and companion assemblies that execute the system's control tasks.

The Mark V architecture was developed for compact installation, simplified maintenance, and flexible Simplex or TMR control arrangements. In an installed system, DS200SBCBG1ADC remains one element of the configured cabinet assembly supporting reliable turbine operation and coordinated response to changing plant conditions.
Alternative Names
DS200SBCBG1ADC GE DS200SBCBG1ADC General Electric DS200SBCBG1ADC DS200 SBCB G1ADC DS200-SBCB-G1ADC DS200SBCB G1ADC GE DS200 SBCB G1ADC GE DS200-SBCB-G1ADC
Technical notes
DS200SBCBG1ADC replacement requires full suffix and revision verification, safe discharge of stored energy, connector mapping and a Mark V project-specific functional test.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which visible details distinguish DS200SBCBG1ADC from another SBCB board?
Check the complete silkscreen, barcode or assembly labels, isolation module, connector population, jumper settings and board revision.
How should DS200SBCBG1ADC be mapped into a Mark V cabinet?
Use the unit-specific schematic and cable schedule to verify every plug, terminal, power connection, mating board and cabinet slot.
What maintenance situation justifies sourcing DS200SBCBG1ADC?
Source it when diagnostics and project records identify this exact board as the required legacy Mark V cabinet assembly.
How are condition and lead time assessed for DS200SBCBG1ADC?
Because new Mark V parts are unavailable from production, request current photographs, revision labels, test report, warranty, quantity and destination.
Can DS200SBCBG1ADC remain during a Mark V to Mark VIe migration?
A migration may retain or replace selected interfaces; only the engineered migration scope can determine whether this legacy board remains.
What documentation is needed for a DS200SBCBG1ADC inquiry?
Use the Manuals PDF for verified model and lifecycle context, then submit panel drawings and board photographs for exact application review.
