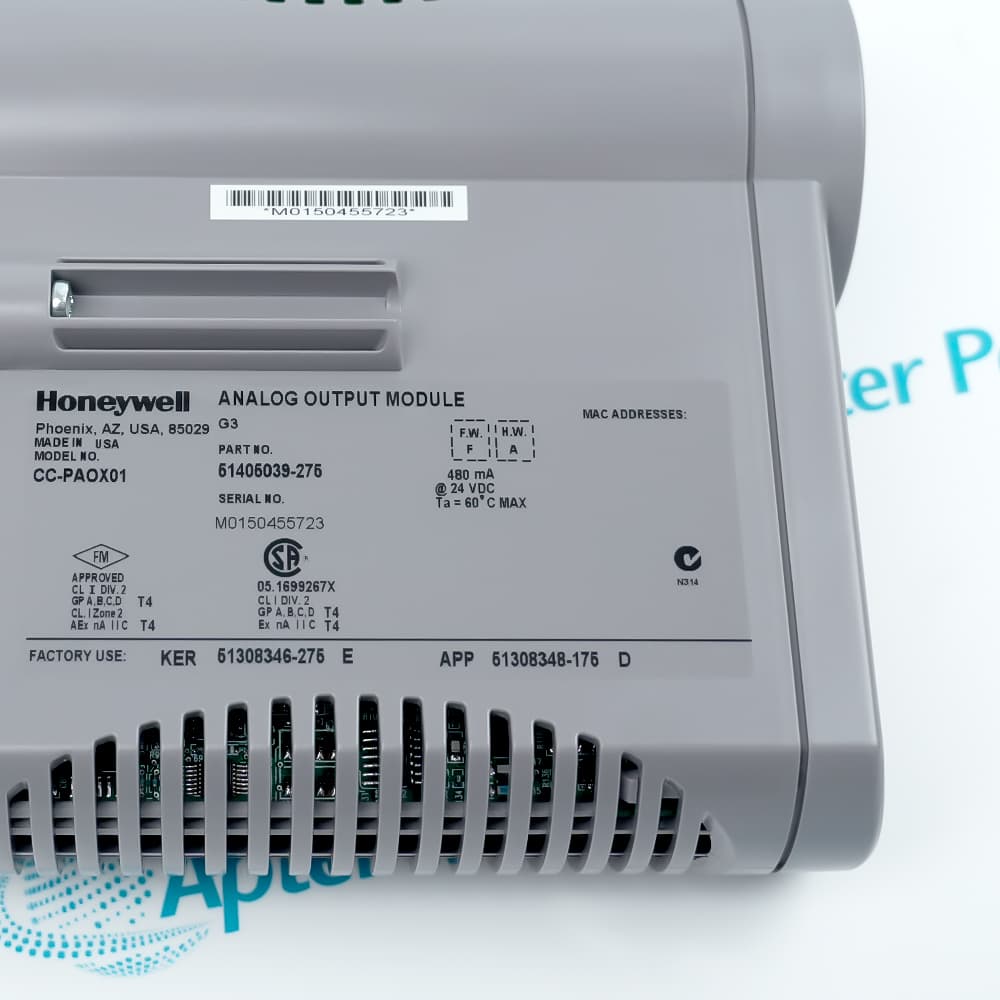

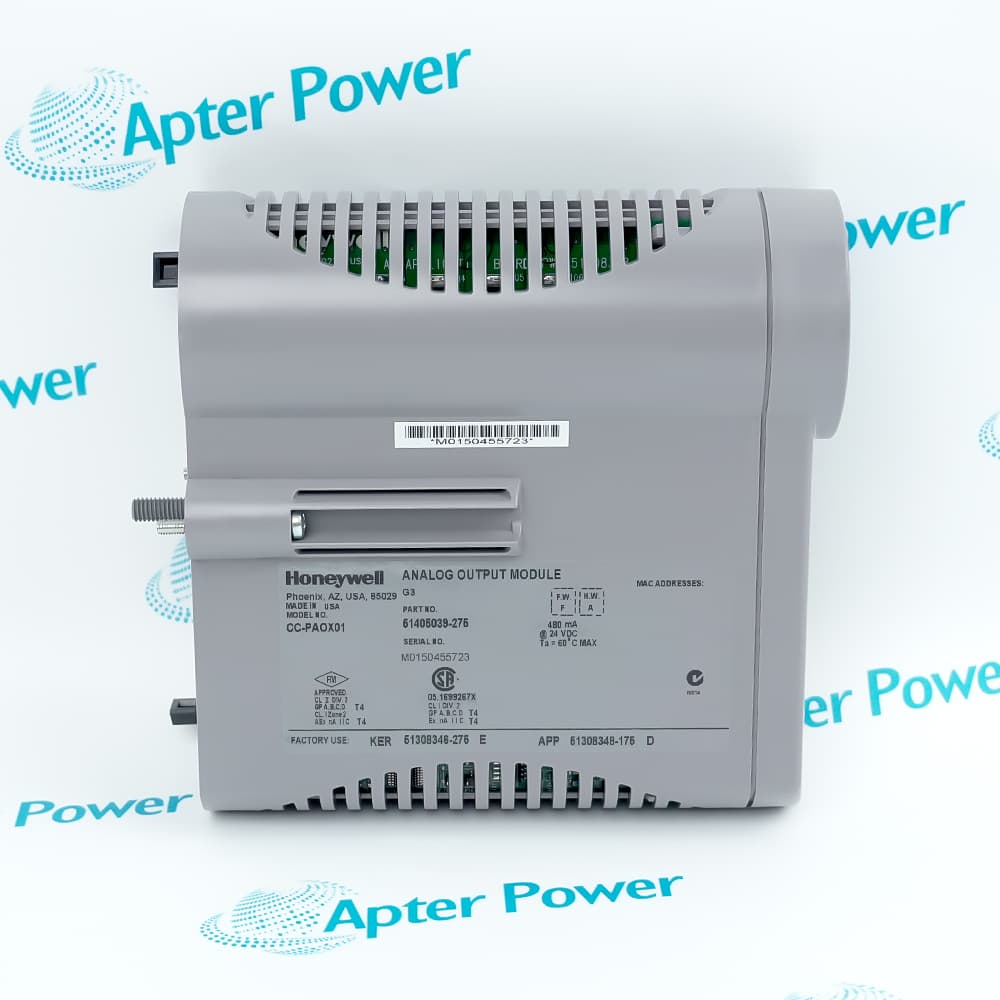

        Honeywell CC-PAOX01 51405039-275
        Honeywell CC-PAOX01 51405039-275
        Honeywell CC-PAOX01 51405039-275
        Honeywell CC-PAOX01 51405039-275
        Honeywell CC-PAOX01 51405039-275
        Honeywell CC-PAOX01 51405039-275
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle Status

          Active / Available from OEM
          Apter Power supplies this engineered Honeywell output hardware to fulfill rigorous plant automation standards, maintaining optimal signal conversion accuracy to prevent unexpected industrial downtime.

        CC-PAOX01 51405039-275

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The CC-PAOX01 51405039-275 is a Honeywell Series C 16-channel analog output module with 4-20 mA, 0.35% accuracy, 800Ω max load, optional redundancy, and open-wire detection.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for CC-PAOX01 51405039-275
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for CC-PAOX01 51405039-275

        • Manufacturer:
          Honeywell
        • Part Number:
          CC-PAOX01 51405039-275
        • Product Family:
          Honeywell Experion PKS ( C200, C300 )
        • Product Type:
          High-Level Analog Output Module
        • Stock:
          1
        • Output Channels:
          16
        • Output Type:
          4-20 mA
        • Calibrated Accuracy (25°C):
          ±0.35% of full scale
        • Resolution:
          ±0.05% of full scale
        • Output Current Linearity:
          ±0.05% of full scale
        • Maximum Resistive Load:
          800Ω (24V supply 22-28V)
        • Output Ripple:
          <100 mV peak-to-peak
        • Response Time:
          <80 ms (to 1% of final value)
        • FAILOPT:
          Per-channel: Hold last value or Shed to safe value
        • Key Benefit:
          Solves reliable control signal distribution with per-channel FAILOPT for safe behavior on communication loss, open-wire detection, and optional redundancy for critical loops.
        • Weight:
          0.4 kg
        • Estimated shipping dimensions:
          5.5x16x14.5cm
        • Tariff Code:
          8517795000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Communication Safety and Compliance

        Features:

        • 16 channels of 4-20 mA output with 0.35% accuracy, 0.05% resolution, and 800Ω max load.
        • Per-channel FAILOPT (hold last value or shed to safe value) with output read-back and discrepancy alarming.
        • Open-wire detection with channel soft failure indication and optional redundancy for high-availability applications.
        The CC-PAOX01 51405039-275 packs 16 analog output channels into a single Series C module, saving valuable rack space while delivering 0.35% calibrated accuracy and 0.05% resolution. Each channel sources 4-20 mA to control valves, I/P converters, actuators, and recording devices. The 800Ω maximum load capability (with 24V supply) ensures compatibility with a wide range of field devices. Output ripple is less than 100 mV peak-to-peak, providing clean, stable signals for precise process control.

        Every channel on the CC-PAOX01 51405039-275 can be individually configured for FAILOPT behavior. On loss of communication with the controller, each output can either hold its last valid value or shed to a user-defined safe value. If the module electronics themselves fail, outputs go to zero—the safest state for most processes. Output read-back circuitry continuously monitors the actual output current and compares it to the commanded value. If a discrepancy exceeds the configured threshold, an alarm is generated.

        The CC-PAOX01 51405039-275 includes open-wire detection that identifies broken field wiring and reports it as a Channel Soft Failure. Maintenance teams can pinpoint which channel has the open circuit without disconnecting wires. For applications requiring continuous operation, the module supports optional redundancy using IOTA models CC-TAOX11 or CC-GAOX11 (12"). In a redundant configuration, if the primary module fails, the backup automatically takes over with seamless transition—gap (0 mA) of output to field on switchover takes only 10 ms maximum.

        The CC-PAOX01 51405039-275 HONEYWELL High-Level Analog Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        HONEYWELL CC-PAOX01 51405039-275 High-Level Analog Output Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        HONEYWELL CC-PAOX01 51405039-275 High-Level Analog Output Module Specs

        General

        • Manufacturer HONEYWELL
        • Model CC-PAOX01 51405039-275
        • Condition New Original ready stock
        • Product Family CC-PAOH01 51405069-175,CC-PAOH51 51405069-275,CC-PAON01 51405039-175
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Process Industries: Widely used in automation control systems in industries such as oil and gas, refining, chemicals, power generation, and pharmaceuticals.
        • Actuator Control: Used for precise driving of control valves, variable frequency drives (VFDs), and other field actuators that receive 4-20 mA signals.
        • Critical Equipment Protection: As part of the C300 series C I/O, suitable for critical production processes requiring high availability and deterministic control strategies.
        • HART Communication Support: Built-in HART modem supports digital data overlay on 4-20 mA analog signals, allowing transmission of device diagnostic information, configuration parameters, and secondary variables.
        • IOTA Terminal Base: Modules insert into a dedicated IOTA (Input Output Termination Assembly) (such as CC-TAOX11 or CC-TAOX01), physically separating electronic components from field wiring. Hot-swapping is supported, allowing module replacement without rewiring.
        • C300 Link: Bidirectional communication with the C300 controller via Series C I/O links, managed uniformly by CEE (Control Execution Environment) software.
        • Channel specifications: Provides 16 independent output channels with a resolution of up to [resolution value missing], supporting high-precision analog signal output.
        • Environmental Compliance: Complies with ANSI/ISA-S71.04 standards. When installed in a specific stainless steel enclosure (UPC), it achieves a GX (Harsh) severity rating, resisting chemical contaminant corrosion.
        • Electrical Protection: Features robust fault diagnosis and status readback capabilities (Readback Accuracy is ), ensuring output signals are consistent with controller commands and preventing control failure.
        • Redundancy Design: Supports 1:1 redundancy configuration, ensuring seamless system switchover in the event of a single module failure, guaranteeing continuous and safe production line operation.
        • Network security: As part of the Experion PKS architecture, it benefits from the C300's built-in network security features, preventing unauthorized access and control command tampering.
        Description
        The CC-PAOX01 51405039-275 is a high-level analog output module for Honeywell Series C I/O systems, delivering 4-20 mA signals to actuators, valves, and recording devices. It provides 16 output channels with 0.35% calibrated accuracy at 25°C and 0.05% resolution.

        The CC-PAOX01 51405039-275 includes per-channel FAILOPT configuration, allowing each output to either hold last value or shed to a safe value on communication loss. Output read-back with discrepancy alarming ensures command vs. actual verification. Open-wire detection provides channel soft failure indication for field wiring issues.

        The CC-PAOX01 51405039-275 offers 16 output channels with 4-20 mA range, directly settable from 0 mA and 2.9 mA to 21.1 mA. Maximum resistive load is 800Ω with 24V supply (22-28V range). Output ripple is less than 100 mV peak-to-peak at power line frequency across a 250Ω load.

        This analog output module solves the pain point of reliable, high-density control signal distribution in safety-critical applications. The CC-PAOX01 51405039-275's per-channel FAILOPT ensures predictable behavior on communication loss, while open-wire detection identifies field wiring faults before they cause process upsets.
        Alternative Names
        CC-PAOH01 51405069-175 CC-PAOH51 51405069-275 CC-PAON01 51405039-175 CC-PAOX02 51405039-276 CC-PAOX0I 5I405039-275 CCPAOX01 51405039275 51405039-275 CC-PAOX01
        Technical notes
        The Honeywell CC-PAOX01 (51405039-275) analog output module provides robust 16-channel connectivity with built-in diagnostics to maximize system uptime. Supporting standard 4–20 mA process loops, this high-level module is designed for continuous, mission-critical plant operations.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How accurate are the outputs from Honeywell CC-PAOX01 51405039-275?
        Calibrated accuracy reaches ±0.35% of full scale at 25°C, while output current linearity remains within ±0.05% of full scale.
        Can Honeywell CC-PAOX01 51405039-275 handle high-resistance field loads?
        A maximum resistive load of 800 Ω is supported by Honeywell CC-PAOX01 51405039-275 when the 24 V supply stays between 22 V and 28 V.
        Does Honeywell CC-PAOX01 51405039-275 detect open field wiring?
        Open-wire detection helps Honeywell CC-PAOX01 51405039-275 identify interrupted output circuits and supports faster maintenance diagnosis.
        Which applications benefit from Honeywell CC-PAOX01 51405039-275 redundancy?
        Optional redundancy makes Honeywell CC-PAOX01 51405039-275 suitable for shutdown functions, combustion control, turbine auxiliaries, and other loops requiring high availability.
