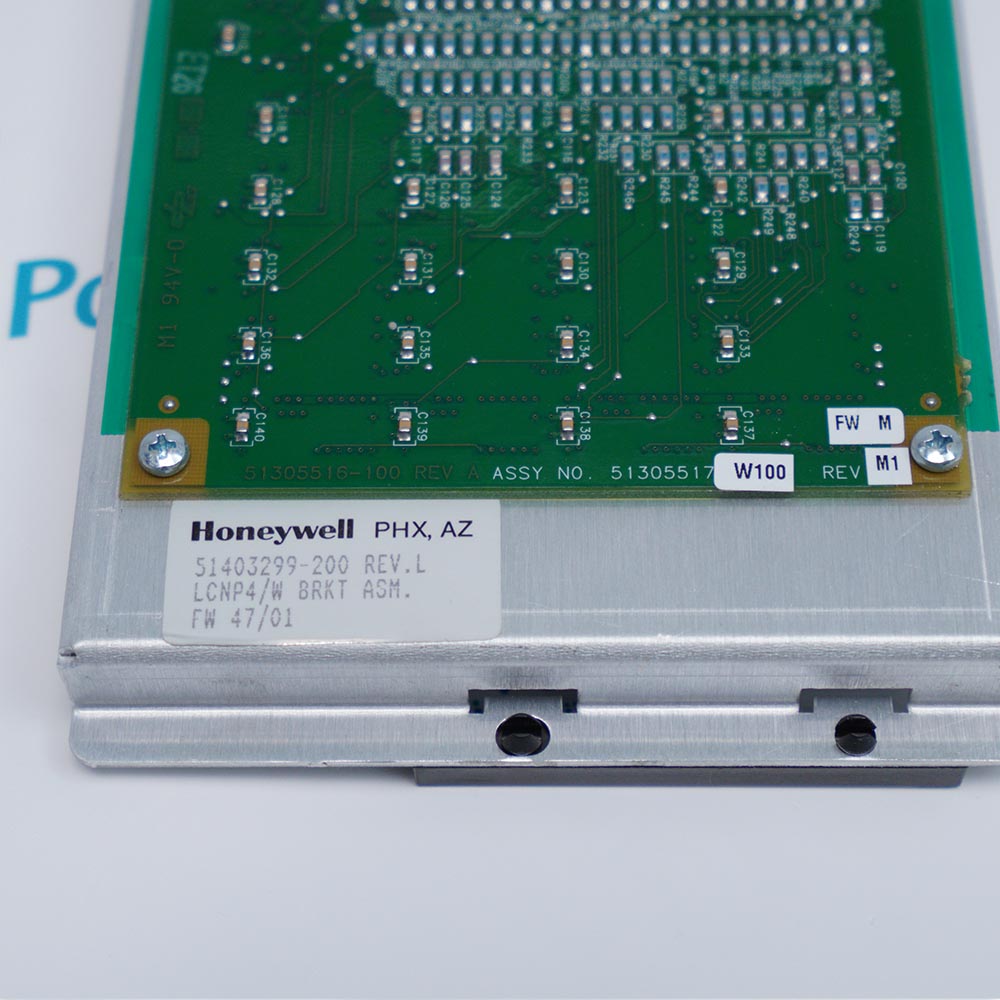

Honeywell 51403299-200 is an LCNP4 TPNB with card guide designed for TDC 3000, TPS, and LCN systems. It is a Motorola MC68040-based processor node board used in rack-mounted control architectures.
Get a quick price for 51403299-200
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 51403299-200

  • Manufacturer:
    Honeywell
  • Part Number:
    51403299-200
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    LCNP4 TPNB with Card Guide
  • System Compatibility:
    Honeywell TDC 3000 / TPS / LCN
  • Processor:
    Motorola MC68040
  • Input Voltage:
    24 VDC (system supply)
  • Logic Voltage:
    5 VDC regulated (internal board operation)
  • Input Current:
    approx. 50 mA (typical)
  • Maximum Input Current:
    approx. 70 mA
  • Power Consumption:
    typically < 5 W
  • Memory:
    Approx. 4 MB
  • Communication:
    Proprietary LCN bus
  • Operating Temperature:
    0°C to +50°C
  • Storage Temperature:
    -40°C to +70°C
  • Mounting Type:
    Rack-mounted module
  • Weight:
    0.34 kg
  • Estimated shipping dimensions:
    2x35.3x13.2cm
  • Tariff Code:
    7216339000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Communication Upgrade Use Cases

Features:

  • LCNP4 TPNB with card guide based on Motorola MC68040 processor for stable control processing.
  • Compatible with Honeywell TDC 3000, TPS, and LCN systems for integrated system operation.
  • Rack-mounted plug-in structure with card guide design for secure industrial installation.
Honeywell 51403299-200 is an LCNP4 TPNB with card guide designed for use in Honeywell TDC 3000, TPS, and LCN systems. Honeywell 51403299-200 integrates a Motorola MC68040 processor to support reliable system-level processing. Honeywell 51403299-200 operates with a 24 VDC supply and internal 5 VDC logic voltage for stable electrical performance. Honeywell 51403299-200 is designed as a rack-mounted plug-in module for industrial control environments.

Honeywell 51403299-200 is an LCNP4 TPNB with card guide providing approximately 4 MB memory for processing and communication tasks. Honeywell 51403299-200 communicates via proprietary LCN bus architecture for system integration. Honeywell 51403299-200 maintains power consumption below 5 W for efficient operation. Honeywell 51403299-200 ensures consistent performance in distributed control systems.

Honeywell 51403299-200 is an LCNP4 TPNB with card guide operating within 0°C to +50°C and storage range of -40°C to +70°C. Honeywell 51403299-200 supports input current around 50 mA with a maximum of 70 mA. Honeywell 51403299-200 uses a card guide rack structure for stable installation. Honeywell 51403299-200 is suitable for long-term deployment in Honeywell industrial automation systems.

The 51403299-200 Honeywell LCNP4 TPNB with Card Guide may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 51403299-200 LCNP4 TPNB with Card Guide Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell 51403299-200 LCNP4 TPNB with Card Guide Specs

General

  • Manufacturer Honeywell
  • Model 51403299-200
  • Condition New Original ready stock
  • Product Family 51404193-475,51404193-325,51404192-375
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Bus Bridging: Establishes a real-time physical layer connection between a standard personal computer and Honeywell's proprietary Local Control Network (LCN).
  • High-Speed ​​Mapping: Creates a dedicated memory channel between the workstation host and network nodes, ensuring zero-latency synchronization of real-time process control data.
  • Topology Integration: Fully compatible with the TDC 3000 UCN control system architecture, seamlessly integrating into existing token ring or dual-redundant network structures.
  • Low-Level Isolation: Built-in independent communication microprocessor and physical isolation transformer prevent electrical noise or hardware failures on the PC side from interfering with the main control network.
  • Smooth Transition: Allows legacy TDC 3000 hardware assets to be upgraded to modern HMIs without interrupting core controller operation.
  • Dell PC Compatibility: Comes with a standard DIN rail slot, physically and electrically optimized for integration into Dell industrial control computers.
  • Firmware Inheritance: Fully backward compatible with the proprietary communication protocols of earlier LCNP series processing boards, avoiding the need to rewrite existing monitoring software logic in the field.
  • Extended Lifecycle: By introducing advanced PC computing power, protect the enterprise's early investments in automation hardware and plant-wide historian databases.
  • Control Room Workstation Expansion: In chemical plants and refineries, standard PCs are configured as full-featured GUS graphical monitoring stations to achieve real-time control of the entire process flow.
  • Real-Time Data Acquisition (Historian): Serving as a data bridge for advanced process information systems, it continuously pumps high-frequency process variables to the plant-wide historian database.
  • Modernization of Legacy Systems: During plant overhauls, it replaces damaged or outdated interface boards, enabling modern hardware and software upgrades to the control console.
  • On-site Commissioning and Diagnostics: Used in conjunction with a portable industrial computer and dedicated rails, this serves as a mobile gateway for engineers to temporarily access the LCN network on-site for configuration and troubleshooting.
Description
Honeywell 51403299-200 is an LCNP4 TPNB with card guide developed for integration in Honeywell TDC 3000, TPS, and LCN systems. It is built around a Motorola MC68040 processor, enabling stable processing performance within distributed control environments. The module operates using a 24 VDC system supply with an internal regulated 5 VDC logic voltage. With a typical input current of approximately 50 mA and a maximum of about 70 mA, Honeywell 51403299-200 maintains controlled electrical demand during operation.

Honeywell 51403299-200 is an LCNP4 TPNB with card guide that provides approximately 4 MB of onboard memory for system-level processing and communication tasks. It communicates through a proprietary LCN bus, ensuring seamless integration within Honeywell’s control network architecture. The module is designed for efficient operation with a power consumption typically below 5 W, supporting stable long-term use in automation systems.

Honeywell 51403299-200 is an LCNP4 TPNB with card guide designed as a rack-mounted plug-in module with a structured card guide for secure installation. It operates in a temperature range from 0°C to +50°C, with storage capability from -40°C to +70°C. The mechanical and electrical design supports reliable deployment in industrial control racks where consistent system integration is required.
Alternative Names
51402083-300 51402455-100 51402615-400 51402615-800 51402645-200 51403158-100 51403165-400 51403299-400 51404127-200 51404191-375 51404191-475
Technical notes
Honeywell 51403299-200 LCNP4 TPNB with card guide is a rack-mounted plug-in processor board for TDC 3000, TPS, and LCN systems, featuring a Motorola MC68040 processor, 24 VDC system supply with 5 VDC internal logic voltage, typical 50 mA input current and 70 mA maximum, power consumption below 5 W, approximately 4 MB memory, proprietary LCN bus communication, operating temperature 0°C to +50°C, storage temperature -40°C to +70°C, and card guide mechanical structure.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What system compatibility does Honeywell 51403299-200 LCNP4 TPNB with card guide support?
Honeywell 51403299-200 LCNP4 TPNB with card guide supports TDC 3000, TPS, and LCN systems.
What is the operating voltage of Honeywell 51403299-200 LCNP4 TPNB with card guide?
Honeywell 51403299-200 LCNP4 TPNB with card guide operates on 24 VDC system supply with internal 5 VDC logic voltage.
What temperature range applies to Honeywell 51403299-200 LCNP4 TPNB with card guide?
Honeywell 51403299-200 LCNP4 TPNB with card guide operates at 0°C to +50°C and stores at -40°C to +70°C.
