    Apter Power supplies top-grade ProSoft Technology MVI56E-MNETXT replacement hardware, offering industrial facilities a trusted source for critical automation components to maintain continuous and efficient plant operations.

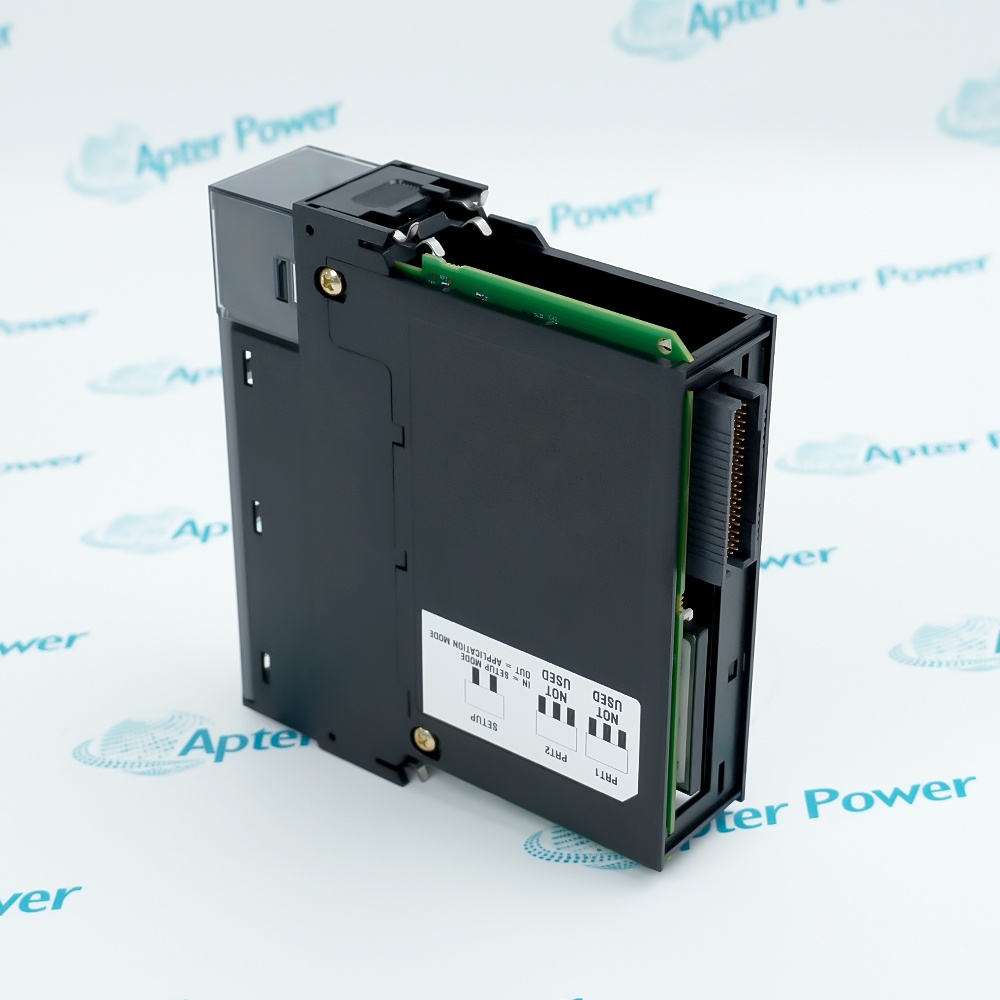

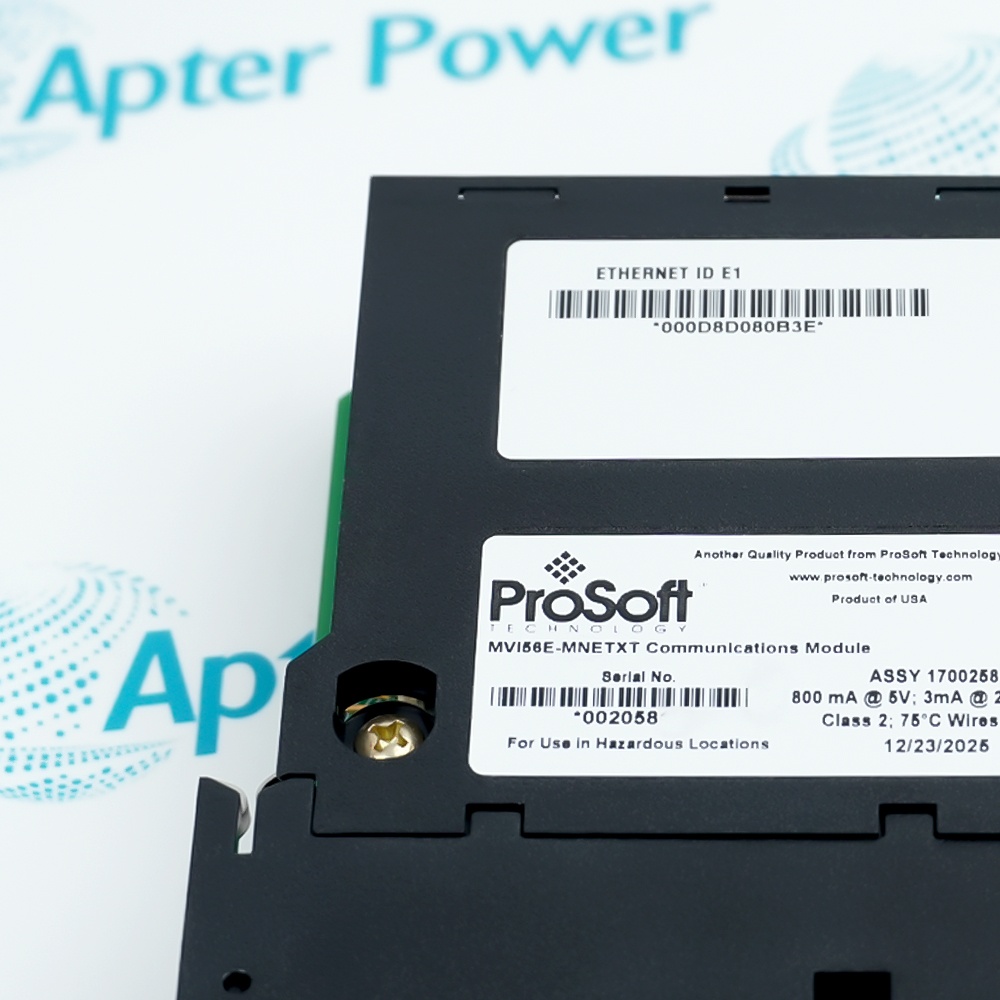

MVI56E-MNETXT

/ 4.9
1001 reviews | Need a Specific Revision?
The MVI56E-MNETXT is a Modbus TCP/IP client/server communication module that enables seamless connectivity with Modbus-compatible devices in industrial networks.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for MVI56E-MNETXT
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MVI56E-MNETXT

  • Manufacturer:
    ProSoft
  • Part Number:
    MVI56E-MNETXT
  • Product Family:
    ProSoft
  • Product Type:
    Interface Module
  • Stock:
    1
  • Backplane Current Load:
    800 mA @ 5 Vdc, 3 mA @ 24 Vdc
  • Operating Temperature:
    0°C to 60°C (32°F to 140°F)
  • Storage Temperature:
    -40°C to 85°C (-40°F to 185°F)
  • Relative Humidity:
    5% to 95% (without condensation)
  • LED Indicators:
    Application Status (APP) Module Status (OK)
  • Weight:
    0.26 kg
  • Estimated shipping dimensions:
    3.4x14.2x14.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Diagnostics & Protection Configuration & Programming

Features:

  • Interface Between Modbus TCP/IP Networks and ControlLogix Processors
  • Combines Client and Server Communication Capabilities with Extreme Environment Operation
  • Operates in Conjunction with the Logix-XT™ Control Platform and Standard ControlLogix Systems
The MVI56E-MNETXT operates as the Modbus TCP/IP Client/Server Communication Module in a ControlLogix rack, providing seamless data exchange between Rockwell Automation ControlLogix processors and Modbus compatible devices. It continuously facilitates communication through a 5000-word register space that exchanges data between the processor and the Modbus TCP/IP network, supporting both Client (Master) and Server (Slave) capabilities for versatile industrial connectivity. Seamless integration is standard with the MVI56E-MNETXT, however its specialized XT design allows reliable operation in extreme environments and at higher operating temperatures where standard modules would fail. The MVI56E-MNETXT features a conformal coating to protect it from harsh or caustic conditions, making improvements in environmental resilience over previous and standard MVI56E-MNET designs in addition to incorporating universal Modbus TCP/IP communication capability within the ControlLogix platform.

The MVI56E-MNETXT provides essential communication functions common to the entire network architecture, and is a critical component of the data exchange path, directly affecting the proper, normal operation of the overall control system. One MVI56E-MNETXT module is required per ControlLogix rack for Modbus TCP/IP connectivity. The MVI56E-MNETXT occupies only a single slot in the 1756 ControlLogix backplane and supports 10/100 Mbps auto crossover detection Ethernet configuration for flexible network deployment.

For Extreme Environment applications, the MVI56E-MNETXT is specifically designed for the Logix-XT™ control platform. In addition to standard communication operation, the XT configuration also performs reliably under elevated temperature ranges and harsh industrial conditions. The MVI56E-MNETXT extreme environment design executes protection using the conformal coating specified in the module specifications. Using this method, the MVI56E-MNETXT continually safeguards internal circuitry from moisture, dust, and corrosive contaminants. If the system operates in conditions where standard modules would experience degradation or failure (outside normal temperature or environmental tolerance levels), the MVI56E-MNETXT maintains stable performance and ensures continuous data exchange between the ControlLogix processor and Modbus TCP/IP network devices.

The MVI56E-MNETXT ProSoft Interface Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
PROSOFT MVI56E-MNETXT Interface Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
PROSOFT MVI56E-MNETXT Interface Module Specs

General

  • Manufacturer PROSOFT
  • Model MVI56E-MNETXT
  • Condition New Original ready stock
  • Product Family MVI56E-MNET,MVI56E-MNETC,MVI56E-MNETR
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Data Concentration: Simultaneously acts as a Modbus Client and Server to aggregate data from multiple sources like Modicon PACs, SCADA systems, and DCS.
  • Remote I/O Connectivity: Interfaces with instruments and devices in remote racks via EtherNet/IP or ControlNet.
  • Harsh Environments: Used in oil and gas, wastewater, or outdoor installations where temperatures fluctuate between -25°C and 70°C.
  • System Upgrades: Backward compatible with older MVI56-MNET modules, allowing for seamless hardware replacement without changing existing ladder logic.
  • Extreme Protection: The XT version includes conformal coating to protect internal circuitry from moisture and corrosive gases.
  • LED Scrolling Display: A front-panel, 4-character alphanumeric display provides real-time English status messages, IP addresses, and error codes.
  • Setup Jumper: A physical jumper acts as write protection for the module’s firmware to prevent unauthorized or accidental overwriting.
  • Personality Module: An industrial-grade Compact Flash card stores all configuration settings. If a module fails, the card can be swapped into a new unit for instant recovery.
  • Battery Backup: A rechargeable Lithium Vanadium Pentoxide battery maintains the real-time clock and CMOS settings during power loss for up to 21 days.
  • ProSoft Configuration Builder (PCB): A Windows-based tool used for initial network setup, command definition, and diagnostics.
  • Add-On Instructions (AOI): For RSLogix 5000 (v16+), ProSoft provides AOIs that simplify the data transfer between the module and the processor by automatically creating necessary controller tags.
  • Web Server: An internal web server provides access to module documentation, status information, and firmware updates via the Ethernet port.
  • Discovery Service (PDS): A utility to locate the module on the network and assign temporary IP addresses for initial setup.
  • CIPconnect®: Enables remote configuration and diagnostics from a central PC through the ControlLogix backplane.
Description
The MVI56E-MNETXT is a Modbus TCP/IP Client/Server Communication Module specifically engineered for Rockwell Automation ControlLogix processors, enabling seamless interfacing with Modbus compatible devices across industrial networks. This module facilitates robust communication with Modicon Programmable Automation Controllers (PACs) and a diverse array of instruments and devices, utilizing a 5000-word register space to efficiently exchange data between the processor and the Modbus TCP/IP network. The MVI56E-MNETXT is functionally identical to the MVI56E-MNET, yet it is purpose-built for the Logix-XT™ control platform, allowing it to operate reliably in extreme environments and at elevated operating temperatures. It features a conformal coating that provides essential protection against harsh or caustic conditions, ensuring long-term durability in demanding industrial settings.

This MVI56E-MNETXT module is designed for backward compatibility with previous MVI56-MNET versions, ensuring seamless integration into existing ControlLogix systems. It occupies a single slot in the 1756 ControlLogix backplane and supports 10/100 Mbps auto crossover detection Ethernet configuration for flexible network setup. The module offers user-definable data memory mapping of up to 5000 16-bit registers, providing extensive flexibility for data management. CIPconnect-enabled network configuration and diagnostics monitoring are supported through ControlLogix 1756-ENxT and 1756-CNB modules, enabling EtherNet/IP pass-through communication for streamlined network oversight. Configuration is simplified through ProSoft Configuration Builder (PCB) software, a Windows-based graphical user interface that facilitates straightforward product and network setup. Sample ladder logic and Add-On Instructions (AOI) are included to assist with data transfer between the module and processor, while a 4-character alpha-numeric scrolling LED display presents status and diagnostics information in plain English for immediate troubleshooting clarity. The ProSoft Discovery Service (PDS) software enables quick network location and temporary IP address assignment, and the Personality Module—a non-volatile industrial-grade Compact Flash (CF) card—stores all network and module configurations, allowing rapid in-the-field replacement by simply transferring the CF card.

The MVI56E-MNETXT incorporates ProSoft Technology's Modbus TCP/IP implementation (MNET), delivering both Client (Master) and Server (Slave) capabilities to accommodate diverse communication architectures. Modbus data types overlap within the module's memory database, enabling the same data to be conveniently accessed as either bit-level or register-level information as application requirements dictate. The module supports configurable floating-point data movement, including compatibility with Enron or Daniel® floating-point formats, ensuring versatile data handling for sophisticated industrial applications.
Alternative Names
MV156E-MNETXT MVI56EMNETXT MVI56E-MCM MVI56E-MNETCR MVI56E-MCMXT MVI56E-MNET
Technical notes
The PROSOFT MVI56E-MNETXT Modbus TCP/IP client/server enhanced network interface module is designed for Rockwell Automation ControlLogix (Logix-XT™) systems, enabling seamless in-chassis data exchange with Modicon PACs and a variety of Modbus TCP/IP field devices.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the MVI56E-MNETXT module?
The MVI56E-MNETXT is a Modbus TCP/IP Client/Server communication module designed for Rockwell Automation ControlLogix processors. It enables seamless integration between ControlLogix systems and Modbus-compatible devices across industrial Ethernet networks.
What makes the MVI56E-MNETXT different from the standard MVI56E-MNET?
While functionally similar to the MVI56E-MNET, the MVI56E-MNETXT is specifically built for the Logix-XT™ platform, allowing it to operate reliably in extreme temperatures and harsh industrial environments thanks to its conformal coating.
What are the key communication capabilities of this MVI56E-MNETXT module?
The module supports both Modbus TCP/IP Client (Master) and Server (Slave) roles, enabling flexible communication with Modicon PACs and other Modbus devices. It uses a 5000-word register database for efficient data exchange.
