MVI56E-MNETC

/ 4.9
1001 reviews | Need a Specific Revision?

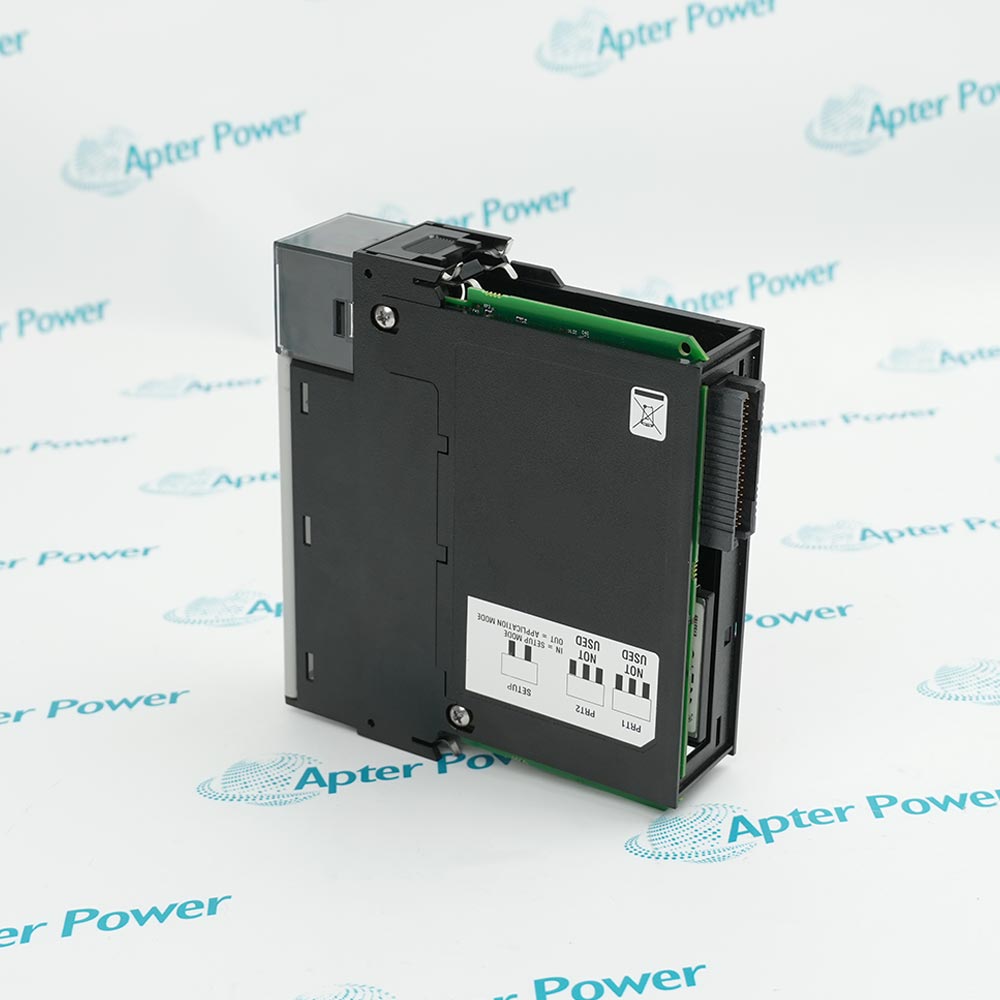

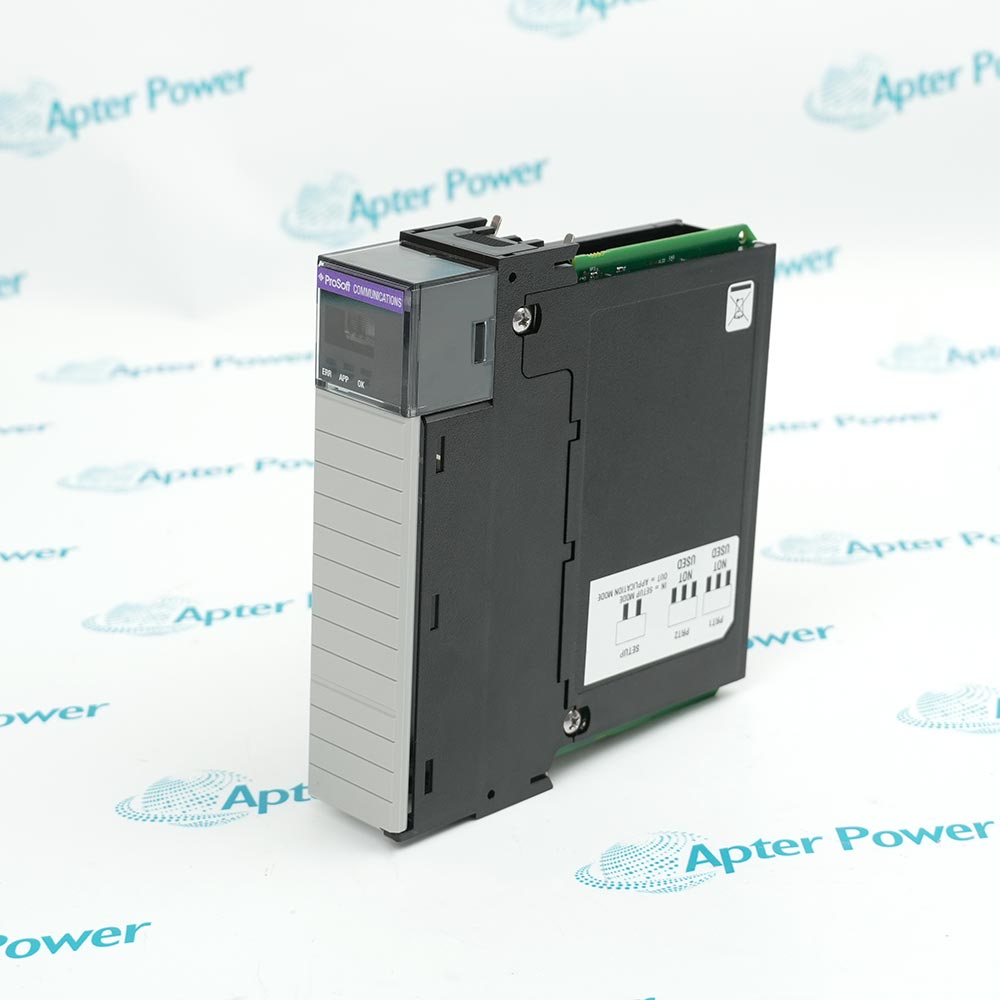

The PROSOFT MVI56E-MNETC is an enhanced single-slot Modbus TCP/IP multi-client/server network interface module designed for the Rockwell Automation Allen-Bradley ControlLogix 1756 backplane.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for MVI56E-MNETC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MVI56E-MNETC

  • Manufacturer:
    ProSoft
  • Part Number:
    MVI56E-MNETC
  • Product Family:
    ProSoft
  • Product Type:
    Enhanced Modbus TCP/IP Network Interface Module
  • Stock:
    1
  • Protocol Supported:
    Modbus TCP/IP
  • Number of Ports:
    2 (10/100 Mbps)
  • Port Type:
    RJ45
  • Supported Protocols:
    Modbus TCP/IP, Ethernet/IP
  • Redundancy Support:
    Yes (dual-port with failover capabilities)
  • Clients Supported:
    Up to 10 Modbus TCP/IP clients
  • Maximum Simultaneous Connections:
    40
  • Backplane Data Transfer Rate:
    5 Mbps
  • Weight:
    0.26 kg
  • Estimated shipping dimensions:
    3.5x14x14.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Monitoring & Control Certifications & Standards

Features:

  • Bridge Between Modbus TCP/IP Networks and ControlLogix® Platform Backplane
  • Integration of 10/100 Mbps Ethernet Port with Enhanced Client/Server Communication Capabilities
  • Seamless Operation with 1756 ControlLogix Processors and Studio 5000 Development Environment
The MVI56E-MNETC operates as the Modbus TCP/IP Client Enhanced Communication Module in a ControlLogix rack, providing reliable client-side communication to all Modbus TCP/IP server devices within the industrial network. It continuously manages outgoing client connections (up to 30 simultaneous connections) and facilitates data exchange between the ControlLogix processor and remote Modbus TCP/IP servers. Seamless integration is standard with the MVI56E-MNETC, however using an optional Redundant Ethernet Configuration will allow seamless switchover to a backup network path in the event of a primary communication failure. The MVI56E-MNETC has made improvements in several areas over previous communication module designs in addition to incorporating enhanced data throughput capability within the ControlLogix platform.

The MVI56E-MNETC provides essential communication functions common to the entire network architecture, and is a critical component of the data exchange path, directly affecting the proper, normal operation of the overall control system. One MVI56E-MNETC module is required per ControlLogix rack depending on the desired client connection capacity. The MVI56E-MNETC occupies only a single full-height slot in the rack and can be located in any available slot position (not restricted to specific slots, providing flexible installation options).

For Enhanced Reliability applications, the ControlLogix System may utilize a second MVI56E-MNETC communication module installed in a redundant configuration with appropriate network infrastructure. In addition to standard single module operation, the redundant configuration also performs automatic switchover. The ControlLogix dual communication configuration executes failover using the internal logic specified in the processor configuration. Using this method, the redundant communication system continually monitors the health of both MVI56E-MNETC modules. If the system detects that the primary MVI56E-MNETC is no longer providing stable communication (outside configured timeout/connection levels), it will automatically transfer the data exchange to the secondary module and log an event in the Controller Event Log.

The MVI56E-MNETC ProSoft Enhanced Communication Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
PROSOFT MVI56E-MNETC Enhanced Communication Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
PROSOFT MVI56E-MNETC Enhanced Communication Module Specs

General

  • Manufacturer PROSOFT
  • Model MVI56E-MNETC
  • Condition New Original ready stock
  • Product Family MVI56E-MNET,MVI56E-MNETCR,MVI56E-MNETXT
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Multi-Device Networking: Ideal for controlling large networks of Modbus TCP/IP servers, such as power monitors, motor drives, and specialized instrumentation.
  • DCS Integration: Facilitates communication between ControlLogix systems and Honeywell DCS or other third-party controllers supporting Modbus TCP.
  • Harsh Environments: The "XT" version is utilized in extreme temperature ranges (-25°C to 70°C) or caustic conditions common in oil & gas or mining.
  • Scrolling Diagnostic Display: A 4-character alphanumeric LED display on the front panel provides English status messages and alarm data.
  • Web Server: An on-board web server allows access to internal documentation and module status without specialized software.
  • ProSoft Configuration Builder (PCB): Windows-based software for configuration and diagnostics via the module's Ethernet port.
  • CIPconnect®: Enables remote configuration and diagnostics through existing ControlNet or EtherNet/IP networks via bridge modules.
  • Hazardous Locations: Rated for Class I, Division 2, Groups A, B, C, and D.
  • ATEX Compliance: Certified for use in potentially explosive atmospheres (Category 3 G, EEx nA IIC T6).
  • Environmental Resilience: Compliant with shock (30g operational) and vibration (5g) standards.
  • Maritime: Holds DNV Type Approval for marine applications.
Description
The PROSOFT MVI56E-MNETC is an Enhanced Modbus TCP/IP Network Interface Module. This module enables seamless communication between Modbus TCP/IP-enabled devices and processors, allowing data exchange in complex industrial environments. Featuring advanced diagnostics and configuration tools, it provides users with streamlined operation, reduced downtime, and reliable performance in industrial automation systems.

With dual Ethernet ports, the module supports multiple client and server connections, offering enhanced flexibility and redundancy. It is widely used in applications such as oil and gas, power generation, and water/wastewater, where integration between Modbus TCP/IP devices.
Alternative Names
MV156EMNETC MVI56E-MNETCR MVI56E-MNET MVI56E-MNETXT
Technical notes
The PROSOFT MVI56E-MNETC draws 800mA from the backplane at 5VDC and 3mA at 24VDC. It features a 10/100Mbps auto-crossover Ethernet port and a scalable, user-defined memory map supporting up to 10,000 16-bit registers. It boasts high-performance concurrent operation capabilities, managing up to 30 client connections simultaneously to maximize polling efficiency, while simulating up to 20 server connections as an advanced data concentrator for upper-level monitoring systems.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the MVI56E-MNETC?
The MVI56E-MNETC acts as a gateway to enable communication between Modbus TCP/IP-enabled devices and ControlLogix systems, providing efficient data exchange and integration in industrial automation networks.
How does the MVI56E-MNETC handle redundancy?
The module features dual Ethernet ports that support failover, ensuring continuous communication in case of a network or port failure.
What configuration software is required for the MVI56E-MNETC?
The module uses ProSoft Configuration Builder (PCB) for setup and configuration. This tool simplifies the process of creating and managing Modbus TCP/IP communication settings.
