    Obtain quotations, manuals and rear-panel wiring identification for Siemens C98043-A7009-L1 6RY1703-0GA01 through Apter Power.

C98043-A7009-L1 6RY1703-0GA01

/ 4.9
1001 reviews | Need a Specific Revision?

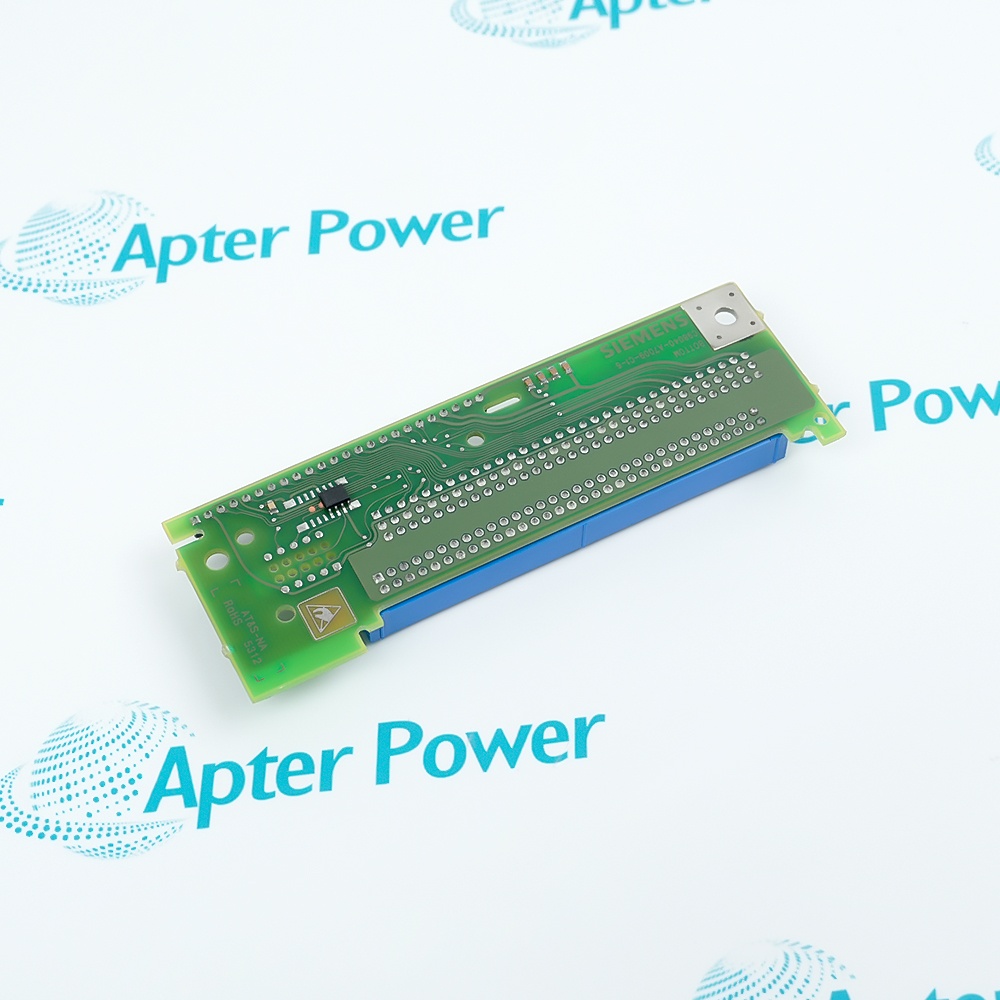

Siemens C98043-A7009-L1 6RY1703-0GA01 is the SIMOREG DC-MASTER rear-panel wiring assembly for control terminals and EEPROM-based parameter retention.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for C98043-A7009-L1 6RY1703-0GA01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for C98043-A7009-L1 6RY1703-0GA01

  • Manufacturer:
    Siemens
  • Part Number:
    C98043-A7009-L1 6RY1703-0GA01
  • Product Family:
    Siemens SIMOREG DC-MASTER
  • Product Type:
    Rear Panel Wiring Assembly
  • Stock:
    1
  • Main Terminal Block:
    X101, terminals 103–110
  • Tachometer Range:
    ±270 V
  • Control Inputs:
    ES/S, P24/ES, ES/P, ES/P_Reset and NS
  • Non-Volatile Memory:
    On-board EEPROM
  • Control-Board Link:
    X109 to A7001 CUD1
  • Stored Data:
    Parameter values and non-volatile process data
  • RoHS Status:
    Compliant
  • WEEE Take-Back:
    No
  • Weight:
    0.1102 lbs (0.05 kg)
  • Tariff Code:
    85389091
  • Country of origin:
    Romania
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals X101 Wiring EEPROM Storage Control Terminals Fault Isolation

Features:

  • Routes tachometer and control signals through X101.
  • Retains parameter and process data in non-volatile EEPROM.
  • Connects the EEPROM path to the A7001 CUD1 through X109.
The A7009 assembly joins terminal-level wiring and memory retention in one rear-panel component.

X101 keeps the tachometer reference, enable path and reset-related signals on defined terminal positions.

Memory diagnostics verify communication, value ranges, writeback and stored-data checksums.

The Siemens C98043-A7009-L1 6RY1703-0GA01 Rear Panel Wiring Assembly may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens C98043-A7009-L1 6RY1703-0GA01 Rear Panel Wiring Manuals,Datasheets,LinkImportant Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Signal groups presented at terminals 103–110

  • 103: Accepts the analog tachometer signal up to ±270 V.
  • 104: Provides the tachometer reference ground.
  • 105–108: Carry ES/S, P24/ES, ES/P and ES/P_Reset.
  • 109–110: Complete the documented NS signal pair.

Data retained when converter power is removed

  • Parameters: Configured values are stored in non-volatile memory.
  • Process data: Required non-volatile process values remain retained.
  • Write check: Stored values are read back and verified after transfer.
  • Checksum: Memory integrity is checked for retained data blocks.

How the field wiring functions are separated

  • Tacho path: Measurement and ground occupy separate terminals.
  • Enable path: ES/S and P24/ES form defined control connections.
  • Reset path: ES/P and ES/P_Reset are individually terminated.
  • NS path: Two terminal positions are reserved for the NS connection.

Checks that narrow an A7009 memory fault

  • Connection: F062 can indicate a faulty EEPROM link through X109.
  • Value range: Stored parameters are tested against permissible limits.
  • Write cycle: A failed EEPROM transfer is reported separately.
  • Board scope: A7009 and A7001 are both considered in the memory path.
Description

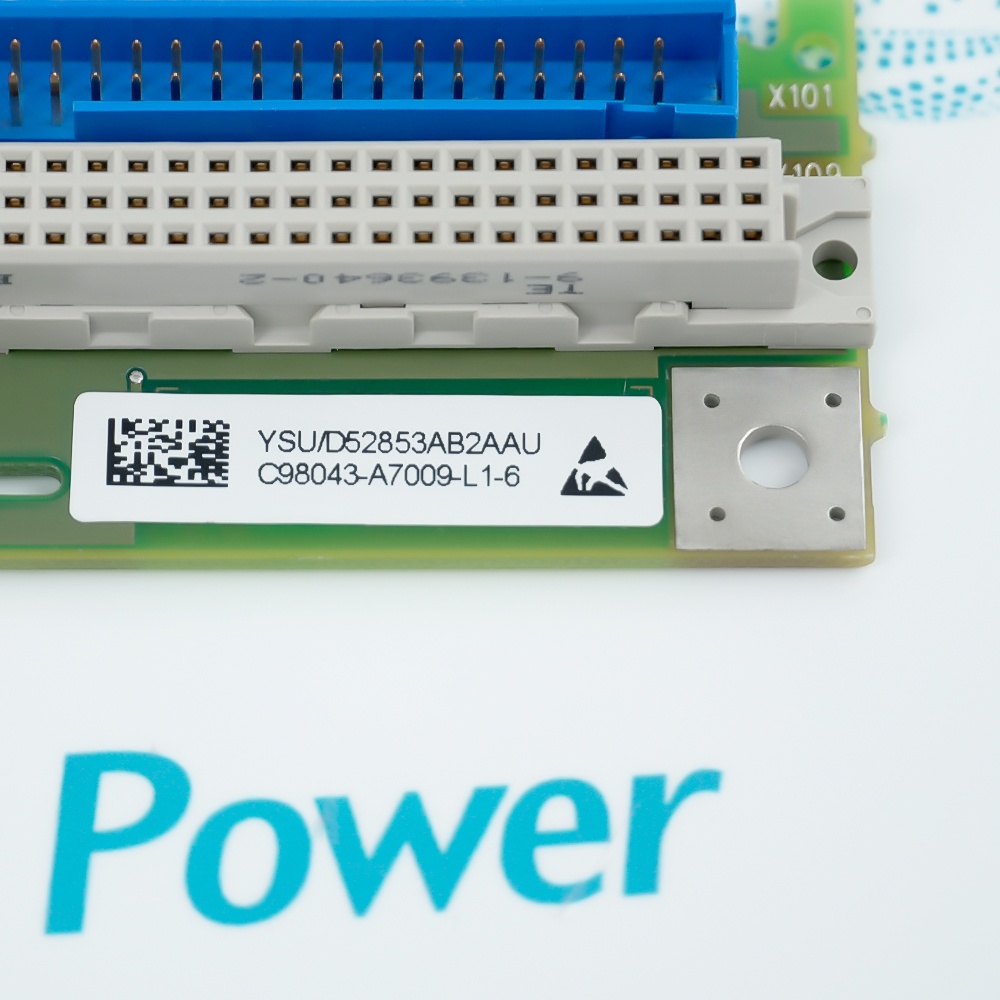

Siemens C98043-A7009-L1 6RY1703-0GA01 is the rear-panel wiring assembly used in the SIMOREG DC-MASTER control structure. It presents the X101 terminal group and provides the physical interface between external control wiring and the converter electronics.

Terminals 103–110 on C98043-A7009-L1 6RY1703-0GA01 carry the analog tachometer path and control signals. The group includes the ±270 V tacho input, tacho ground, ES/S, P24/ES, ES/P, ES/P_Reset and NS connections.

The EEPROM mounted on C98043-A7009-L1 6RY1703-0GA01 stores parameter values and process data that must survive a power failure. The A7001 CUD1 control electronics reaches this memory through connector X109 rather than retaining those values locally.

Internal monitoring checks the connection, permissible parameter ranges, successful write/read operations and checksums associated with C98043-A7009-L1 6RY1703-0GA01. These checks separate memory-path faults from analog-channel or processor faults on the connected control board.
Alternative Names
C98043A7009L1 6RY17030GA01 C98043 A7009 L1 6RY1703 0GA01 Siemens C98043-A7009-L1 6RY1703-0GA01 Siemens 6RY1703-0GA01 Rear Wiring SIMOREG A7009 C98043-A7009-L1 6RY17030GA01 Rear Panel Assembly C98043-A7009-L1 EEPROM Wiring Board C98O43-A7OO9-L1 6RY17O3-OGAOl
Technical notes
Siemens C98043-A7009-L1 6RY1703-0GA01 combines X101 field-control wiring with the EEPROM used by the A7001 CUD1 board.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which external signals land on Siemens C98043-A7009-L1 6RY1703-0GA01?
X101 terminals 103–110 carry the ±270 V tacho path plus ES/S, P24/ES, ES/P, reset and NS control signals.
Why can an EEPROM fault involve Siemens C98043-A7009-L1 6RY1703-0GA01?
The non-volatile parameter memory is mounted on A7009 and linked to the A7001 control board through X109.
What should be inspected for an F062 connection fault on Siemens C98043-A7009-L1 6RY1703-0GA01?
Check the A7009 assembly, the A7001 board and their X109 plug-in connection because all three participate in the memory path.
How does Siemens C98043-A7009-L1 6RY1703-0GA01 protect stored settings during power loss?
Its EEPROM retains parameter values and designated non-volatile process data without continuous converter power.
Where is the tachometer reference on Siemens C98043-A7009-L1 6RY1703-0GA01?
The measurement enters at terminal 103 and the tachometer ground is provided at terminal 104.
Why must Siemens C98043-A7009-L1 6RY1703-0GA01 not be described as a generic backplane?
Its defined functions are rear-panel wiring, X101 signal termination and EEPROM retention, not a general-purpose data backplane.
