    Apter Power supports 6ES7158-3AD10-0XA0 quotations, manuals, data-map checks, and model matching.

6ES7158-3AD10-0XA0

/ 4.9
1001 reviews | Need a Specific Revision?
Siemens 6ES7158-3AD10-0XA0 is a SIMATIC PN/PN Coupler used to exchange configured I/O and data records between two independent PROFINET networks.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7158-3AD10-0XA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7158-3AD10-0XA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7158-3AD10-0XA0
  • Product Family:
    Siemens Simatic ET 200SP
  • Product Type:
    SIMATIC PN/PN Coupler
  • Stock:
    1
  • Network Sides:
    Two separate PROFINET IO interfaces
  • Interface Ports:
    Two ports per side through SIMATIC BusAdapters
  • BusAdapter Supply:
    Not included
  • Shared Controllers:
    Up to four PN controllers per side
  • Coupling Modules:
    16 maximum
  • Submodules per Coupling Module:
    Four maximum
  • Input Address Space:
    1440 bytes maximum
  • Output Address Space:
    1440 bytes maximum
  • Maximum Data Record:
    4096 bytes
  • Record FIFO Depth:
    Eight
  • Transfer Rate:
    100 Mbps
  • Rated Supply:
    24 V DC
  • Supply Range:
    19.2 to 28.8 V DC
  • Typical Power Loss:
    4 W with two BA 2xRJ45
  • Diagnostic Indicators:
    RUN, ERROR, MAINT, PWR and LINK
  • Supported Exchange:
    I/O, PROFIsafe, MSI, MSO and data records
  • Weight:
    0.5688 lbs (0.258 kg)
  • Estimated shipping dimensions:
    13.4x13.3x8.5cm
  • Tariff Code:
    85176200
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Coupling Direction Controller Sharing Record Exchange Adapter and Power

Features:

  • Two PROFINET sides remain independent IO-device connections.
  • Configured output data on one side becomes input data on the other.
  • Replaceable BusAdapters define the physical connectors and are ordered separately.
The coupling map can carry ordinary I/O, PROFIsafe and record-based exchanges.

Up to four controllers can participate on each network side within the documented configuration.

Dedicated LEDs distinguish supply, device, maintenance and link conditions.

The Siemens 6ES7158-3AD10-0XA0 SIMATIC PN/PN Coupler may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7158-3AD10-0XA0 SIMATIC PN/PN Coupler Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Pairing outputs on one network with inputs on the other

  • Side X output: Controller data written on the first side enters the assigned coupling submodule.
  • Side Y input: The paired submodule presents those bytes as input data on the second side.
  • Reverse path: A separate mapping carries data back in the opposite direction.
  • Length agreement: Both engineering projects must configure compatible byte lengths for each pair.

Dividing a coupler side among multiple PN controllers

  • Per-side limit: Up to four PROFINET controllers can be assigned on each network side.
  • Submodule ownership: Controller access is allocated through the configured submodules rather than a shared unstructured buffer.
  • MSI and MSO: Multiple shared input and output functions extend the mapped-data arrangement.
  • Independent projects: Device name, IP parameters and controller assignment are engineered separately for both sides.

Moving larger data records across the subnet boundary

  • Record size: One transfer can contain up to the documented 4096-byte record length.
  • Queue depth: The FIFO stores up to eight records in the supported record path.
  • I/O separation: Record traffic is configured independently from cyclic input and output byte areas.
  • Status handling: The application evaluates transfer status before advancing its record sequence.

Completing the two network connections and supply paths

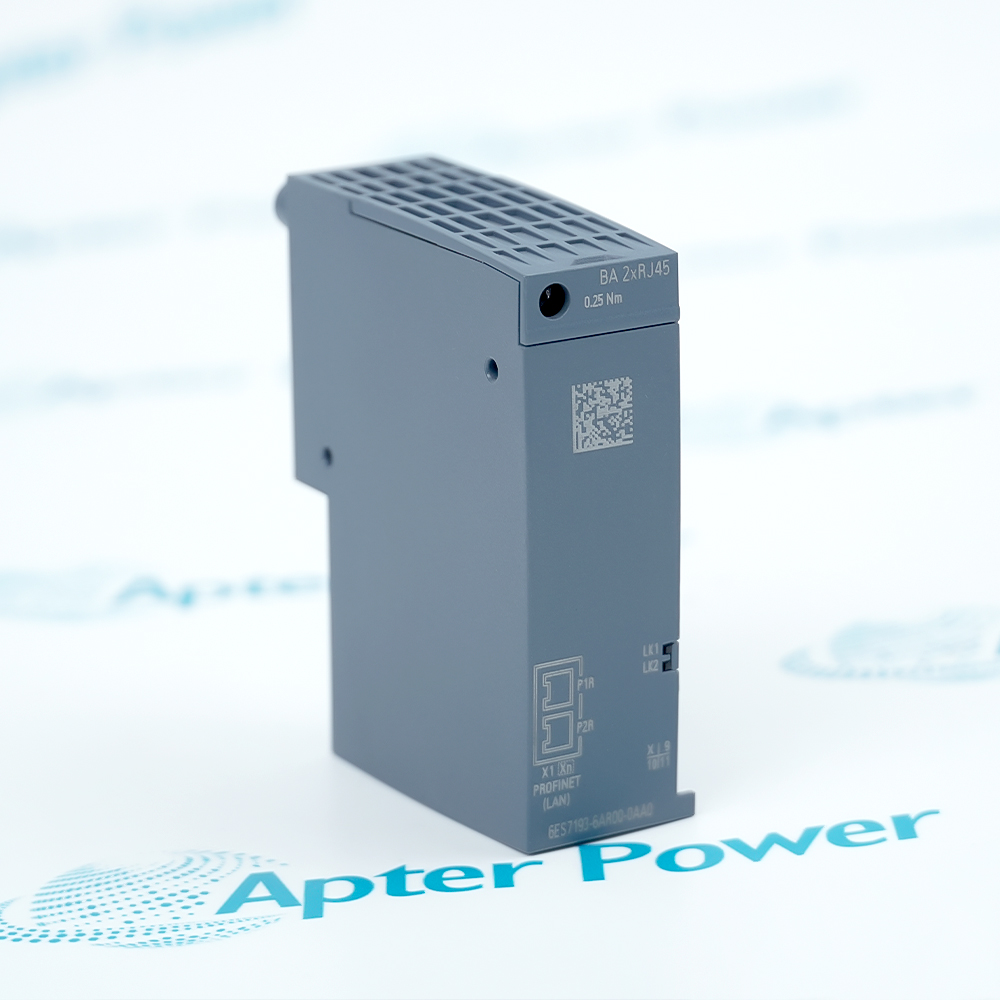

  • BusAdapter positions: Each PROFINET side accepts its own SIMATIC BusAdapter.
  • Separate order: BusAdapters are not included with the coupler and must match the selected cable interface.
  • Redundant feed: Two 24 V DC inputs can provide a redundant supply arrangement.
  • LED isolation: PWR and LINK indications identify supply and physical-network conditions without combining the two sides.
Description
Siemens 6ES7158-3AD10-0XA0 is a SIMATIC PN/PN Coupler that transfers configured process data between two separate PROFINET networks. Each side appears as its own IO device, allowing controllers on one subnet to exchange I/O, PROFIsafe and record data without merging the two network address spaces.

A coupling module inside 6ES7158-3AD10-0XA0 pairs submodules from the two sides. Output bytes written by a controller on one network become input bytes for the configured partner on the other network, so corresponding data lengths and directions must be matched in both engineering projects.

Two SIMATIC BusAdapter positions give 6ES7158-3AD10-0XA0 a separate physical PROFINET connection on each side. The adapters are ordered independently; choosing their connector style affects cabling but does not combine the controller assignments or diagnostic names of the two networks.

Redundant 24 V DC inputs can supply 6ES7158-3AD10-0XA0, while PWR, RUN, ERROR, MAINT and LINK indications separate supply, device and port conditions. A problem on one mapped data path is therefore diagnosed through its assigned side rather than treated as a single undifferentiated Ethernet fault.
Alternative Names
6ES71583AD100XA0 6ES7 158-3AD10-0XA0 6ES7158 3AD10 0XA0 6ES-7158-3AD10-0XA0 6ES7158-3AD10-0XA0 PN/PN Coupler 6ES7158-3AD10-0XA0 SIMATIC PN Coupler 6ES7158-3AD1O-0XAO 6ES715B-3AD10-0XA0
Technical notes
On Siemens 6ES7158-3AD10-0XA0, each PROFINET side is engineered as an independent IO device. Order both SIMATIC BusAdapters separately and map matching data lengths across the coupling boundary.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why do the data lengths on both sides of 6ES7158-3AD10-0XA0 have to match?
A mapping in 6ES7158-3AD10-0XA0 pairs an output submodule on one side with an input submodule on the other, so incompatible lengths prevent the intended byte-for-byte exchange.
Are SIMATIC BusAdapters included with Siemens 6ES7158-3AD10-0XA0?
No. Siemens 6ES7158-3AD10-0XA0 is supplied without its two BusAdapters, and each adapter must be selected for the required PROFINET cable and connector format.
Can controllers on both PROFINET networks directly share IP addressing through 6ES7158-3AD10-0XA0?
No. The two sides of 6ES7158-3AD10-0XA0 remain separate IO-device networks; only the configured I/O, PROFIsafe or record data crosses the coupling map.
What should be checked when one LINK LED is off on 6ES7158-3AD10-0XA0?
For 6ES7158-3AD10-0XA0, inspect the BusAdapter seating, cable, partner port and network-side power before changing the data mapping on the other PROFINET side.
How many controllers can use one side of Siemens 6ES7158-3AD10-0XA0?
Siemens 6ES7158-3AD10-0XA0 supports up to four PN controllers on each side, with ownership assigned through the configured coupling submodules.
When should the record channel of 6ES7158-3AD10-0XA0 be used instead of cyclic I/O?
Use the record path of 6ES7158-3AD10-0XA0 for supported noncyclic transfers that require the documented record size and FIFO handling rather than fixed cyclic byte exchange.
