6ES7332-5HB01-0AB0

/ 4.9
1001 reviews | Need a Specific Revision?

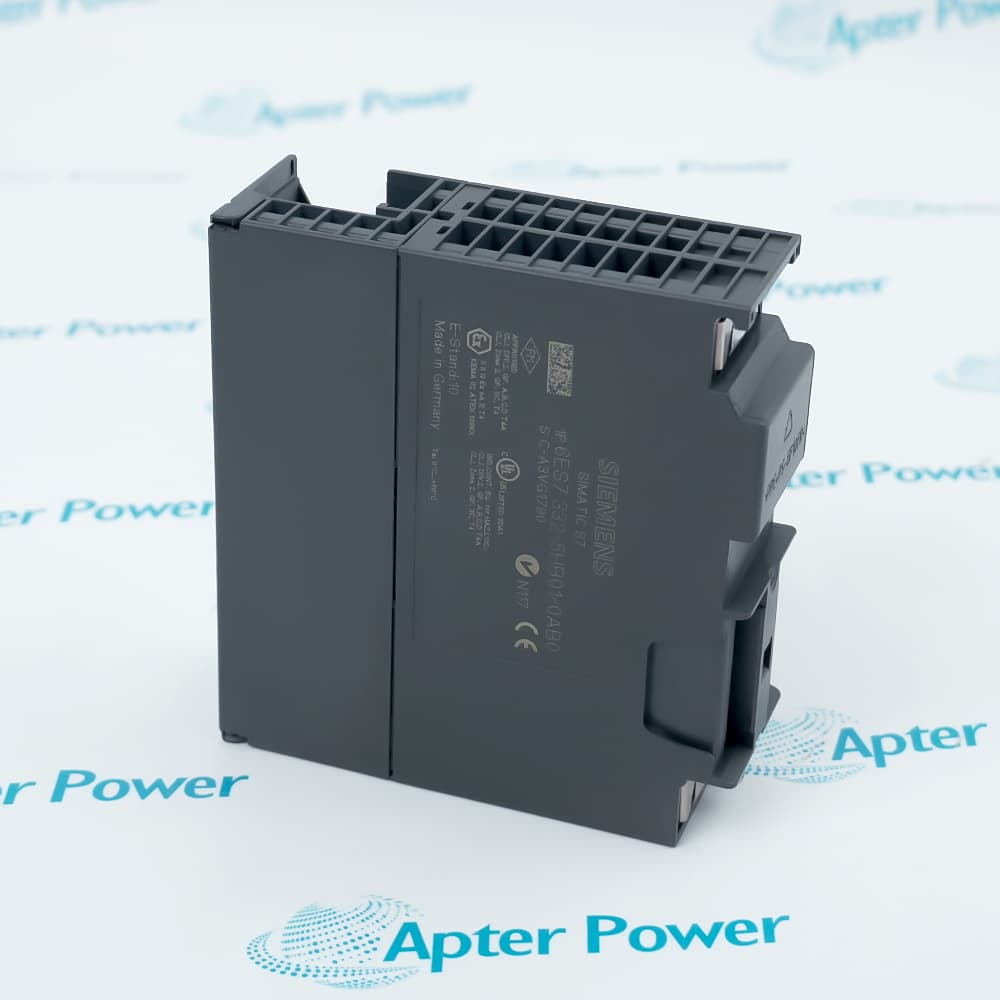

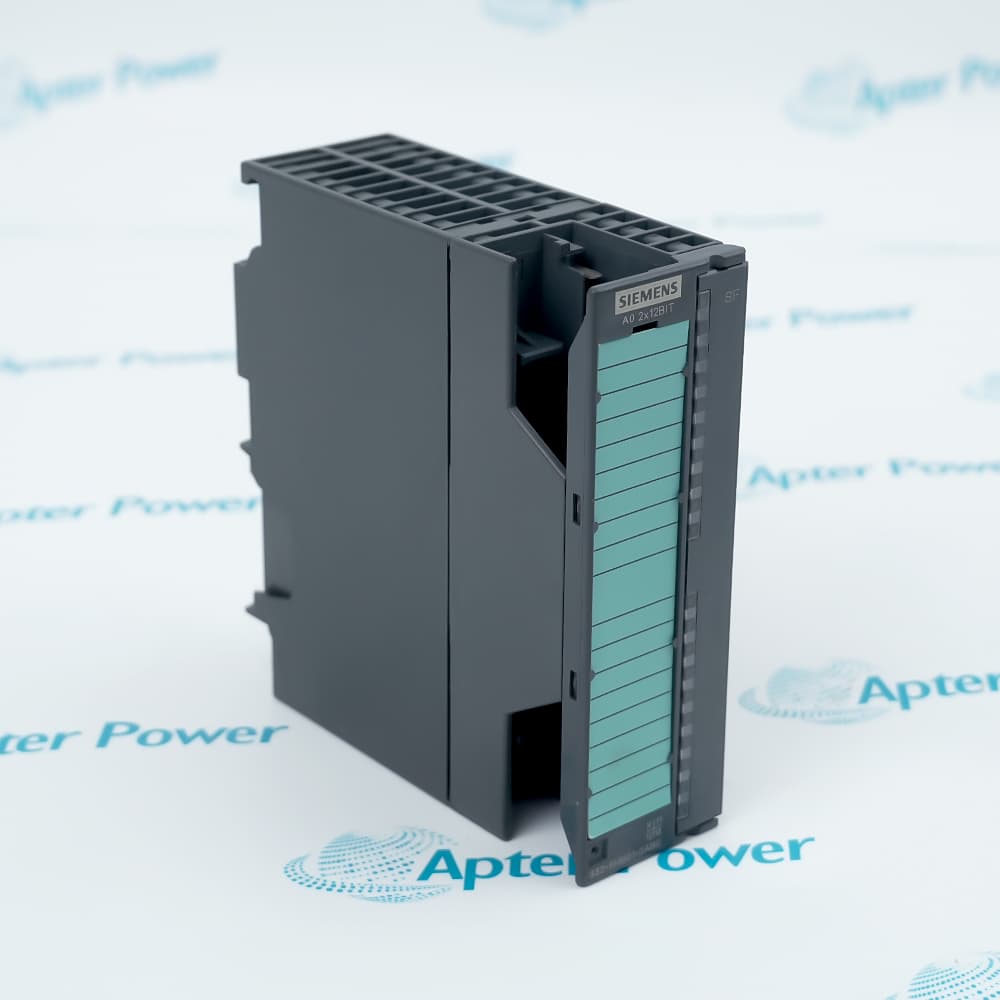

Siemens 6ES7332-5HB01-0AB0 is a SIMATIC S7-300 SM 332 analog output module with two selectable voltage/current outputs and 11/12-bit resolution.
In Stock
Ships by Sunday, October 18
Fast Shipping Available
Get a quick price for 6ES7332-5HB01-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7332-5HB01-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7332-5HB01-0AB0
  • Product Family:
    Siemens Simatic S7-300
  • Product Type:
    Analog Output Module
  • Stock:
    1
  • Module Designation:
    SM 332 AO 2 x 12-bit
  • Analog Outputs:
    2
  • Output Types:
    Voltage or current, individually selectable
  • Rated Load Voltage:
    24 V DC
  • Reverse Polarity Protection:
    Yes
  • Load-Supply Current:
    135 mA max
  • Backplane Current at 5 V DC:
    60 mA max
  • Typical Power Loss:
    3 W
  • Voltage Ranges:
    0-10 V; 1-5 V; -10-+10 V
  • Current Ranges:
    0-20 mA; 4-20 mA; -20-+20 mA
  • Resolution:
    12 bit; 11 bit + sign for bipolar, 1-5 V, and 4-20 mA
  • Product Dimensions:
    40 x 125 x 117 mm
  • Conversion Time per Channel:
    0.8 ms
  • Voltage Output Short-Circuit Protection:
    Yes
  • Short-Circuit Current:
    25 mA max
  • Current Output No-Load Voltage:
    18 V max
  • Voltage Load Resistance:
    1 kΩ min
  • Current Load Resistance:
    500 Ω max
  • Shielded Cable Length:
    200 m max
  • Front Connector:
    20-pin
  • Weight:
    0.485 lbs (0.22 kg)
  • Estimated shipping dimensions:
    13.1 x 15.2 x 5.2 cm
  • Tariff Code:
    85389091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Performance & Efficiency

Features:

  • Two Configurable Voltage or Current Outputs
  • 0.8 ms Conversion Time per Channel
  • 12-Bit Maximum Resolution
The Siemens 6ES7332-5HB01-0AB0 is the SIMATIC S7-300 SM 332 configuration with two analog output channels, a 24 V DC load supply, and a 20-pin front connector.

Each channel can be configured for the documented voltage or current ranges to provide analog setpoints for compatible drives, valves, positioners, and control loops.

Confirm the configured output ranges, load resistance, 20-pin wiring, module dimensions, and active-backplane requirements before replacement or insertion during operation.

Apter Power can provide quotations, technical documentation, sourcing support, and S7-300 system-matching guidance for this phased-out module.
Verified resources for Siemens 6ES7332-5HB01-0AB0:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Siemens 6ES7332-5HB01-0AB0 Analog Output Module Specs

General

  • ManufacturerSiemens
  • Model6ES7332-5HB01-0AB0
  • Product FamilySIMATIC S7-300 SM 332 analog output
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Generates analog setpoints for proportional valves, positioners, and other final control elements.
  • Supplies voltage or current references to variable-frequency drives and compatible industrial actuators.
  • Provides two analog control outputs for process loops in SIMATIC S7-300 automation systems.
  • Provides reverse-polarity protection for the 24 V DC load-supply connection.
  • Uses one output group isolated from the backplane bus and load voltage; the two channels are not isolated from one another.
  • Siemens lists RoHS compliance from 31 March 2008 for this order number.
  • Converts each analog output channel in 0.8 ms for responsive setpoint updates.
  • Provides up to 12-bit resolution, with 11 bits plus sign for bipolar, 1-5 V, and 4-20 mA ranges.
  • Supports voltage loads from 1 kΩ and current loads up to 500 Ω over shielded cables up to 200 m.
Description
The Siemens 6ES7332-5HB01-0AB0 is a SIMATIC S7-300 SM 332 analog output module with two channels that can be parameterized for voltage or current output. Supported ranges include 0-10 V, 1-5 V, -10 to +10 V, 0-20 mA, 4-20 mA, and -20 to +20 mA.

The module converts each channel in 0.8 ms and supports insertion or removal during operation only when an active backplane bus is installed. The voltage outputs are short-circuit protected, while current outputs provide up to 18 V no-load voltage.

The output group is electrically isolated from the backplane bus, load voltage, and electronics supply, but the two channels are not isolated from one another. Use the specified load limits of at least 1 kΩ for voltage outputs and up to 500 Ω for current outputs.

Siemens lists this order number in phase-out and identifies it as a spare part. Confirm the 20-pin wiring, configured ranges, load resistance, 40 x 125 x 117 mm module size, and active-backplane requirements before replacement.
Alternative Names
6ES7332-5HB01-0AB0 6ES73325HB010AB0 6ES7332 5HB01 0AB0 Siemens 6ES7332-5HB01-0AB0 Siemens SIMATIC S7-300 SM 332 Siemens SM 332 AO 2 x 12-bit Siemens S7-300 Two-Channel Analog Output Module Siemens Isolated SM 332 Analog Output Module
Technical notes
Siemens 6ES7332-5HB01-0AB0 requires a 20-pin front connector and shielded runs up to 200 m; load-voltage cycling can produce invalid outputs for about 500 ms.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which analog ranges does Siemens 6ES7332-5HB01-0AB0 support?
The module supports 0-10 V, 1-5 V, and -10-+10 V voltage ranges plus 0-20 mA, 4-20 mA, and -20-+20 mA current ranges.
How is Siemens 6ES7332-5HB01-0AB0 integrated into an S7-300 station?
It installs on the SIMATIC S7-300 backplane, uses a 20-pin front connector, and requires the selected voltage or current ranges to be parameterized in the hardware configuration.
What control duties suit Siemens 6ES7332-5HB01-0AB0?
Its two analog outputs provide setpoints for drives, proportional valves, positioners, and process-control loops using the selected voltage or current ranges.
What is the availability status of Siemens 6ES7332-5HB01-0AB0?
Siemens places this SM 332 order number in phase-out. Apter Power can review sourcing options and quote the exact module without presenting an OEM supply commitment.
What must be checked before replacing Siemens 6ES7332-5HB01-0AB0?
Confirm the 20-pin wiring, configured output ranges, load resistance, diagnostics, and active-backplane requirements before approving another module.
How can buyers request the Siemens 6ES7332-5HB01-0AB0 manual and a quotation?
Provide the full MLFB, output mode and range, quantity, destination, and any installed-module label photos so Apter Power can return matched documentation and pricing.
