    Apter Power delivers completely charge-verified, out-of-production transduction components to stabilize your critical turbine-monitoring topologies and shield your rotational machinery from catastrophic sensory drift and signal-routing blindouts.

CA202 144-202-000-205

/ 4.9
1001 reviews | Need a Specific Revision?
The Vibro-Meter CA202 144-202-000-205 piezoelectric accelerometer from Meggitt’s vibro-meter® product line is a high-sensitivity, heavy-duty industrial sensor designed for continuous vibration monitoring.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for CA202 144-202-000-205
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CA202 144-202-000-205

  • Manufacturer:
    Vibro-Meter
  • Part Number:
    CA202 144-202-000-205
  • Product Family:
    Vibro-Meter
  • Product Type:
    piezoelectric accelerometer
  • Stock:
    1
  • Sensitivity:
    100 pC/g
  • Frequency Response:
    0.5 to 6000 Hz
  • Operating Temperature Range:
    -55 to 260°C
  • Case Material:
    Austenitic stainless-steel
  • Case Insulation:
    Internal case insulation
  • Output Configuration:
    Differential output
  • Input power requirements:
    None
  • Signal transmission:
    2-pin system, insulated from case, charge output
  • Signal processing:
    Charge converter (IPC70x signal conditioner)
  • Weight:
    0.8 kg
  • Estimated shipping dimensions:
    16.0 cm × 16.0 cm × 12.0 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Environmental Ratings Safety & Compliance

Features:

  • Bridge Between Mechanical Vibration Sources and Industrial Monitoring Systems
  • Integrates High-Sensitivity Piezoelectric Measurement with Extreme Environmental Tolerance
  • Functions Alongside Standard Condition Monitoring and Predictive Maintenance Platforms
The Vibro-Meter CA202 144-202-000-205 piezoelectric accelerometer serves as a high-sensitivity vibration sensor in industrial monitoring applications, providing reliable vibration data to all connected acquisition systems. It continuously converts mechanical vibration energy into precise electrical charge signals (100 pC/g) across a broad frequency range (0.5 to 6000 Hz) and transmits these signals through its integral low-noise cable to support steady state operation of all monitoring and analysis modules.

The CA202 144-202-000-205 provides essential vibration sensing functions common to the entire monitoring system, and is a critical component of the machinery protection path, directly affecting the proper, normal operation of the overall condition monitoring system. One or multiple CA202 144-202-000-205 accelerometers are required per machine train depending on the desired monitoring coverage level. The CA202 144-202-000-205 occupies a compact mounting footprint on the machinery surface and is always located at the designated measurement points (bearing housings, casings, or structural positions).

For Dual Redundant Monitoring applications, the vibration monitoring system requires a second CA202 144-202-000-205 accelerometer module installed at the redundant measurement location. In addition to standard single sensor operation, the redundant configuration also performs automatic signal comparison. The CA202 144-202-000-205 dual sensor configuration executes failover using the internal circuitry specified in the monitoring system options.

The CA202 144-202-000-205 Vibro-Meter piezoelectric accelerometer may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter CA202 144-202-000-205 piezoelectric accelerometer Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Vibro-Meter CA202 144-202-000-205 piezoelectric accelerometer Specs

General

  • Manufacturer Vibro-Meter
  • Model CA202 144-202-000-205
  • Condition New Original ready stock
  • Product Family CA303 144-303-000-011,CA306 144-306-000-321
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Generation Turbines: Continuous vibration monitoring of gas and steam turbines.
  • Industrial Rotating Machinery: Diagnostics for large fans, pumps, compressors, and motors.
  • Petrochemical Equipment: Machinery protection in aggressive chemical processing plants.
  • Aerospace Flight Testing: Component monitoring in high-temperature engine test cells.
  • Heavy Manufacturing: Predictive maintenance for gearboxes and structural systems.
  • Operating Temperature: Main sensor operates from −55 °C to +260 °C.
  • Cable Temperature: Integrated cable withstands temperatures up to +200 °C.
  • Housing Material: Austenitic stainless steel (grade 1.4441) case material.
  • Enclosure Sealing: Hermetically welded construction with IP67 protection rating.
  • Mechanical Protection: Low-noise cable enclosed in a flexible stainless steel hose.
  • Hazardous Areas: Certified for use in potentially explosive atmospheres.
  • Ex Certifications: Complies with ATEX and IECEx intrinsic safety standards.
  • EMC Compliance: Meets EN 61000-6-2 and EN 61000-6-4 for electromagnetic resistance.
  • Global Standards: Carries CE marking, EAC conformity, and RoHS environmental directives.
Description

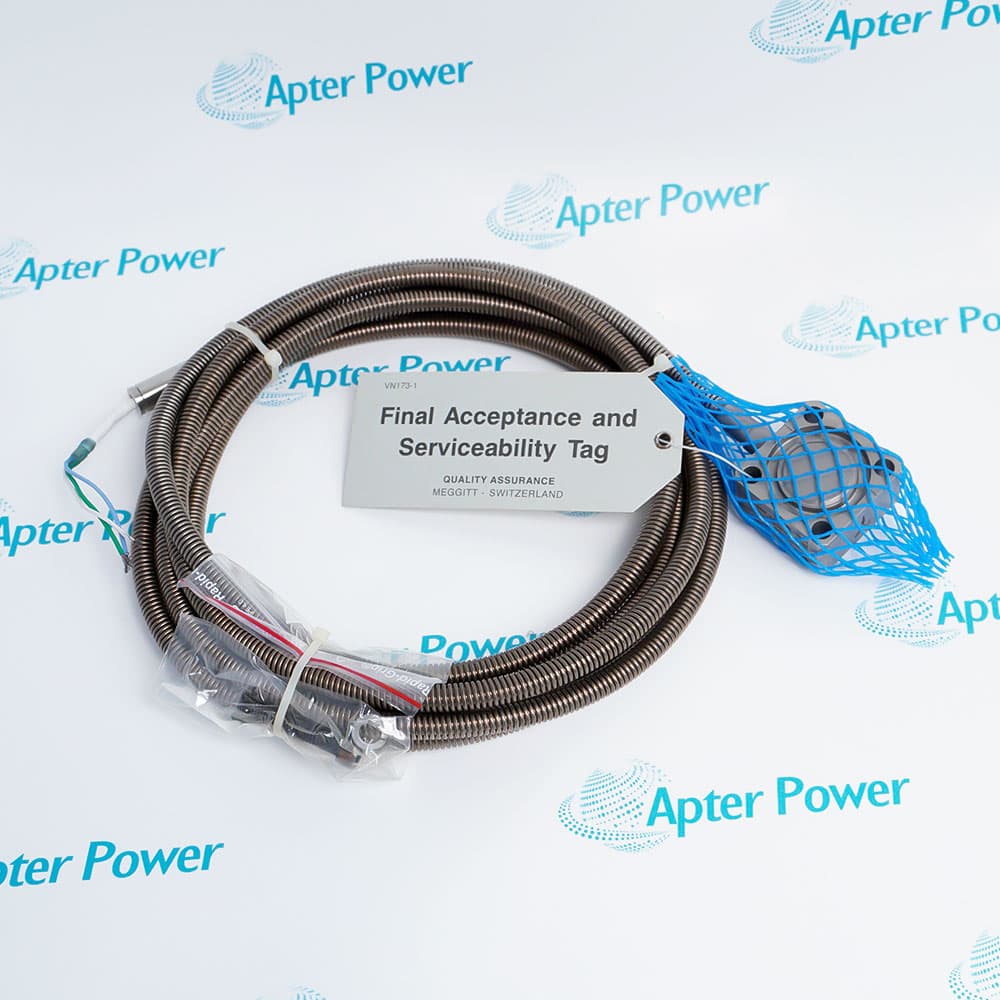

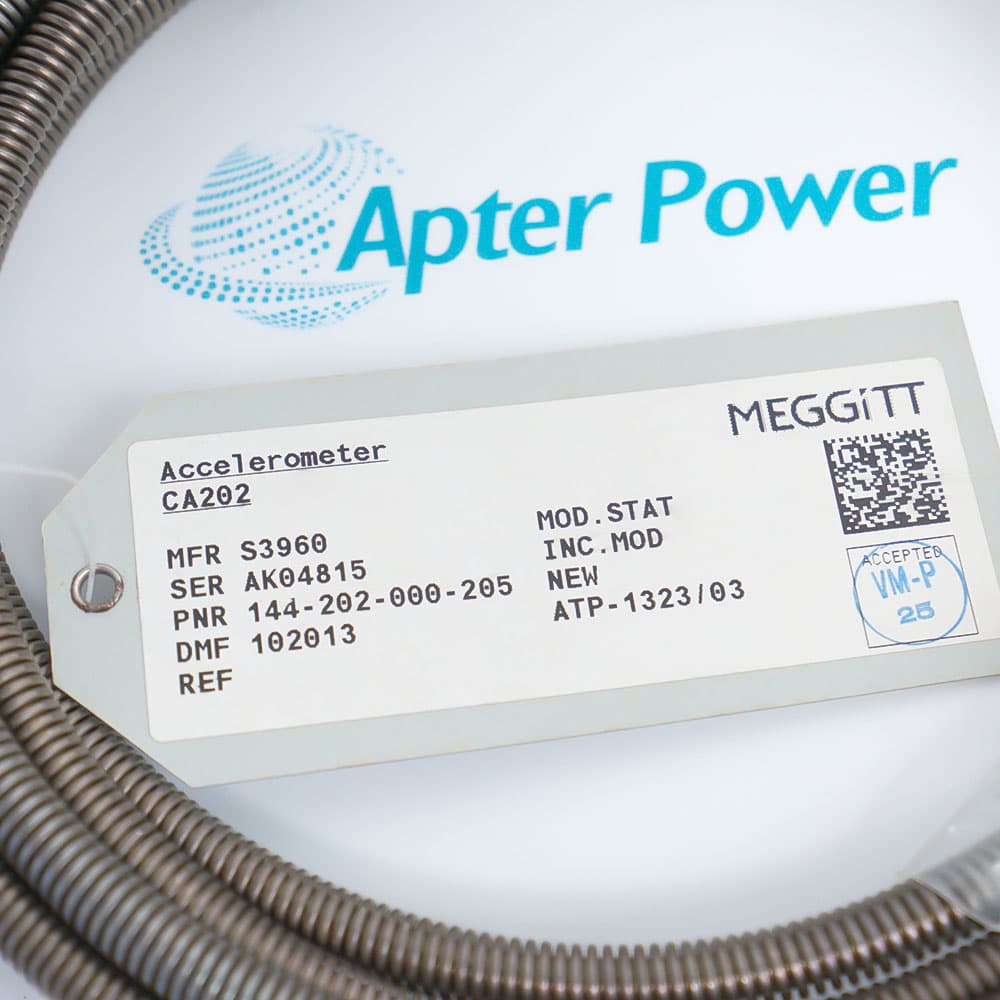

The Vibro-Meter CA202 144-202-000-205 is a piezoelectric accelerometer from Meggitt's vibro-meter® product line. The CA202 144-202-000-205 features a symmetrical shear-mode polycrystalline measuring element with internal case insulation, housed in an austenitic stainless-steel case. The CA202 144-202-000-205 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection hose, which is hermetically welded to the sensor to produce a sealed leaktight assembly.

The CA202 144-202-000-205 is designed for heavy-duty industrial vibration monitoring and measurement, specifically engineered to handle extreme temperature fluctuations and harsh environmental conditions that would compromise standard sensors. The CA202 144-202-000-205 solves the critical challenge of obtaining reliable vibration data in high-temperature industrial processes where conventional accelerometers fail, ensuring continuous machinery health assessment without signal degradation.

The CA202 144-202-000-205 offers high sensitivity of 100 pC/g with a frequency response range from 0.5 to 6000 Hz and an operating temperature range of -55 to 260°C. The CA202 144-202-000-205 is available in both standard versions for non-hazardous areas and Ex versions certified for use in potentially explosive atmospheres, making the CA202 144-202-000-205 suitable for diverse industrial environments.

The CA202 144-202-000-205 is primarily applied in industrial vibration monitoring systems, particularly in hazardous areas with potentially explosive atmospheres and harsh industrial environments. The CA202 144-202-000-205 serves critical applications in power generation turbines, petrochemical processing equipment, heavy-duty rotating machinery, and high-temperature industrial furnaces where precise vibration measurement is essential for predictive maintenance.

Alternative Names
CA202 144-202-000-205 CA2O2 144-202-000-205 CA2O2 144-2O2-OOO-2O5 144-202-000-215 144-202-000-115 144-202-000-126 144-202-000-125
Technical notes
The CA202 144-202-000-205 model features high sensitivity of 100 pC/g and a wide frequency response of 0.5 to 6000 Hz, enabling the acquisition of accurate dynamic data. Designed for extreme environments, the CA202 144-202-000-205 operates reliably over a wide temperature range of -55 to 260°C.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What sensing technology is used in the CA202 144-202-000-205?
The CA202 144-202-000-205 uses a symmetrical shear-mode polycrystalline piezoelectric sensing element. This design provides excellent stability and sensitivity while reducing the influence of base strain and thermal variations, making it suitable for demanding industrial vibration measurements.
Why does the CA202 144-202-000-205 feature a differential output?
The differential output design improves signal integrity by minimizing the effects of electromagnetic interference and electrical noise. This allows the sensor to deliver more accurate vibration measurements, especially in industrial facilities where large motors, drives, and electrical equipment generate significant interference.
How does the CA202 144-202-000-205 protect against harsh environmental conditions?
The sensor incorporates a hermetically welded stainless-steel housing and a leak-tight cable protection system. This sealed construction prevents moisture, dust, oil, and other contaminants from entering the sensor, helping maintain long-term measurement reliability in challenging industrial environments.
What role does the internal case insulation play in the CA202 144-202-000-205?
Internal case insulation isolates the sensing element from unwanted electrical paths, reducing the risk of ground loop interference. This feature helps maintain signal accuracy and minimizes measurement errors that can occur in complex industrial installations.
Why is the CA202 144-202-000-205 suitable for high-temperature applications?
The accelerometer is built with heat-resistant materials and a stainless-steel protective hose that can withstand elevated temperatures. These design features allow it to operate reliably near turbines, boilers, compressors, and other equipment exposed to significant thermal stress.
