8237-1246

/ 4.9
1001 reviews | Need a Specific Revision?

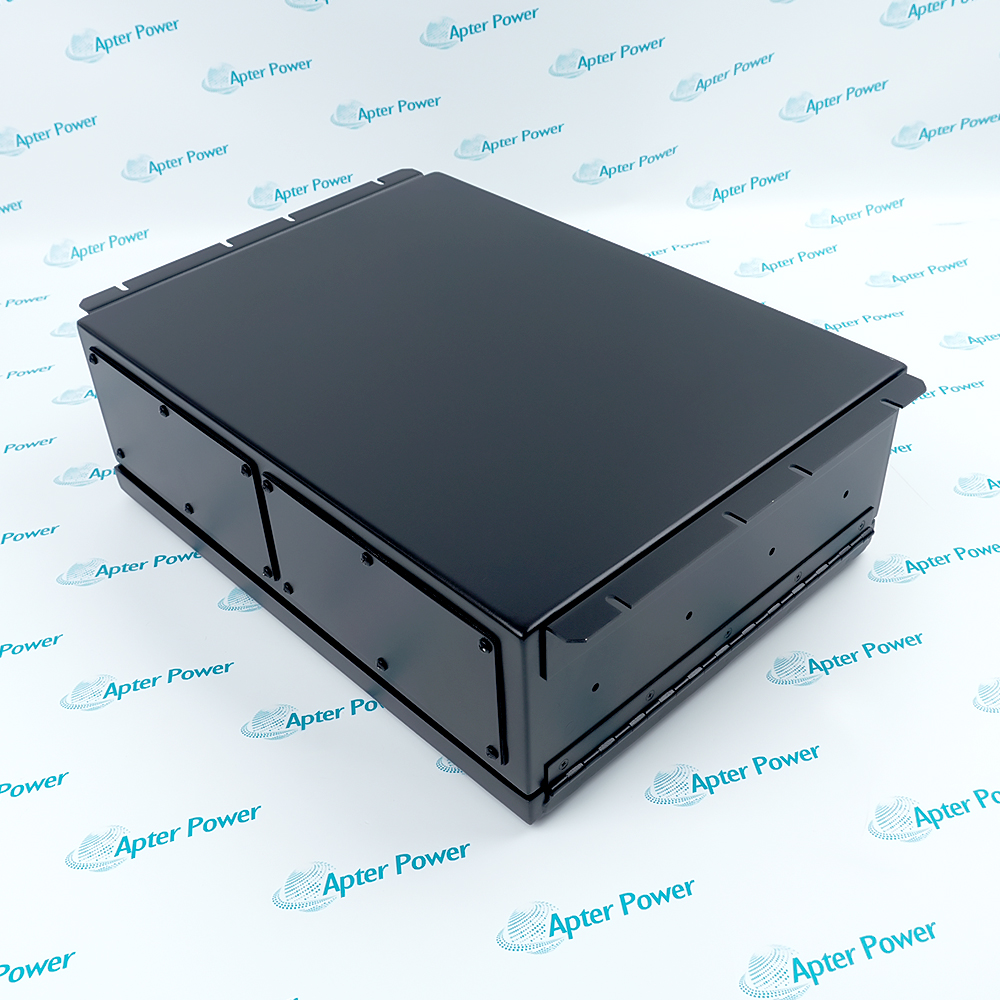

Woodward 8237-1246 is a bulkhead-mount ProTech-GII overspeed protection control with three independent speed channels and voted trip relays.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 8237-1246
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

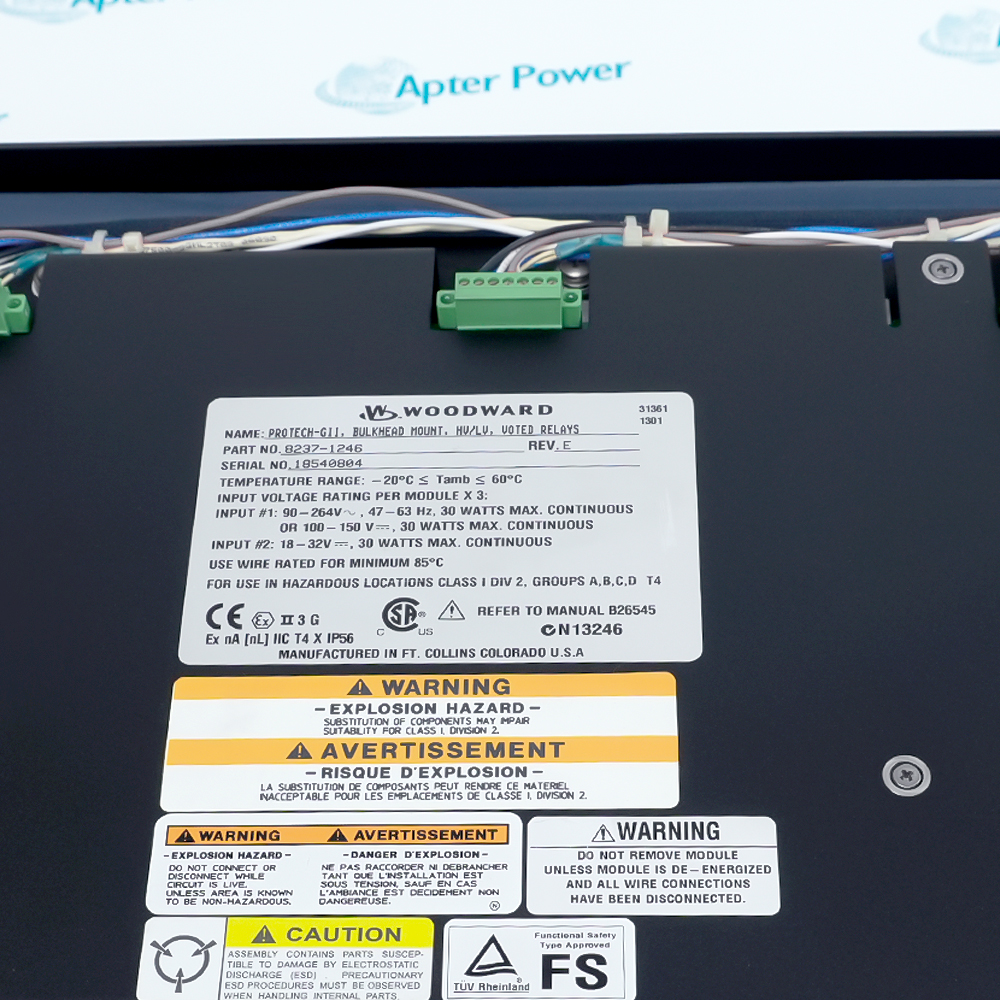

Technical specifications for 8237-1246

  • Manufacturer:
    Woodward
  • Part Number:
    8237-1246
  • Product Family:
    Woodward ProTech-GII
  • Product Type:
    ProTech-GII Overspeed Protection Control
  • Stock:
    1
  • Control Series:
    ProTech-GII
  • Mounting:
    Bulkhead mount
  • Architecture:
    Triple modular redundant
  • Voting Logic:
    Two-out-of-three
  • Speed Inputs:
    Three
  • Alarm Outputs:
    Three
  • Analog Speed Outputs:
    Three
  • Speed Range:
    0.5 to 32,000 rpm
  • System Response:
    12 ms
  • Relay Execution:
    HV/LV voted relays
  • Enclosure Rating:
    IP56
  • Operating Temperature:
    -20 to +60 °C
  • Weight:
    12 kg
  • Estimated shipping dimensions:
    33x44.5x15.9cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Trip Logic Cabinet Fit Service Guidance Product Applications

Features:

  • Protection architecture: three independent speed channels support two-out-of-three overspeed voting
  • Installed execution: bulkhead mounting and HV/LV voted relays define the cabinet interface
  • Service visibility: separate channel indications support focused diagnosis without losing the voted system view
The ProTech-GII architecture combines three independent measurement paths with a single voted protection objective for rotating equipment.

Bulkhead dimensions, supply requirements and relay-terminal assignments are central when the control must fit an established trip cabinet.

Channel records and shutdown wiring also give engineers the context needed to investigate disagreement without treating one indication as the whole system.

Apter Power provides the 15-page technical extract, exact-model quotation and protection-system support for Woodward 8237-1246.
Woodward 8237-1246 ProTech-GII Overspeed Protection Control Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software and related items are not included unless identified in the stock item description.
  • Independent channels: three speed-sensing paths maintain separate measurements and status information
  • Voted decision: two-out-of-three agreement drives the shared overspeed trip result
  • Channel review: a disagreeing input can be investigated against the other channels and configured trip values
  • Trip interface: voted relay contacts connect the protection decision to the external shutdown circuit
  • Mounting format: the selected part number uses the documented bulkhead-mount arrangement
  • Relay execution: HV/LV voted relays are part of the exact cabinet identity
  • Power and wiring: supply requirements and terminal assignments should agree with the installed drawings
  • Mechanical review: bulkhead opening, depth and service access belong in the outage plan
  • Speed disagreement: compare channel values, sensor wiring, configuration and diagnostic indications
  • Trip-path review: relate voted output status to relay wiring and the turbine shutdown sequence
  • Exchange planning: retain setpoint, wiring and cabinet records before removing the installed control
  • Documentation support: use the condensed official extract alongside the site-specific protection record
  • Steam turbines: independent overspeed protection where a voted trip path is required
  • Gas turbines: bulkhead-mounted protective control integrated with the shutdown chain
  • Compressor trains: speed-based protective service for critical rotating equipment
  • Installed-base maintenance: exact-model support for established ProTech-GII cabinets and planned outages
Description
Built for independent machinery overspeed protection, 8237-1246 is the Woodward ProTech-GII bulkhead-mount execution with three separate speed-sensing channels and voted trip relays. The architecture gives operators channel-level status while the protective decision remains based on two-out-of-three agreement.

During cabinet planning, 8237-1246 should be matched by its complete part number, HV/LV voted-relay execution, supply requirements, bulkhead dimensions and field wiring. This prevents a family-level match from overlooking the interface used by the installed turbine-protection system.

For maintenance or modernization work, Apter Power can support 8237-1246 with the 15-page technical extract, exact-model quotation, documentation review and comparison of customer-supplied cabinet records. This gives procurement and engineering teams one coordinated route from identity confirmation to delivery planning.
Alternative Names
82371246 8237 1246 8237/1246 Woodward 8237-1246 ProTech GII 8237-1246 ProTech-GII 8237-1246 8237-I246 8237-124G
Technical notes
For 8237-1246, the three speed inputs and voted trip outputs should be reviewed as one protection path. Channel status, configured trip values, relay wiring and the turbine shutdown interface provide the most useful context when investigating a disagreement or planning an exchange. Apter Power can help align these records with the exact bulkhead-mount execution and available documentation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What protection role does 8237-1246 perform in a turbine system?
It provides an independent overspeed-protection layer using three speed channels and voted trip relays, separate from the normal turbine control path.
How does 8237-1246 respond when one speed channel disagrees?
Two-out-of-three voting lets the remaining agreement support the protective decision while the individual channel indications help the maintenance team focus its investigation.
Which installation details should be checked before replacing 8237-1246?
Compare the complete part number, bulkhead mounting, supply arrangement, HV/LV voted-relay wiring, speed inputs and cabinet clearances.
What should be reviewed if one channel on 8237-1246 reports a different speed?
Compare the three channel readings, sensor wiring, input configuration and channel diagnostics so the symptom can be separated from a majority overspeed event.
How should the trip output from 8237-1246 be matched to an existing shutdown circuit?
Use the cabinet drawings and relay-terminal records to confirm how the voted relay contacts interface with the turbine trip chain before planning the exchange.
Which records help validate 8237-1246 before an outage?
The installed nameplate, cabinet photographs, speed-sensor details, supply information, trip setpoints and relay wiring schedule provide a practical review package.
Can 8237-1246 be supported as an exact installed-base spare?
Yes. Apter Power can organize exact-model sourcing and document review around the existing bulkhead execution without presenting a related ProTech-GII unit as an automatic substitute.
What should accompany a quotation request for 8237-1246?
Share the required quantity, destination, nameplate photographs, relay and supply details, cabinet arrangement and documentation needs for a focused commercial response.
