1761-NET-DNI

/ 4.9
1001 reviews | Need a Specific Revision?

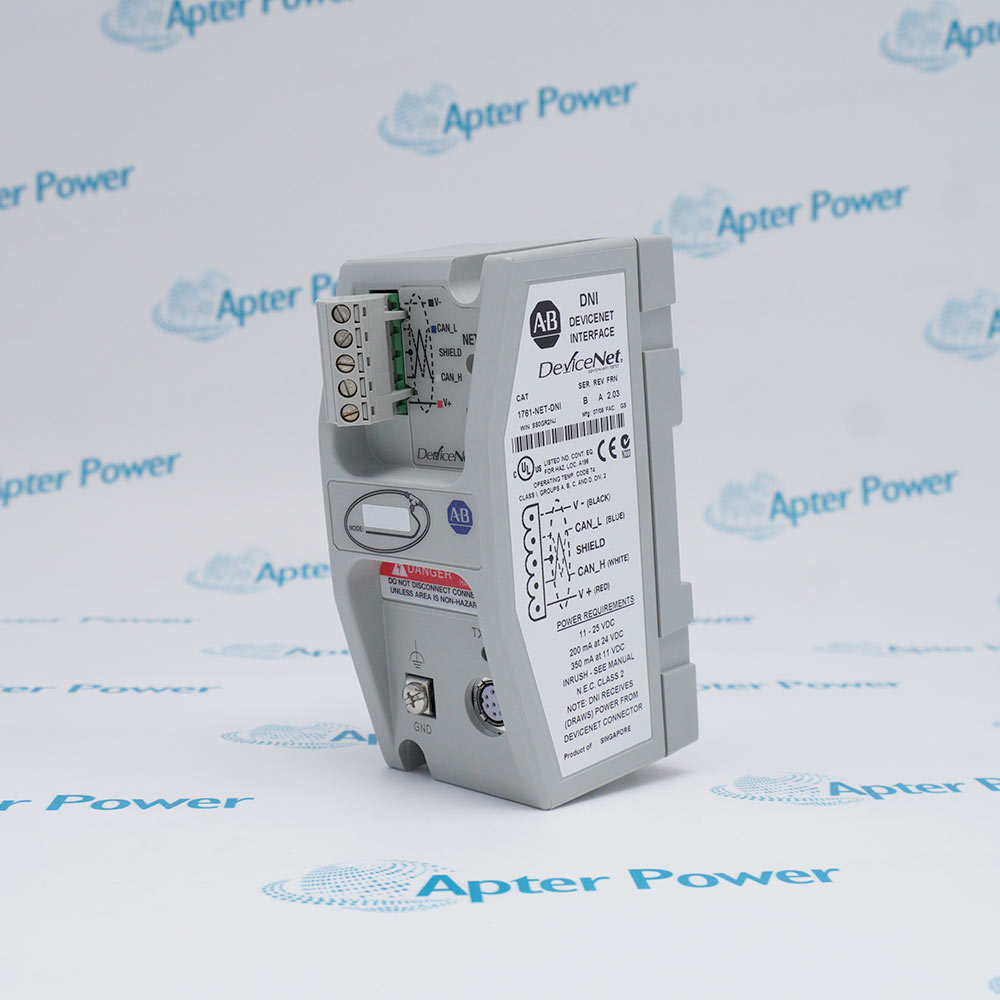

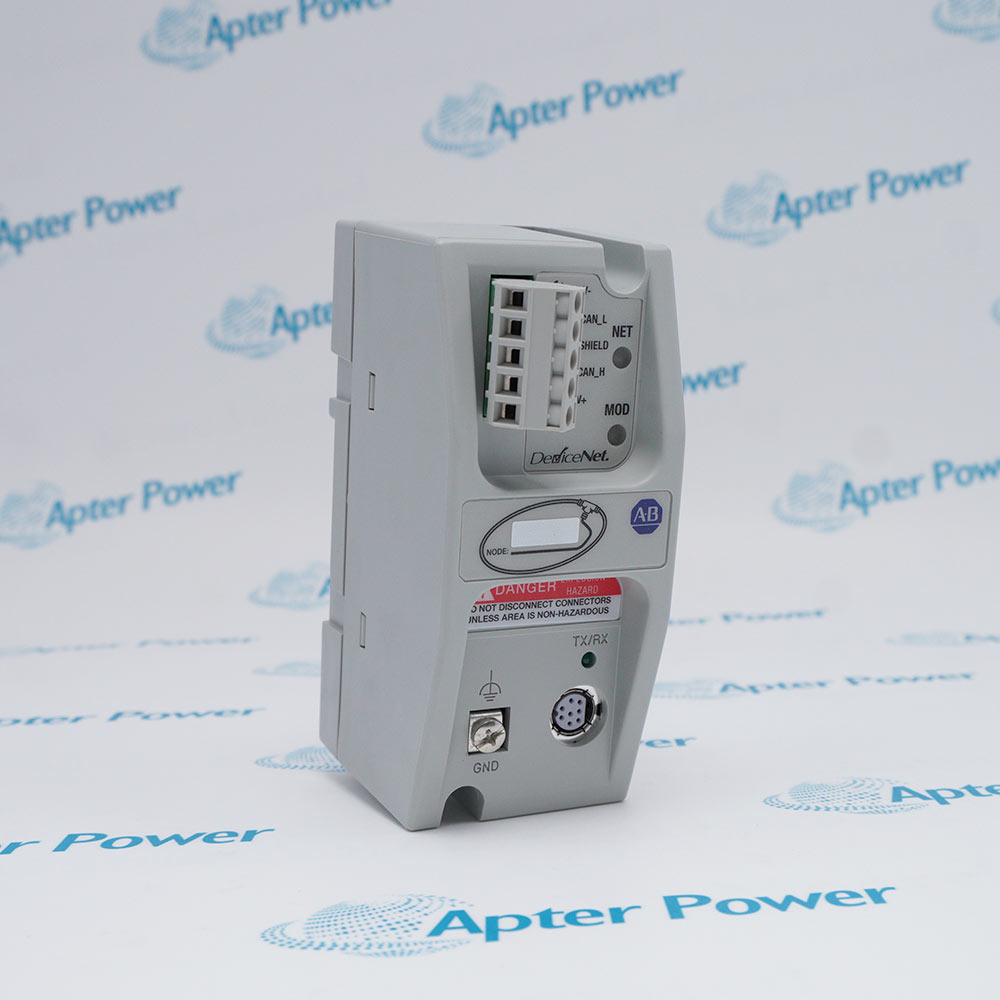

Allen-Bradley 1761-NET-DNI is a DeviceNet interface module that links DF1 serial controllers and devices to a DeviceNet network.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1761-NET-DNI
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1761-NET-DNI

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1761-NET-DNI
  • Product Family:
    MicroLogix
  • Product Type:
    DeviceNet Interface Module
  • Stock:
    1
  • DeviceNet Port:
    Port 1
  • Serial Port:
    Port 2, 8-pin mini-DIN RS-232
  • Supported Serial Protocol:
    DF1
  • Default DeviceNet Node Address:
    63
  • DeviceNet Baud Rates:
    125, 250, and 500 kbit/s
  • Supply Voltage:
    11 to 25 V DC
  • Current Draw:
    200 mA at 24 V DC; 350 mA at 11 V DC
  • Maximum Inrush Current:
    400 mA for 30 ms at 24 V DC
  • Internal Isolation:
    500 V DC
  • Operating Temperature:
    0°C to 60°C
  • Storage Temperature:
    -40°C to 85°C
  • Mounting Orientation:
    Vertical or horizontal
  • Mounting:
    DIN rail or panel
  • Dimensions:
    5.21 × 6.48 × 11.8 cm
  • Weight:
    0.2 kg
  • Tariff Code:
    8517623790
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals DeviceNet Messaging Series Setup Application
  • Connects a DF1 serial device to DeviceNet
  • Provides DeviceNet and 8-pin mini-DIN RS-232 ports
  • Supports peer messaging and selected DeviceNet slave I/O

1761-NET-DNI is an Allen-Bradley DeviceNet interface module designed for compatible DF1 serial controllers and devices.

It translates communication between the DeviceNet network and its RS-232 port, supporting peer messaging, explicit messages, and selected slave I/O exchanges.

Before installation or replacement, verify the module series, EDS file, node address, baud behavior, DF1 settings, supply voltage, wiring, and scanner configuration.

Availability, condition, price, and shipping time for 1761-NET-DNI are confirmed during quotation.

Allen-Bradley 1761-NET-DNI DeviceNet Interface Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Supported network rates are 125, 250, and 500 kbit/s
  • The module supports DeviceNet autobaud
  • The default DeviceNet node address is 63
  • Peer-to-peer messaging is supported with other controllers and DNI modules
  • UCMM and explicit I/O assembly messaging are supported
  • The module does not operate as a DeviceNet master or scanner
  • Series A and Series B use different EDS support requirements
  • Series B uses the 1761DNI3.EDS profile
  • Confirm the installed RSNetWorx version before configuring Series B
  • Connecting MicroLogix controllers to DeviceNet
  • Peer-to-peer messaging between DF1 controllers over DeviceNet
  • DeviceNet slave I/O using bit-strobe or change-of-state exchanges
Description
1761-NET-DNI is an Allen-Bradley DeviceNet interface module for MicroLogix and other compatible DF1 serial devices.

It provides a DeviceNet port and an 8-pin mini-DIN RS-232 port, supports peer-to-peer and explicit messaging, and can operate as a DeviceNet slave with bit-strobe or change-of-state I/O.

Before installation or replacement, confirm the complete catalog number, Series A or B hardware, correct EDS file, DeviceNet node and baud settings, DF1 parameters, power, cable, and mounting orientation.
Revisions

Revision Part #

Also known as

1761-NET-DNI Ser A
1761-NET-DNI/A, Series A, Rev A
1761-NET-DNI Ser B
1761-NET-DNI/B, Series B, Rev B
Alternative Names
1761-NET-DNI Allen-Bradley 1761-NET-DNI Rockwell Automation 1761-NET-DNI AB 1761-NET-DNI A-B 1761-NET-DNI MicroLogix 1761-NET-DNI DeviceNet 1761-NET-DNI
Technical notes
1761-NET-DNI installation or replacement requires confirming the hardware series, compatible EDS file, DeviceNet node address and baud rate, DF1 settings, network power, and wiring; mismatched configuration can block communication.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 1761-NET-DNI make a DF1 serial controller available on DeviceNet?
Yes. The module bridges its 8-pin mini-DIN RS-232 DF1 port to DeviceNet for compatible controllers and serial devices.
Are Series A and Series B versions of 1761-NET-DNI configured with the same EDS file?
No. Series B requires the 1761DNI3.EDS profile and compatible RSNetWorx support; confirm the hardware series before loading or replacing the EDS file.
Can 1761-NET-DNI operate as a DeviceNet scanner?
No. The official specification identifies it as an I/O slave and states that master or scanner operation is not supported.
Which DeviceNet I/O methods are available on 1761-NET-DNI?
The module supports bit-strobe and change-of-state slave operation, while polled slave operation is not supported; match the scanner configuration accordingly.
What must be saved before replacing 1761-NET-DNI?
Record the DeviceNet node address and baud behavior, DF1 serial parameters, configured I/O assemblies, EDS profile, wiring, and the connected controller arrangement.
Is 1761-NET-DNI interchangeable with 1761-NET-AIC?
No. The 1761-NET-DNI connects compatible DF1 devices to DeviceNet, while the 1761-NET-AIC provides RS-232-to-DH-485 interface conversion. Select the module according to the required network.
Why might a new 1761-NET-DNI remain offline after wiring?
Check the series-specific EDS file, node-address conflict, DeviceNet baud rate, 11–25 V DC supply, trunk and drop wiring, DF1 settings, and scanner configuration.
