2711P-RDT7CM

/ 4.9
1001 reviews | Need a Specific Revision?

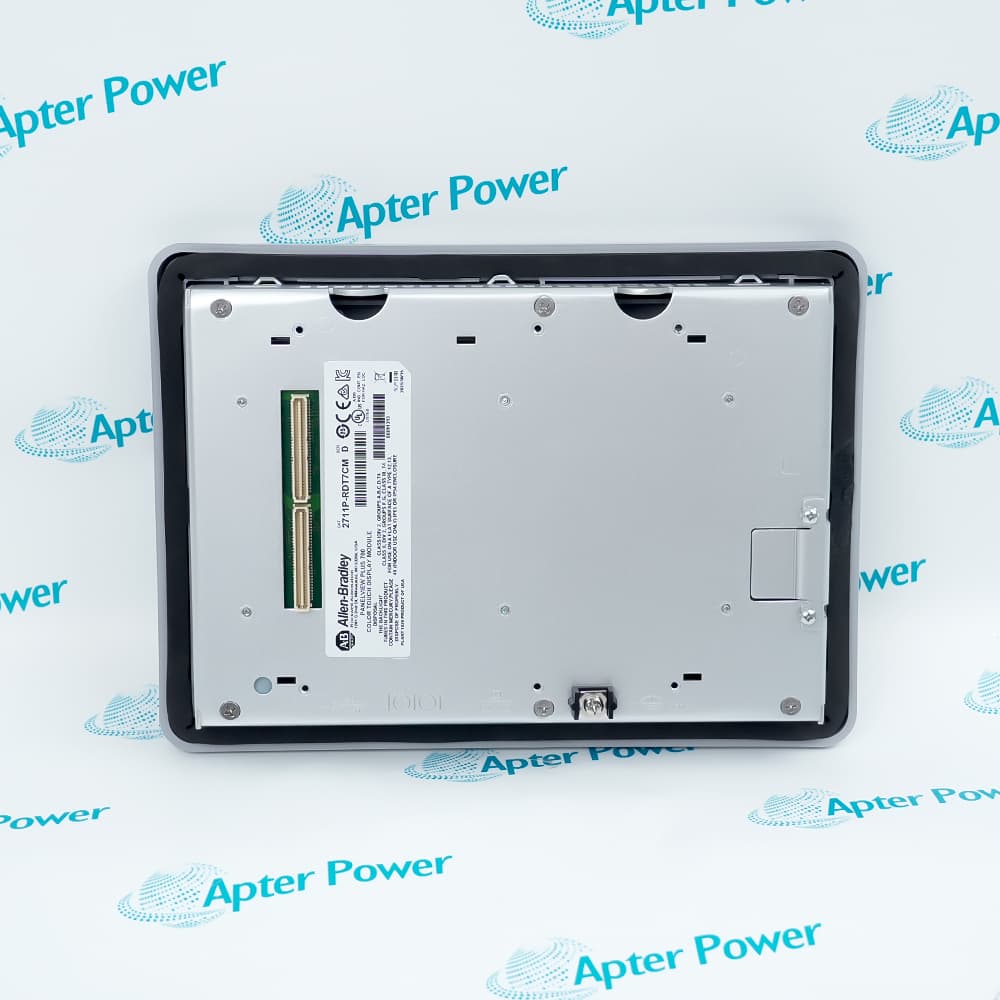

Allen-Bradley 2711P-RDT7CM is a marine-certified PanelView Plus 6 display module with a 6.5-inch color TFT screen and resistive touch input.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 2711P-RDT7CM
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 2711P-RDT7CM

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    2711P-RDT7CM
  • Product Family:
    Panelview Plus
  • Product Type:
    PanelView Plus 6 6.5-inch Color Marine Display Module
  • Stock:
    1
  • Product Series:
    PanelView Plus 6
  • Display Size:
    6.5 in.
  • Display Type:
    Color TFT LCD
  • Resolution:
    640 × 480 pixels
  • Display Area:
    132 × 99 mm
  • Luminance:
    300 cd/m²
  • Touchscreen:
    Analog resistive
  • Touchscreen Life:
    1 million presses
  • Touch Actuation Force:
    10 g
  • Backlight:
    CCFL
  • Backlight Life:
    50,000 h
  • Front Enclosure Rating:
    NEMA Type 12, 13, and 4X indoor; IP54/IP65
  • Operating Temperature:
    0...55 °C
  • Storage Temperature:
    -25...70 °C
  • Relative Humidity:
    5...95%, noncondensing
  • Panel Cutout:
    220 × 154 mm
  • Dimensions:
    24.6 × 17.9 × 5.5 cm
  • Weight:
    1.7 kg
  • Tariff Code:
    8402900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Touchscreen Enclosure Maintenance Application

Features:

  • Marine-certified PanelView Plus 6 display-module configuration
  • 6.5-inch color TFT interface with analog resistive touch input
  • Designed to attach to the compatible PanelView Plus 6 logic-module hardware
2711P-RDT7CM provides the operator-interface display and touch surface for a compatible PanelView Plus 6 terminal assembly.

Replacement planning must distinguish the display module from the rear logic module and preserve the terminal application before hardware is separated.

Confirm the complete terminal configuration, marine requirement, cutout, gasket, rear connector, logic-module generation, and application compatibility before installation.

Availability, condition, price, and shipping time for 2711P-RDT7CM are confirmed during quotation.

Allen-Bradley 2711P-RDT7CM PanelView Plus 6 Display Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Operate the touchscreen with a finger, gloved finger, or plastic stylus with a minimum tip radius of 1.3 mm (0.051 in.).
  • Double-tap sensitivity for both tap speed and physical distance can be adjusted in the terminal input settings.
  • Disconnect power before cleaning, then use a clean sponge or soft cloth with mild soap or detergent.
  • Make sure the terminal sealing gasket is correctly positioned before placing the assembly in the panel cutout.
  • The gasket forms a compression-type seal; do not apply additional sealing compounds.
  • Tighten the mounting-clip screws by hand until the gasket contacts the mounting surface uniformly.
  • Back up the terminal application before separating the display and logic modules
  • Inspect the rear connector and sealing gasket during replacement
  • Verify runtime and firmware support before restoring the saved application
  • Marine operator-interface installations requiring the documented display configuration
  • Machine visualization using a compatible PanelView Plus 6 logic module
  • Panel-mounted touch operation where the documented front enclosure rating is required
Description
Allen-Bradley 2711P-RDT7CM is a marine-certified PanelView Plus 6 display module with a 6.5-inch color TFT screen and analog resistive touchscreen.

The display provides 640 × 480 resolution, a 132 × 99 mm viewing area, 300 cd/m² brightness, and a documented touchscreen operating life of one million presses. Its front enclosure supports the applicable NEMA and IP ratings specified by Rockwell Automation.

Before replacement, confirm the complete catalog number, compatible PanelView Plus logic module, hardware generation, display connector, touchscreen interface, panel cutout, mounting hardware, enclosure rating, and application backup.
Alternative Names
2711P-RDT7CM 2711PRDT7CM 2711P RDT7CM Allen-Bradley 2711P-RDT7CM Allen Bradley 2711P-RDT7CM Rockwell Automation 2711P-RDT7CM PanelView Plus 6 2711P-RDT7CM 2711P-RDT7CM Marine Display Module
Technical notes
2711P-RDT7CM is the display module, not a complete terminal. Preserve the application backup and verify the attached logic module, hardware generation, marine requirement, cutout, gasket, and display connector before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is Allen-Bradley 2711P-RDT7CM a complete PanelView Plus 6 terminal?
No. 2711P-RDT7CM is the display module. Confirm that the existing logic module, power arrangement, and rear-module connection are compatible before ordering it as a replacement.
Can Allen-Bradley 2711P-RDT7CM replace another 6.5-inch PanelView display?
Not by screen size alone. Match the complete catalog number, terminal generation, logic module, marine requirement, cutout, connector arrangement, and application runtime before replacement.
What should be checked if the touchscreen on Allen-Bradley 2711P-RDT7CM is inaccurate?
Inspect the overlay for damage or contamination, verify touchscreen calibration, and confirm that the fault is in the display module rather than the attached logic module or application.
Which rear hardware must be verified for Allen-Bradley 2711P-RDT7CM?
Verify the PanelView Plus 6 logic module attached to the display, its connector condition, hardware generation, communication options, and firmware support for the stored application.
Is a firmware update required when replacing a CCFL 2711P-RDT7CM with an LED display module?

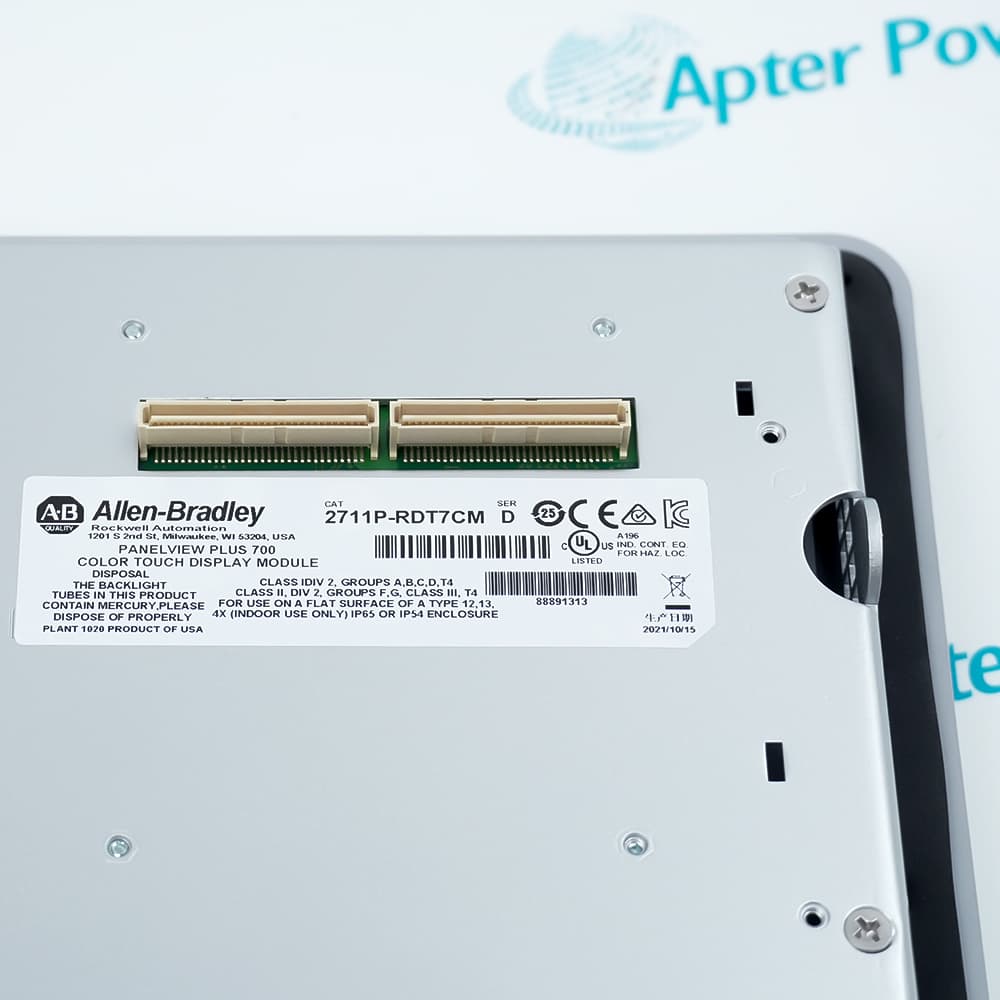

Yes. Rockwell Automation states that replacing a 7-inch CCFL display with an LED display module requires a terminal firmware upgrade. Check the series letter on the back of the display before replacement; Series D identifies the LED version, while Series C or earlier identifies the CCFL version of 2711P-RDT7CM.
What should be backed up before replacing Allen-Bradley 2711P-RDT7CM?
Back up the terminal application and record the runtime version, communication settings, network addresses, security configuration, and the complete terminal catalog information before disassembly.
Does the marine certification of Allen-Bradley 2711P-RDT7CM cover the complete terminal assembly?
Not by itself. The 2711P-RDT7CM is a marine-certified display component. Verify that the attached logic module and any communication module are suitable for the required marine configuration, and confirm any classification requirements that apply to the complete control system.
