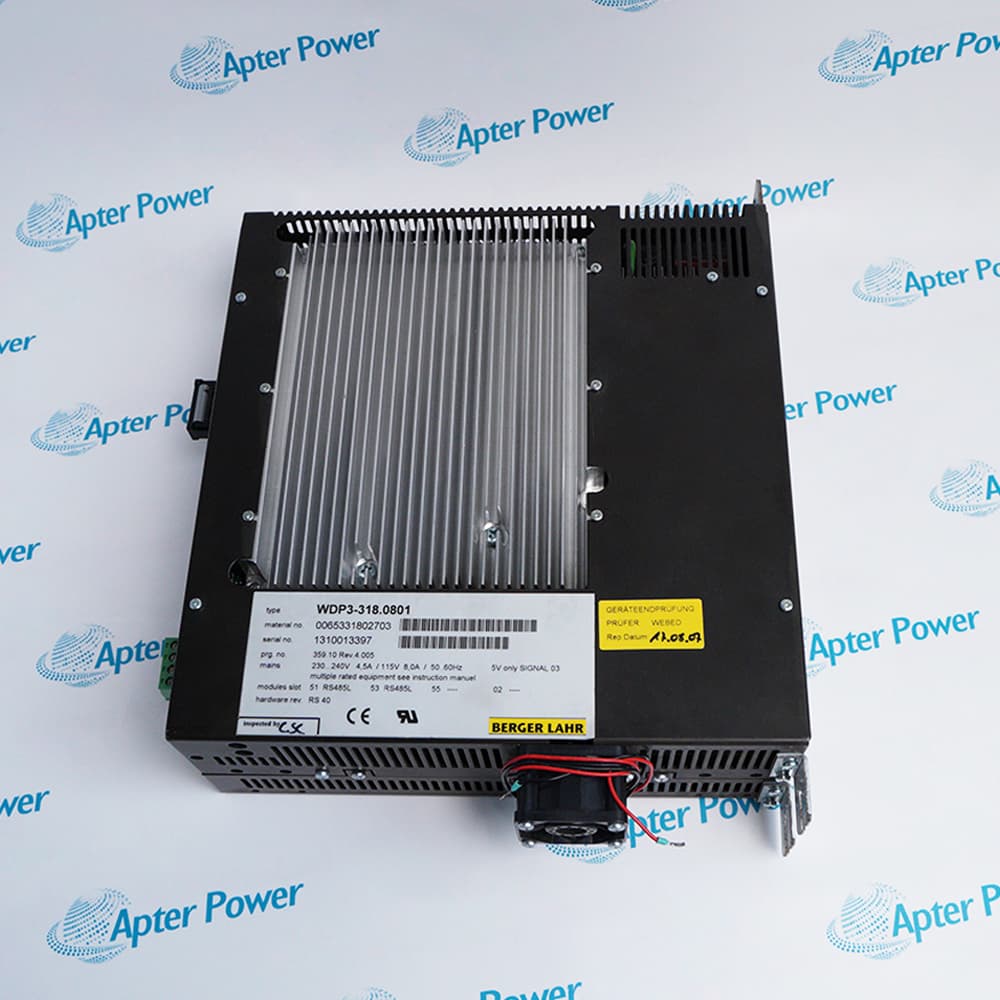

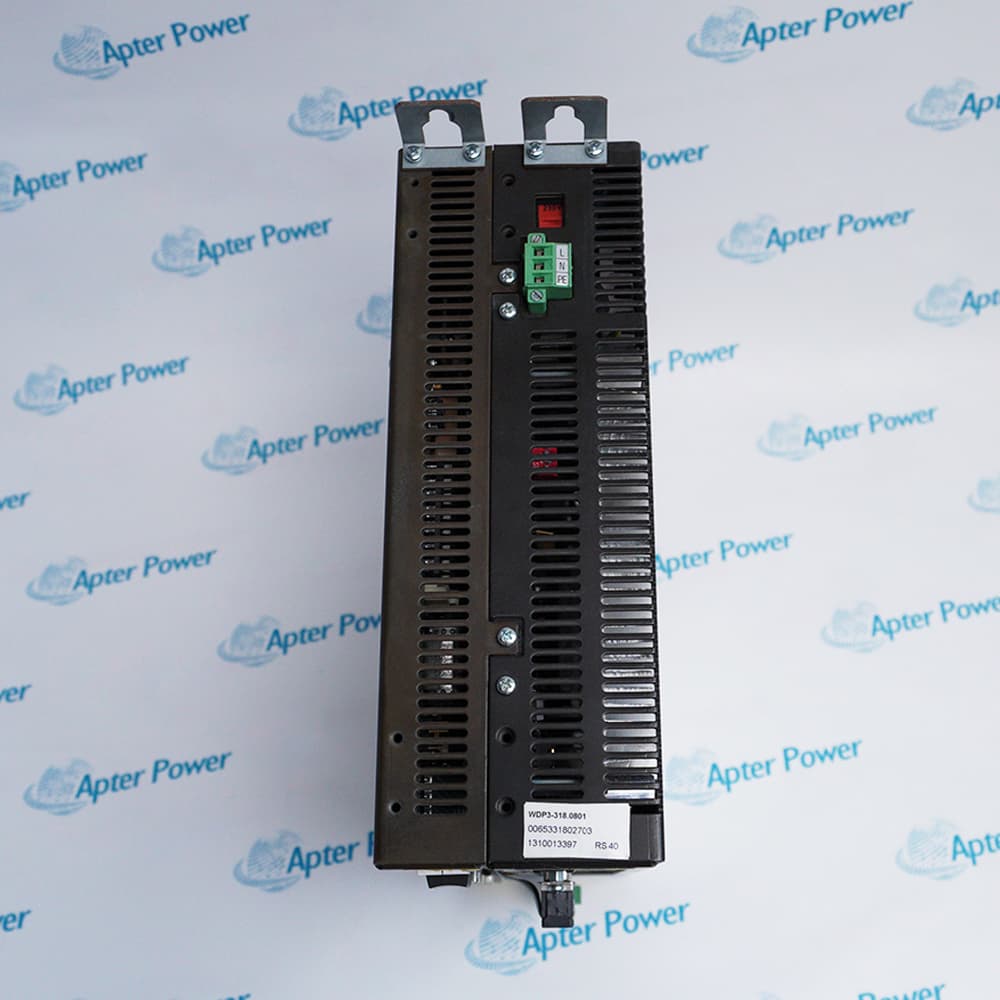

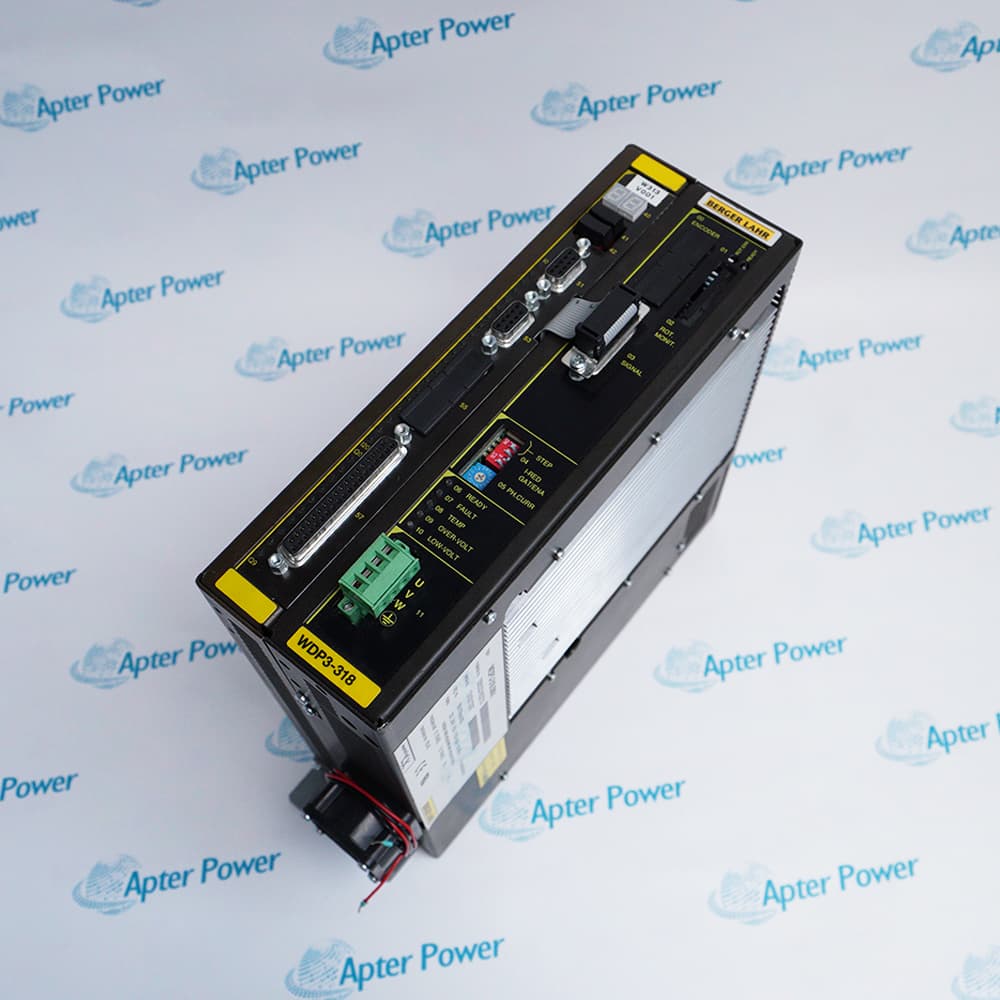

The Berger Lahr WDP3-318.0801 is a legacy WDP3 positioning controller and stepper drive identified in Schneider Electric's current Circular Certified repair catalogue for exact-model repair support.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for WDP3-318.0801
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for WDP3-318.0801

  • Manufacturer:
    Berger Lahr
  • Part Number:
    WDP3-318.0801
  • Product Family:
    Berger Lahr
  • Product Type:
    Stepper-Motor Positioning Controller
  • Stock:
    1
  • Product Range:
    WD, WDM, WP, WDP, WS (Berger Lahr)
  • Mains Supply:
    Selectable 115 VAC or 230–240 VAC
  • Mains Frequency:
    50–60 Hz
  • Nominal Input Current:
    8.0 A at 115 VAC; 4.5 A at 230 VAC
  • External Fuse:
    10 A at 115 VAC; 6 A at 230 VAC
  • Power Loss:
    80 W
  • Motor Voltage:
    3 × 325 VDC
  • Motor Phase Current:
    1.7–6.8 A
  • Processor Supply:
    24 VDC
  • Processor Operating Range:
    20–30 VDC
  • Processor Power Consumption:
    1 A maximum
  • Dimensions:
    8.5 x 26 x 29.9cm
  • Weight:
    4.74 kg
  • Tariff Code:
    8537109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Identification Integration Procurement Application
  • Integrated positioning controller and power stage for a three-phase stepping motor
  • Selectable 115 VAC or 230–240 VAC supply with 1.7–6.8 A motor phase-current adjustment
  • Documented .0801 configuration with dual RS 485 LS interfaces and EEPROM program storage

WDP3-318.0801 is a wall-mounted Berger Lahr positioning unit that combines programmable motion control with an integrated three-phase stepper-motor power controller.

The documented configuration is identified as 485L/485L/- EEP, corresponding to two RS 485 LS communication interfaces, no fitted encoder-interface option and EEPROM application-program storage.

Replacement requires the complete WDP3-318.0801 identity, interface configuration and saved application parameters to be verified before the original controller is disconnected.

Availability, condition, price, and shipping time for WDP3-318.0801 are confirmed during quotation.

Berger Lahr WDP3-318.0801 3-Phase Positioning Controller Manuals, Links

Important Notice: Other accessories, manuals, cables, connectors, motors, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Match the complete WDP3-318.0801 suffix
  • Record the D 485L interface configuration shown on the installed unit
  • Confirm order code and revision from the physical label
  • Preserve motion parameters before controller exchange
  • Verify motor type and cable pinout against the installed axis
  • Confirm communication addressing and host-controller settings
  • Request photographs of all labels and connectors
  • Confirm whether software, memory and terminal accessories are included
  • Use the Schneider repair reference when discussing service options
  • Legacy stepper positioning axes using the WDP3 platform
  • Machine motion systems requiring stored positioning logic
  • Installed equipment requiring exact WDP3-318.0801 service replacement
Description
WDP3-318.0801 is a Berger Lahr positioning controller for legacy stepper-motion systems.

Schneider Electric's Circular Certified catalogue confirms exact-model repair handling under repair reference 0065331802703RE and identifies the D 485L/485L/- EEP configuration.

Before replacement, compare the complete suffix, installed communication configuration, software and parameter set, motor type, connector assignment, supply data and any unit-specific revision label.
Alternative Names
WDP3-318.0801 WDP3318.0801 Berger Lahr WDP3-318.0801 Berger Lahr WDP3-318 Positioning Controller WDP3-318.0801 D 485L/485L/- EEP
Technical notes
WDP3-318.0801 is configuration-sensitive legacy hardware. Verify the complete model and unit label before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must be backed up before exchanging a Berger Lahr WDP3-318.0801?
Preserve the application program, axis and motor parameters, calibration values, communication addresses, I/O mapping and any machine-specific EEPROM data, and verify that the backup can be restored before removing the original unit.
Why can a Berger Lahr WDP3-318.0801 with the same base number still be incompatible?
The .0801 suffix, interface population, D 485L communication arrangement, EEPROM contents and hardware revision can differ, so the complete label and connector layout must match the installed controller.
What should be checked if a replacement Berger Lahr WDP3-318.0801 communicates but the axis will not enable?
Compare the enable and interlock chain, communication address, motor and feedback configuration, limit inputs, stored parameters and connector pinout with the removed unit before changing hardware.
How should a repaired Berger Lahr WDP3-318.0801 be accepted before it returns to production?
Verify power-up without faults, parameter retention, both communication channels, all safety-related enable signals, I/O operation and controlled low-speed axis movement before running the machine at normal speed.
Can parameters from another WDP3 unit be copied directly into a Berger Lahr WDP3-318.0801?
Copy them only when the motor, mechanics, option hardware, feedback device and firmware or hardware revision are confirmed equivalent; otherwise review and validate each motion and protection parameter.
What is the safest way to reduce downtime when a Berger Lahr WDP3-318.0801 is becoming unreliable?
Create a verified backup, document all labels and wiring, identify a tested repair or exchange source, prepare a rollback plan and commission the spare during planned downtime instead of waiting for a complete failure.
What proof should be requested before purchasing a used Berger Lahr WDP3-318.0801?
Request photographs of the full label, suffix, revision and interfaces, confirmation of the D 485L configuration, power-on and communication test results, repair history and a clear statement of included EEPROM or option modules.
