        2026-02-20 15:10:5811 min read

        How to Choose the Right Yokogawa DCS Part for Your Control System

        About the author
        Written by May, Managing Director of Apter Power
        May's Facebook:

        May has been working at Apter Power for 10 years, where she turns complex power-automation challenges into clear, executable plans.
        Drawing on deep product knowledge and field-proven methodologies, she has already supported 2 000+ customers in over 100 countries, maintaining a 96 % satisfaction score.

        In a running plant, choosing Yokogawa DCS parts is rarely a simple replacement exercise. The right part must align with process intent, the installed system revision, real field wiring constraints, and how your team maintains equipment under outage pressure. Miss one of these, and the issue often surfaces during a turnaround window or after the first redundancy event. Written from an operating perspective, this piece helps maintenance, instrumentation, and procurement teams make repeatable, low-risk decisions that prevent rework and protect uptime.

        Pin Down System Goals Before Selecting DCS Parts First

        Selecting the right Yokogawa DCS parts starts with clarity on what the system must deliver in day-to-day operation and during abnormal events. Once those goals are explicit, you can translate them into measurable requirements for I/O behavior, redundancy performance, and module specifications, then screen candidates with far less debate.

        Production Targets vs Control Precision

        Before you look at any module datasheet, lock in what “good control” means for your unit. A throughput-focused area usually depends on stable sequencing, predictable discrete behavior, and I/O performance that stays consistent when the system is busy. A quality-focused area leans on clean analog behavior, steady outputs, and repeatable responses during process swings.

        A practical way to document this is a short control intent statement for each critical loop group:

        • The process objective of the loop protects or optimizes
        • The response time the operation expects
        • The disturbance that the process can accept during faults or redundancy switchover

        With that intent captured, selection discussions stop being subjective and start becoming a technical match against measurable needs.

        Reliability and Uptime Expectations

        For output modules, pay attention to behavior during switchover, not only steady state accuracy. Yokogawa’s AAI543 general specifications describe switchover performance by response type, including how long the output can dip below 4 mA during switching: up to 100 ms for standard response and up to 2 ms for fast response, with a recommendation to use the fast response type for fast-acting field devices.

        This matters because some loops can ride through a brief dip, while others will translate it into a visible valve movement or a process upset. When uptime is the priority, choose parts that preserve the system’s designed failure behavior, then validate that behavior before the part becomes a trusted spare.

        Key Specifications and Ratings of DCS Parts Explained

        Specifications become valuable only when they are linked to field reality and the installed system architecture.

        Signal Range and Resolution

        For analog output selection, treat the loop as an electrical system, not a signal label. Yokogawa’s published specifications for AAI543 include these decision-making numbers:

        • 16 channels of 4 to 20 mA output
        • Allowable load resistance 0 to 750 Ω
        • Accuracy ±48 µA
        • Data update period 10 ms
        • Circuit open detection threshold less than 0.65 mA

        These values translate directly into engineering checks. Load resistance has to cover cable resistance, barrier or isolator voltage drop effects, and the input impedance of the final element. Update period and switchover behavior influence how the actuator behaves under real plant conditions.

        For digital inputs, the most common failure is assuming the wiring scheme is trivial. ADV169 is specified as a digital input module for Compatible ST6 with 64-channel input, isolation, and a “common minus side every 16 channels” grouping. That grouping has implications for power distribution, fault isolation, and troubleshooting.

        For communications, ALP121 is a PROFIBUS DP communication module that supports 9600 bps to 12 Mbps, specifies a maximum transmission distance of 1.2 km at 9600 bps, uses an EIA RS 485 compliant connection method, and provides isolation between the field and the system. DP V1 compliance is associated with style S2 or later. Those details should inform your network design and commissioning plan.

        Environmental Specifications (Temp and Humidity)

        Environmental fit is where “it works in the shop” can turn into “it drifts or fails on site.”

        1. Cabinet ambient temperature during worst-case operation, including summer peaks and fan or filter degradation.
        2. Corrosive atmosphere exposure and cabinet sealing strategy.
        3. Field termination quality, including vibration, strain relief, and grounding consistency.

        Where Yokogawa specifications call out installation constraints for certain variants or configurations, treat those constraints as acceptance criteria, not background reading.

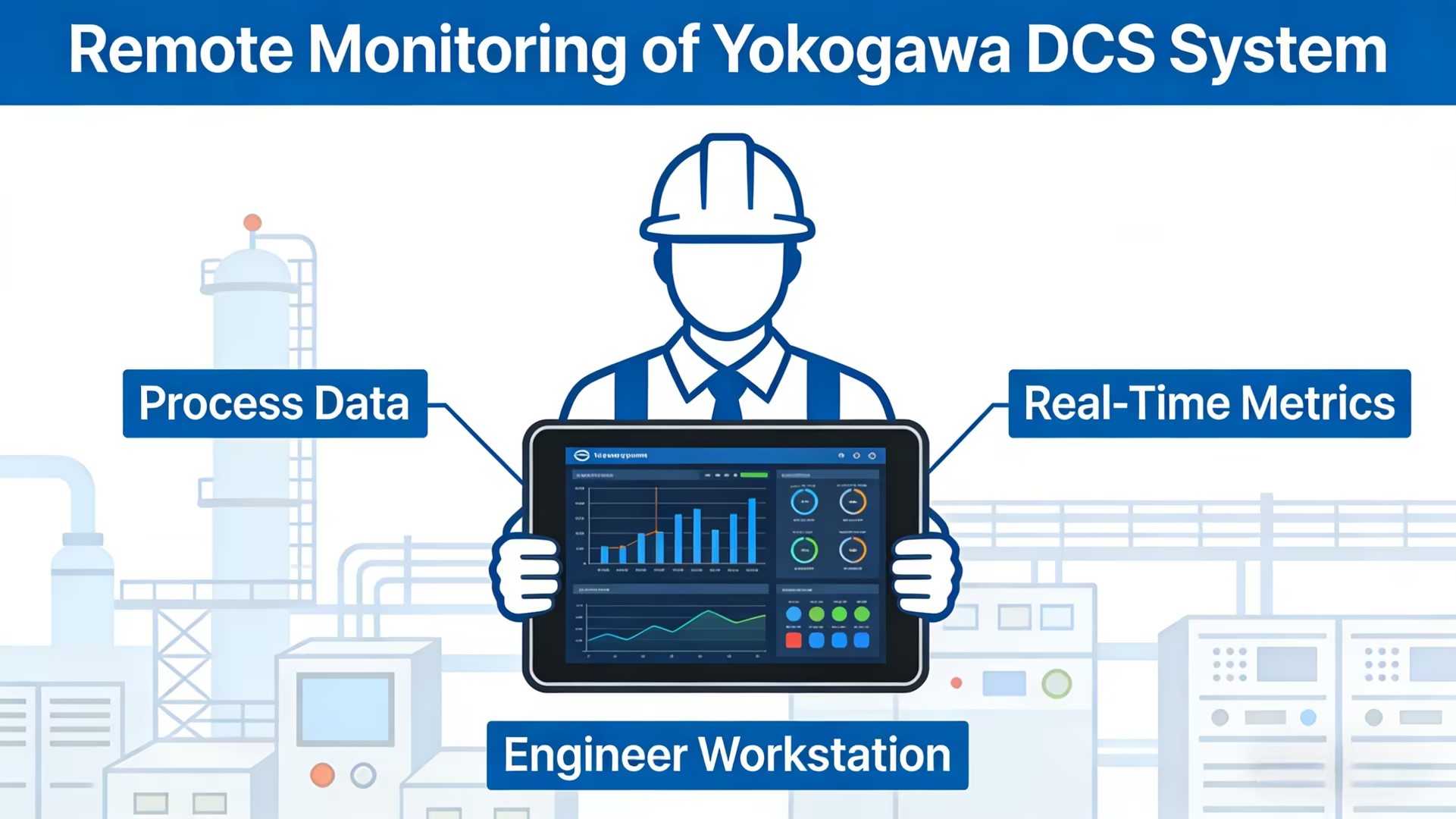

        An engineer using a tablet workstation to remotely monitor real-time process data and metrics on a Yokogawa DCS system.

        What Are Common Yokogawa DCS Modules and Typical Use Cases?

        Below are representative modules that appear often in spares and expansion work. The point is to connect a module type to a realistic use case and a small set of selection triggers.

        CP451 Processor Module

        CP451 is referenced by Yokogawa as a processor module in CENTUM-related technical documentation. In duplexed control unit configurations, the processor module is typically paired as part of the redundancy design.

        Use case signals that often justify CP451 procurement:

        • Restoring a controller to redundant operation after a failure
        • Keeping a validated spare on hand for high-criticality controller assemblies
        • Standardizing spare pools across units running the same controller generation and style

        For CP451, the biggest field risk is version and system alignment. Your installed system generation, controller type, and style alignment should be verified before any purchase order is released.

        ALP121 PROFIBUS DP Communication Module

        ALP121 is selected when the plant has a PROFIBUS estate and wants stable data exchange and diagnostics under the DCS engineering environment.

        Engineering triggers that justify ALP121 selection include:

        • Existing PROFIBUS DP remote I/O or smart devices that must remain in place
        • DP V1 requirements for acyclic communication and diagnostics
        • Distance and baud rate constraints that make segment design non-negotiable

        ALP121’s published interface and physical layer specifications should be treated as the baseline for segment design and commissioning planning.

        ADV169 Digital Input Module

        ADV169 fits high-density discrete input needs and supports wiring patterns that benefit from structured commoning.

        Selection triggers:

        • Dense marshalling and a desire to minimize cabinet footprint
        • A field wiring standard that already uses grouped common returns
        • Maintenance teams that prefer consistent fault isolation and channel grouping

        Because ADV169 groups common minus every 16 channels, it is worth aligning your power supply segmentation and marshalling layout with that structure.

        AAI543 Analog Output Module

        AAI543 fits when the plant needs a predictable 4 to 20 mA output module with published accuracy, load capability, and clear redundancy switchover behavior.

        Selection triggers:

        • Final elements with defined loop load budgets and known impedance
        • Loops sensitive to output disturbance during controller or module switchover
        • A preference for modules with clear diagnostic behavior, including circuit open detection

        Quick Reference Table

        Module Typical Role Field Focus Point
        CP451 Controller processor element in a redundancy architecture System revision, style alignment, redundancy pairing rules
        ALP121 PROFIBUS DP master interface for field integration Segment design, baud rate, distance, DP V1 needs
        ADV169 High density digital input Common grouping, wiring standards, isolation behavior
        AAI543 4 to 20 mA analog output Load budget, accuracy, update timing, switchover behavior

        How to Balance Cost Performance and Lifecycle Support

        Cost performance comes from avoiding last-minute buys and untested installs. Lifecycle support comes from knowing what you can still source, validate, and replace years from now.

        Map Lifecycle Risk Before You Buy

        Maintain a current baseline of what is installed, including the exact model, suffix, and style. Link each module to downtime impact and lead-time risk, then update the baseline after any controller, network, or cabinet change. This keeps your spare plan aligned with the real system, not an old spreadsheet.

        Build a Spare Policy by Criticality

        Stock spares based on consequence. Parts that can stop production or break redundancy need on-site coverage. Less critical items can rely on planned sourcing and a controlled installation window. This is the simplest way to keep procurement and engineering aligned on what is worth holding.

        Pre-Validate High-Critical Modules

        For high-criticality modules, validate before you trust the spare. Confirm identity against the baseline, run a basic power-up and diagnostic check, and verify the behavior that matters, such as analog output load capability and redundancy switchover response expectations. This prevents surprises during an outage.

        Align Supplier Support With Your Acceptance Plan

        If you source Yokogawa DCS spare parts for control through an independent supplier, treat warranty and returns as part of the risk plan. Clarify the support boundary in writing, then match it with incoming inspection and acceptance testing that fits the part’s criticality.

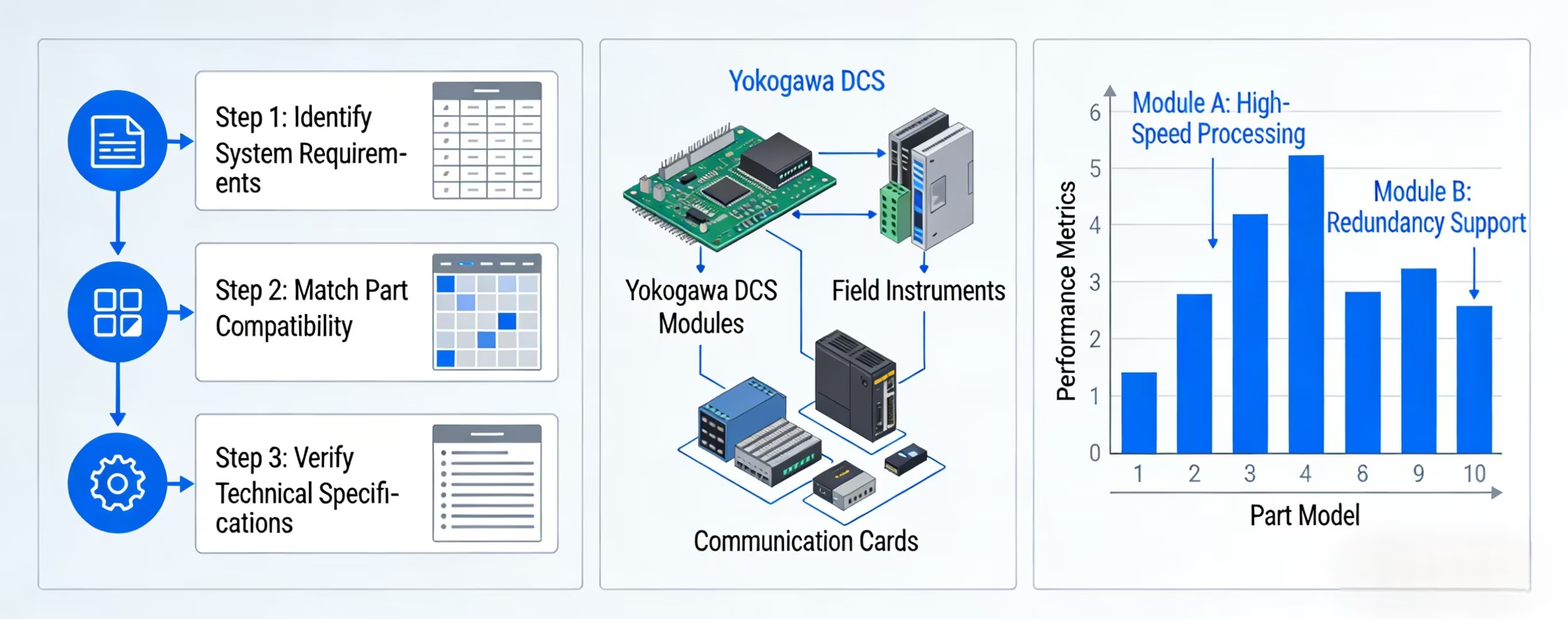

        An infographic illustrating the step-by-step process for selecting Yokogawa DCS system components, connecting requirements to hardware modules and performance metrics.

        What to Check for Compatibility with Field Devices and Control Systems

        Compatibility issues usually come from checking too late. Align the field side, the network design, and the DCS revision context before you buy.

        Standard Interfaces and Protocols

        With ALP121 on PROFIBUS-DP, confirm the slave devices and their GSD files match your intended diagnostics and data exchange, then verify the segment itself is built within real limits for termination, grounding, length, and baud rate. Finally, make sure the module fits the controller family and the required control function revision for your installed system. Treat the ALP121 specifications as fixed constraints and design around them.

        Backward Compatibility Issues

        Assume nothing is “close enough.” Match model, suffix, and style to the installed baseline, and verify any revision requirements for comms and interface modules. For AAI543, selection also needs to match the required switchover response behavior, because standard versus fast response can change how outputs behave during a redundancy event.

        Practical Workflow for DCS Part Selection and Procurement

        This workflow aims to keep engineering, maintenance, and procurement aligned and to keep the work auditable.

        1. Freeze the as-installed baseline: controller type, node types, module list with style and suffix, terminal board, and cabling standards.
        2. Translate system goals into acceptance criteria: I/O performance needs, redundancy behavior expectations, and network constraints.
        3. Screen candidate parts against published Yokogawa specifications, with special focus on analog load, update timing, and comms limits.
        4. Run a compatibility review: system revision requirements, style alignment, redundancy pairing rules.
        5. Write procurement terms that match outage reality: traceability evidence, warranty boundaries, and return process timing.
        6. Execute incoming inspection and acceptance testing before the part is released to production spares.

        Reduce Operational Risk Through Proper Yokogawa DCS Part Selection

        Most risk can be removed before a part reaches the cabinet. Verify the label and style against your installed baseline before buying, then treat each replacement as an engineering fit check. For analog outputs, confirm the loop load budget so the module can drive the device with margin. For redundancy, validate switchover behavior on the loops that matter, because response differences can translate into real process disturbance. For PROFIBUS work, lock down segment design and termination in advance instead of debugging during an outage. When sourcing through independent channels, document the warranty boundary and return path up front.

        FAQs about DCS Module Selection

        Q1: Which Specifications Matter Most for Harsh Environments?

        Temperature in the cabinet is usually the decisive factor, followed by corrosion exposure and termination quality. For analog outputs, load capability and drift behavior under temperature are especially important. For communications modules, grounding and termination discipline often decide long-term reliability.

        Q2: Can Similar Modules from Different Vendors Work Interchangeably?

        No. Interchangeability is rare in DCS environments because timing, isolation design, diagnostics behavior, and redundancy handling can differ even when signals look similar. If you must evaluate a substitute, run it as an engineering change with a defined test plan, documented acceptance criteria, and stakeholder sign-off.

        Q3: What Should Be Included in a Part Selection Checklist?

        A useful checklist for Yokogawa parts selection specifications includes identity, electrical fit, system fit, redundancy behavior, and commercial risk. Keep evidence for each item, especially label photos, key electrical limits, and revision requirements. That evidence reduces repeat work and helps procurement decisions survive audits.

        Core Principles of Yokogawa DCS Part Selection Driven by System Objectives

        System Requirements Over Component Specs
        Successful DCS part selection begins with operational clarity rather than technical data sheets. Defining how the system should behave during normal production and unexpected failures allows engineers to establish measurable criteria for input/output performance, redundancy functionality, and module characteristics. This approach shifts the decision-making process away from subjective preferences and toward objective verification of whether a component can meet documented operational demands.

        Module Selection Based on Application Reality

        Different control areas demand different performance characteristics from DCS components. Throughput-focused operations require stable discrete behavior and consistent input/output performance under heavy loads, while quality-critical processes depend on precise analog signal handling and repeatable responses during process variations. Understanding these application-specific needs helps determine whether features like switchover response times or signal accuracy thresholds will meaningfully impact field device behavior.

        Lifecycle Considerations Beyond Initial Purchase

        Long-term reliability depends on aligning component choices with both current system architecture and future supportability. Maintaining accurate documentation of installed equipment, establishing criticality-based sparing strategies, and validating high-impact components before deployment all contribute to operational stability.
