IC693MDL741G

/ 4.9
1001 reviews | Need a Specific Revision?
Complete-code sourcing for General Electric IC693MDL741G targets a Series 90-30 output entry whose G-suffix configuration requires exact label evidence.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IC693MDL741G
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC693MDL741G

  • Manufacturer:
    General Electric
  • Part Number:
    IC693MDL741G
  • Product Family:
    GE 90-30 Series PLC
  • Product Type:
    Series 90-30 Discrete Output Module
  • Stock:
    1
  • Weight:
    0.34 kg
  • Estimated shipping dimensions:
    3.5 x 13.2 x 13.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Suffix Evidence Circuit Match Replacement File

Features:

  • Independent complete-code sourcing control
  • Series 90-30 output-family context
  • Exact G-suffix verification required
IC693MDL741G is kept separate from other catalog numbers so quotation, label evidence, and installed records remain tied to the requested complete code.

The accessible manufacturer manual establishes a related base-family architecture as a sixteen-point sinking output arranged in two groups, but it does not establish what the G suffix changes or preserves.

A defensible match therefore depends on original label images and project evidence rather than transferring an assumed revision or substituting another Series 90-30 output by number alone.

Availability is subject to Apter Power's current inventory and sourcing confirmation.
IC693MDL741G Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
IC693MDL741G Series 90-30 Discrete Output Module Specs

General

  • ManufacturerGeneral Electric
  • ModelIC693MDL741G
  • ConditionNew Original ready stock
  • Product FamilyGE Series 90-30 PLC
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Complete-code acceptance record

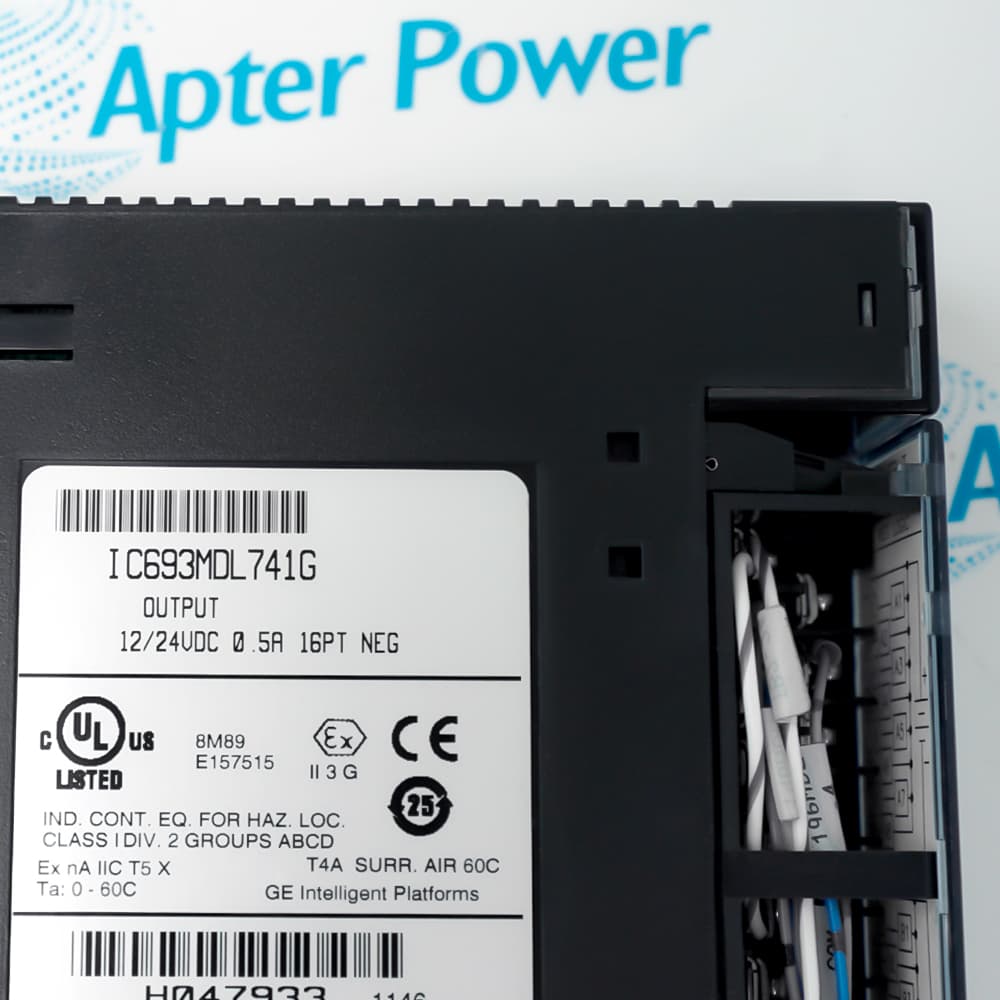

  • Label image: Capture a clear photograph showing the full requested code and all suffix markings.
  • Project record: Compare the label with the approved bill of materials and hardware configuration.
  • Manual limit: Do not present related base-family data as exact G-suffix proof.
  • Offer review: Match the offered label to the requested complete code before approval.

Negative-logic application checks

  • Current path: Confirm the installed design requires a sinking output arrangement.
  • Commons: Preserve both output-group common connections from the verified terminal record.
  • Load schedule: Retain operating current, inrush, polarity, and protection for every point.
  • Field power: Document the external supply serving the installed output circuits.

Evidence for controlled change

  • Before removal: Record the slot, terminal numbers, conductor labels, alarms, and machine state.
  • Isolation: Apply the site-approved electrical and process isolation procedure.
  • Return test: Prove each output and connected load against the approved test plan.
  • Archive: Store label photographs, wiring results, and the final hardware configuration.
Description
The complete requested code IC693MDL741G is handled as an independent Series 90-30 sourcing item on this page. GE Fanuc documentation for the related negative-logic output family establishes a 12/24 VDC, sixteen-point architecture, but the reviewed manufacturer manual does not print this complete G-suffixed code.

For procurement or installation, IC693MDL741G should therefore be matched from the complete nameplate, suffix markings, project bill of materials, baseplate slot, terminal map, commons, and field-load polarity. Related family data provide context only and do not prove every suffix-level detail.
Revisions

Revision Part #

Also known as

IC693MDL741 Rev A
IC693MDL741A, Revision A, Rev A
IC693MDL741 Rev E
IC693MDL741E, Revision E, Rev E
IC693MDL741 Rev G
IC693MDL741G, Revision G, Rev G
Alternative Names
IC693 MDL 741 G IC 693 MDL 741 G GE Series 90-30 G-suffix sinking output module 12/24 VDC negative-logic PLC output card Series 90-30 sixteen-point sinking output GE 741G discrete output module
Technical notes
Do not approve IC693MDL741G from a shortened base catalog reference. The reviewed GE Fanuc manual documents a related 12/24 VDC, negative-logic, 16-point module but does not identify the complete G-suffixed code; retain the full label, terminal record, slot assignment, and project bill of materials until exact applicability is confirmed.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is IC693MDL741G kept on a separate product page?
The requested complete code must remain distinct for sourcing and label control. It is not being treated as a revision row of another catalog number, and no cross-model parameter merge is used.
What official limitation applies to IC693MDL741G technical data?
The reviewed GE Fanuc manual documents a related base-family negative-logic architecture, but it does not print the complete G-suffixed code. Suffix-level claims therefore remain unconfirmed.
Which documents should be collected before ordering IC693MDL741G?
Use clear nameplate photographs, the project bill of materials, hardware configuration, baseplate and slot record, terminal drawing, conductor list, field-load schedule, and any manufacturer document that explicitly prints the complete code.
How should the output polarity of IC693MDL741G be checked?
Trace the installed common and load current path against the approved electrical drawing. The base family is documented as negative logic, but the complete offered label must still match the requested item before wiring transfer.
Can IC693MDL741G be approved from a shortened base-code datasheet alone?
No. A base-family manual is useful for context, yet it does not establish the G-suffix scope. Approval requires exact-code evidence or confirmed installed documentation that connects the suffix to the application.
What should an IC693MDL741G quotation request contain?
Send the full label image, quantity, condition, baseplate slot, wiring and common record, load polarity, project reference, destination, inspection scope, and required date; flag any missing exact-suffix document for review.
