    Apter Power can assist with Mark VI board identification, drawing review, and sourcing for IS200TPROH1BCB.

IS200TPROH1BCB

/ 4.9
1001 reviews | Need a Specific Revision?

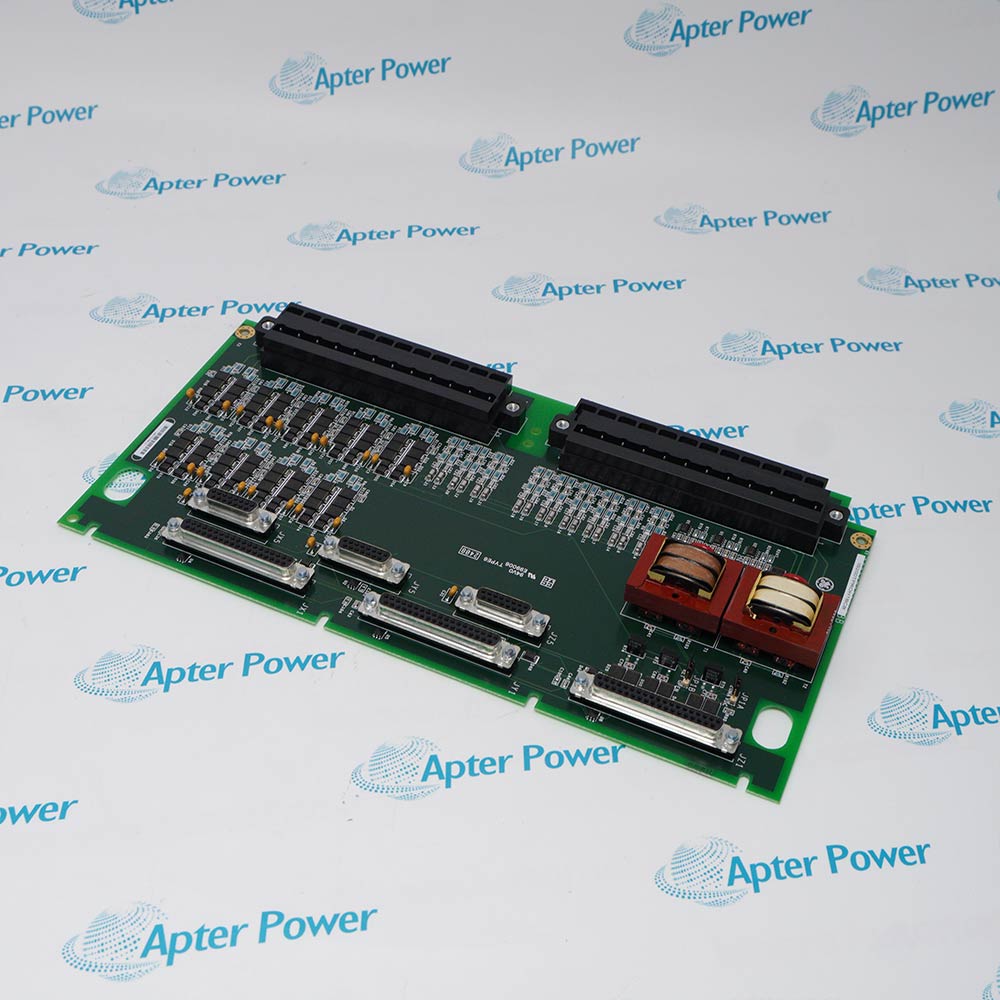

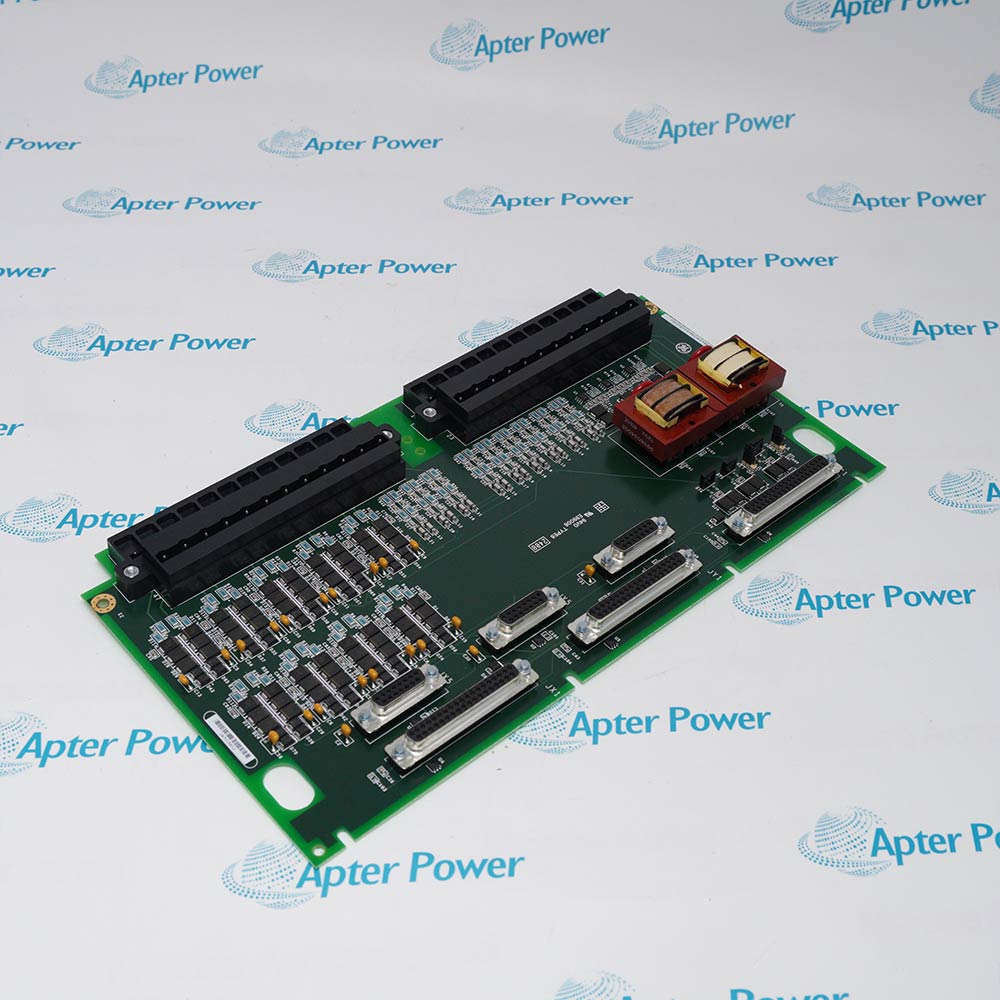

GE Vernova IS200TPROH1BCB is an H1B revision TPRO protection terminal board used in GE Mark VI and Mark VIe turbine-control protection circuits. Use the complete order code when matching a replacement.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS200TPROH1BCB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200TPROH1BCB

  • Manufacturer:
    General Electric
  • Part Number:
    IS200TPROH1BCB
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    Protection Terminal Board
  • Stock:
    1
  • Board series:
    TPRO
  • Hardware revision:
    H1BCB
  • System family:
    Mark VI / Mark VIe
  • Primary role:
    Protection signal termination
  • Application domain:
    Turbine trip circuits
  • Field connection:
    Pluggable terminal blocks
  • Internal connection:
    Multi-pin cable connectors
  • Configuration items:
    Board jumpers
  • Measured size:
    33 x 17.7 x 3 cm
  • Measured mass:
    0.62 kg
  • Safety function:
    System-level protection path
  • Replacement rule:
    Exact suffix and drawing check
  • Test requirement:
    Trip-path functional proof
  • Weight:
    1.367 lbs (0.62 kg)
  • Estimated shipping dimensions:
    33 x 17.7 x 3 cm
  • Tariff Code:
    8538909190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Control Integration Trip Circuits

Features:

  • The ordered configuration is an H1B revision TPRO protection terminal board used in GE Mark VI and Mark VIe turbine-control protection circuits.
  • In service, the hardware terminates and routes the field and control signals associated with the system's turbine trip/protection path.
  • Correct selection depends on complete H1BCB suffix, companion protection hardware, jumper positions, terminal schedule and cabinet drawing.
The current order is identified by the complete IS200TPROH1BCB marking and its documented relationship to GE Mark VIe Control.

The hardware is used in gas and steam turbine control cabinets requiring the documented protection termination assembly, where it terminates and routes the field and control signals associated with the system's turbine trip/protection path.

Installation planning must account for complete H1BCB suffix, companion protection hardware, jumper positions, terminal schedule and cabinet drawing. trip circuits are safety critical; prove every jumper, relay path and terminal conductor before the unit is returned to service

Availability is confirmed against the complete model, revision, quantity and delivery destination.
Verified resources for GE Vernova IS200TPROH1BCB:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supports gas and steam turbine control cabinets requiring the documented protection termination assembly without changing the documented host architecture.
  • Serves maintenance teams restoring the original GE Mark VIe Control signal, control or power path.
  • Fits modernization planning when the existing installation must remain operational while a long-term migration is evaluated.
  • The unit's performance is defined by how reliably it terminates and routes the field and control signals associated with the system's turbine trip/protection path.
  • Stable operation requires the source, load and connected interfaces to remain inside the published system design.
  • Application results should be verified with the host diagnostics and the real gas and steam turbine control cabinets requiring the documented protection termination.
  • System matching is governed by complete H1BCB suffix, companion protection hardware, jumper positions, terminal schedule and cabinet drawing.
  • The surrounding GE Mark VIe Control hardware must retain the connector, addressing and project relationships documented for this order code.
  • A cross-family or partial-number substitution is not approved unless the OEM service record explicitly defines it against other IS200TPROH1B revisions.
  • De-energize all applicable power and field circuits and apply the OEM procedure before this hardware is removed.
  • The high-risk selection point is that trip circuits are safety critical; prove every jumper, relay path and terminal conductor before the unit is returned to service
  • Protective grounding, interlocks and fail-safe behavior must be proven at system level before normal service resumes.
Description
GE Vernova IS200TPROH1BCB defines an H1B revision TPRO protection terminal board used in GE Mark VI and Mark VIe turbine-control protection circuits. The complete order identity ties this hardware to the GE Mark VIe Control platform rather than to a visually similar device.

Within the installed architecture, it terminates and routes the field and control signals associated with the system's turbine trip/protection path. Its principal connection boundary is terminal blocks, protection I/O connectors and cabinet wiring defined by the installed TPRO hardware revision, making the unit suitable for gas and steam turbine control cabinets requiring the documented protection termination assembly.

For a controlled replacement, confirm complete H1BCB suffix, companion protection hardware, jumper positions, terminal schedule and cabinet drawing. Trip circuits are safety critical; prove every jumper, relay path and terminal conductor before the unit is returned to service
Alternative Names
IS200TPROH1BCB GE Vernova IS200TPROH1BCB IS200TPROH1BCB Protection Terminal Board GE Vernova Mark VIe Protection Terminal Board IS200TPROH1BCB GE Mark VIe Control GE Vernova IS200TPROH1BCB spare GE Vernova IS200TPROH1BCB replacement GE Vernova Protection Terminal Board
Technical notes
During a IS200TPROH1BCB exchange, trip circuits are safety critical; prove every jumper, relay path and terminal conductor before the unit is returned to service
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What protection terminal board confirms the exact IS200TPROH1BCB configuration?
Use the complete model and the defining configuration: an H1B revision TPRO protection terminal board used in GE Mark VI and Mark VIe turbine-control protection circuits. Include every suffix and secondary assembly number shown on the nameplate.
Which installed-system evidence is decisive for matching IS200TPROH1BCB as a protection terminal board?
Confirm complete H1BCB suffix, companion protection hardware, jumper positions, terminal schedule and cabinet drawing. The match must be made to the installed GE Mark VIe Control records, not only to appearance.
Where does IS200TPROH1BCB perform its documented protection terminal board duty?
The documented application is gas and steam turbine control cabinets requiring the documented protection termination assembly. In service, it terminates and routes the field and control signals associated with the system's turbine trip/protection path.
How should a buyer establish the present supply route for IS200TPROH1BCB?
The OEM lifecycle is recorded as Active / Available from OEM. Apter Power confirms actual condition, available quantity, lead time and destination before issuing a dated offer.
What field condition can prevent a like-for-like IS200TPROH1BCB replacement?
Trip circuits are safety critical; prove every jumper, relay path and terminal conductor before the unit is returned to service Compare the proposed unit with other IS200TPROH1B revisions only through official service documentation.
Which records should accompany a IS200TPROH1BCB datasheet and quotation request?
Send clear nameplate photos, host model, revision, wiring or slot reference, required quantity, destination and requested delivery date so the exact datasheet and quotation can be matched.
